Product Overview

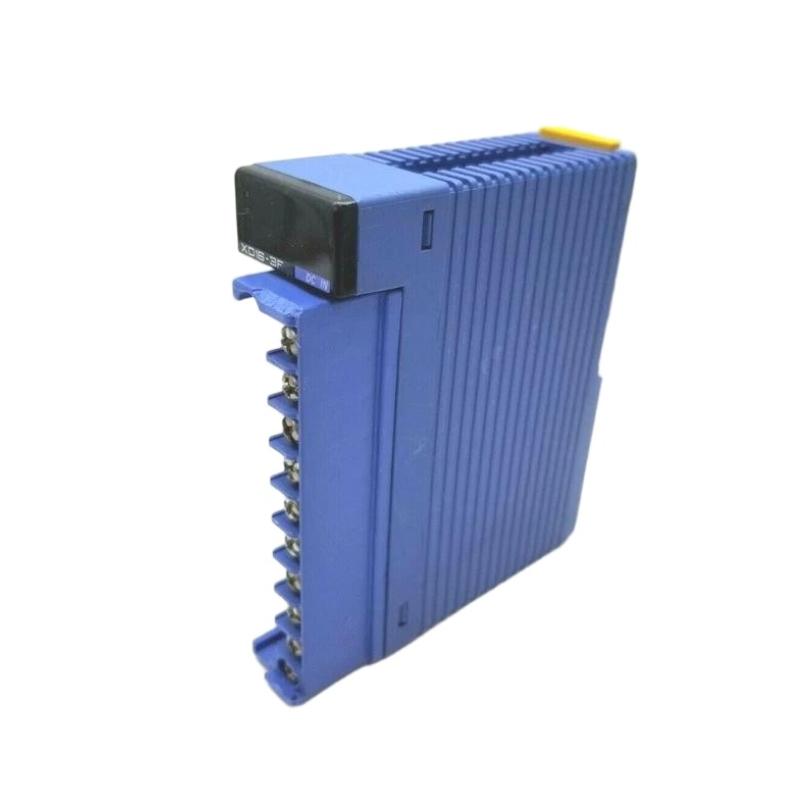

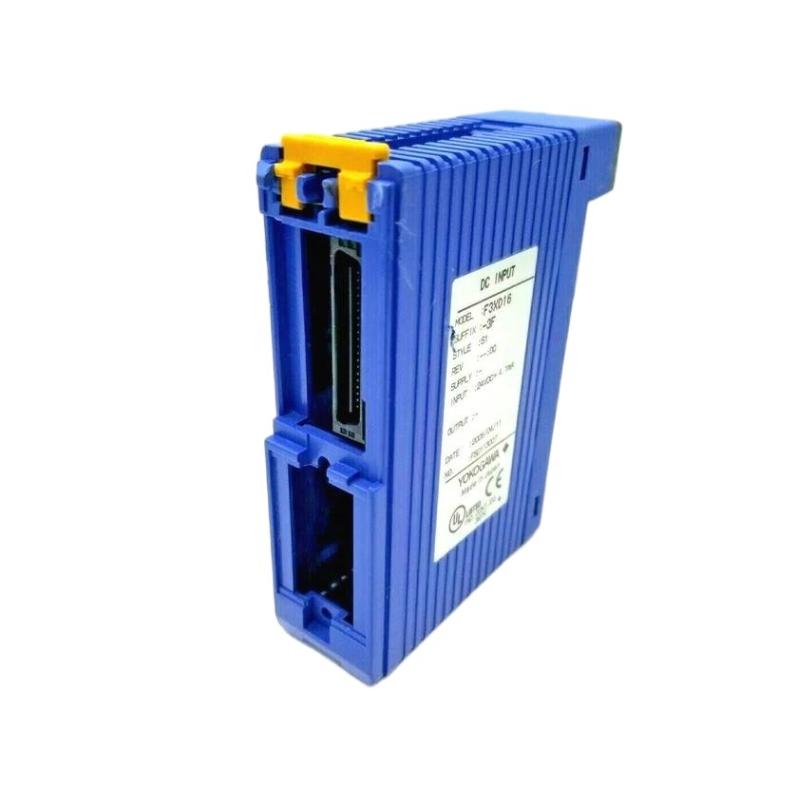

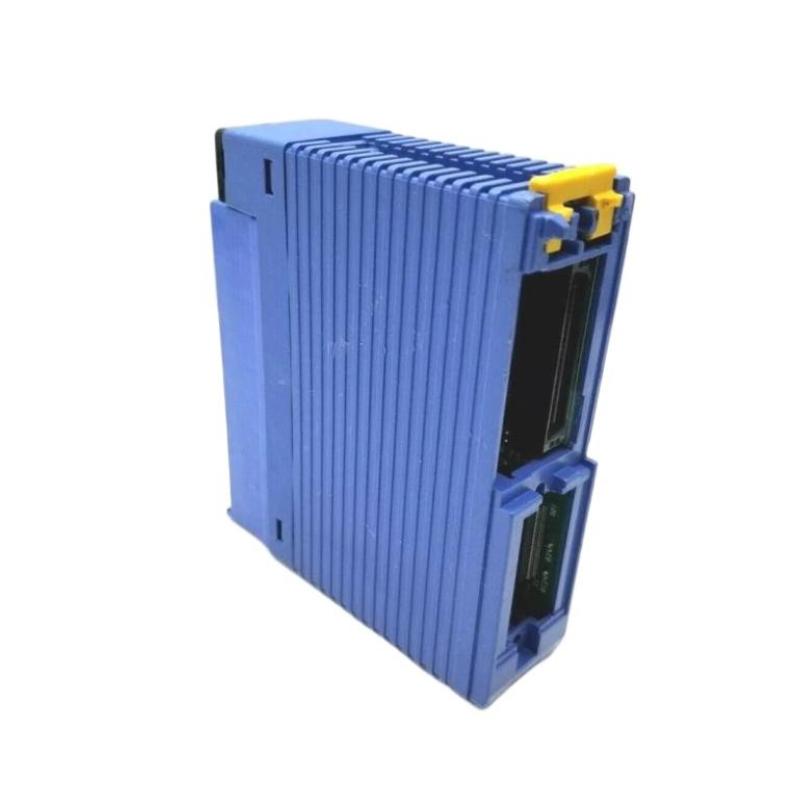

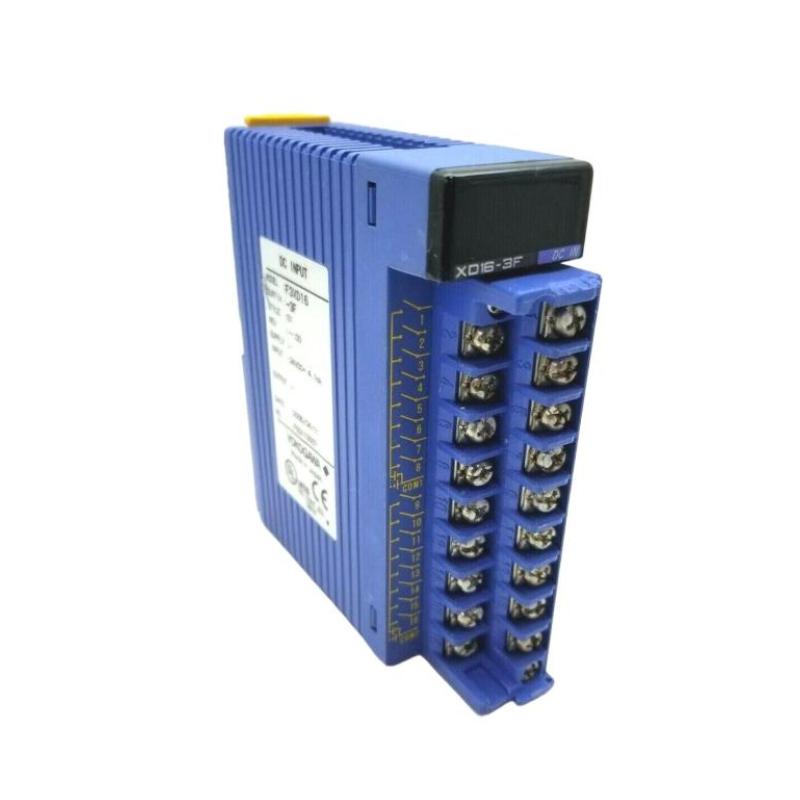

The Yokogawa F3XD16-3F is a 16-point DC Input Module designed for the FA-M3 PLC Series. It is used to receive digital signals from field devices such as proximity sensors, photoelectric sensors, push buttons, limit switches, and relay contacts, converting these signals into input data for PLC processing.
Designed for 24 V DC industrial control systems, the F3XD16-3F features photocoupler isolation, configurable input response times, and interrupt processing capability, ensuring fast, accurate, and reliable signal acquisition in demanding automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3XD16-3F |
| Product Type | DC Input Module |
| PLC Platform | FA-M3 Series |
| Number of Input Channels | 16 Digital Inputs |
| Input Type | DC Voltage (Positive Common) |
| Rated Input Voltage | 24 V DC |
| Operating Voltage Range | 20.4–26.4 V DC |
| Rated Input Current | 4.1 mA per Channel |
| Input Impedance | 5.9 kΩ |
| ON Voltage | ≥16.0 V DC |
| OFF Voltage | ≤5.8 V DC |
| Isolation Method | Photocoupler Isolation |
| Response Time | Selectable: 0 μs, 62.5 μs, 250 μs, 1 ms, or 16 ms |
| Interrupt Function | Supported for Each Input Channel |
| Common Configuration | 8 Points per Common |
| External Connection | 18-Point Terminal Block (M3.5 Screw Terminals) |
| LED Indicators | Individual Input Status LEDs |
| Power Consumption | 65 mA (5 V DC Backplane Supply) |
| Mounting Method | FA-M3 Base Unit |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.16 kg |
Function and Working Principle
The F3XD16-3F continuously monitors digital DC input signals from connected field devices and transfers their ON/OFF status to the FA-M3 CPU.
Each input channel is electrically isolated using photocouplers, protecting the PLC from electrical noise and voltage disturbances. During every PLC scan cycle, the CPU reads the input status, executes the user program, and updates system outputs accordingly. Adjustable input filtering helps eliminate signal noise while supporting high-speed response when required.
Operating Sequence
- Receive DC signals from field devices.
- Detect input status changes.
- Convert electrical signals into digital PLC data.
- Transfer input information to the CPU.
- Execute the user control program.
- Repeat the scan cycle continuously.
DC Input→Input Module→PLC CPUDC\;Input\rightarrow Input\;Module\rightarrow PLC\;CPU
Key Features
- 16 digital DC input channels
- 24 V DC industrial input
- Positive common input configuration
- Photocoupler isolation for electrical protection
- Selectable high-speed response times
- Supports input interrupt processing
- Individual LED status indicators
- Reliable signal acquisition
- Compact FA-M3 module design
System Role
The F3XD16-3F functions as the digital input interface between field devices and the FA-M3 PLC controller.
Typical Control Architecture
Sensors / Push Buttons / Limit Switches → F3XD16-3F DC Input Module → PLC CPU → Output Modules → Motors, Relays, Solenoid Valves
The module ensures accurate digital signal acquisition for real-time industrial automation.
Industrial Applications
The F3XD16-3F is widely used in:
- Factory automation
- Packaging machinery
- Conveyor systems
- Assembly lines
- Automotive manufacturing
- Semiconductor equipment
- Material handling systems
- Food and beverage processing
- Water treatment plants
- General industrial automation
Installation Guidelines
- Install the module into a compatible FA-M3 base unit.
- Disconnect system power before installation or replacement.
- Verify that field devices operate at 24 V DC.
- Connect wiring using the specified 18-point terminal block.
- Observe the correct positive common wiring configuration.
- Ensure proper grounding to reduce electrical interference.
- Test all input channels before system commissioning.
Compatible Components
The F3XD16-3F is compatible with:
- FA-M3 CPU Modules
- FA-M3 Base Units
- FA-M3 Power Supply Modules
- Digital Output Modules
- Analog Input Modules
- Analog Output Modules
- Ethernet Communication Modules
- Serial Communication Modules
- Motion Control Modules
- Positioning Modules
- Remote I/O Modules
Alternative Models
| Model | Description |
|---|---|
| F3XD08-6F | 8-Point DC Input Module |
| F3XD16-4F | 16-Point 12 V DC Input Module |
| F3XD16-3H | High-Speed 16-Point DC Input Module |
| F3XD32-3F | 32-Point DC Input Module |
| F3XD64-3F | 64-Point DC Input Module |
Advantages
- High-density 16-point digital input
- Reliable photocoupler isolation
- Configurable response times
- Supports interrupt processing
- Excellent noise immunity
- Compact and lightweight construction
- Easy installation and maintenance
- Seamless integration with FA-M3 PLC systems
Frequently Asked Questions
What is the primary function of the F3XD16-3F?
It receives digital DC input signals from field devices and transfers them to the FA-M3 PLC CPU for processing.
How many input channels does the module provide?
The module provides 16 digital DC input channels.
What operating voltage does the F3XD16-3F support?
The module is designed for 24 V DC input signals.
Does the module provide electrical isolation?
Yes. Each input channel is protected by photocoupler isolation, improving system reliability and resistance to electrical noise.
What applications is the F3XD16-3F suitable for?
It is commonly used in factory automation, machine control, conveyor systems, packaging equipment, automotive manufacturing, process automation, and other industrial control applications.
Conclusion
The Yokogawa F3XD16-3F DC Input Module is a reliable and compact digital input solution for the FA-M3 PLC platform. Featuring 16 digital input channels, 24 V DC operation, photocoupler isolation, configurable response times, and interrupt processing capability, it provides accurate signal acquisition and dependable performance for a wide range of industrial automation and machine control systems.
