Product Overview

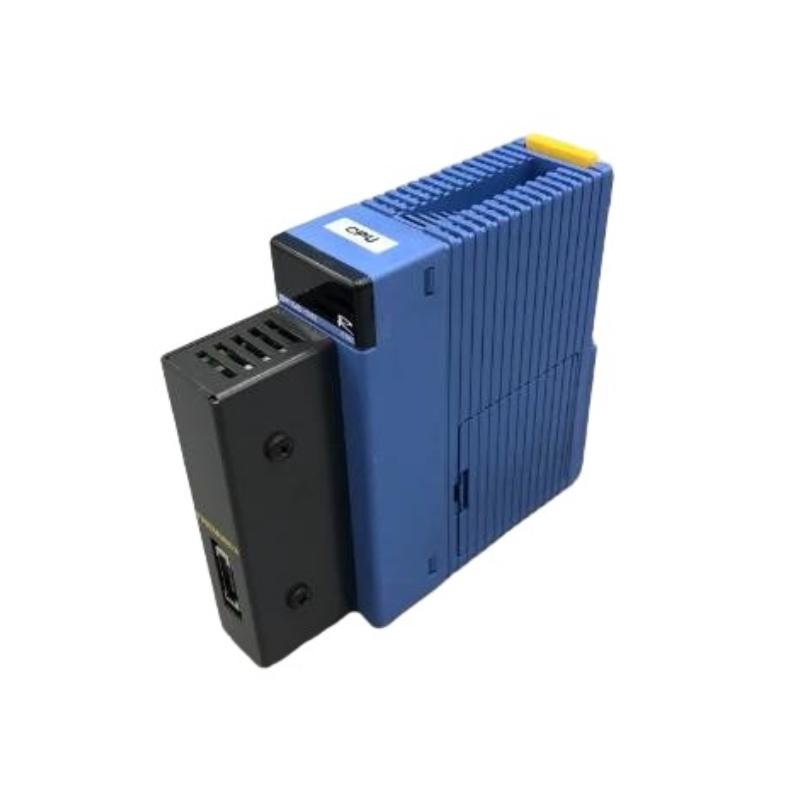

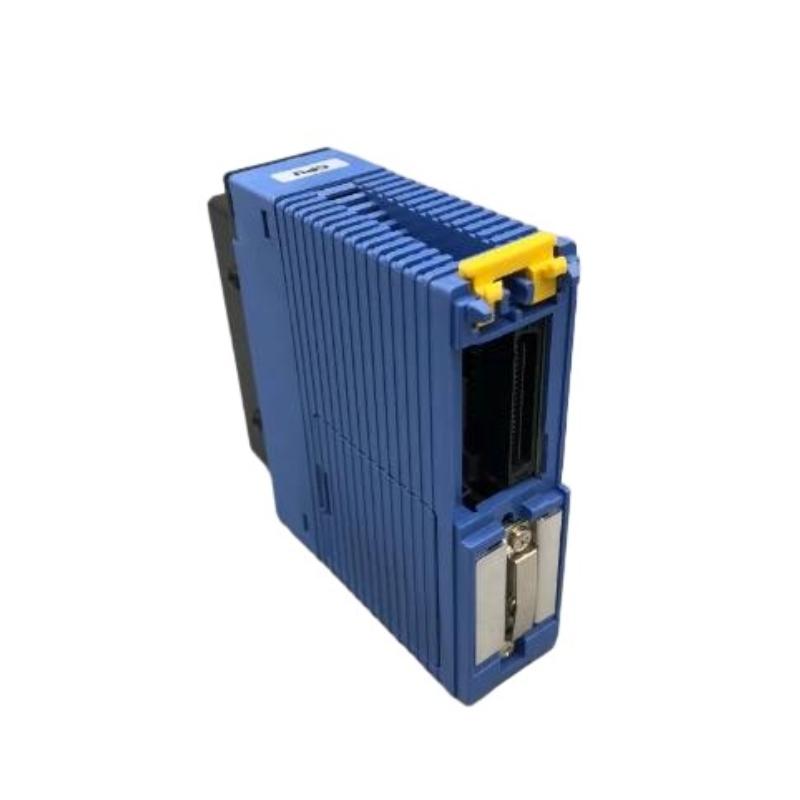

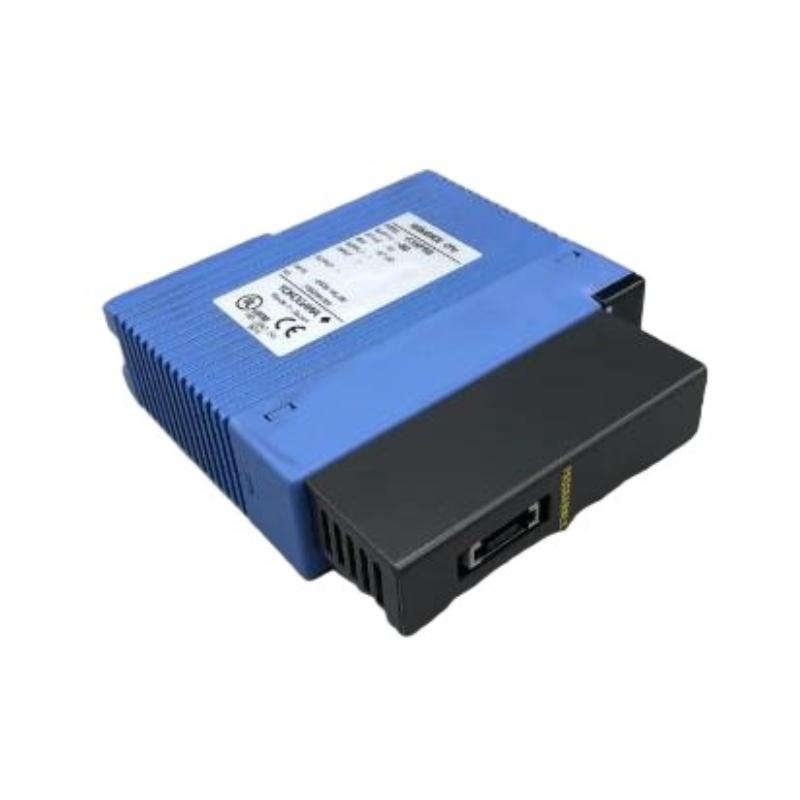

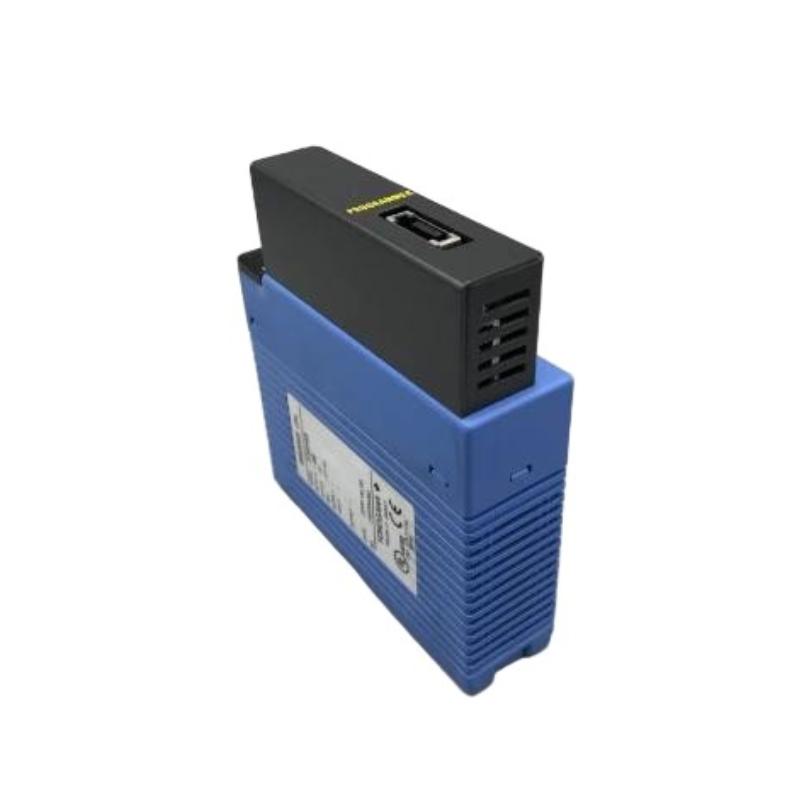

The Yokogawa F3SP58-6S is a high-performance Sequence CPU Module for the FA-M3 PLC Series. Designed for complex industrial automation systems, it functions as the central processing unit responsible for executing ladder logic programs, processing real-time control tasks, managing data communication, and coordinating all connected I/O and special function modules.
Featuring a 120K-step program capacity, ultra-fast instruction execution, and support for up to 8,192 I/O points, the F3SP58-6S is ideal for large-scale manufacturing, process control, motion control, and high-speed automation applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3SP58-6S |
| Product Type | Sequence CPU Module |
| PLC Platform | FA-M3 Series |
| Control Method | Stored Program Cyclic Execution |
| Programming Language | Ladder Diagram (LD), Mnemonic Language |
| Program Capacity | 120K Steps |
| Basic Instruction Execution Speed | 0.0175–0.07 μs per instruction |
| Application Instruction Speed | 0.07 μs per instruction |
| Maximum I/O Capacity | Up to 8,192 I/O Points |
| Internal Relay Capacity | 32,768 Points |
| Data Register Capacity | 32,768 Registers |
| File Register Capacity | 262,144 Registers |
| Programming Interface | Dedicated Programming Connector |
| LED Indicators | RDY, RUN, ALM, ERR |
| Diagnostic Functions | CPU, Memory, I/O, and Program Self-Diagnostics |
| Power Supply | 5 V DC (via FA-M3 Base Unit) |
| Mounting Method | FA-M3 Base Unit Installation |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.125 kg |
Function and Working Principle
The F3SP58-6S serves as the processing core of the FA-M3 PLC system. During operation, it continuously scans input signals, executes the user-defined ladder program, performs arithmetic and logical operations, updates internal memory, and refreshes output signals to control connected field devices.
Its high-speed processor and large memory capacity enable efficient execution of complex automation programs while maintaining deterministic system performance.
Operating Sequence
- Read input signals from digital and analog I/O modules.
- Execute the stored ladder logic program.
- Process timers, counters, arithmetic, and control instructions.
- Update internal memory and system registers.
- Refresh output modules.
- Repeat the scan cycle continuously.
Input→CPU Processing→Ladder Execution→OutputInput\rightarrow CPU\;Processing\rightarrow Ladder\;Execution\rightarrow Output
Key Features
- High-performance sequence processing
- 120K-step program capacity
- Ultra-fast instruction execution
- Supports up to 8,192 I/O points
- Built-in self-diagnostic and error monitoring
- Real-time deterministic control
- Supports online programming and maintenance
- Flexible expansion with FA-M3 modules
- Reliable operation for complex automation systems
System Role
The F3SP58-6S functions as the central controller of the FA-M3 PLC system, coordinating communication between all connected modules and executing automation logic in real time.
Typical Control Architecture
Sensors → Input Modules → F3SP58-6S CPU → Output Modules → Motors, Valves, Actuators
The CPU ensures synchronized operation, fast response, and stable control across the entire automation system.
Industrial Applications
The F3SP58-6S is widely used in:
- Manufacturing automation
- Automotive production lines
- Semiconductor manufacturing
- Packaging and labeling systems
- Robotics and motion control
- Material handling equipment
- Process control systems
- Water and wastewater treatment
- Power and energy management
- Chemical and pharmaceutical production
Installation Guidelines
- Install the CPU module in a compatible FA-M3 base unit.
- Disconnect system power before installation or replacement.
- Verify compatibility with power supply and expansion modules.
- Secure the module firmly into the backplane connector.
- Ensure adequate ventilation inside the control cabinet.
- Use proper grounding practices to minimize electrical interference.
- Perform system diagnostics before commissioning.
Compatible Components
The F3SP58-6S is compatible with:
- FA-M3 Base Units
- FA-M3 Power Supply Modules
- Digital Input Modules
- Digital Output Modules
- Analog Input Modules
- Analog Output Modules
- Ethernet Communication Modules
- Serial Communication Modules
- Positioning Modules
- Motion Control Modules
- Remote I/O Modules
- Special Function Modules
Alternative Models
| Model | Description |
|---|---|
| F3SP28-3N | Standard High-Speed CPU Module |
| F3SP28-3S | Enhanced Sequence CPU Module |
| F3SP38-6N | High-Performance CPU Module |
| F3SP53-4S | Advanced Sequence CPU Module |
| F3SP59-7S | Premium High-Capacity CPU Module |
Advantages
- Large 120K-step program memory
- High-speed instruction processing
- Supports large-scale PLC systems
- Excellent real-time performance
- Comprehensive diagnostic capabilities
- Flexible modular expansion
- Compact and lightweight design
- Reliable long-term industrial operation
Frequently Asked Questions
What is the primary function of the F3SP58-6S?
It serves as the central CPU of the FA-M3 PLC system, executing automation programs, processing I/O data, and coordinating system operations.
What is the program capacity of this CPU?
The F3SP58-6S supports 120K steps of ladder program memory.
How many I/O points can it support?
The module supports up to 8,192 I/O points, making it suitable for large-scale automation systems.
Does it include diagnostic functions?
Yes. The CPU features built-in self-diagnostics for CPU status, memory, I/O modules, and program execution, with front-panel LED status indicators.
What industries commonly use this CPU module?
It is widely used in manufacturing, automotive, semiconductor, packaging, robotics, process control, energy management, and other industrial automation applications.
Conclusion
The Yokogawa F3SP58-6S CPU Module is a powerful controller designed for high-end FA-M3 PLC systems. Combining 120K-step program capacity, ultra-fast processing performance, support for up to 8,192 I/O points, and advanced diagnostic capabilities, it provides a reliable and scalable solution for demanding industrial automation and process control applications.
