Product Overview

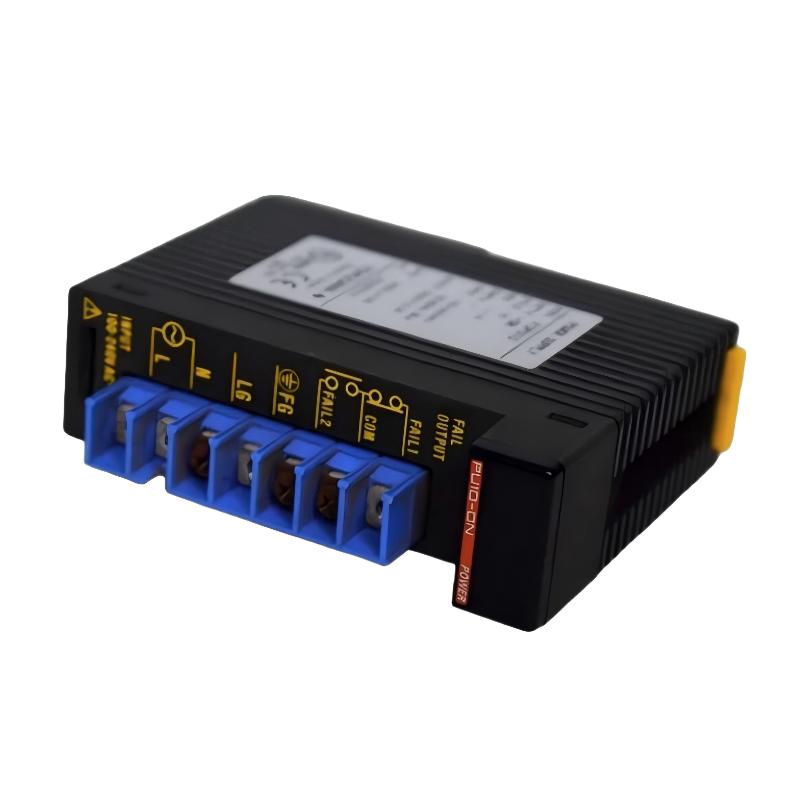

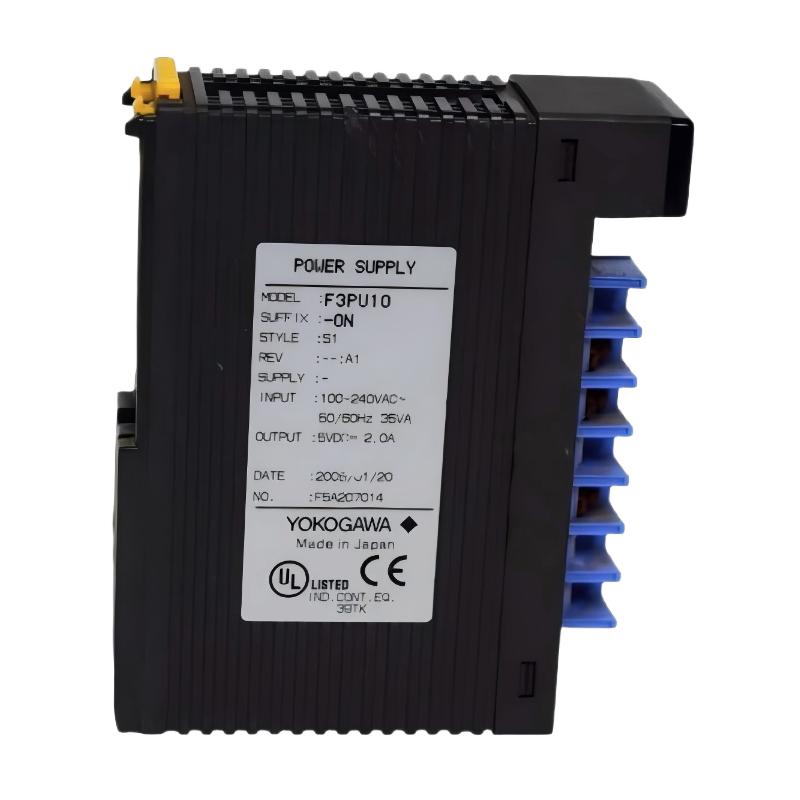

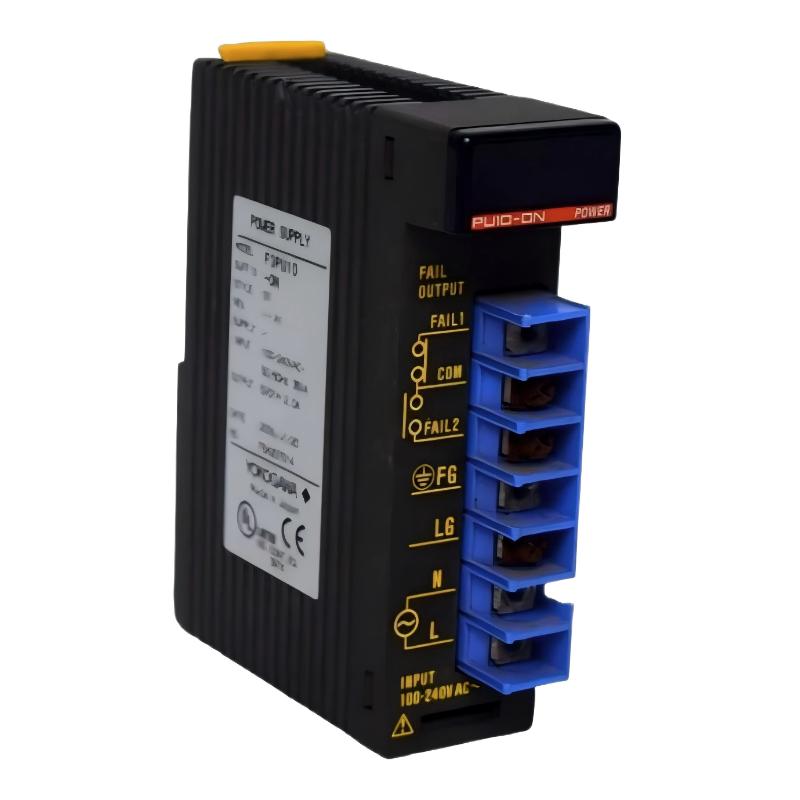

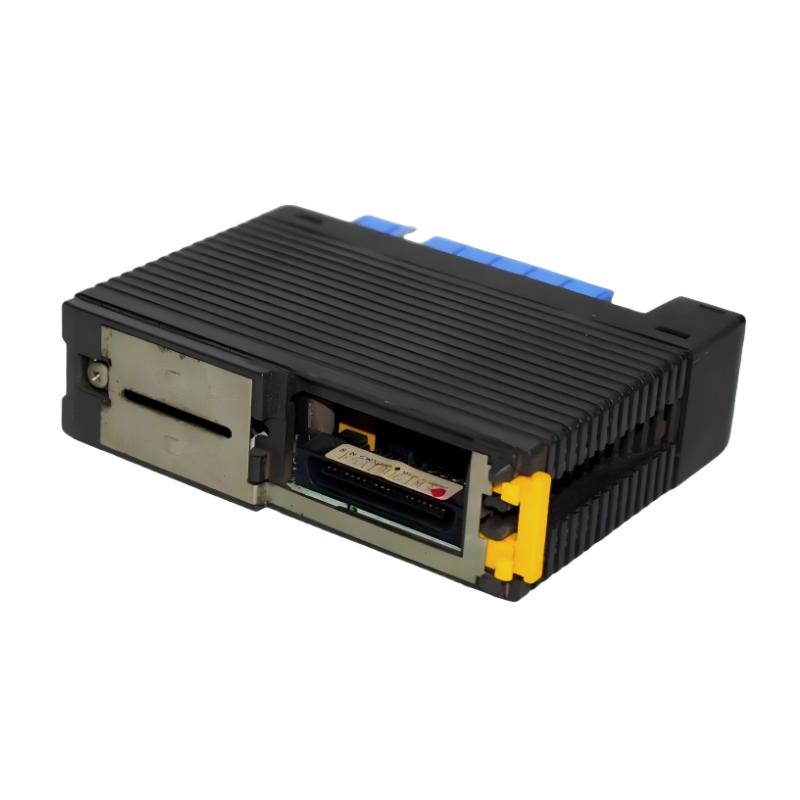

The Yokogawa F3PU10-0N is a Power Supply Module designed for the FA-M3 PLC system. It provides a stable DC power source for PLC CPUs, I/O modules, and communication modules, ensuring reliable operation of the entire automation system.
It converts AC mains input into regulated 5V DC output, supplying the internal backplane power required by FA-M3 rack systems. This module is specifically designed for small to medium FA-M3 base units.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3PU10-0N |
| Product Type | PLC Power Supply Module |
| System Compatibility | FA-M3 PLC system |
| Input Voltage | 100–240 V AC (single-phase, 50/60 Hz) |
| Input Range | 85–264 V AC |
| Output Voltage | 5 V DC |
| Output Current | 2.0 A |
| Output Power | ~10 W |
| Power Consumption | ~35 VA |
| Inrush Current | Up to 45 A (at 240 V AC) |
| Efficiency | Industrial-grade regulated supply |
| Protection | Overcurrent, overvoltage, internal fuse protection |
| Allowable Momentary Power Failure | ~20 ms (standard mode) |
| Insulation Voltage | 1500 V AC (1 minute) |
| Leakage Current | ≤ 3.5 mA |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.19 kg |
Function and Working Principle
The F3PU10-0N acts as the primary power conversion unit in FA-M3 systems.
Working Principle
- AC mains power (100–240V) is supplied to the module
- Internal rectification converts AC → DC
- Switching regulator stabilizes output to 5V DC
- Regulated power is distributed to CPU and I/O modules via backplane
- Built-in protection circuits ensure stable operation under load changes
AC (100–240V)→DC Conversion→5V Stable Output→FA-M3 ModulesAC\,(100–240V) \rightarrow DC\,Conversion \rightarrow 5V\,Stable\,Output \rightarrow FA\text{-}M3\,Modules
Key Functions
- Converts AC power to regulated 5V DC system power
- Supplies FA-M3 CPU and I/O modules via backplane
- Ensures stable operation of PLC system
- Supports wide input voltage range (100–240 V AC)
- Provides protection against overload and voltage fluctuations
- Built-in fault detection and safety shutdown behavior
- Compact design for rack-based PLC systems
System Role
The module serves as the core energy supply unit:
AC Power → F3PU10-0N → FA-M3 Backplane → CPU + I/O + Communication Modules
It is essential for:
- PLC system startup and operation
- Stable industrial control power distribution
- Maintaining system reliability in automation environments
Industrial Applications
- Factory automation systems
- Process control systems
- Manufacturing machinery
- Water treatment control panels
- Packaging and assembly systems
- Energy and utility automation
- Small-scale distributed control systems
Installation Guidelines
- Install in FA-M3 base unit (compatible rack only)
- Connect to AC mains (100–240V) properly grounded
- Ensure correct base module compatibility (e.g., F3BU04 / F3BU06)
- Do not exceed rated output current (2.0 A at 5V DC)
- Ensure proper ventilation in control cabinet
- Turn off power before installation or replacement
- Follow grounding and shielding requirements for safety
Compatible Systems
- Yokogawa FA-M3 PLC base units
- CPU modules and I/O modules
- Communication modules (Ethernet, fieldbus, etc.)
- FA-M3 expansion racks
Key Advantages
- Wide-range AC input (100–240 V)
- Stable regulated 5V DC output
- Reliable industrial-grade design
- Compact and lightweight (0.19 kg)
- Integrated protection circuits
- Designed specifically for FA-M3 system compatibility
- Long operational lifetime (industrial duty cycle rated)
Technical FAQs
Q1: What is the main function of the F3PU10-0N?
It supplies regulated 5V DC power to FA-M3 PLC modules.
Q2: What input voltage does it support?
It supports 100–240 V AC (wide range input).
Q3: What systems is it used in?
It is used in Yokogawa FA-M3 PLC systems.
Q4: How much current does it provide?
It provides 2.0 A at 5V DC output.
Conclusion
The Yokogawa F3PU10-0N Power Supply Module is a critical component of FA-M3 PLC systems, providing stable and protected 5V DC power distribution to all system modules. Its reliability, compact design, and industrial-grade performance make it essential for maintaining continuous operation in automation environments.
