Product Overview

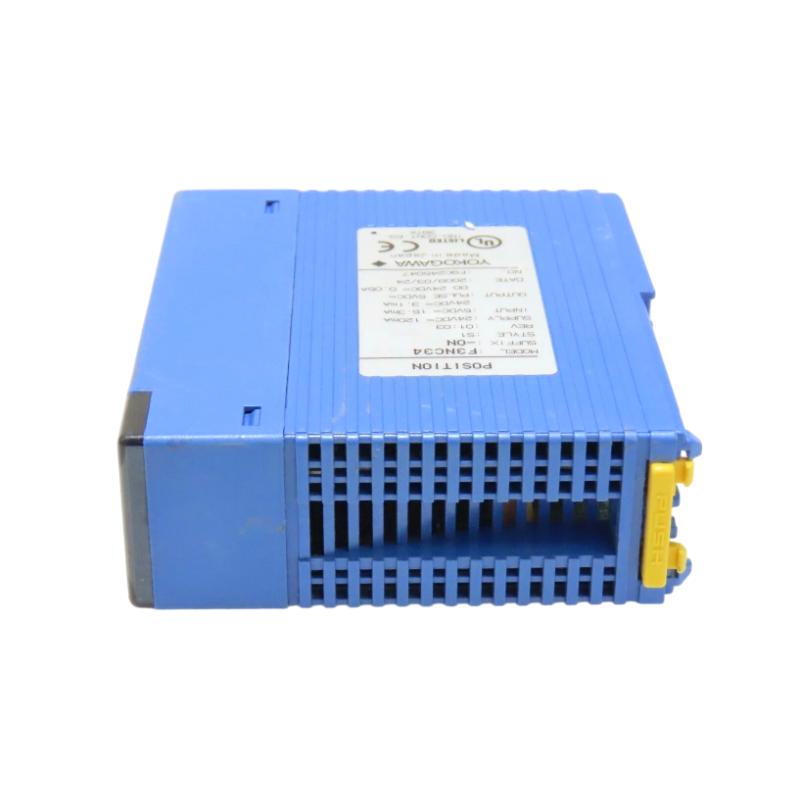

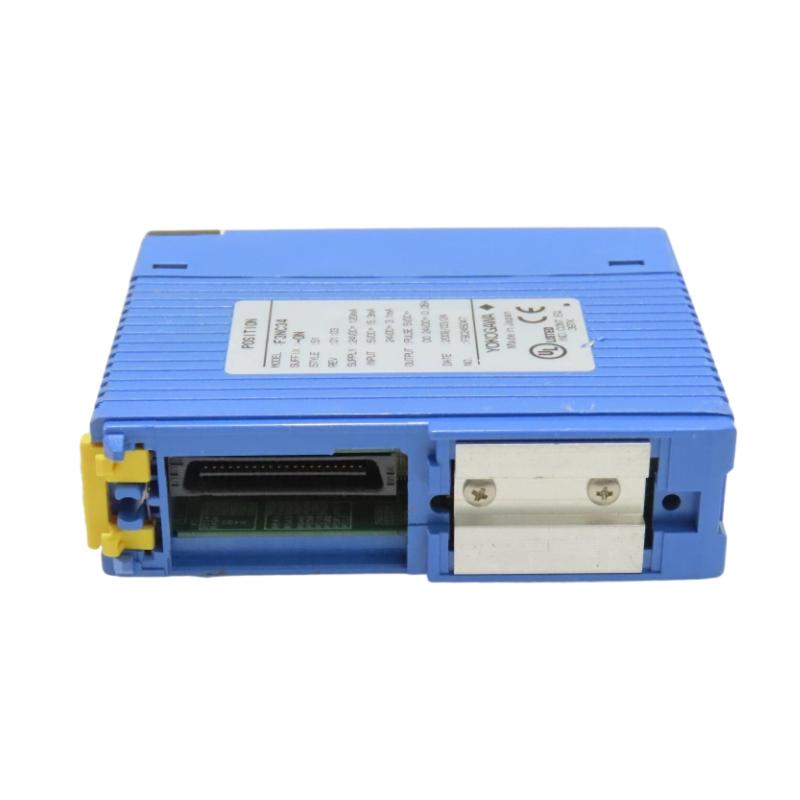

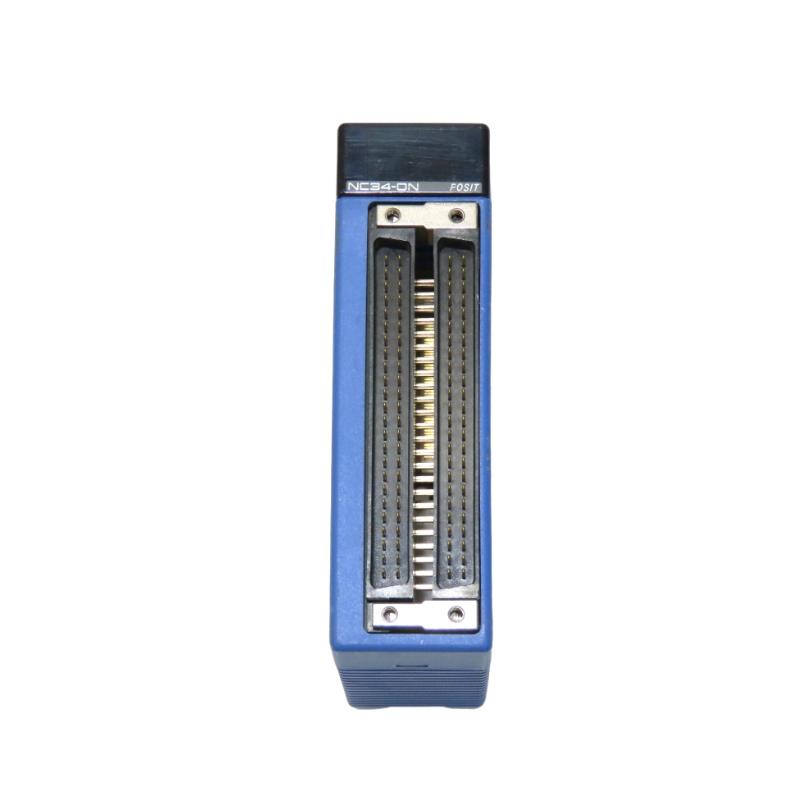

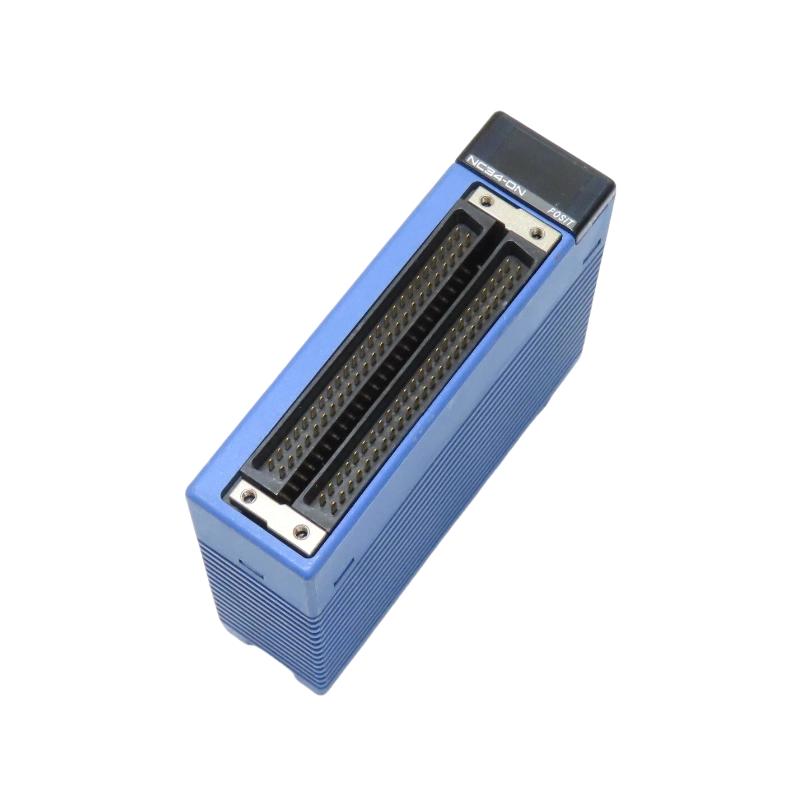

The Yokogawa F3NC34-0N is a high-performance positioning (motion control) module for the FA-M3 PLC system. It is designed for advanced industrial automation systems requiring multi-axis, high-speed, pulse-based motion control.
This module supports 4-axis independent control and generates high-speed pulse trains used to drive servo motors, stepper motors, and motion drivers, enabling precise positioning, interpolation, and coordinated movement.
It is widely used in applications such as robotics, packaging machines, and multi-axis automation equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3NC34-0N |
| Product Type | Positioning Module (Pulse Output Type) |
| System Compatibility | FA-M3 PLC system |
| Control Axes | 4 axes |
| Control Method | Pulse train output (open-loop positioning) |
| Output Type | Differential line driver (RS-422A compatible) |
| Max Pulse Output Speed | Up to 5 Mpps (servo motors) / 1 Mpps (stepper motors) |
| Interpolation Functions | Linear, circular, helical interpolation |
| Operation Modes | PTP, direct operation, pattern operation |
| Encoder Input | 4-channel ABS/incremental encoder input |
| Communication with CPU | FA-M3 internal bus |
| Output Format | Pulse / direction, A/B phase selectable |
| Power Consumption | ~5V DC internal supply (module dependent) |
| Auxiliary Power | 24V DC (system dependent) |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.18 kg |
Function and Working Principle
The F3NC34-0N generates motion trajectories based on commands from the FA-M3 CPU and outputs them as high-speed pulse sequences.
Working Principle
- PLC CPU sends motion parameters (position, speed, acceleration)
- Module calculates multi-axis motion trajectories internally
- Pulse signals are generated simultaneously for 4 independent axes
- Signals are sent to servo/stepper drives
- Encoder feedback is processed for monitoring and accuracy control
PLCFA−M3→Motion Controller→Servo\/Stepper Drives (4 Axis)PLC_{FA-M3} \rightarrow Motion\,Controller \rightarrow Servo\/Stepper\,Drives \;(4\,Axis)
Key Functions
- 4-axis independent motion control
- High-speed pulse output up to 5 million pulses/sec
- Supports linear, circular, and helical interpolation
- PTP (point-to-point) positioning control
- Pattern-based and direct motion execution
- Encoder feedback input (4-channel)
- Electronic gear and scaling functions
- Soft and hardware limit control
- Real-time motion adjustment during operation
System Role
The module acts as a multi-axis motion control interface:
FA-M3 PLC CPU → F3NC34-0N → Servo/Stepper Drives → Mechanical System
It is typically used in:
- Multi-axis robotics systems
- Packaging machinery
- Assembly automation lines
- CNC auxiliary motion systems
- Conveyor and indexing systems
- High-speed pick-and-place machines
Industrial Applications
- Semiconductor manufacturing equipment
- Automotive production lines
- Electronics assembly systems
- Printing and labeling machines
- Food processing automation
- Material handling systems
- Precision positioning platforms
- Industrial robotics
Installation Guidelines
- Install in FA-M3 rack system only
- Connect to servo/stepper drives via pulse/dir or A/B signals
- Use shielded twisted-pair cables for pulse outputs
- Ensure proper grounding to reduce electrical noise
- Configure motion parameters in FA-M3 engineering software
- Properly wire encoder feedback for each axis
- Implement emergency stop and limit switch circuits
Compatible Systems
- Yokogawa FA-M3 PLC CPUs
- Servo motor drivers (pulse input type)
- Stepper motor drivers
- Encoder systems (incremental/absolute)
- Industrial motion control systems
Key Advantages
- Supports 4-axis synchronized motion control
- Very high-speed pulse output (up to 5 Mpps)
- Flexible interpolation (linear, circular, helical)
- Real-time motion control capability
- Reliable industrial-grade design
- Compact size (0.18 kg)
- Suitable for complex automation systems
Technical FAQs
Q1: What is the main function of the F3NC34-0N?
It controls 4-axis motion systems by generating high-speed pulse signals for servo or stepper motors.
Q2: What is the difference from F3NC32-0N?
F3NC34-0N supports 4 axes and helical interpolation, while F3NC32-0N supports only 2 axes.
Q3: What motors can it control?
Servo motors and stepper motors with pulse input drivers.
Q4: Does it support feedback control?
Yes, it supports encoder input for monitoring and accuracy control.
Conclusion
The Yokogawa F3NC34-0N Positioning Module is a powerful 4-axis motion control solution for FA-M3 PLC systems. With high-speed pulse output, advanced interpolation functions, and encoder feedback capability, it is ideal for complex industrial automation and precision multi-axis control applications.
