- Yokogawa
- F3NC32-0N
- Positioning Module
- Japan
- 28.9 x 100 x 83.2 mm
- 0.16 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 57
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

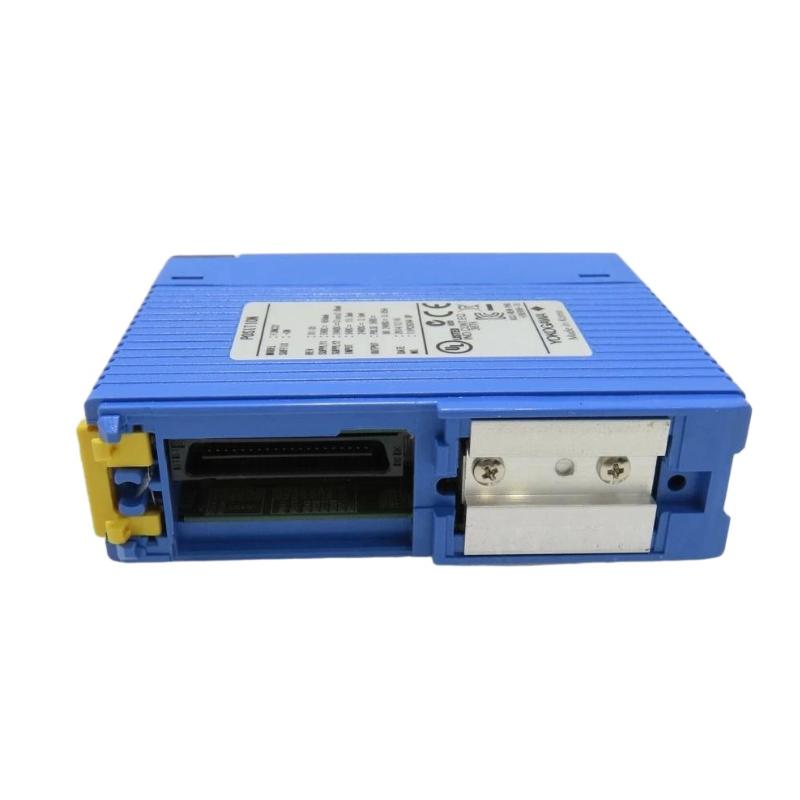

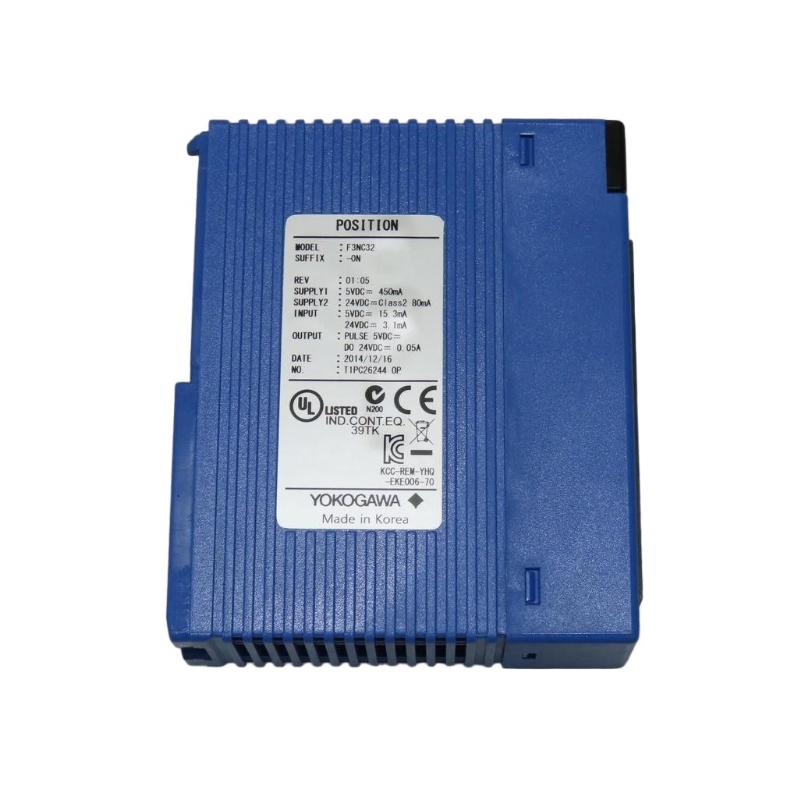

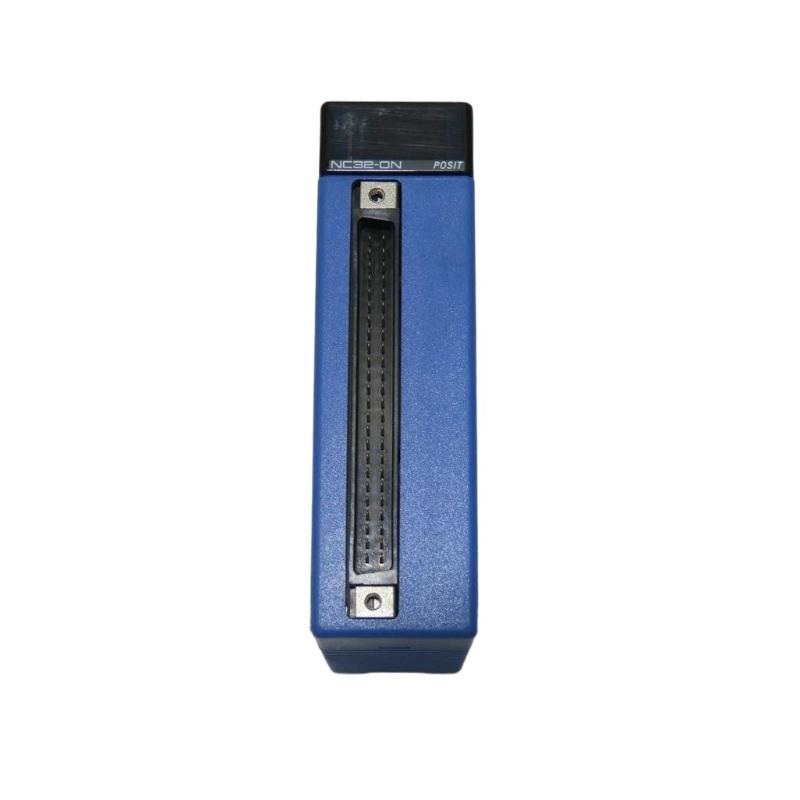

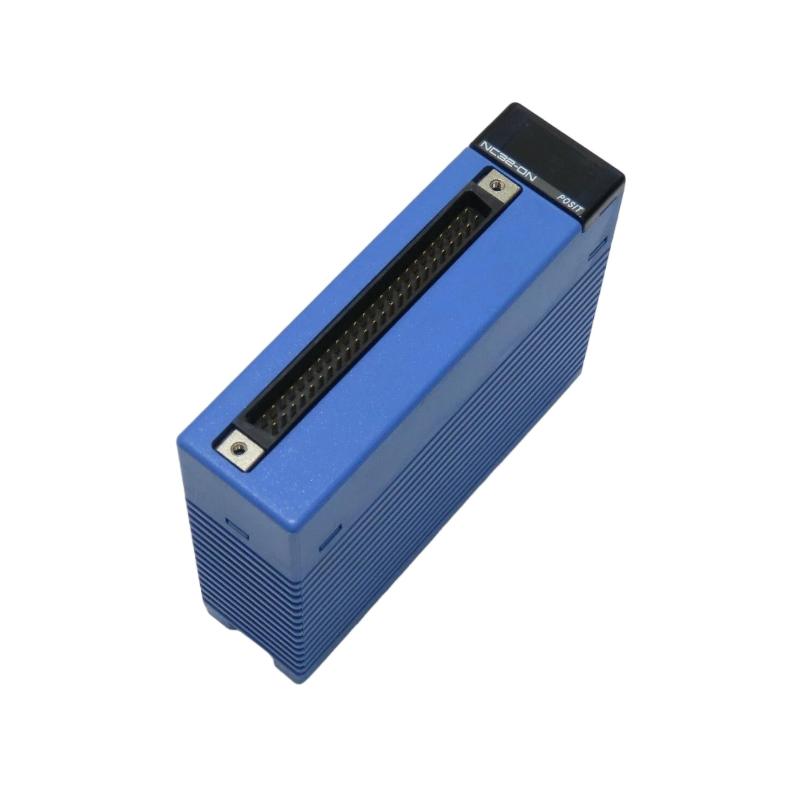

The Yokogawa F3NC32-0N is a Positioning Module for the FA-M3 PLC system. It is designed for high-speed, high-precision motion control applications, where it generates pulse-based position command signals to control servo motors, stepper motors, and other pulse-driven motion systems.
This module supports 2-axis independent control, making it suitable for compact multi-axis positioning systems in industrial automation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3NC32-0N |
| Product Type | Positioning Module (Pulse Output Type) |
| System Compatibility | FA-M3 PLC system |
| Control Axes | 2 axes |
| Control Method | Pulse train output (open-loop positioning) |
| Output Type | Differential line driver (RS-422A compatible) |
| Max Pulse Output Speed | Up to 5 Mpps (servo motors) / 1 Mpps (stepper motors) |
| Interpolation Functions | Linear, circular, PTP, trajectory control |
| Encoder Input | Incremental / absolute (2-channel counter) |
| Position Range | -2,147,483,648 to +2,147,483,647 pulses |
| Communication with CPU | FA-M3 internal bus |
| External Interface | 48-pin connector |
| Power Consumption | ~450 mA (5V DC) |
| Auxiliary Power | 24V DC (~80 mA) |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.16 kg |
Function and Working Principle
The F3NC32-0N generates precise motion trajectories based on CPU commands and outputs them as high-speed pulse trains.
Working Principle
- CPU sends motion commands (position, speed, acceleration)
- Module calculates motion trajectory internally
- Pulse signals are generated for each axis
- Signals are sent to servo/stepper drivers
- Encoders provide feedback for monitoring and correction
PLCFA−M3→Pulse Generator→Servo\/Stepper DrivePLC_{FA-M3} \rightarrow Pulse\,Generator \rightarrow Servo\/Stepper\,Drive
Key Functions
- 2-axis independent positioning control
- High-speed pulse output up to 5,000,000 pulses/sec
- Supports linear and circular interpolation
- PTP (point-to-point) motion control
- JOG/manual positioning operation
- Encoder feedback monitoring (2-channel input)
- Electronic gear and scaling functions
- Soft limit and hardware limit control
- Real-time speed and position modification during motion
System Role
The module functions as a motion control interface:
FA-M3 PLC CPU → F3NC32-0N → Servo/Stepper Drives → Mechanical Axis
It is commonly used for:
- Multi-axis positioning systems
- Robotics and pick-and-place machines
- Packaging machinery
- CNC auxiliary control systems
- Conveyor and indexing systems
- Assembly automation lines
Industrial Applications
- Semiconductor equipment
- Automotive manufacturing
- Packaging machines
- Electronics assembly lines
- Printing machinery
- Food processing automation
- Material handling systems
- Precision motion platforms
Installation Guidelines
- Install in FA-M3 rack system only
- Connect to servo/stepper drivers via pulse/dir or A/B signals
- Use shielded twisted-pair wiring for pulse outputs
- Ensure proper grounding to reduce signal noise
- Configure axis parameters in PLC engineering software
- Verify encoder feedback wiring for each axis
- Follow correct limit switch and emergency stop wiring
Compatible Systems
- Yokogawa FA-M3 PLC CPUs
- Servo motor drivers (pulse input type)
- Stepper motor drivers
- Incremental and absolute encoders
- Industrial motion control systems
Key Advantages
- High-speed 5 Mpps pulse generation capability
- Accurate multi-axis motion control (2-axis)
- Flexible interpolation functions (linear, circular)
- Real-time motion adjustment capability
- Compact industrial design (0.16 kg)
- High reliability in industrial environments
- Suitable for precision automation systems
Technical FAQs
Q1: What is the main function of the F3NC32-0N?
It generates pulse signals to control servo or stepper motors for precise positioning.
Q2: How many axes does it support?
It supports 2-axis motion control.
Q3: Does it require feedback devices?
Yes, it supports encoder inputs for monitoring and feedback.
Q4: What motors can it control?
Servo motors and stepper motors with pulse input drivers.
Conclusion
The Yokogawa F3NC32-0N Positioning Module is a high-performance 2-axis motion control module for FA-M3 PLC systems. With high-speed pulse output, interpolation functions, and encoder feedback support, it is ideal for precision industrial automation and multi-axis machine control systems.
