Product Overview

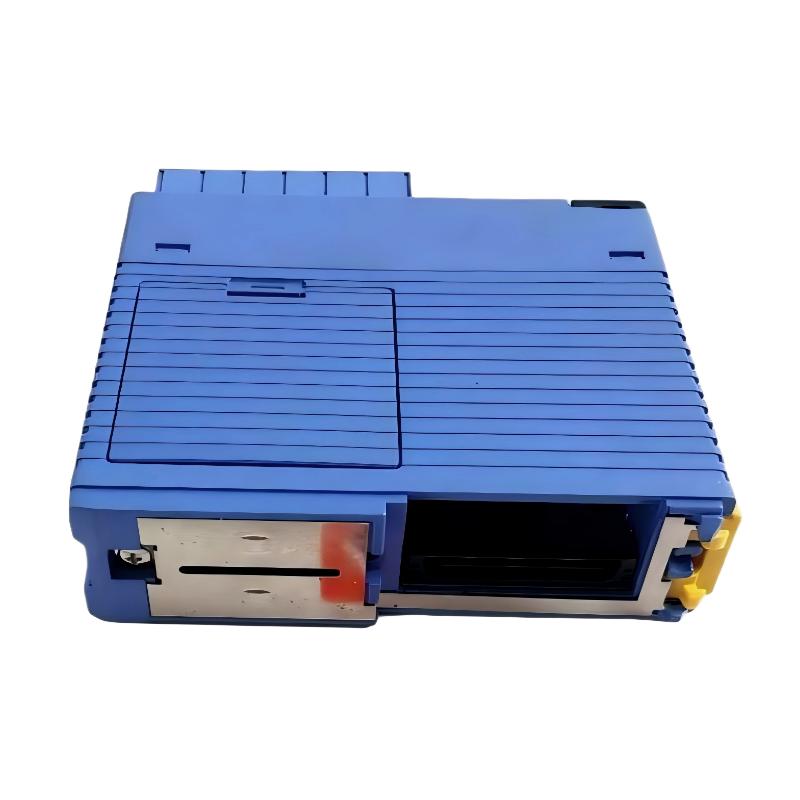

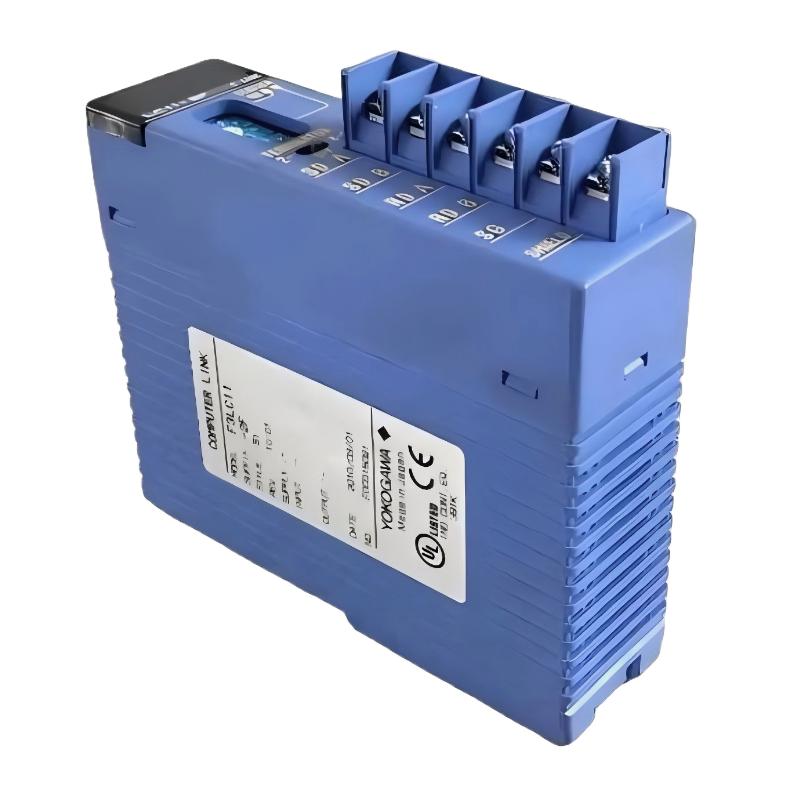

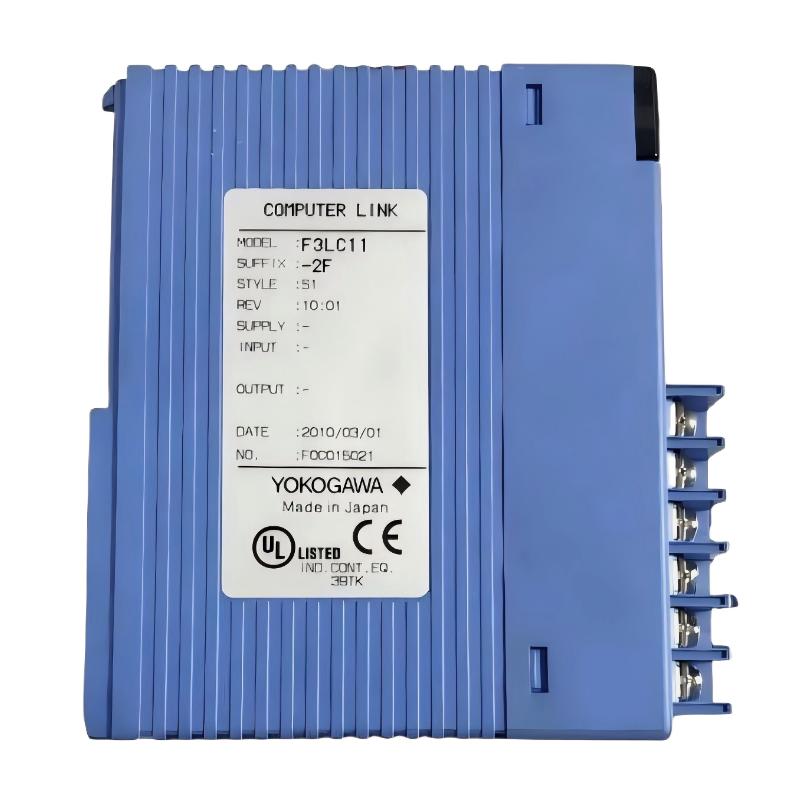

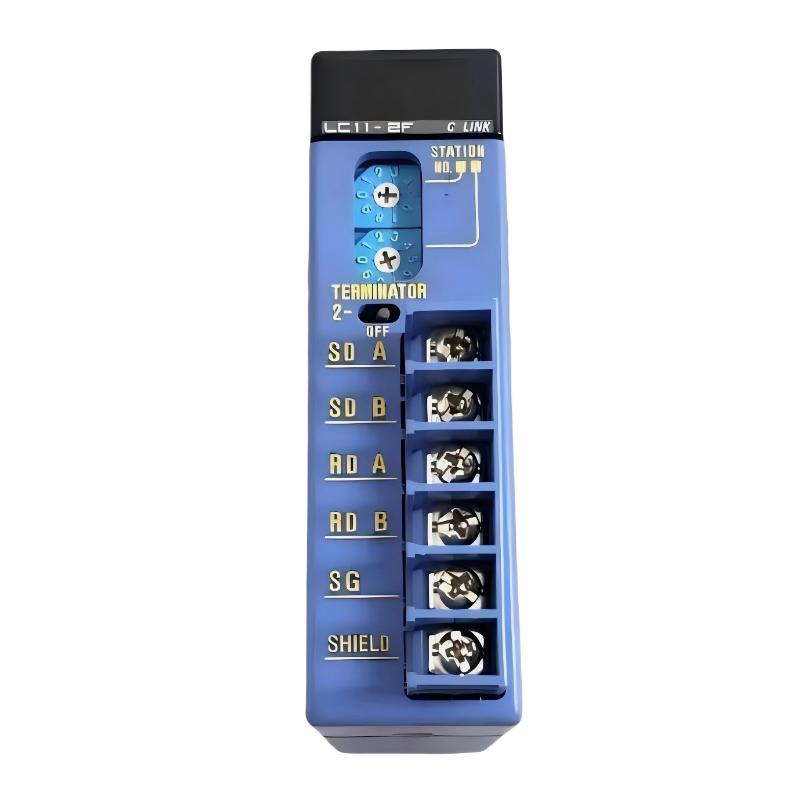

The Yokogawa F3LC11-2F is a Personal Computer Link Module designed for the FA-M3 PLC system. It enables communication between a PLC and a personal computer or FA engineering workstation using an RS-422A / RS-485 interface.
Unlike RS-232C versions, this module is designed for long-distance, multi-drop industrial communication, making it suitable for large-scale distributed control systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3LC11-2F |
| Product Type | Personal Computer Link Module |
| System Compatibility | FA-M3 PLC system |
| Communication Interface | RS-422A / RS-485 |
| Transmission Speed | Up to 115.2 kbps |
| Port Count | 1 port |
| Communication Type | Half-duplex |
| Transmission Distance | Up to 1200 m (RS-422/RS-485) |
| Network Capability | Multi-drop (up to 32 stations) |
| Data Format | Configurable (7/8 data bits, parity selectable) |
| Error Detection | Parity check, checksum |
| Isolation | Electrically isolated communication port |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.12 kg |
| Mounting | FA-M3 rack system |
Function and Working Principle
The F3LC11-2F acts as a communication gateway module between a PLC system and a host computer.
Working Principle
- A PC or host system sends commands via RS-422A/RS-485 network
- The module receives and interprets communication frames
- Data is exchanged with FA-M3 PLC memory areas
- Responses are transmitted back to the host system
PC↔PLCFA−M3 (RS−422/RS−485)PC \leftrightarrow PLC_{FA-M3} \; (RS-422/RS-485)
Key Functions
- Enables PC-to-PLC communication over long distances
- Supports multi-drop networking (up to 32 FA-M3 stations)
- Reads and writes all PLC device memory areas
- Allows remote RUN/STOP control of PLC
- Supports program upload and download
- Enables system monitoring and diagnostics
- Works without dedicated communication application software
System Role
The module is used as a high-level communication interface in FA-M3 systems:
PC / SCADA / Engineering Station → F3LC11-2F → FA-M3 PLC network
It supports:
- Distributed control systems
- Factory-wide PLC networking
- Remote monitoring and maintenance
- Centralized data acquisition systems
Industrial Applications
- Oil & gas facilities
- Petrochemical plants
- Power generation stations
- Water treatment systems
- Factory automation networks
- Manufacturing plants
- Process control systems
- Large-scale distributed PLC systems
Installation Guidelines
- Install in FA-M3 rack system only
- Use shielded twisted-pair cable for RS-422/RS-485
- Maintain proper termination resistors (for long distances)
- Keep cable length within 1200 m maximum
- Ensure correct baud rate and parity configuration
- Avoid high EMI environments or route cables properly
Compatible Systems
- Yokogawa FA-M3 PLC CPUs
- FA-M3 engineering software (e.g., WideField3)
- SCADA systems
- HMI/industrial PCs with RS-485/RS-422 support
- Distributed control networks
Key Advantages
- Long-distance communication up to 1200 meters
- Supports multi-drop networking (up to 32 PLCs)
- High reliability in industrial environments
- No special communication software required
- Full PLC memory access capability
- Compact and lightweight design (0.12 kg)
Technical FAQs
Q1: What is the main function of the F3LC11-2F?
It enables communication between a PC and FA-M3 PLC using RS-422A/RS-485.
Q2: What is the main difference from F3LC11-1F?
The F3LC11-2F uses RS-422/RS-485, supports longer distance and multi-drop networks, while F3LC11-1F uses RS-232C.
Q3: How many PLCs can be connected?
Up to 32 stations in a network configuration.
Q4: What is the maximum cable distance?
Up to 1200 meters.
Conclusion
The Yokogawa F3LC11-2F Personal Computer Link Module is a robust RS-422/RS-485 communication interface designed for FA-M3 PLC systems. It supports long-distance, multi-node industrial networking, making it ideal for large-scale automation, monitoring, and distributed control applications.
