- Yokogawa
- F3DA04-6R
- Analog Output Module
- Japan
- 28.9 × 100 × 106.2 mm
- 0.18 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 27
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

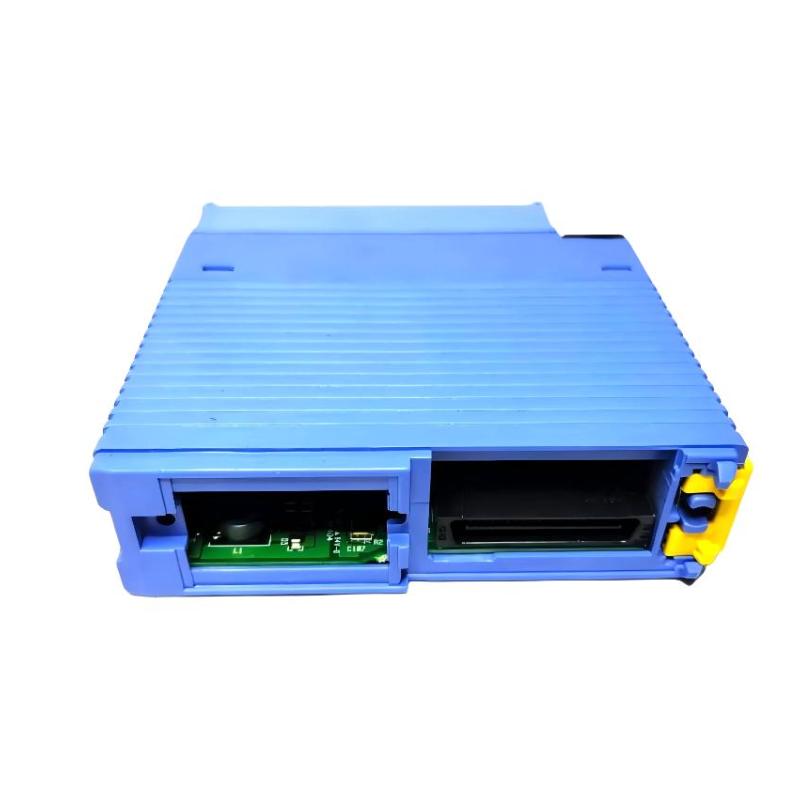

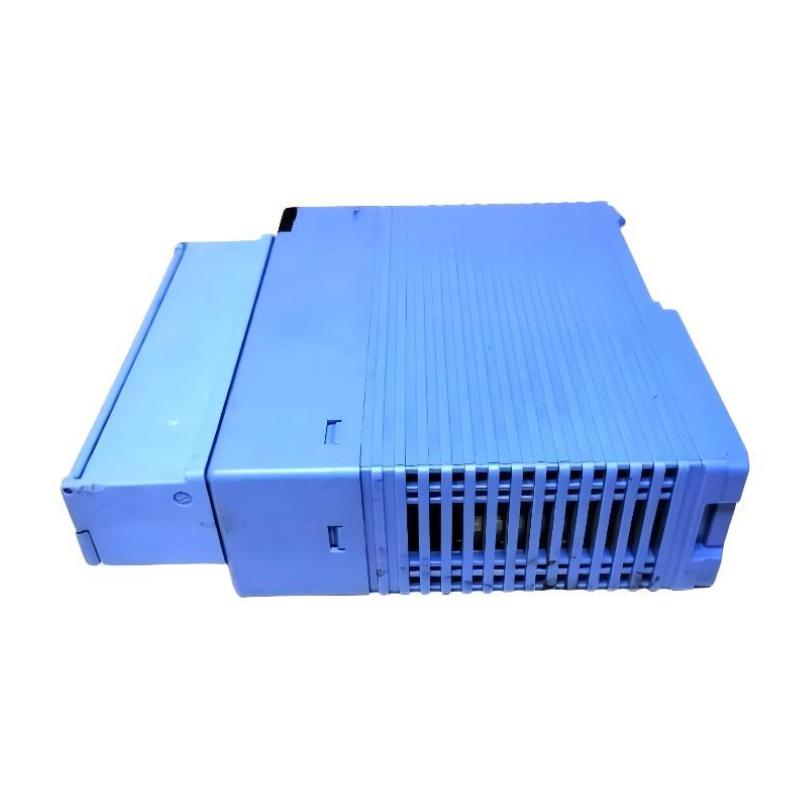

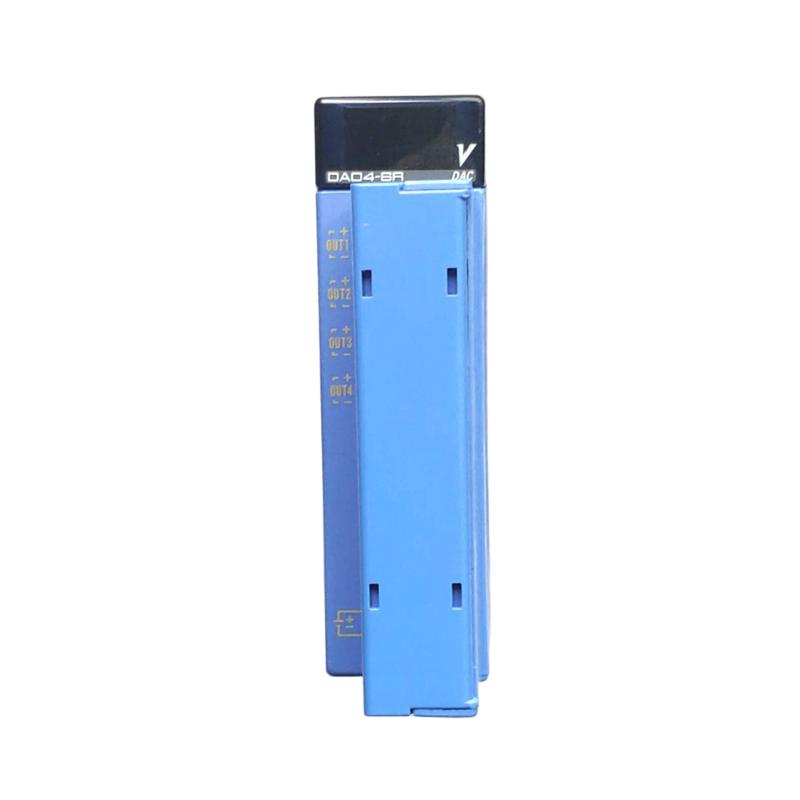

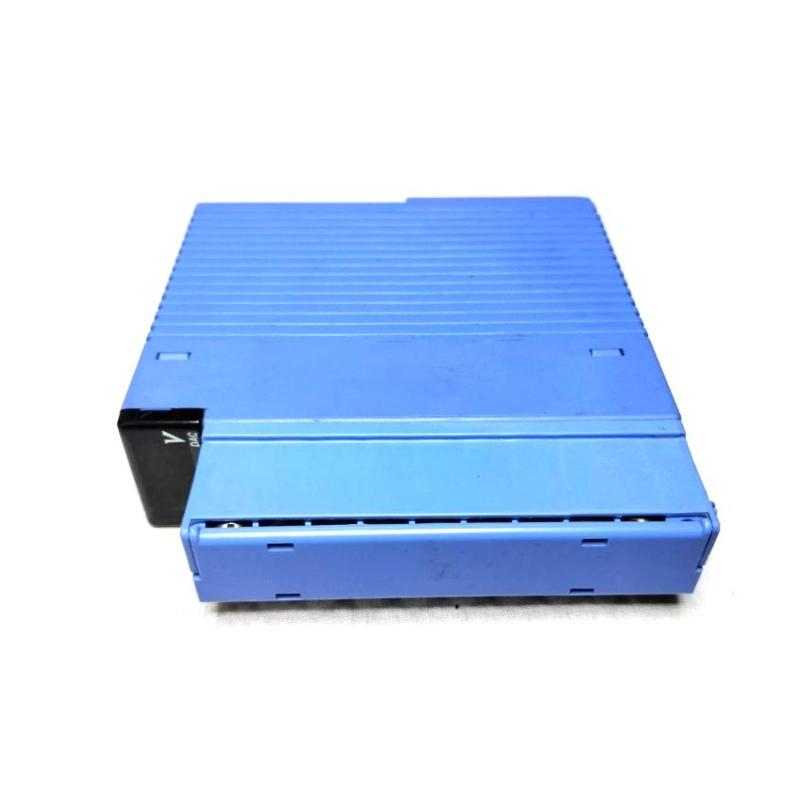

The Yokogawa F3DA04-6R is a high-speed analog output module designed for the FA-M3 PLC system. It performs digital-to-analog conversion (D/A) and provides precise analog signals for industrial process control applications such as flow, pressure, temperature, and speed regulation.
This module is known for its high resolution (16-bit DAC), fast response time, and multi-channel output capability, making it suitable for high-precision automation environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | F3DA04-6R |
| Product Type | Analog Output Module |
| System Compatibility | FA-M3 PLC system |
| Output Channels | 4 channels |
| Conversion Type | Digital-to-Analog (D/A) |
| Resolution | 16-bit DAC |
| Dimensions | 28.9 × 100 × 106.2 mm |
| Weight | 0.18 kg |
| Output Types | Voltage / Current (configurable) |
| Voltage Range | -10 to +10 V, 0–10 V, 0–5 V, 1–5 V |
| Current Range | 4–20 mA, 0–20 mA, -20–20 mA |
| Conversion Speed | ~2 µs per channel |
| Accuracy | ±0.1% (voltage), ±0.2% (current) of full scale |
| Isolation | Output to internal circuit isolated (capacitive coupling, 500 V DC withstand) |
Function and Working Principle
The F3DA04-6R converts digital PLC control signals into precise analog outputs used to drive industrial actuators, valves, drives, and process control equipment.
Working Principle
- PLC sends digital control values to the module
- Internal 16-bit DAC (Digital-to-Analog Converter) processes the signal
- The module generates a corresponding analog voltage or current output
- Output is sent to field devices such as valves, actuators, or controllers
Din→AoutD_{in} \rightarrow A_{out}
Key Functions
- Converts digital PLC signals into analog output signals
- Provides 4 independent high-speed output channels
- Supports voltage and current output modes
- Enables precise process control in real time
- Supports synchronized multi-channel updates
- Ensures stable and accurate signal conversion
System Role
The module is used as an output interface device in PLC-based control systems:
- PLC CPU → F3DA04-6R Output Module → Field devices
It is commonly used to control:
- Control valves
- VFD speed references
- Actuators
- Analog setpoints for process loops
- Industrial automation systems
Industrial Applications
- Oil & gas process control
- Chemical plants
- Power generation systems
- Water treatment facilities
- Manufacturing automation
- HVAC control systems
- Refinery instrumentation
- Batch process control systems
Installation Guidelines
- Install in FA-M3 rack system only
- Ensure correct configuration of output type (voltage/current)
- Verify wiring polarity before energizing outputs
- Provide proper grounding to reduce noise
- Avoid exceeding rated load resistance limits
- Configure channel settings via software before operation
Compatible Systems
- Yokogawa FA-M3 PLC series
- FA-M3 I/O racks and CPUs
- Industrial analog field devices (valves, drives, controllers)
- Process automation systems
Key Advantages
- High-resolution 16-bit precision output
- Fast response (microsecond-level conversion)
- Flexible output configuration (V/mA selectable)
- Multi-channel synchronized control
- High accuracy suitable for process automation
- Compact and lightweight design
Technical FAQs
Q1: What is the main function of this module?
It converts PLC digital signals into analog voltage or current outputs for process control.
Q2: How many outputs does it support?
It supports 4 analog output channels.
Q3: Is it voltage or current output?
Both—output type is configurable via software.
Q4: What is its resolution?
It uses a 16-bit DAC, providing high precision control.
Conclusion
The Yokogawa F3DA04-6R Analog Output Module is a high-performance 4-channel digital-to-analog converter designed for FA-M3 PLC systems. With its fast response, high accuracy, and flexible output configuration, it is widely used in industrial automation systems requiring precise analog control.
