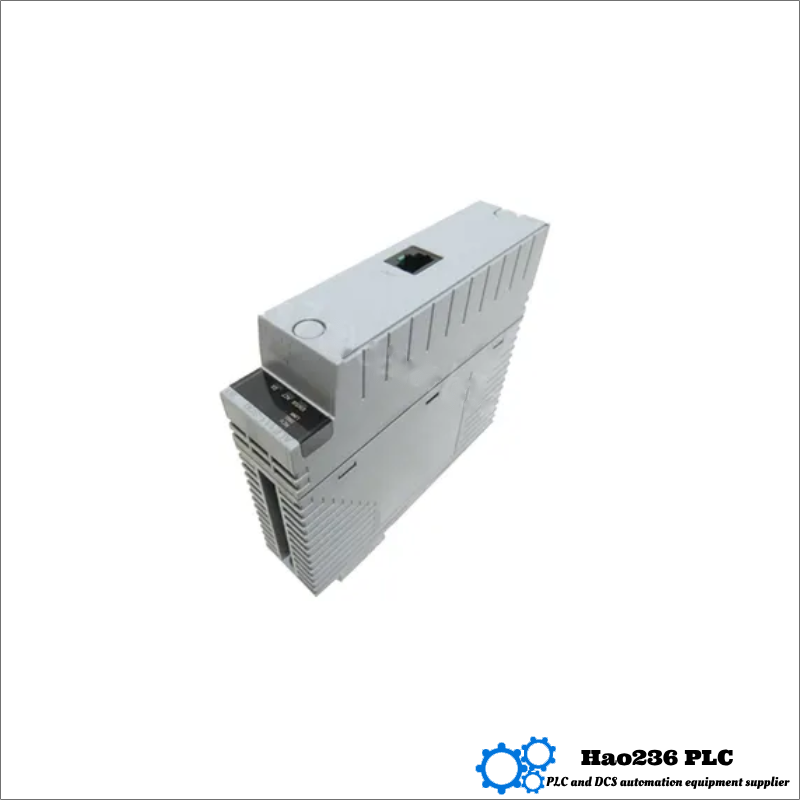

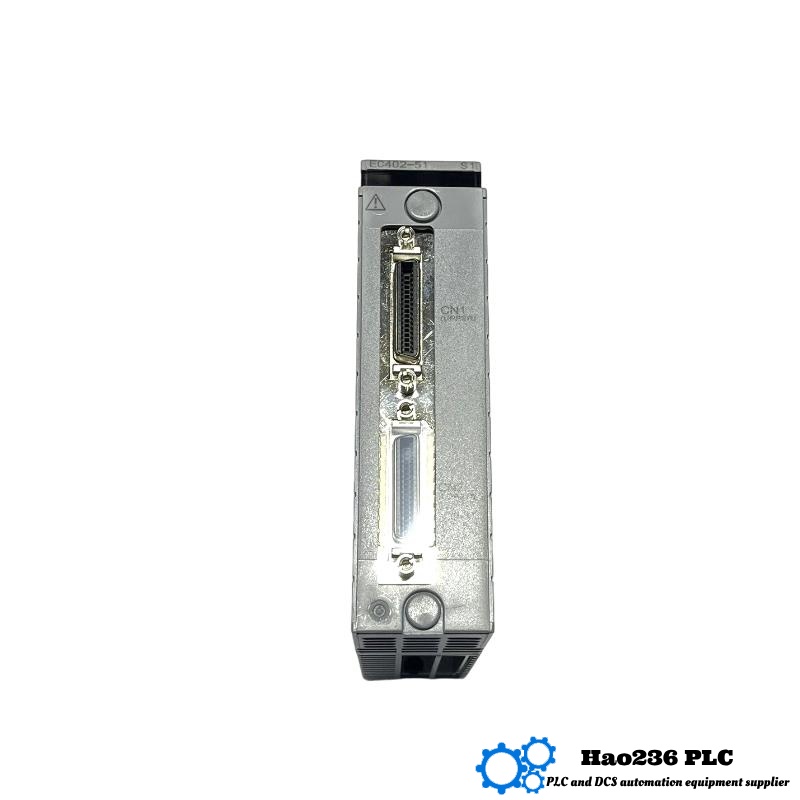

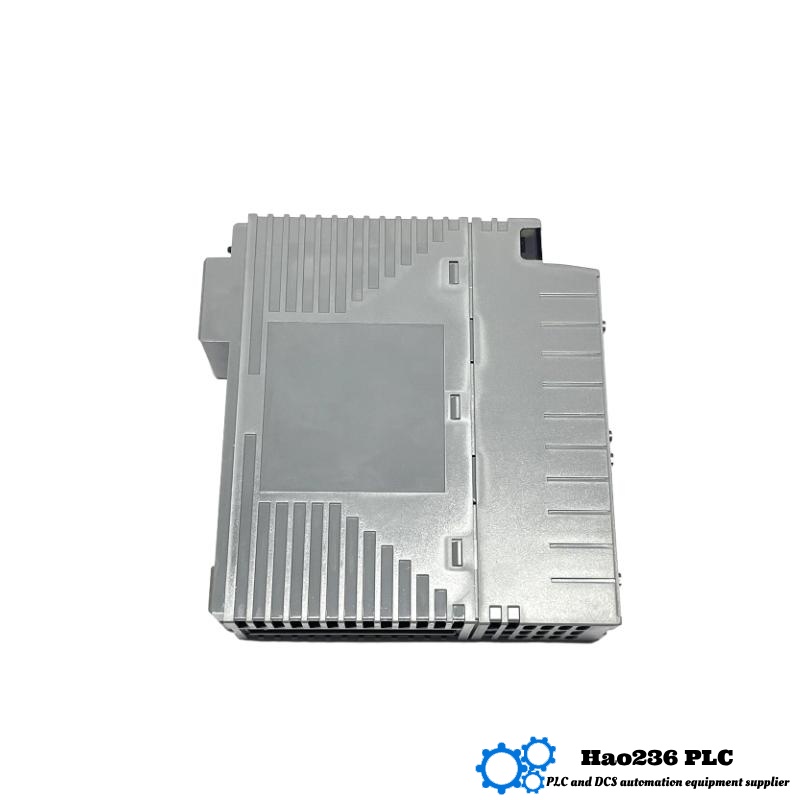

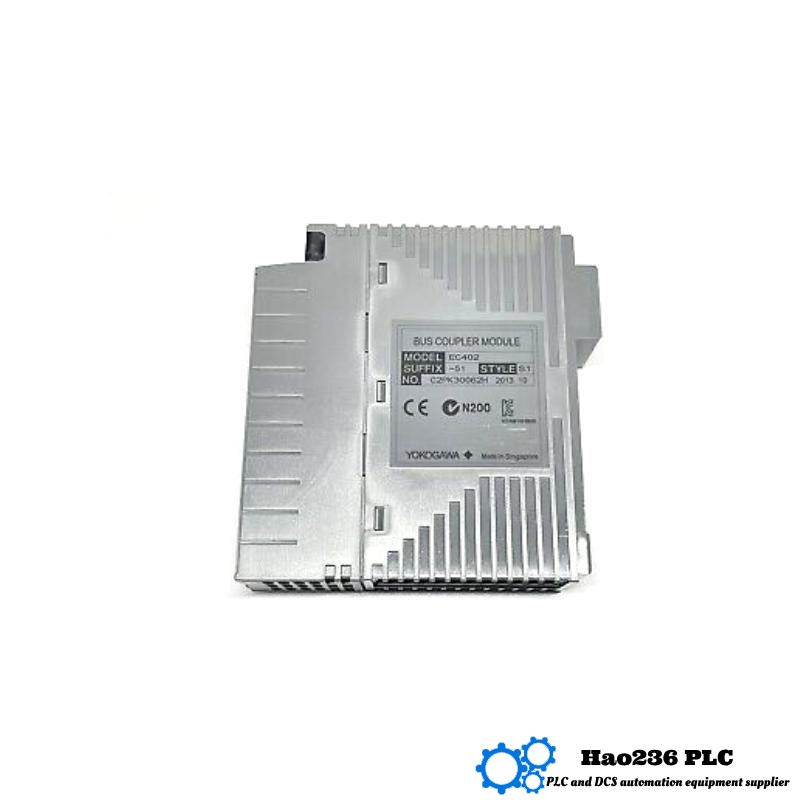

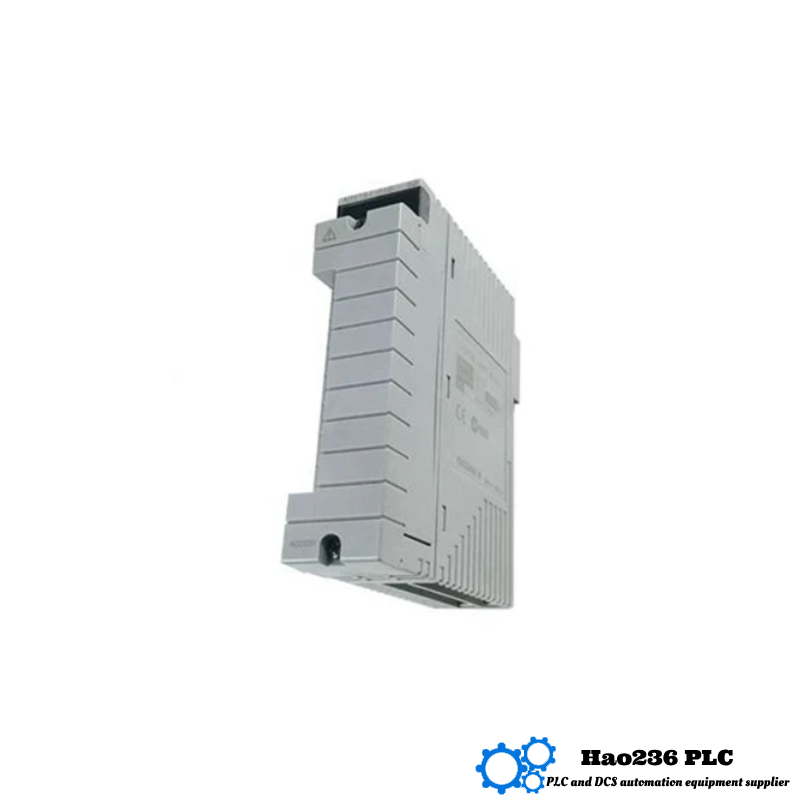

Product Overview: Yokogawa EC402-51
Product Introduction
The Yokogawa EC402-51 is an advanced ESB (Enhanced System Bus) Bus Coupler Module designed for use within distributed control systems (DCS). It acts as a critical communication bridge between the Field Control Unit (FCU) and Node Units, facilitating reliable and high-speed data transmission across a network. This module supports up to 13 node units per FCU and operates with a communication speed of 128 Mbps, making it ideal for complex industrial automation environments requiring robust, scalable, and redundant communication networks.
Brand & Series
-
Brand: Yokogawa
-
Series: EC Series — ESB Bus Coupler Modules
Product Applications
-
Industrial Process Control (Oil & Gas, Chemical, Power Generation)
-
Distributed Control Systems requiring high-speed bus communications
-
Systems requiring multiple node connectivity per FCU
-
Redundant communication network architectures
-
Harsh industrial environments needing durable, reliable modules
Product Advantages
-
High Node Capacity: Supports up to 13 nodes per FCU, expanding system scalability.
-
Fast Communication: Operates at 128 Mbps ensuring low latency and fast data transfer.
-
Redundancy Ready: Enables network redundancy for enhanced system reliability.
-
Compact & Lightweight: Small footprint allowing easy integration into control cabinets.
-
Robust Diagnostics: Includes status LEDs for real-time monitoring and fault detection.
-
Wide Operating Conditions: Functions reliably over a wide temperature and humidity range.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | EC402-51 |
| Function | ESB Bus Coupler Module (FCU to Node Units) |
| Max Node Units Supported | 13 nodes |
| Communication Speed | 128 Mbps |
| Power Supply | 24 V DC (via system backplane) |
| Operating Temperature | –10 °C to +55 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % (non-condensing) |
| Dimensions (W × H × D) | 130 × 129.5 × 32.8 mm |
| Weight | 0.24 kg |
| Communication Interface | Dual ESB ports |
| Diagnostic Features | Status and fault LEDs |
Recommended Models – Same Series or Related
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| EC402-50 | Basic ESB Bus Coupler supporting fewer nodes | 130 × 129.5 × 32.8 | 0.24 |
| EC402-51 | (This product) Advanced with 13 node support | 130 × 129.5 × 32.8 | 0.24 |
| EC402-50 S1 | Redundancy-enabled model with dual bus ports | Same as EC402-50 | ~1.0 |
| EC401-50 | Earlier single-port coupler, less capacity | Similar | ~0.3 |
| ANB10D | Combined Node and Bus interface unit | Larger module | ~0.5 |
Popular Yokogawa Models (Same Brand)
| Model | Functionality | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| AAI143-S50 | 16-channel analog input module | Compact DIN-rail mount | ~0.3 |
| AAI543-S50 | 16-channel analog output module | Compact enclosure | ~0.4 |
| ADV151-P00 | Fast-response digital output module | Panel mount | ~0.35 |
| SDV144-S53 | 16-channel digital input module | Slim module | ~0.3 |
| PW402 | System power supply module | Mid-size rack mount | ~0.9 |
Frequently Asked Questions (QA Format)
Q1: What is the primary role of the EC402-51?
A1: It connects the FCU to multiple Node Units over the ESB bus, ensuring fast and reliable communication within a DCS.
Q2: How many nodes can the EC402-51 support?
A2: Up to 13 Node Units can be connected to a single FCU via this module.
Q3: What communication speed does it support?
A3: The EC402-51 supports data transfer speeds up to 128 Mbps.
Q4: What power supply is required?
A4: It operates on a 24 V DC power supply via the system backplane.
Q5: What are the module’s dimensions and weight?
A5: The dimensions are 130 × 129.5 × 32.8 mm, and it weighs approximately 0.24 kg.
Q6: What diagnostic features does it have?
A6: The module includes LEDs that indicate status and faults to assist with system monitoring.
Q7: What operating temperatures does it support?
A7: It functions reliably between –10 °C and +55 °C.
Q8: Is the module suitable for harsh industrial environments?
A8: Yes, it is designed to operate under high humidity and temperature variations typical in industrial settings.
Q9: Can this module support bus redundancy?
A9: While the EC402-51 itself is designed for high node capacity, redundancy is typically handled by specific models like EC402-50 S1.
Q10: What types of systems are compatible with this module?
A10: It is compatible with Yokogawa’s CENTUM VP, CS 3000, and other DCS platforms.
