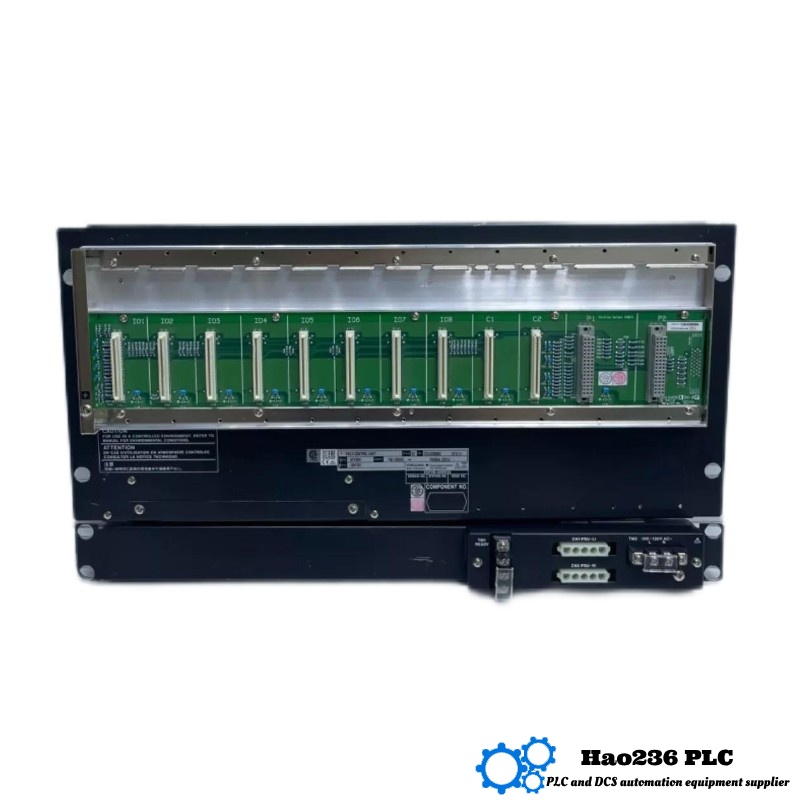

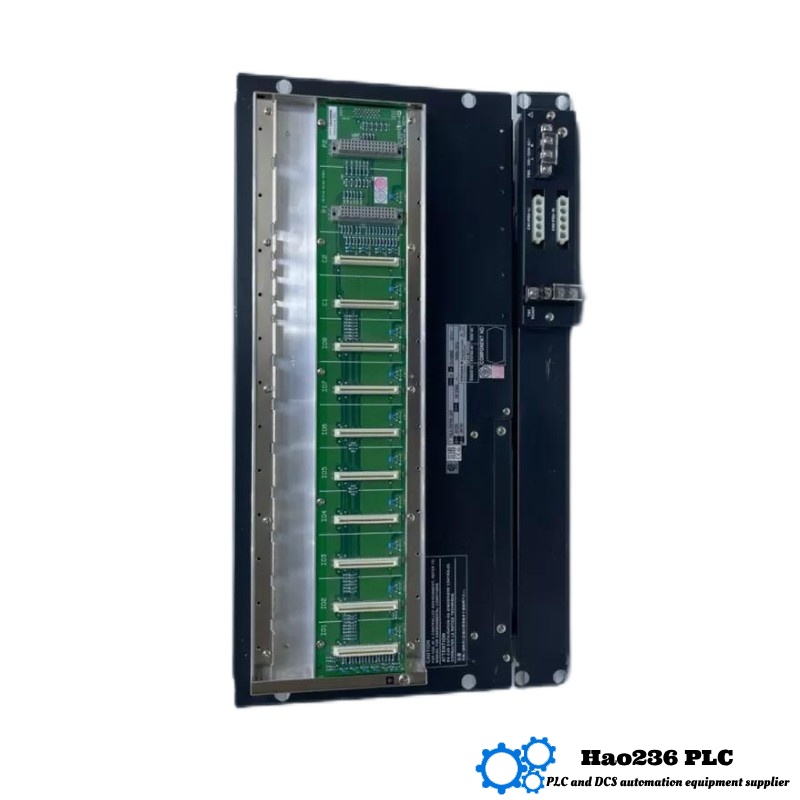

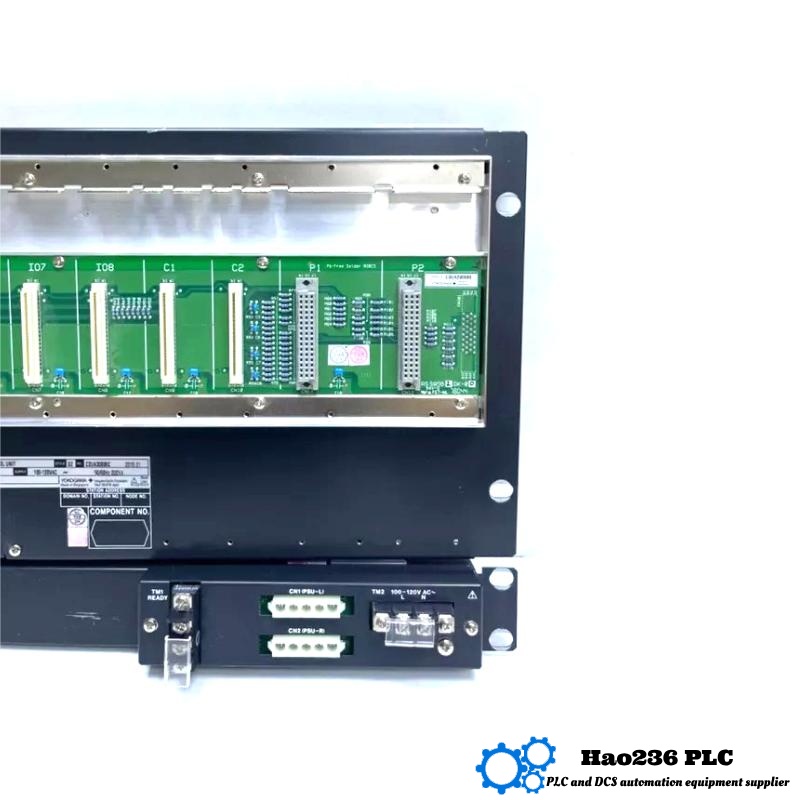

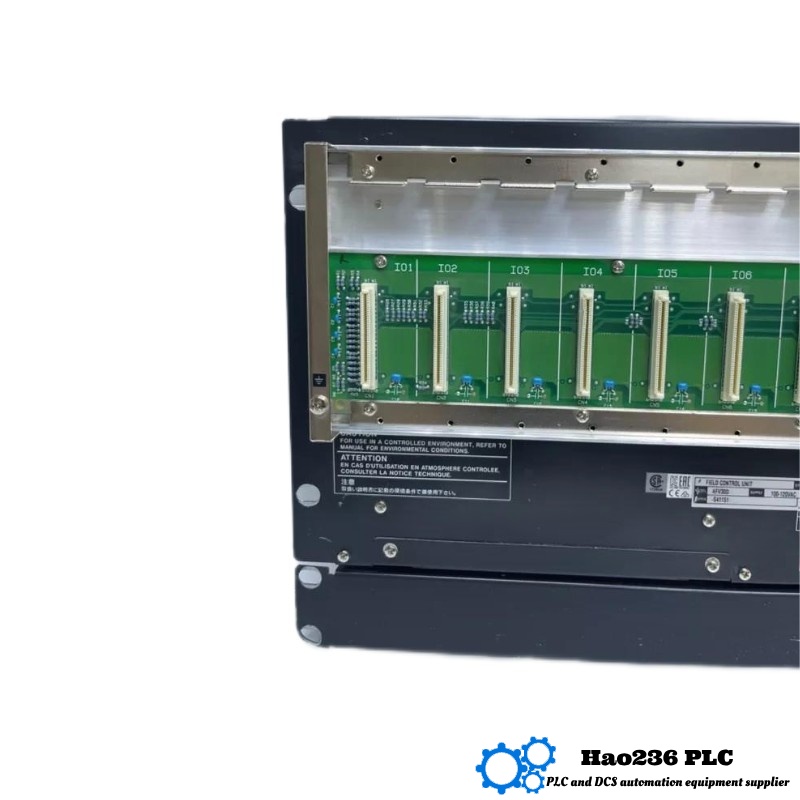

Yokogawa AFV30D-A41252 Duplexed Field Control Unit
Product Introduction
The AFV30D-A41252 is a duplexed Field Control Unit (FCU) engineered for Yokogawa’s CENTUM® VP and CENTUM® CS 3000 distributed control systems. It features dual-redundant CPUs, power modules, and network interfaces to deliver continuous, fault-tolerant control in the most demanding industrial environments. With the embedded LFS1550 control function, the AFV30D-A41252 executes complex logic and sequential operations for field I/O modules, enabling rapid, deterministic control of valves, motors, and other field devices.
Built for 19-inch rack installation, the AFV30D-A41252 combines a robust metal enclosure with vibration-resistant mounting, ensuring long-term reliability in petrochemical, power, and water treatment facilities.
Key Applications
Continuous control of reactors, distillation columns, and separators in chemical and petrochemical plants.
Boiler, turbine, and auxiliary system management in thermal and combined-cycle power plants.
Pump station sequencing, valve interlocks, and chemical dosing in water and wastewater treatment.
Motion control and drive interlocking in pulp & paper production lines.
Critical batch control in pharmaceutical and specialty chemical manufacturing.
Brand Overview
Yokogawa is a leading global supplier of industrial automation, test and measurement instruments, and process control solutions. Renowned for its high-integrity DCS platforms—CENTUM® series—and commitment to innovation, Yokogawa supports industries requiring stringent regulatory compliance, lifecycle support, and maximum uptime.
Product Advantages
-
Uninterrupted Operation: Fully redundant CPUs, power supplies, and network ports eliminate single points of failure.
-
Enhanced Control Capacity: LFS1550 control function supports up to 32 field I/O nodes per FCU.
-
Compact Footprint: 4U height and 482.6 mm depth optimize rack space in control rooms.
-
Seamless Networking: Dual Vnet/IP ports permit oversubscribed network topologies for high-speed data exchange.
-
Integrated Diagnostics: Front-panel LEDs and dry-contact alarm outputs facilitate swift troubleshooting and maintenance.
Detailed Technical Parameters
| Specification | Details |
|---|---|
| Model Number | AFV30D-A41252 |
| Control Function | LFS1550 (Field Control Station) |
| Processor | VR5432 @ 133 MHz |
| Main Memory | 64 MB |
| Power Supply | Dual-redundant 24 V DC |
| Communications | Dual-redundant Vnet/IP, FIO interface |
| Status Contact Outputs | 2 points (NC, C); 30 V DC @ 0.3 A |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –20 °C to 70 °C |
| Relative Humidity | 10 % to 90 % RH (non-condensing) |
| Dimensions (H × W × D) | 207 × 265.9 × 482.6 mm |
| Weight | 8 kg |
| Rack Mounting | 19-inch rack, 4U; 8 × M5 screws |
Related Models (Same Series / Function)
| Model | Description |
|---|---|
| AFV30S-A41252 | Single FCU, LFS1550 control, dual Vnet/IP & FIO, 19″ rack |
| AFV30D-A41272 | Duplexed FCU variant with upgraded thermal shielding |
| AFV40D-A41262 | Higher-capacity duplexed FCU with LFS1570 and expanded I/O |
| AFV10D-S41401 | Entry-level duplexed FCU with LFS1500 for smaller node counts |
| AFV50D-A41282 | Top-end duplexed FCU supporting redundancy and +48 V DC power |
Popular Yokogawa FCU Models (Same Brand)
| Model | Key Features |
|---|---|
| A2FV50S | Single FCU, Vnet/IP & N-IO/FIO, rack-mount |
| A2FV50D | Duplexed FCU, Vnet/IP & N-IO/FIO, rack-mount |
| A2FV70S | RIO-upgrade single FCU, rack-mount |
| A2FV70D | RIO-upgrade duplexed FCU, rack-mount |
| AFV40S | Single FCU with cabinet, Vnet/IP & FIO |
Frequently Asked Questions (FAQ)
Q: How does the AFV30D-A41252 ensure no single point of failure?
A: It incorporates redundant CPUs, power supplies, and network ports, all monitored by automatic switchover logic.
Q: What software license is required?
A: The LFS1550 Control Function license is mandatory for field control operations.
Q: Can I mix AFV30D and AFV30S units in one rack?
A: Yes—both models share the same rack-mount form factor and network topology.
Q: What is the maximum I/O node count per FCU?
A: Up to 32 nodes (up to 512 I/O points) can be attached via FIO modules.
Q: How are alarms conveyed to the control system?
A: Via two dry-contact outputs and SNMP traps over Vnet/IP.
Q: Is remote firmware update supported?
A: Yes—firmware images can be downloaded and applied over the network without physical access.
Q: What certifications does the AFV30D-A41252 hold?
A: CE, UL, and ATEX-compliant variants are available upon request.
Q: How do I perform preventive maintenance?
A: Built-in diagnostics and front-panel LEDs indicate fan and power module status for scheduled replacements.
Q: What is the vibration tolerance?
A: Compliant with IEC 60068-2-6: 5–25 Hz, 0.075 mm amplitude; 25–150 Hz, 1 G.
Q: Can I use 48 V DC instead of 24 V?
A: A dedicated 48 V DC power option (suffix code “B”) is available for telecom-grade installations.
