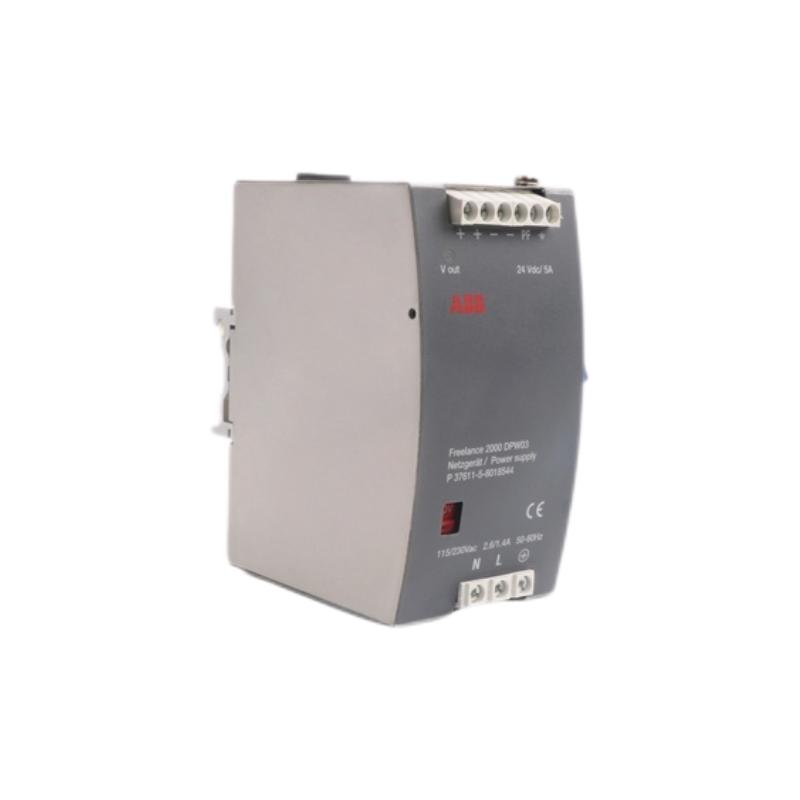

ABB DPW03 Product Overview
Product Introduction
The ABB DPW03 (part numbers P37611-5-8018644, 8018544M) is a high-performance industrial control device designed to meet the demands of advanced automation systems. This product provides efficient and reliable solutions for monitoring, controlling, and managing various industrial operations. It integrates easily into complex industrial systems and offers high versatility, making it suitable for a range of applications from manufacturing automation to energy management.
The DPW03 is engineered to provide superior reliability, accuracy, and flexibility in digital signal processing, which is critical for industries where precision is essential. This model is part of a well-established series known for its durability and performance, which ensures optimal control of automation systems in diverse environments.
Product Parameters
Below is a comprehensive list of the ABB DPW03’s parameters:
| Parameter |
Details |
| Model Number |
DPW03 |
| Part Numbers |
P37611-5-8018644, 8018544M |
| Voltage |
24 VDC |
| Current |
130 mA |
| Communication Type |
Digital Input/Output |
| Environmental Conditions |
-10°C to +60°C |
| Dimensions (W x H x D) |
35 mm x 95 mm x 75 mm |
| Weight |
0.75 kg |
| Mounting Type |
DIN Rail |
| Protection Class |
IP20 |
| Operating Temperature |
-10°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
Product Applications
The ABB DPW03 is used across multiple industrial sectors, offering a wide range of applications including:
-
Manufacturing Automation: The DPW03 is used to control automated production lines, optimizing operational efficiency and ensuring precise monitoring of various manufacturing processes.
-
Building Automation: This product is employed in building systems such as HVAC, lighting control, and security systems, providing reliable communication and control.
-
Process Control: It is widely used in industries such as chemicals, oil and gas, and pharmaceuticals for managing continuous processes that require real-time monitoring and precise control.
-
Energy Management: The DPW03 is suitable for energy distribution networks, allowing for effective monitoring and optimization of energy usage across industrial plants.
-
Robotic Control: It can be integrated into robotic systems to manage complex movements and feedback loops, ensuring smooth operations and reducing downtime in automated settings.
Product Advantages
-
High Precision: The DPW03 is designed to deliver high-accuracy control and monitoring, ideal for sensitive applications requiring precise digital communication.
-
Versatile and Compact: Its small size (35 mm x 95 mm x 75 mm) allows it to fit into tight spaces within industrial panels, while maintaining high performance and functionality.
-
Durability: Built to withstand harsh industrial environments, the DPW03 offers a broad operating temperature range and is highly durable.
-
Easy Integration: The DPW03 can be easily integrated into existing industrial control systems, reducing installation time and complexity.
-
Low Power Consumption: With a current draw of just 130 mA, the DPW03 is energy-efficient, helping to reduce operational costs in the long term.
-
Protection Class IP20: Offers protection against solid objects larger than 12 mm, ensuring reliable operation in controlled environments.
Brand & Series
-
Brand: ABB
-
Series: DPW Series
Recommended Models from the Same Series
Here are five additional models from the ABB DPW Series that are compatible with the DPW03 and suitable for similar industrial applications:
| Model Number |
Voltage |
Current |
Dimensions (W x H x D) |
Weight (kg) |
Protection Class |
| DPW04 |
24 VDC |
140 mA |
35 mm x 95 mm x 75 mm |
0.8 |
IP20 |
| DPW05 |
24 VDC |
120 mA |
35 mm x 95 mm x 75 mm |
0.75 |
IP20 |
| DPW06 |
24 VDC |
110 mA |
35 mm x 95 mm x 75 mm |
0.7 |
IP20 |
| DPW07 |
24 VDC |
150 mA |
35 mm x 95 mm x 75 mm |
0.85 |
IP20 |
| DPW08 |
24 VDC |
130 mA |
35 mm x 95 mm x 75 mm |
0.75 |
IP20 |
Recommended Popular Models from the Same Brand
Here are five other popular models from ABB, offering superior performance in various automation and control applications:
| Model Number |
Voltage |
Current |
Dimensions (W x H x D) |
Weight (kg) |
Protection Class |
| AC500 |
24 VDC |
200 mA |
160 mm x 120 mm x 90 mm |
2.2 |
IP20 |
| PM854K |
24 VDC |
150 mA |
100 mm x 100 mm x 70 mm |
0.9 |
IP20 |
| AC800M |
24 VDC |
250 mA |
100 mm x 150 mm x 120 mm |
1.5 |
IP20 |
| S500 |
24 VDC |
80 mA |
35 mm x 90 mm x 70 mm |
0.5 |
IP20 |
| PSTX-1040 |
24 VDC |
300 mA |
80 mm x 80 mm x 45 mm |
0.45 |
IP20 |
