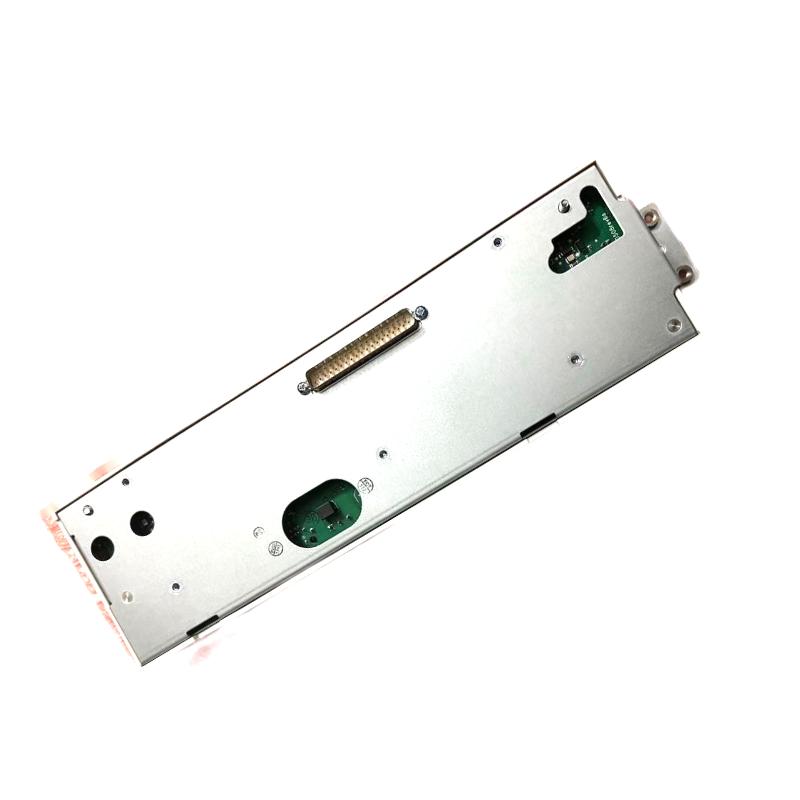

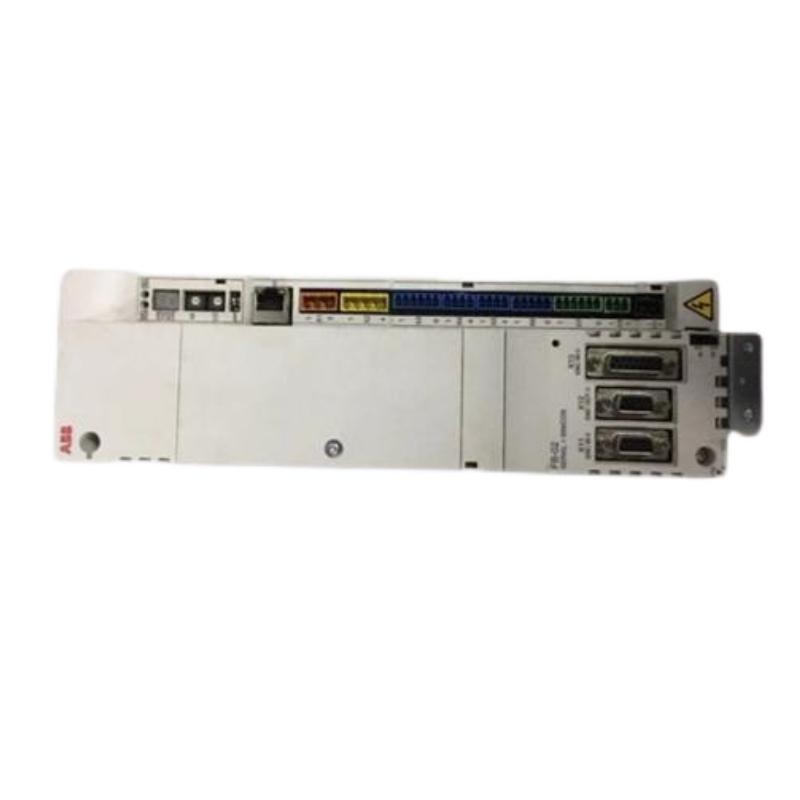

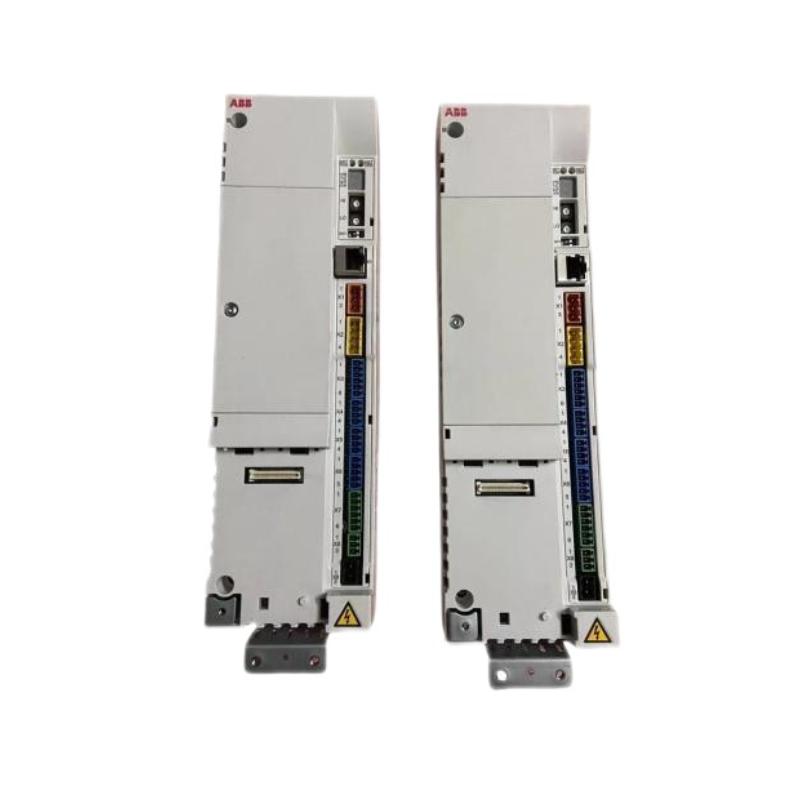

ABB GCU-02 Product Overview
Product Introduction
The ABB GCU-02 (part number 3AXD50000028861) is a versatile and high-performance industrial control unit designed for the precise management of industrial automation systems. It is part of the ABB General Control Unit (GCU) series, known for its high scalability, reliability, and integration capabilities. The GCU-02 is engineered for demanding industrial environments, providing robust control and monitoring functionalities that support a wide range of automation applications.
The GCU-02 serves as the central control unit for various systems, offering seamless communication with other industrial devices and components. It provides precise control, monitoring, and coordination of various devices such as drives, motors, and sensors, ensuring smooth operation across all industrial automation processes. This model stands out for its flexibility, making it suitable for complex industrial processes and applications where reliability and real-time performance are crucial.
Product Parameters
The detailed specifications of the ABB GCU-02 are outlined below:
| Parameter | Details |
|---|---|
| Model Number | GCU-02 |
| Part Number | 3AXD50000028861 |
| Voltage | 24 VDC |
| Current | 350 mA |
| Communication Type | Digital Communication (I/O) |
| Environmental Conditions | -20°C to +60°C |
| Dimensions (W x H x D) | 250 mm x 150 mm x 100 mm |
| Weight | 1.5 kg |
| Mounting Type | DIN Rail |
| Protection Class | IP20 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Product Applications
The ABB GCU-02 is a highly versatile control unit that can be deployed in a wide range of industrial automation applications. Some common use cases include:
-
Manufacturing Automation: It is employed in automated manufacturing systems to control production lines, machines, and robots, ensuring efficiency and minimizing downtime.
-
Process Control: In industries such as oil and gas, chemical production, and food processing, the GCU-02 controls and monitors complex process flows, ensuring consistency and reliability in operations.
-
Energy Management: The GCU-02 is used in energy distribution systems to manage and optimize energy usage in industrial plants, reducing operational costs and improving efficiency.
-
Building Automation: It can be integrated into building automation systems for managing lighting, HVAC, and security, ensuring smooth and efficient operations in commercial or industrial buildings.
-
Robot Control: The GCU-02 plays a crucial role in robotics applications, providing the control logic necessary for precise and reliable robot movements.
Product Advantages
-
High Flexibility: The GCU-02 is highly adaptable to a range of industrial environments, capable of controlling different types of equipment and systems.
-
Reliable Communication: With its digital communication capabilities, the GCU-02 ensures seamless interaction with other industrial devices and components, allowing for a fully integrated automation system.
-
Compact and Durable: Despite its robust features, the GCU-02 is compact (250 mm x 150 mm x 100 mm) and lightweight (1.5 kg), making it easy to mount in industrial control panels without taking up excessive space.
-
Wide Temperature Range: It operates in a temperature range of -20°C to +60°C, which makes it suitable for use in diverse environments, including extreme industrial conditions.
-
Low Power Consumption: The GCU-02’s current draw of 350 mA ensures it is energy-efficient, helping to reduce the overall power consumption of the automation system.
-
IP20 Protection Class: The GCU-02 offers protection against solid objects larger than 12 mm, making it suitable for use in environments with minimal dust and dirt.
Brand & Series
-
Brand: ABB
-
Series: General Control Unit (GCU) Series
Recommended Models from the Same Series
Here are five other models from the ABB GCU series that offer similar features and can be used in conjunction with the GCU-02 for a variety of industrial applications:
| Model Number | Voltage | Current | Dimensions (W x H x D) | Weight (kg) | Protection Class |
|---|---|---|---|---|---|
| GCU-01 | 24 VDC | 300 mA | 230 mm x 140 mm x 90 mm | 1.4 | IP20 |
| GCU-03 | 24 VDC | 400 mA | 250 mm x 150 mm x 100 mm | 1.7 | IP20 |
| GCU-04 | 24 VDC | 350 mA | 260 mm x 160 mm x 105 mm | 1.8 | IP20 |
| GCU-05 | 24 VDC | 350 mA | 245 mm x 145 mm x 95 mm | 1.5 | IP20 |
| GCU-06 | 24 VDC | 400 mA | 250 mm x 150 mm x 100 mm | 1.6 | IP20 |
Recommended Popular Models from the Same Brand
Below are five other popular models from ABB that are widely used in industrial applications for automation, process control, and energy management:
| Model Number | Voltage | Current | Dimensions (W x H x D) | Weight (kg) | Protection Class |
|---|---|---|---|---|---|
| AC500 | 24 VDC | 200 mA | 160 mm x 120 mm x 90 mm | 2.2 | IP20 |
| PM854K | 24 VDC | 150 mA | 100 mm x 100 mm x 70 mm | 0.9 | IP20 |
| AC800M | 24 VDC | 250 mA | 100 mm x 150 mm x 120 mm | 1.5 | IP20 |
| S500 | 24 VDC | 80 mA | 35 mm x 90 mm x 70 mm | 0.5 | IP20 |
| PSTX-1040 | 24 VDC | 300 mA | 80 mm x 80 mm x 45 mm | 0.45 | IP20 |
Product FAQ
Q1: What is the communication capability of the ABB GCU-02?
A1: The ABB GCU-02 supports digital communication for input and output operations, allowing it to integrate seamlessly with other components in an industrial control system.
Q2: What voltage does the GCU-02 operate on?
A2: The GCU-02 operates on 24 VDC, which is standard for industrial control systems.
Q3: How much current does the GCU-02 draw?
A3: The current draw of the GCU-02 is 350 mA.
Q4: What temperature range is the GCU-02 suitable for?
A4: The GCU-02 can operate in temperatures ranging from -20°C to +60°C, making it versatile for different industrial environments.
Q5: What are the dimensions of the GCU-02?
A5: The GCU-02 has dimensions of 250 mm (W) x 150 mm (H) x 100 mm (D), making it compact enough to fit in industrial control panels.
Q6: What is the weight of the GCU-02?
A6: The GCU-02 weighs approximately 1.5 kg, which is manageable for installation in control panels.
Q7: How is the GCU-02 mounted in industrial systems?
A7: The GCU-02 is designed for DIN rail mounting, which is a standard method for securely installing components in control panels.
Q8: Does the GCU-02 offer protection against dust or dirt?
A8: Yes, the GCU-02 has an IP20 protection class, meaning it is protected against solid objects larger than 12 mm, but it is not waterproof.
Q9: Can the GCU-02 be used in energy management applications?
A9: Yes, the GCU-02 is ideal for use in energy management systems, providing precise control and monitoring of energy usage in industrial plants.
Q10: What other models are compatible with the GCU-02 for a larger system setup?
A10: Other models in the GCU series, such as the GCU-01, GCU-03, and GCU-04, can be integrated into a larger system to offer enhanced control and functionality for various industrial automation applications.
