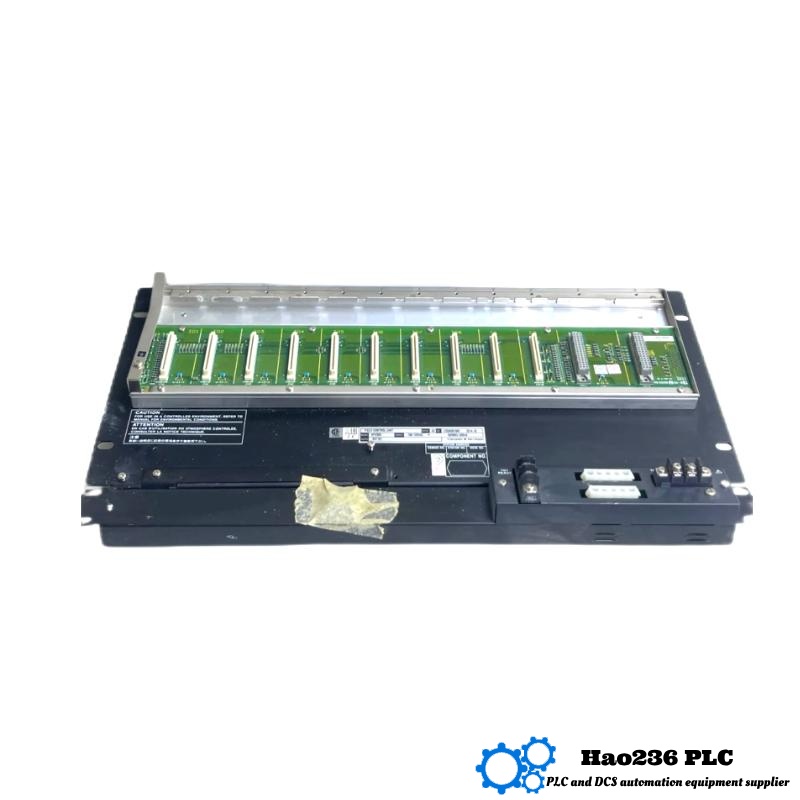

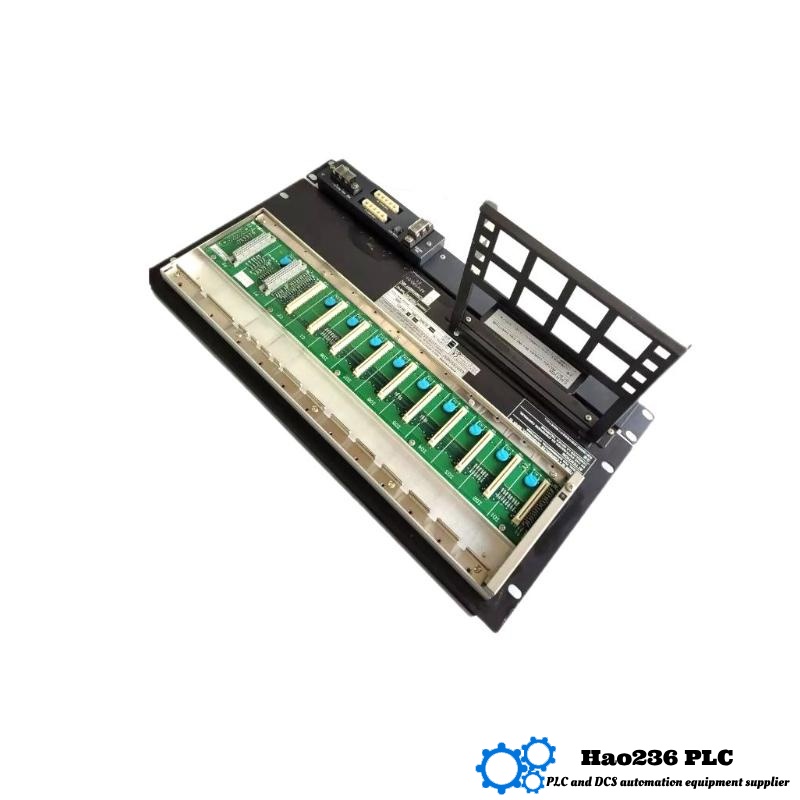

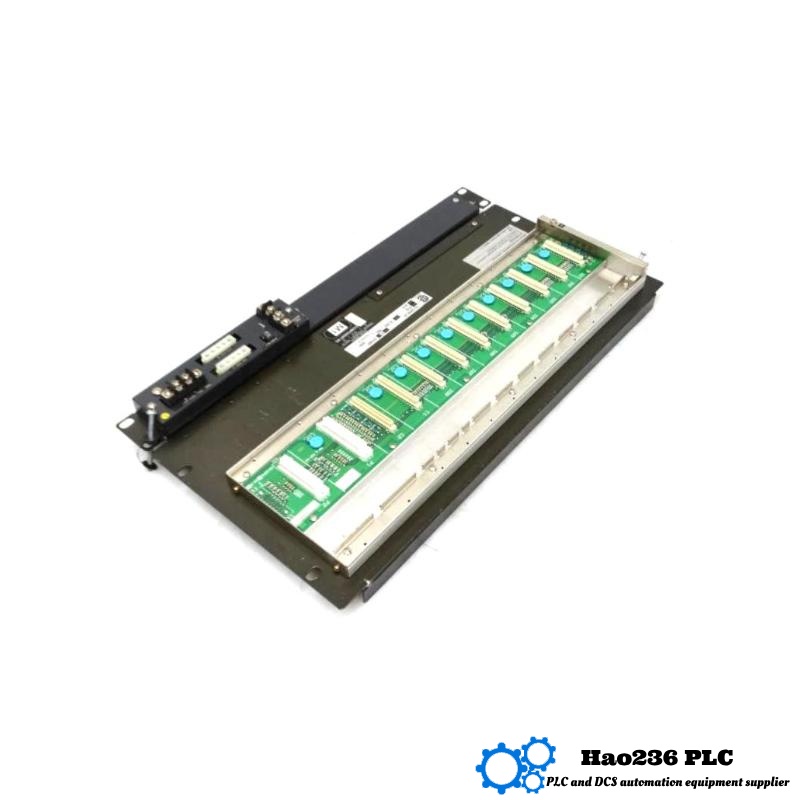

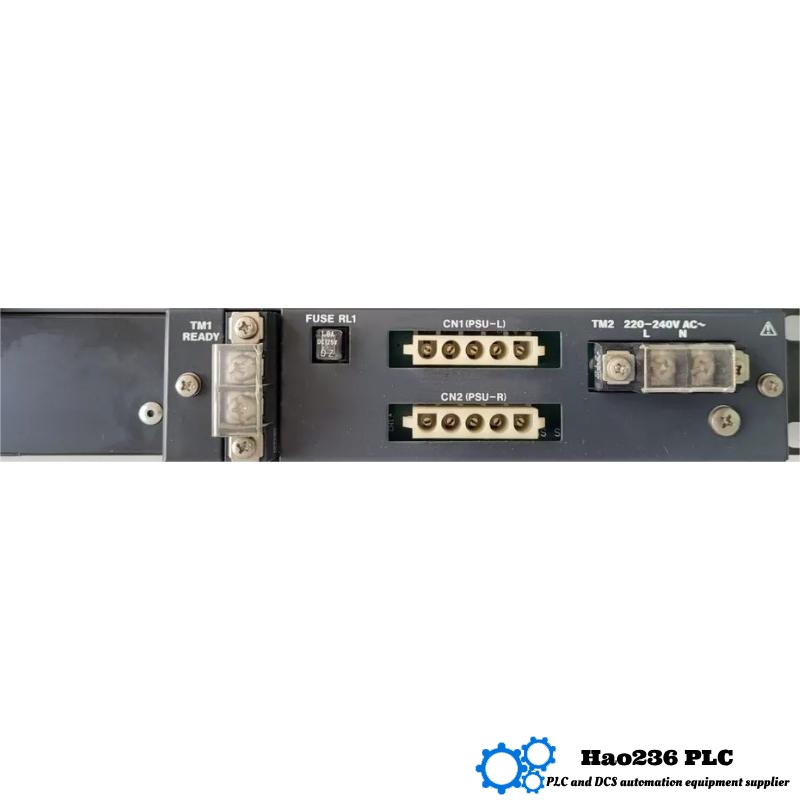

Yokogawa AFV10D-S41401 Dual-Redundant Field Control Unit
Product Introduction
The Yokogawa AFV10D-S41401 is a dual-redundant Field Control Unit (FCU) engineered for the CENTUM® VP distributed control system. It features two CPUs operating in hot-standby redundancy, guaranteeing uninterrupted control even if one CPU fails. With high processing power, rapid I/O scanning, and robust networking, the AFV10D-S41401 ensures continuous, precise regulation of critical processes in demanding industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | AFV10D-S41401 |
| Brand | Yokogawa |
| Type | Dual-redundant Field Control Unit (FCU) |
| Dimensions (W × H × D) | 207 × 265.9 × 482.6 mm |
| Weight | 8 kg |
| CPU Redundancy | Dual hot-standby CPUs |
| Scan Cycle | ≤ 5 ms (standard configuration) |
| I/O Capacity | Up to 512 I/O points per unit |
| Network Interfaces | Dual 100 Mbps Ethernet, F³ Bus |
| Power Supply | 24 V DC |
| Operating Temperature | 0 °C to +55 °C |
| MTBF | > 200,000 hours |
| Certifications | CE, cUL, SIL2 (with certified I/O options) |
Product Applications
The AFV10D-S41401 is ideal for:
Oil & Gas upstream and downstream control where uptime is paramount.
Petrochemical process units that demand seamless safety interlocks and continuous operation.
Power plants for boiler, turbine, and generator regulation with zero-loss control.
Pharmaceutical and food production lines requiring batch consistency and strict regulatory compliance.
Water and wastewater systems needing reliable remote I/O monitoring and alarm management.
Product Advantages
-
Zero Control Loss: Hot-standby CPUs switch instantaneously, preventing any interruption.
-
High-Speed Loop: ≤ 5 ms scan cycles support fast, precise control of dynamic processes.
-
Scalable Architecture: Accommodates up to 512 I/O points for large-scale installations.
-
Robust Networking: Dual Ethernet and F³ Bus ensure resilient, deterministic data flow.
-
Hot-Swap Capability: I/O modules can be replaced without shutting down the system, reducing maintenance windows.
Recommended Related Models (Same Series or Related)
| Model | Redundancy | I/O Capacity | Scan Cycle | Notes |
|---|---|---|---|---|
| AFV10D-S41251 | Dual hot-standby | 512 | ≤ 5 ms | Standard performance option |
| AFV10D-S23251 | Dual hot-standby | 256 | ≤ 5 ms | Smaller I/O count, compact rack |
| AFV10D-L23251 | Dual hot-standby | 256 | ≤ 10 ms | Cost-effective, lower scan speed |
| AFV10D-S41252 | Dual hot-standby | 512 | ≤ 3 ms | High-speed loop for tight control |
| AFV10D-S41253 | Dual hot-standby | 768 | ≤ 5 ms | Extended capacity via expansion chassis |
Popular Yokogawa Models (Other Series)
| Model | Function Type | Channel/Interface Details | Typical Application | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| ADV151-P60 | Analog Input Module (AI) | 16 Channels, 4–20 mA | High-precision analog signal acquisition | 30 × 130 × 100 | 0.3 kg |
| ADV161-P50 | Analog Output Module (AO) | 8 Channels, 4–20 mA | Analog signal output for control valves/VFDs | 30 × 130 × 100 | 0.3 kg |
| ADV159-P01 | Digital Input Module (DI) | 32 Channels, Dry Contact Inputs | Digital signal acquisition from field devices | 30 × 130 × 100 | 0.3 kg |
| AFM20D | Communication Module | Dual Ethernet/Fieldbus Ports | Field communication interface for control systems | 30 × 130 × 100 | 0.35 kg |
| AFG84D-H4123 | Redundant Control Module | Dual Redundant CPU Architecture | High-reliability redundant control applications | 207 × 265.9 × 482.6 | 8.0 kg |
Frequently Asked Questions (FAQ)
Q1: What redundancy does the AFV10D-S41401 provide?
A1: It delivers hot-standby dual-CPU redundancy to maintain control without any interruption.
Q2: How many I/O points can it support?
A2: The unit accommodates up to 512 I/O points.
Q3: What is its typical I/O scan cycle?
A3: Standard configuration achieves ≤ 5 ms scan cycles.
Q4: Which network interfaces does it include?
A4: It features dual 100 Mbps Ethernet ports and an F³ Bus connection.
Q5: Can I replace modules without shutting down operations?
A5: Yes—hot-swap I/O modules allow maintenance without process interruption.
Q6: What power supply does it require?
A6: A stable 24 V DC input powers the unit.
Q7: What environmental conditions can it withstand?
A7: It operates reliably between 0 °C and +55 °C with IP20 enclosure.
Q8: Is it suitable for safety applications?
A8: When paired with certified safety I/O, it can achieve SIL2 performance.
Q9: How does it integrate with CENTUM® VP?
A9: It plugs into the F³ Bus rack and auto-configures within the CENTUM VP system.
Q10: What is the MTBF of the unit?
A10: The mean time between failures exceeds 200,000 hours under normal use.
