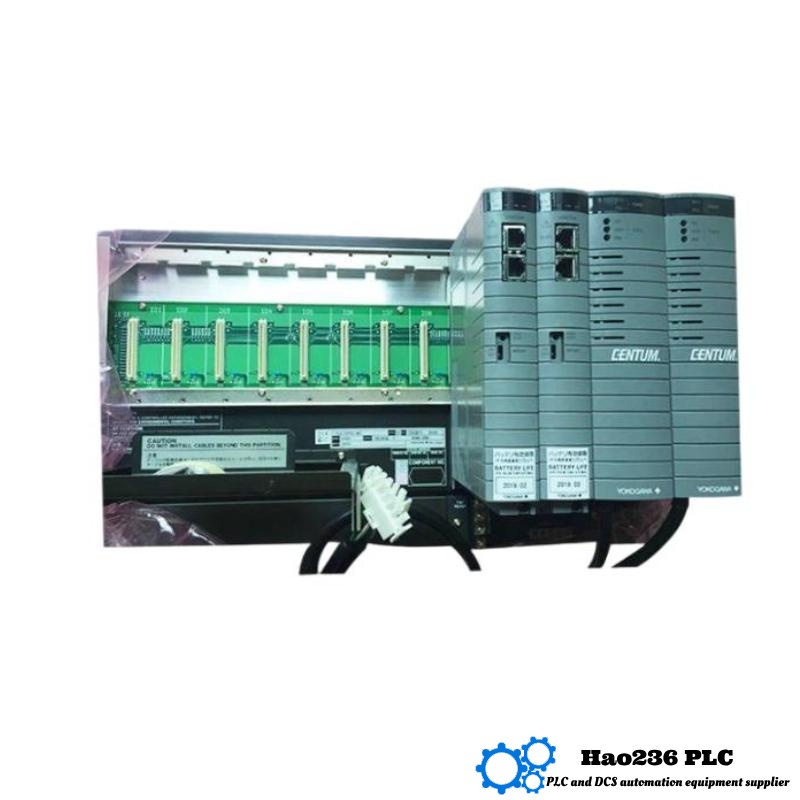

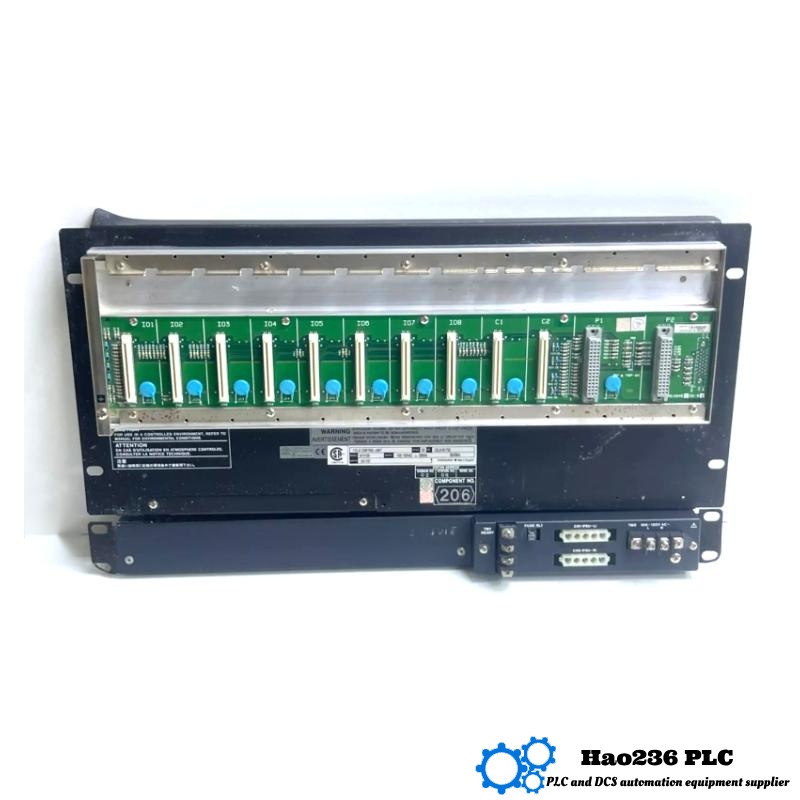

Yokogawa AFV10D-S41251 Dual-Redundant Field Control Unit
Product Introduction
The Yokogawa AFV10D-S41251 is a dual-redundant Field Control Unit (FCU) designed for the CENTUM® VP distributed control system. It houses two CPUs operating in hot redundancy, ensuring zero-loss control during a component failure. Equipped with powerful processing, high-speed I/O scanning, and extensive network interfaces, the AFV10D-S41251 delivers reliable, continuous control in critical industrial processes.
Product Specifications
| Parameter | Value |
|---|---|
| Model | AFV10D-S41251 |
| Brand | Yokogawa |
| Type | Dual-redundant Field Control Unit (FCU) |
| Dimensions (W × H × D) | 207 × 265.9 × 482.6 mm |
| Weight | 8 kg |
| CPU Redundancy | Dual hot-standby CPUs |
| Scan Cycle | ≤ 5 ms in standard configuration |
| I/O Capacity | Up to 512 I/O points per unit |
| Network Interfaces | Dual Ethernet (100 Mbps), F3 Bus |
| Power Supply | 24 V DC |
| Operating Temp. | 0 °C to +55 °C |
| MTBF | > 200 000 hours |
| Certifications | CE, cUL, SIL2 (with additional components) |
Product Applications
The AFV10D-S41251 is used in:
-
Oil & Gas upstream and downstream control for continuous operation.
-
Petrochemical process units requiring zero-downtime safety interlocks.
-
Power Generation plant control, including boiler and turbine regulation.
-
Pharmaceutical & Food manufacturing, where batch consistency and uptime are critical.
-
Water/Wastewater treatment plants needing reliable remote I/O and alarming.
Product Advantages
-
Uninterrupted Operation: Dual-redundant CPUs provide seamless failover without control interruption.
-
Fast Control Loop: ≤ 5 ms scan cycles enable precise, high-speed process control.
-
Scalable I/O: Supports up to 512 I/O points for large-scale systems.
-
Robust Networking: Dual Ethernet and F3 Bus ensure secure, deterministic communication.
-
Easy Maintenance: Hot-swap capability for modules reduces service time and risk.
Recommended Models: Same Series or Related
| Model | Redundancy | I/O Capacity | Scan Cycle | Notes |
|---|---|---|---|---|
| AFV10D-S23251 | Dual CPU | 256 | ≤ 5 ms | 24 V DC, smaller I/O count |
| AFV10D-L23251 | Dual CPU | 256 | ≤ 10 ms | Lower performance, cost-effective |
| AFV10D-S41252 | Dual CPU | 512 | ≤ 3 ms | High-speed loop for critical loops |
| AFV10D-S41253 | Dual CPU | 768 | ≤ 5 ms | Extended I/O via expansion chassis |
| AFV10D-S41254 | Dual CPU | 1 024 | ≤ 5 ms | Maximum I/O for ultra-large plants |
Popular Yokogawa Models (Other Series)
| Model | Function Type | Channels | Power Supply | Dimensions (mm) | Weight (kg) | Description |
|---|---|---|---|---|---|---|
| ADV151-P60 | Analog Input Module | 16 AI | 24 V DC | 130 x 100 x 130 | 0.8 | High-density analog input, suitable for compact systems |
| ADV161-P50 | Analog Output Module | 8 AO | 24 V DC | 130 x 100 x 130 | 0.85 | Precision analog output for control applications |
| ADV159-P01 | Analog Input Module | 8 AI | 24 V DC | 130 x 100 x 130 | 0.75 | Reliable analog input with diagnostic function |
| ADV152-P10 | Digital Input Module | 32 DI | 24 V DC | 130 x 100 x 130 | 0.7 | High-speed digital inputs for logic monitoring |
| ADV162-P10 | Digital Output Module | 32 DO | 24 V DC | 130 x 100 x 130 | 0.8 | Fast switching digital outputs for field actuation |
Frequently Asked Questions (FAQ)
Q1: What level of redundancy does the AFV10D-S41251 provide?
A1: It offers hot-standby dual-CPU redundancy, ensuring continuous control on CPU failure.
Q2: How many I/O points can it handle?
A2: Up to 512 I/O points per FCU.
Q3: What is its typical scan cycle time?
A3: ≤ 5 ms in standard configuration.
Q4: Which networks does it support?
A4: Dual 100 Mbps Ethernet and F3 Bus for deterministic data transfer.
Q5: Can I replace modules without shutting down the system?
A5: Yes, I/O modules are hot-swappable.
Q6: What power supply does it require?
A6: 24 V DC.
Q7: What environmental conditions can it withstand?
A7: Operating temperature of 0 °C to +55 °C, IP 20 enclosure.
Q8: Is it SIL-certified for safety applications?
A8: SIL2 capable when used with certified I/O and safety controllers.
Q9: How does it integrate with CENTUM® VP?
A9: Plugs directly into the F3 Bus rack, auto-configures within the system.
Q10: What is its mean time between failures (MTBF)?
A10: Greater than 200 000 hours under normal conditions.
