Product Overview

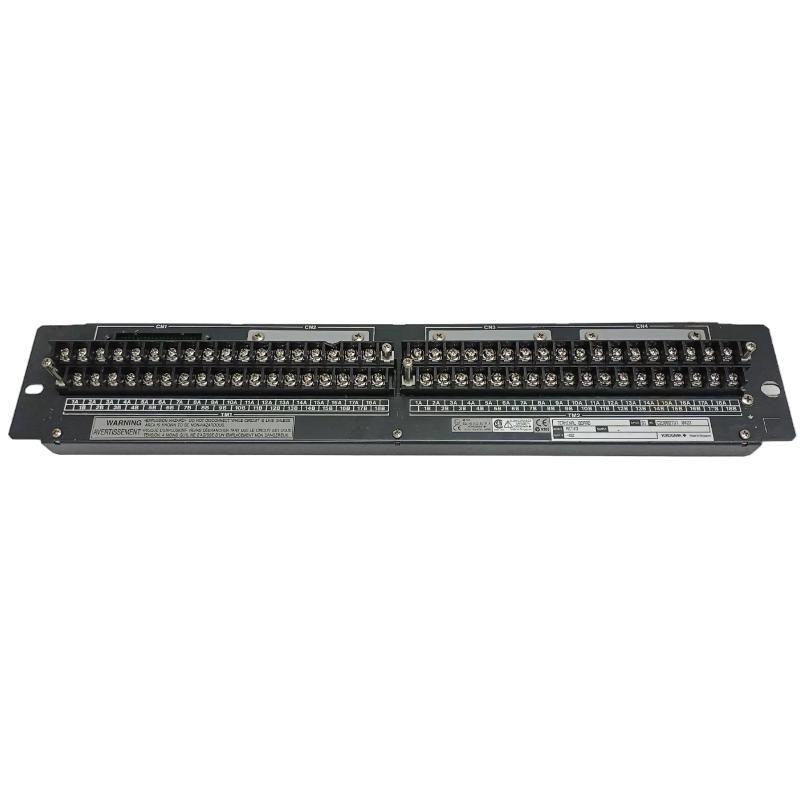

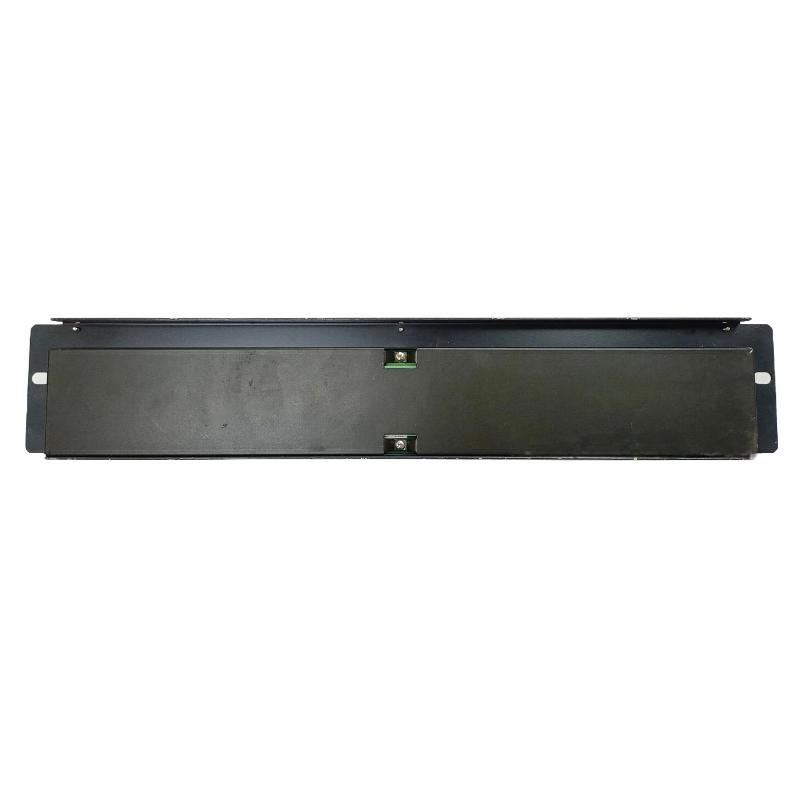

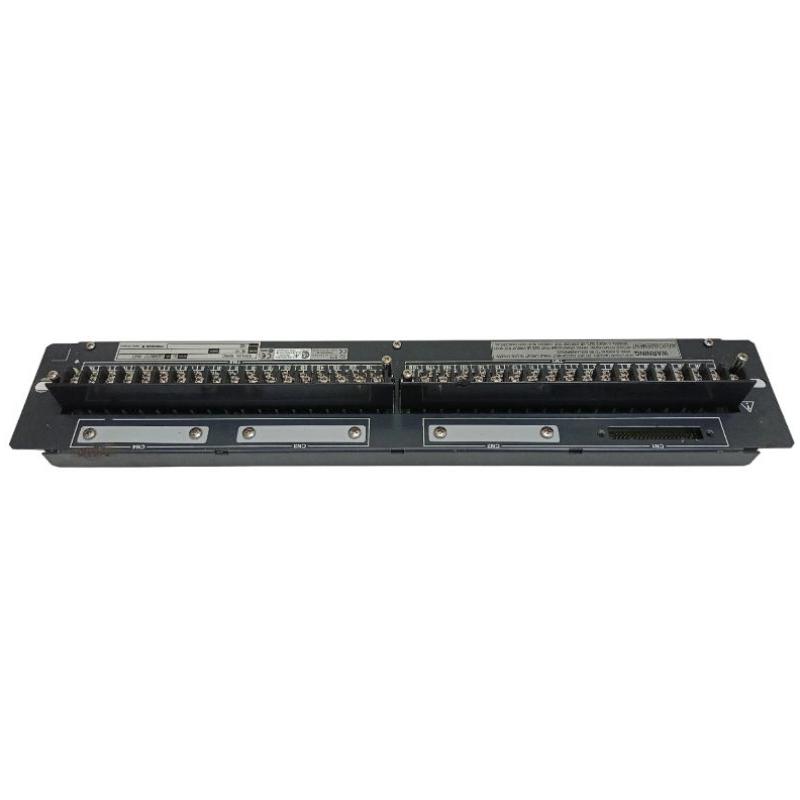

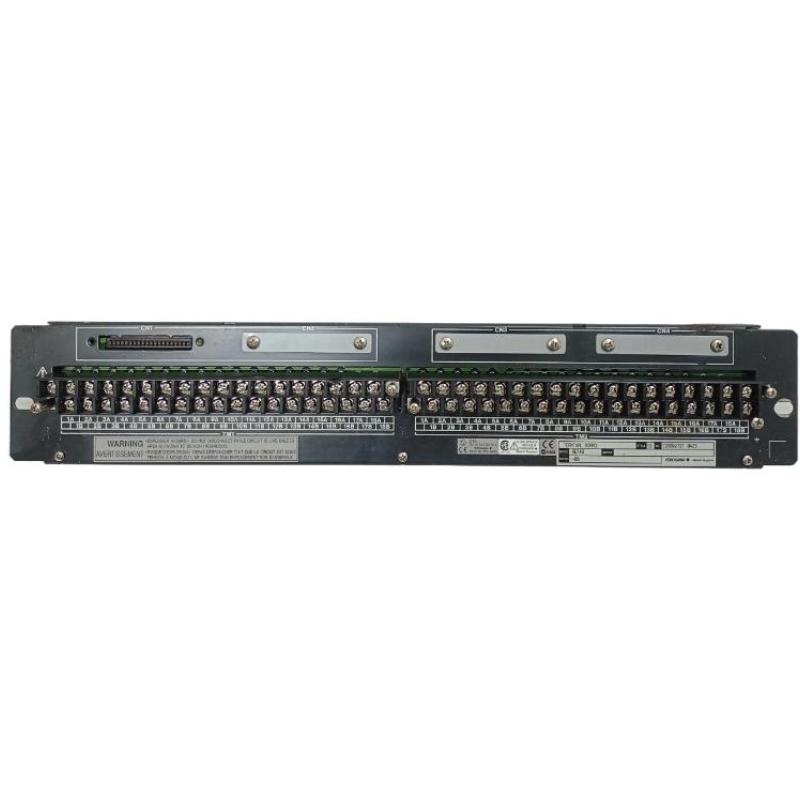

The Yokogawa AET4D-06 Terminal Board is an industrial thermocouple interface module used in Yokogawa distributed control systems (DCS). It is designed to provide stable and organized termination of thermocouple field wiring, enabling accurate temperature signal transmission to system I/O modules.
This model is commonly used in process automation systems where precise temperature measurement and high signal stability are required. It helps simplify cabinet wiring while ensuring reliable long-term operation in industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | AET4D-06 |
| Product Type | Thermocouple Terminal Board |
| Function | Thermocouple signal termination and wiring interface |
| Signal Type | Thermocouple (Type K, J, T, E, R, S, B – system dependent) |
| Channel Capacity | 16-channel (typical configuration) |
| Connection Type | Screw terminal (industrial M3/M4 type) |
| Cold Junction Compensation | Supported via Yokogawa I/O modules |
| Electrical Isolation | High isolation between channels |
| Dimensions | 482.6 × 88.1 × 85 mm |
| Weight | 1.8 kg |
| Mounting Type | Rack-mounted / cabinet-mounted |
| System Compatibility | Yokogawa CENTUM VP / CENTUM CS / FIO systems |
| Operating Environment | Industrial control cabinets |
| Material | Industrial-grade PCB and metal housing |
Function and Working Principle
The AET4D-06 operates as a passive thermocouple signal termination interface between field sensors and DCS input modules.
Its working process includes:
- Receiving low-voltage thermocouple signals from field devices
- Organizing multi-channel wiring into structured terminal points
- Routing signals to Yokogawa analog input modules
- Supporting cold junction compensation via system-level processing
- Maintaining signal stability with low noise interference
Because thermocouples generate millivolt-level signals, the terminal board plays a key role in preserving signal integrity before conversion.
Role in Industrial Control Systems
Within Yokogawa automation architecture, the AET4D-06 serves as a critical interface component:
- Acts as the central termination point for thermocouple wiring
- Connects temperature sensors to DCS I/O modules
- Improves cabinet wiring organization and clarity
- Reduces installation errors and maintenance time
- Supports stable and reliable temperature acquisition
It is widely used in industrial temperature monitoring systems.
Industrial Applications
The Yokogawa AET4D-06 is commonly used in:
- Distributed Control Systems (DCS)
- Oil and gas processing facilities
- Petrochemical and refinery plants
- Power generation systems
- Furnace and boiler temperature monitoring
- Industrial process temperature measurement systems
It is especially suitable for high-accuracy thermal measurement environments.
Installation and System Integration
For optimal performance, the AET4D-06 should be installed as follows:
- Mounted in industrial control cabinets or racks
- Connected directly to Yokogawa thermocouple input modules
- Field thermocouples wired into terminal blocks
- Proper shielding applied to reduce electrical noise
- Organized wiring layout for easier maintenance
Correct installation ensures stable and accurate temperature measurement.
Compatible System Components
The AET4D-06 typically works with:
- Yokogawa thermocouple input modules
- CENTUM / FIO analog input systems
- Field thermocouple sensors (Type K, J, T, etc.)
- DCS controllers and processing units
- Industrial signal wiring harness systems
These components rely on the terminal board for stable signal routing.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| AET4D-00 | Thermocouple Terminal Board | Base configuration | General temperature systems |
| AET4D-05 | Thermocouple Terminal Board | Standard industrial version | Process control systems |
| AER4D-06 | Analog Terminal Board | Non-temperature signals | General I/O wiring |
| AAI / ADV Series | I/O Modules | Direct signal conversion | Temperature acquisition systems |
| AEV / AEX Series | Advanced input modules | High-precision measurement | Critical process control |
Key Advantages
- Stable thermocouple signal termination
- Reduces wiring complexity in control cabinets
- Improves maintenance efficiency
- High compatibility with Yokogawa DCS systems
- Reliable operation in harsh industrial environments
- Supports structured temperature monitoring architecture
Technical FAQs
What is the main function of the AET4D-06?
It connects thermocouple sensors to Yokogawa DCS input modules for temperature measurement.
Is it an active device?
No, it is a passive terminal board used for signal wiring and termination.
Does it perform signal conversion?
No, conversion is handled by the I/O modules, not the terminal board.
Conclusion
The Yokogawa AET4D-06 Thermocouple Terminal Board is a key interface component in industrial temperature measurement systems. It ensures stable, accurate, and organized connection between field thermocouples and control system modules.
For engineers and system integrators, it provides a reliable foundation for building precise, maintainable, and scalable temperature monitoring architectures in industrial automation environments.
