Product Overview

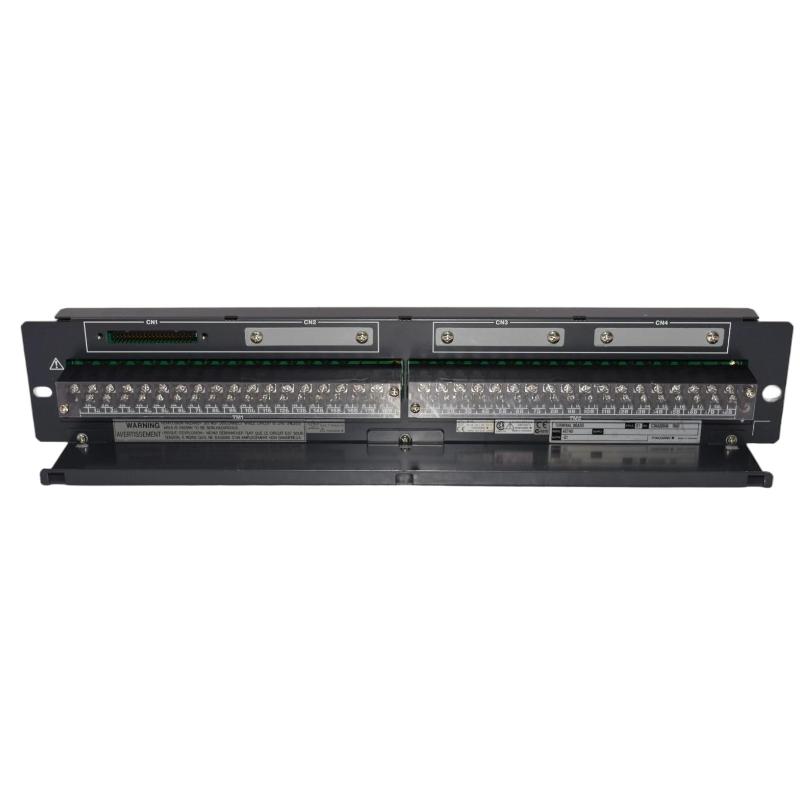

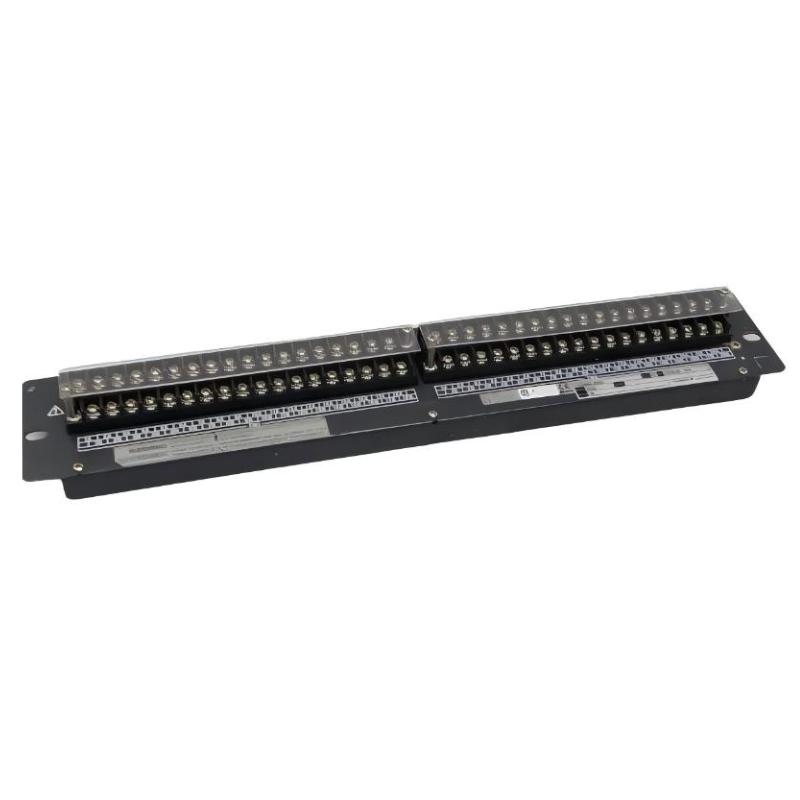

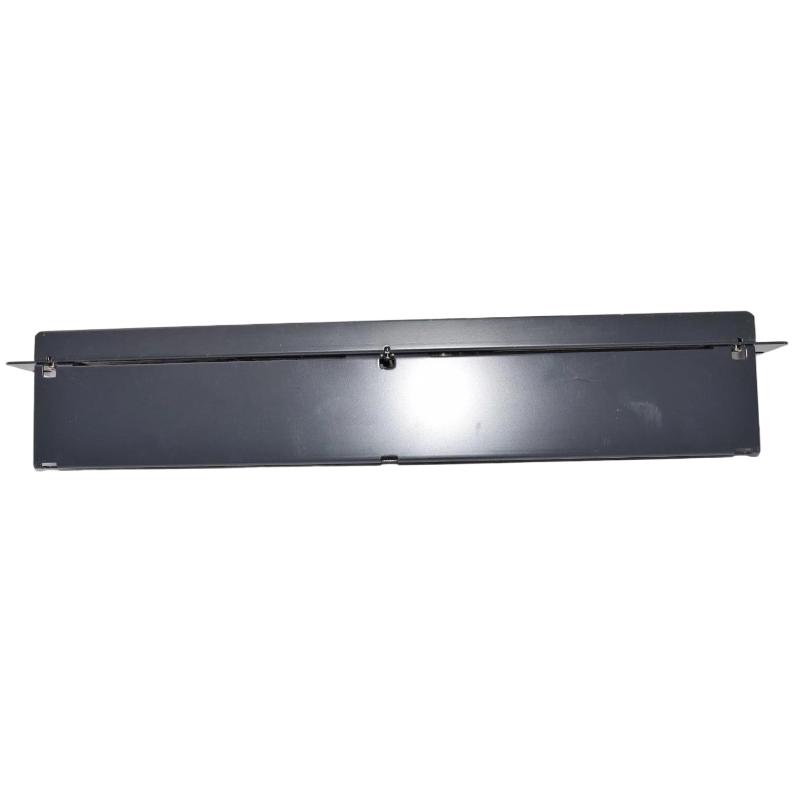

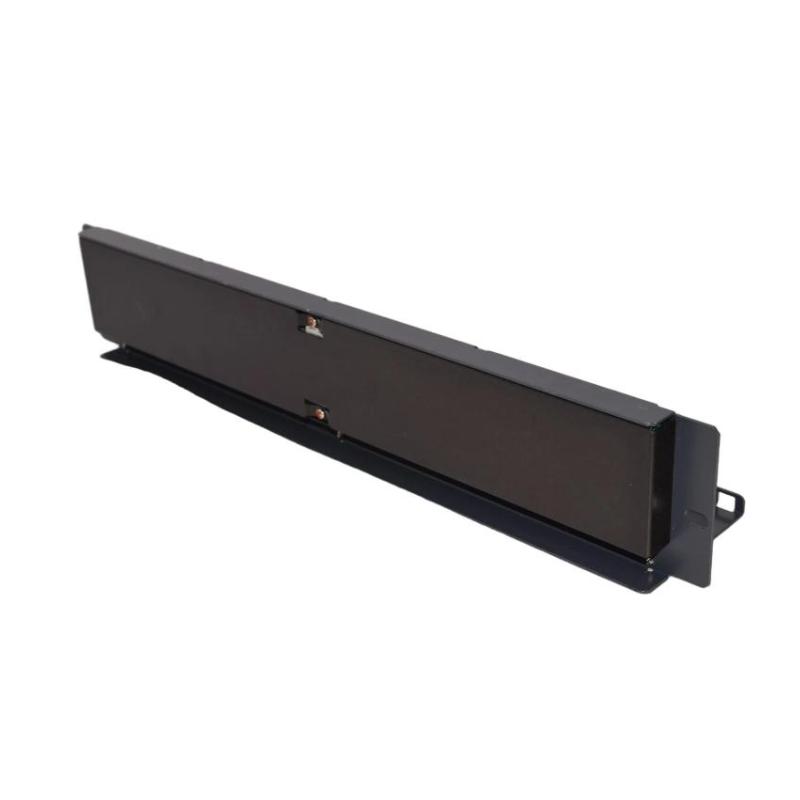

The Yokogawa AEA4D-00 S1 Terminal Board is a signal terminal interface board designed for use in Yokogawa CENTUM Distributed Control Systems (DCS). It provides a structured and reliable connection between field wiring and I/O modules, ensuring stable signal transmission and efficient wiring management.
The S1 version represents a revised configuration, typically offering improved compatibility and stability for long-term industrial operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | AEA4D-00 S1 |
| Product Type | Terminal Board |
| Function | Signal wiring interface |
| Supported Signals | Analog signals |
| Channel Capacity | 16 channels |
| Connection Type | Screw terminal (M4) |
| Insulation Resistance | ≥ 100 MΩ |
| Withstand Voltage | 500 V AC (1 minute) |
| Mounting Type | Rack / panel installation |
| Dimensions (H × W × D) | 482.6 × 88.1 × 85 mm |
| Weight | 1.5 kg |
Function and Working Principle
The AEA4D-00 S1 operates as a terminal interface layer, connecting field devices with control system modules.
Its working process includes:
- Receiving analog signals from field instruments
- Providing structured terminal points for wiring
- Transmitting signals to connected I/O modules
- Maintaining signal integrity through stable connections
- Simplifying troubleshooting and maintenance
This ensures efficient and reliable signal transmission in industrial environments.
Role in Industrial Control Systems
Within Yokogawa CENTUM systems, the AEA4D-00 S1 serves as a field wiring interface component, responsible for:
- Organizing and terminating field wiring
- Interfacing analog signals with control modules
- Enhancing system maintainability
- Reducing wiring complexity inside control cabinets
It plays a key role in the field interface layer of distributed control systems.
Industrial Applications
The AEA4D-00 S1 is widely used in:
- Oil and gas industries
- Petrochemical and chemical processing
- Power generation systems
- Water and wastewater treatment
- Industrial automation and process control
It is suitable for applications requiring stable and organized analog signal connections.
Installation and System Integration
For proper operation, the terminal board should be:
- Installed in control panels or system racks
- Connected via screw terminals for secure wiring
- Properly grounded to reduce electrical interference
- Integrated with Yokogawa I/O modules
- Arranged for easy access during maintenance
Correct installation ensures long-term reliability and stable system performance.
Compatible System Components
The AEA4D-00 S1 typically works with:
- Yokogawa analog I/O modules
- Field Control Stations (FCS)
- Sensors and transmitters
- Control system racks and wiring assemblies
These components form a complete signal interface solution.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa AEA4D-00 | Terminal Board | Standard version | General applications |
| Yokogawa AEA4D-05 | Terminal Board | Enhanced protection | Harsh environments |
| Yokogawa AEA4D-10 | Terminal Board | High reliability | Critical systems |
| Yokogawa AEA4A series | Terminal Board | Flexible configurations | General use |
| Yokogawa ADV151 series | Input Module | Digital signal acquisition | Automation systems |
Key Advantages
- 16-channel signal interface capability
- Secure and reliable screw terminal connections
- Improved stability with S1 revision
- High insulation performance
- Simplified wiring and maintenance
- Reliable operation in industrial environments
- Easy integration with Yokogawa systems
Technical FAQs
Q1: What is the function of AEA4D-00 S1?
It provides terminal connections for signals between field devices and control modules.
Q2: How many channels does it support?
It supports 16 channels.
Q3: What does S1 indicate?
It indicates a revised version with improved compatibility and stability.
Q4: What type of signals does it handle?
It handles analog signals.
Q5: Where is it commonly used?
It is widely used in industrial automation systems for signal interfacing.
Conclusion
The Yokogawa AEA4D-00 S1 Terminal Board is a reliable and structured interface solution for industrial control systems. With stable performance, organized wiring design, and improved revision features, it ensures efficient signal transmission and dependable system integration in automation environments.
