Product Overview

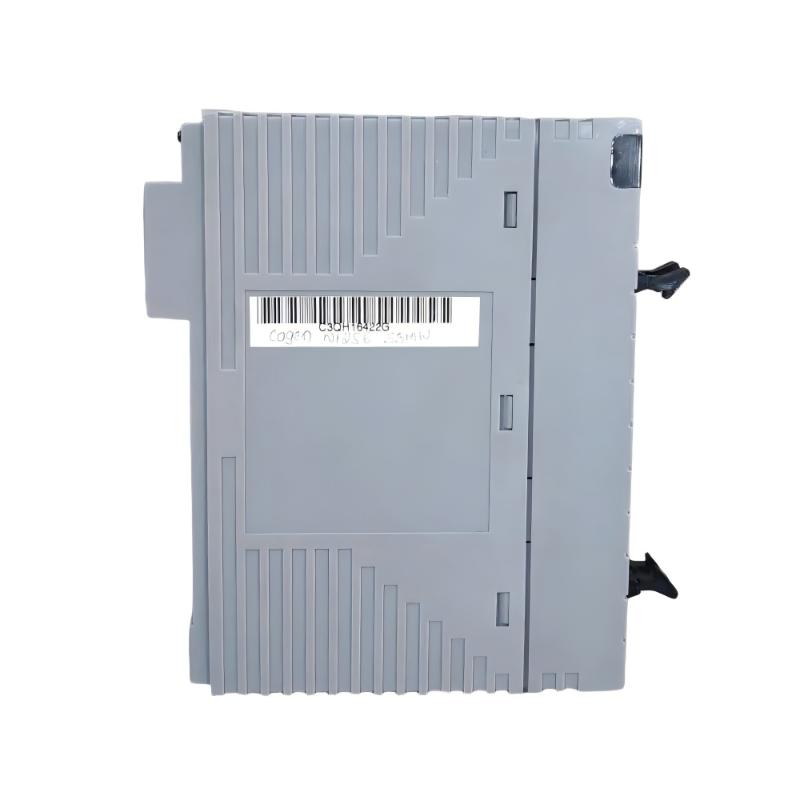

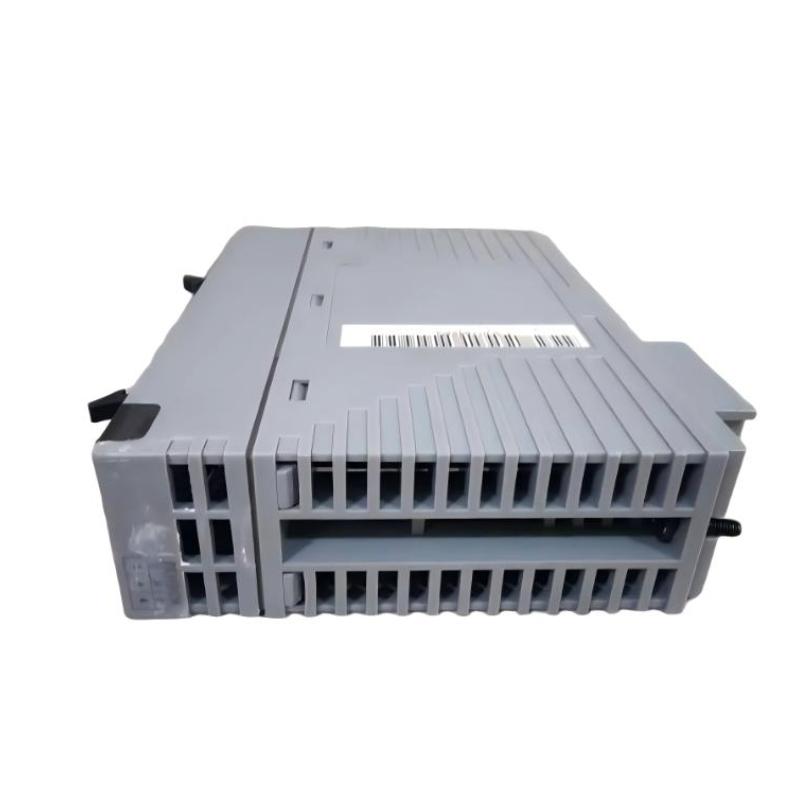

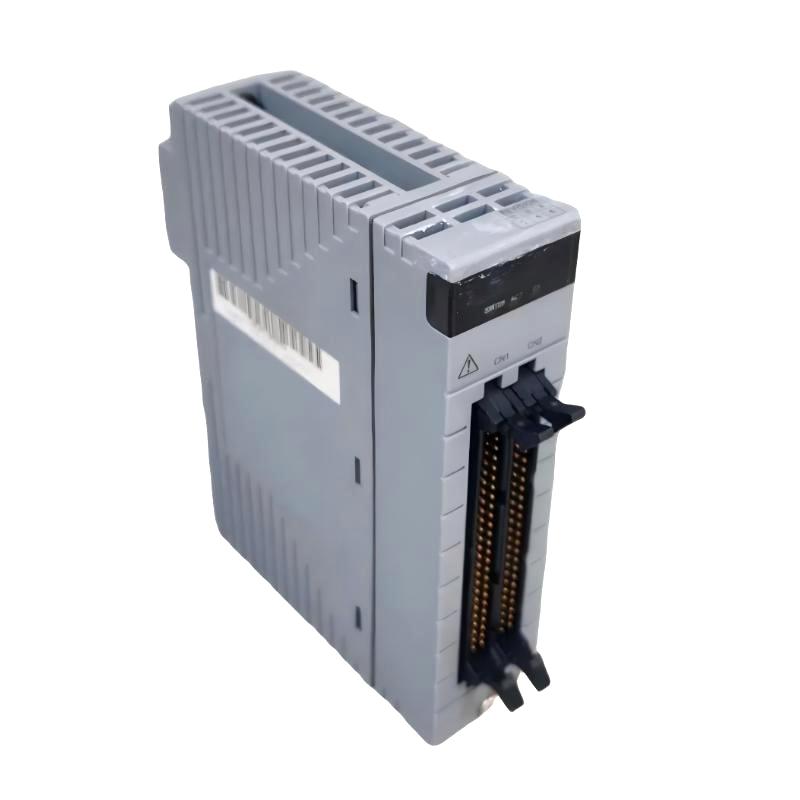

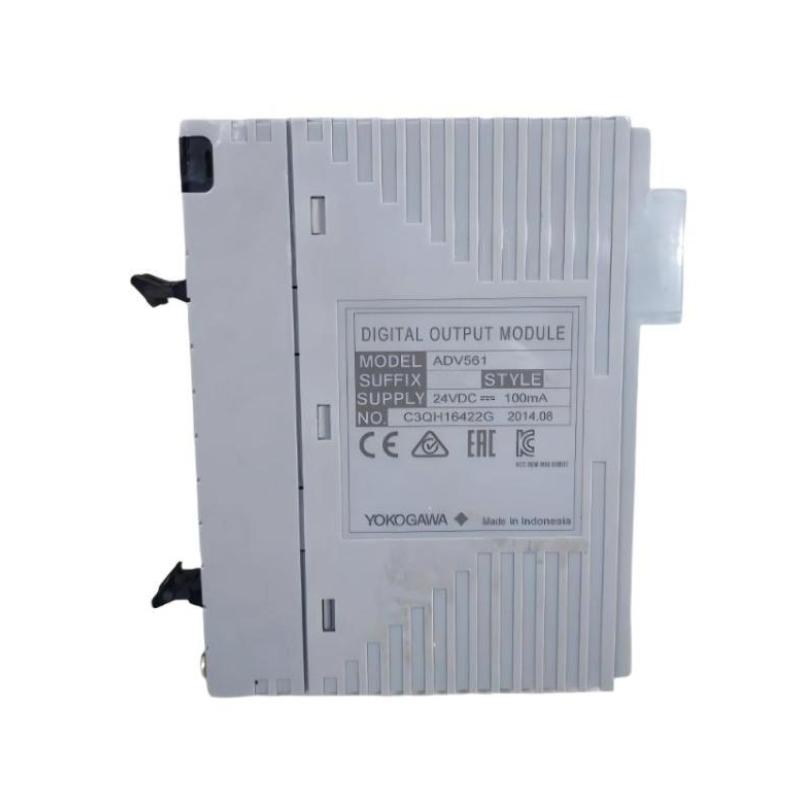

The Yokogawa ADV561-P01 Digital Output Module is a 64-channel high-density discrete output module used in Yokogawa CENTUM Distributed Control Systems (DCS). It is designed to output ON/OFF control signals from the controller to field devices such as relays, solenoids, valves, and indicator lamps.
It is a high-capacity output module designed for large-scale industrial automation systems where a large number of discrete signals must be controlled in a compact hardware footprint.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV561-P01 |
| Product Type | Digital Output Module |
| Function | Discrete signal (ON/OFF) output |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Output Channels | 64 channels |
| Output Type | Transistor (current sink) |
| Signal Type | ON/OFF (binary output) |
| Rated Output Voltage | 24 V DC |
| External Power Supply | 20.4 to 26.4 V DC |
| Output Current | Approx. 100 mA per channel |
| Response Time | ≤ 3 ms |
| Isolation | Channel-to-system isolation |
| Protection | Overcurrent and short-circuit protection |
| Power Supply | 5 V DC (via backplane) |
| Mounting Type | Rack-mounted / FIO system base |
| Dimensions (H × W × D) | 130 × 119.9 × 32.8 mm |
| Weight | 0.3 kg |
Function and Working Principle
The ADV561-P01 functions as a digital interface between the control system and field devices.
Its operation includes:
- Receiving digital output commands from the controller
- Converting logic signals into transistor switching outputs
- Driving external devices such as solenoids, relays, and indicator lamps
- Ensuring fast switching response for real-time control
- Providing electrical isolation between system and field circuits
- Supporting high-channel-density output in compact form
This allows efficient execution of large-scale control sequences in industrial systems.
Role in Industrial Control Systems
Within Yokogawa CENTUM architecture, the ADV561-P01 serves as a high-density output execution module, responsible for:
- Executing automation control signals
- Driving large numbers of field actuators
- Supporting interlock and shutdown logic
- Enabling process sequencing control
- Reducing cabinet space through high channel density
It is widely used in the output layer of distributed control systems (DCS).
Industrial Applications
The ADV561-P01 is commonly used in:
- Oil and gas production and refining
- Petrochemical and chemical processing plants
- Power generation facilities
- Water and wastewater treatment systems
- Large-scale industrial automation systems
- Process control environments
It is suitable for applications requiring high-density digital output control.
Installation and System Integration
For proper operation, the module should be:
- Installed in Yokogawa CENTUM / FIO system racks
- Connected using 24 V DC field wiring
- Properly grounded to reduce electrical noise
- Configured via engineering and system tools
- Integrated into distributed or redundant architectures when required
Correct installation ensures stable long-term performance and reliability.
Compatible System Components
The ADV561-P01 works with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Relays, solenoids, valves, and indicator devices
- Alarm and interlock systems
These components form a complete industrial automation ecosystem.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV551-P50 series | Digital Output Module | 32-channel standard density | Medium-scale systems |
| Yokogawa ADV551-P60 series | Digital Output Module | Enhanced performance | Critical control |
| Yokogawa ADV561-P00 S2 | Digital Output Module | Revised stable version | Large-scale systems |
| Yokogawa ADV551-DO32 | Digital Output Module | Basic configuration | General automation |
| Yokogawa ADV551-P13 S2 | Digital Output Module | Stable revision type | Process control |
Key Advantages
- 64-channel high-density output capability
- Compact design for reduced cabinet space
- Stable transistor switching performance
- Fast response time (≤ 3 ms)
- Strong electrical isolation for system safety
- Reliable continuous operation in industrial environments
- Seamless integration with Yokogawa DCS systems
Technical FAQs
Q1: What is the function of ADV561-P01?
It outputs ON/OFF control signals from the control system to field devices.
Q2: How many channels does it support?
It supports 64 digital output channels.
Q3: What type of output does it use?
It uses transistor-based current sink output.
Q4: Is it suitable for large systems?
Yes, it is designed for high-density, large-scale industrial automation.
Q5: Where is it commonly used?
It is widely used in process industries such as oil & gas, chemical, and power generation.
Conclusion
The Yokogawa ADV561-P01 Digital Output Module is a high-density and reliable automation output solution designed for large-scale control systems. With 64-channel capacity, stable switching performance, and compact structure, it ensures efficient and accurate execution of control signals in distributed industrial environments.
