Product Overview

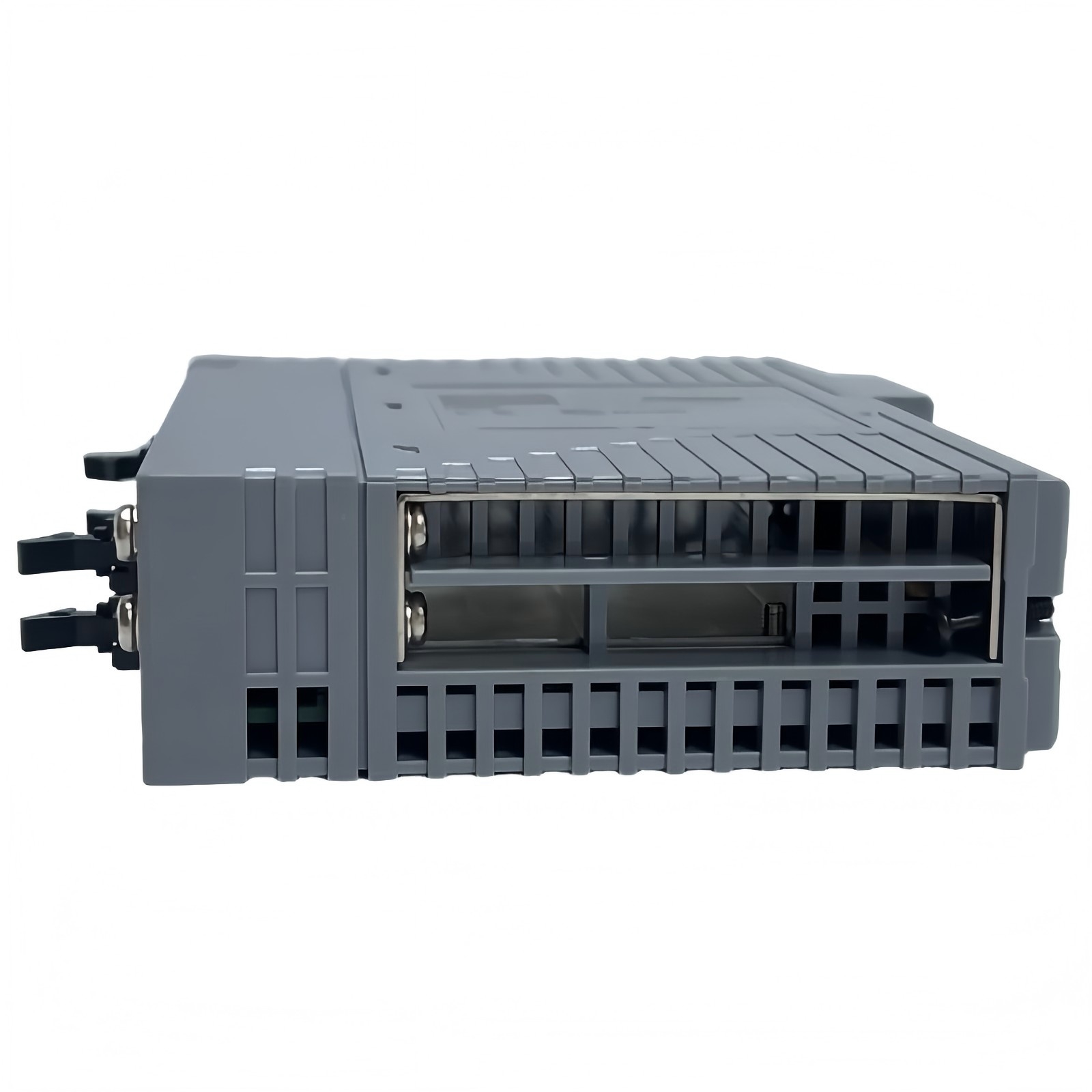

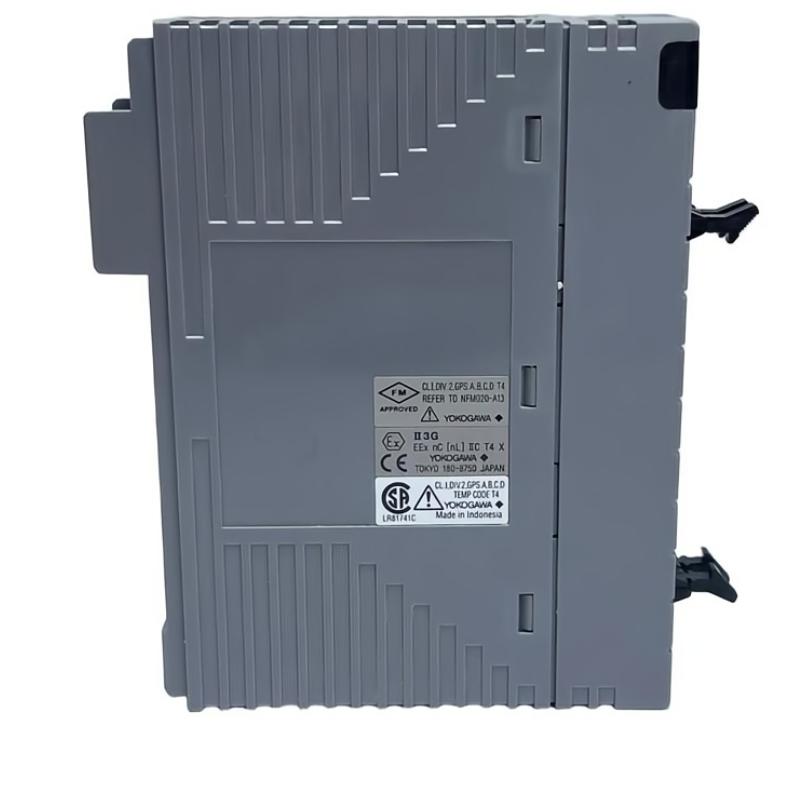

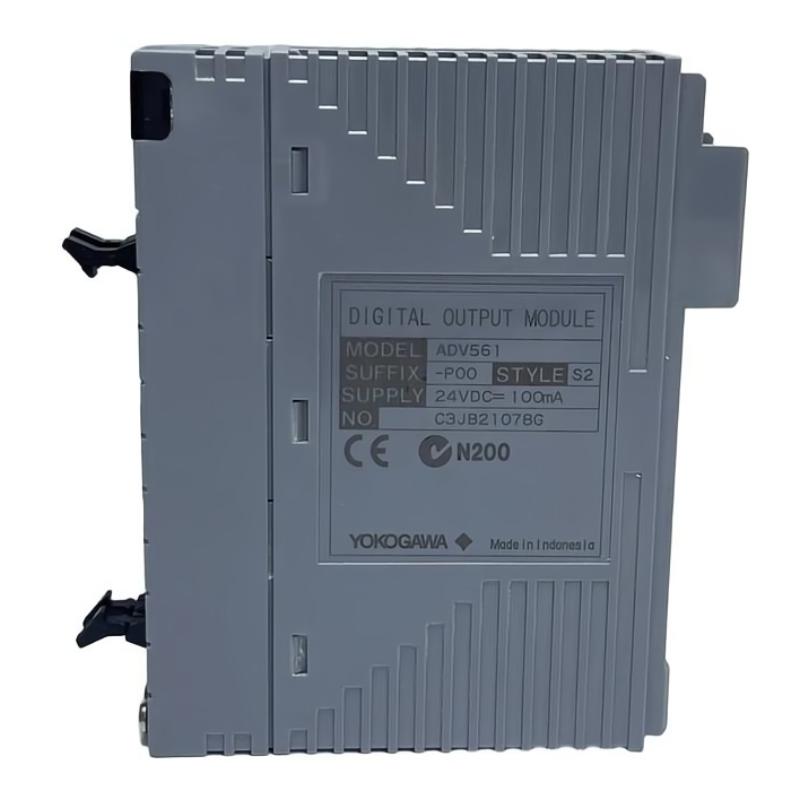

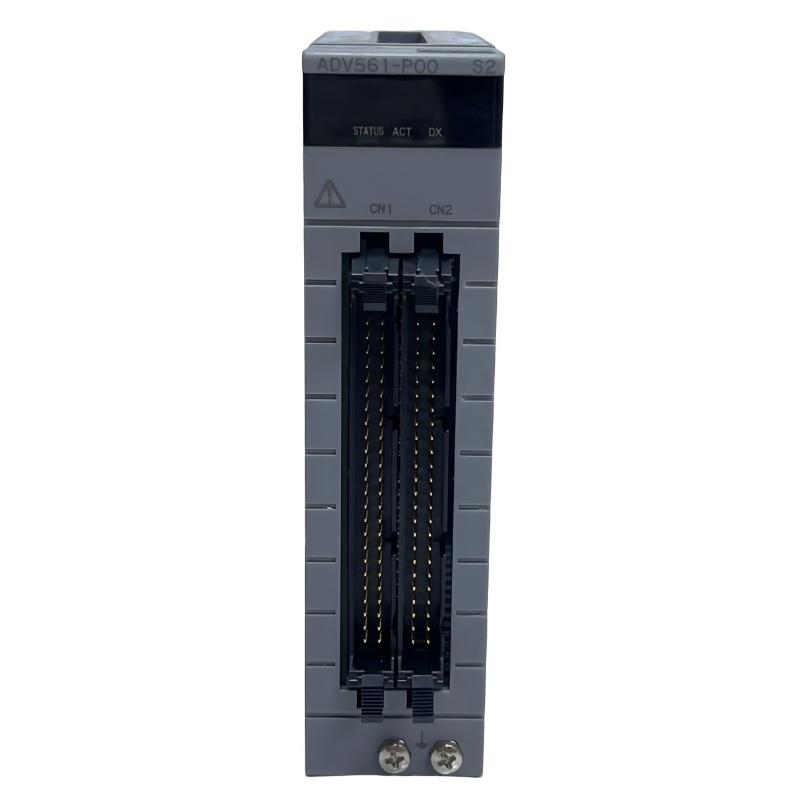

The Yokogawa ADV561-P00 S2 Digital Output Module is a 64-channel high-density discrete output module used in Yokogawa CENTUM Distributed Control Systems (DCS). It is designed to output ON/OFF control signals from the controller to field devices such as relays, solenoids, valves, and indicator lamps.
The S2 version is a revised configuration of the ADV561 series, typically used to improve compatibility, stability, and lifecycle consistency in industrial control systems requiring large-scale output capacity.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV561-P00 S2 |
| Product Type | Digital Output Module |
| Function | Discrete signal (ON/OFF) output |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Output Channels | 64 channels |
| Output Type | Transistor (current sink) |
| Signal Type | ON/OFF (binary output) |
| Rated Output Voltage | 24 V DC |
| External Power Supply | 20.4 to 26.4 V DC |
| Output Current | Approx. 100 mA per channel |
| Response Time | ≤ 3 ms |
| Isolation | Channel-to-system isolation |
| Protection | Overcurrent and short-circuit protection |
| Power Supply | 5 V DC (via backplane) |
| Mounting Type | Rack-mounted / FIO system base |
| Dimensions (H × W × D) | 130 × 119.9 × 32.8 mm |
| Weight | 0.3 kg |
Function and Working Principle
The ADV561-P00 S2 operates as a digital output interface module, converting controller commands into electrical ON/OFF switching signals.
Its operation includes:
- Receiving output commands from the DCS controller
- Converting digital logic into transistor switching outputs
- Driving field devices such as solenoids, relays, and indicator lamps
- Ensuring fast and stable response for real-time control
- Providing electrical isolation between system and field side
- Supporting high-density output in compact hardware design
This enables reliable execution of large-scale industrial control actions.
Role in Industrial Control Systems
Within Yokogawa CENTUM systems, the ADV561-P00 S2 functions as a high-capacity output module, responsible for:
- Executing automation control signals
- Driving a large number of field actuators
- Supporting interlock and alarm logic
- Enabling complex process sequencing
- Reducing cabinet space through high channel density
It is used in the output execution layer of distributed control systems, especially in large plants.
Industrial Applications
The ADV561-P00 S2 is widely used in:
- Oil and gas production and refining
- Petrochemical and chemical plants
- Power generation systems
- Water and wastewater treatment
- Large-scale manufacturing automation
- Process control systems
It is suitable for high I/O density industrial environments.
Installation and System Integration
For proper operation, the module should be:
- Installed in Yokogawa CENTUM / FIO system racks
- Connected using 24 V DC field wiring
- Properly grounded to reduce electrical interference
- Configured via engineering tools in the control system
- Integrated into redundant or distributed architectures when required
Correct installation ensures stable long-term performance and reliability.
Compatible System Components
The ADV561-P00 S2 works with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Relays, solenoids, valves, and indicator devices
- Alarm and interlock systems
These components form a complete industrial automation system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV551-P50 series | Digital Output Module | 32-channel standard density | Medium-scale systems |
| Yokogawa ADV551-P60 series | Digital Output Module | Enhanced performance | Critical control |
| Yokogawa ADV561-P00 | Digital Output Module | Standard 64-channel version | Large systems |
| Yokogawa ADV551-DO32 | Digital Output Module | Basic configuration | General automation |
| Yokogawa ADV551-P13 S2 | Digital Output Module | Stable revision type | Process applications |
Key Advantages
- 64-channel ultra-high-density output design
- Reduced cabinet space requirements
- Stable transistor switching performance
- Fast response time (≤ 3 ms)
- Strong electrical isolation for safety
- Reliable operation in continuous industrial environments
- Seamless integration with Yokogawa DCS systems
Technical FAQs
Q1: What is the function of ADV561-P00 S2?
It outputs ON/OFF control signals from the system to field devices.
Q2: How many channels does it support?
It supports 64 digital output channels.
Q3: What does S2 mean?
It indicates a revised version with updated configuration and improved system compatibility.
Q4: What type of output does it use?
It uses transistor-based current sink output.
Q5: Where is it commonly used?
It is widely used in large-scale industrial automation systems requiring high I/O density.
Conclusion
The Yokogawa ADV561-P00 S2 Digital Output Module is a high-density and reliable automation output module designed for large industrial control systems. With 64-channel capacity, stable operation, and compact design, it ensures efficient and accurate execution of control signals in complex distributed environments.
