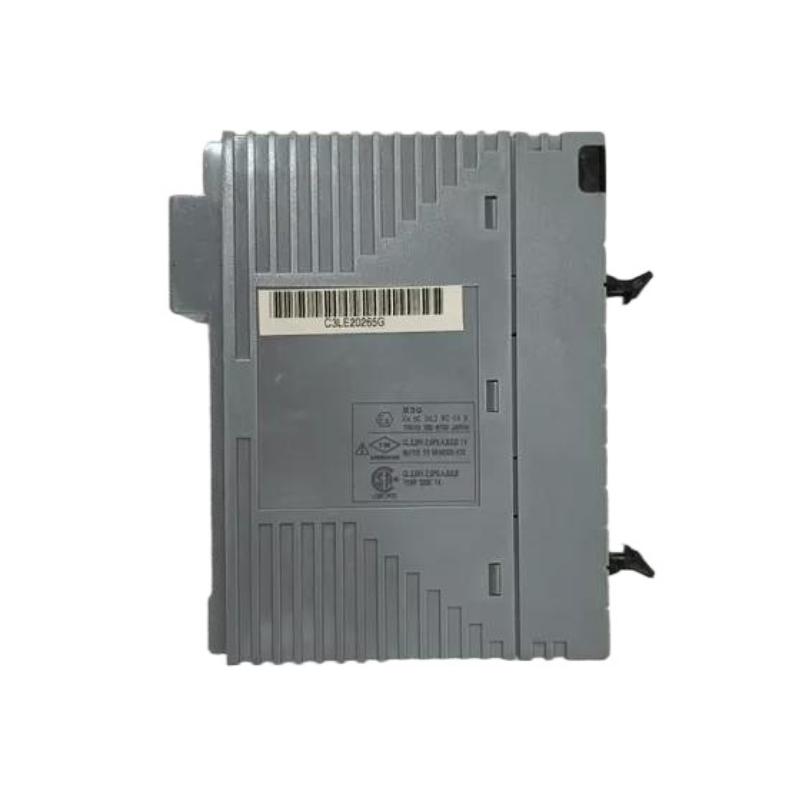

Product Introduction – ADV561-P00
The Yokogawa ADV561-P00 is a 64-channel digital output module designed for industrial automation and process control. It provides isolated 24 V DC transistor outputs (current-sink) and supports status, pulse-width, and time-proportioning outputs. Its compact design, high channel density, and electrical isolation make it ideal for large-scale control systems requiring multiple discrete outputs without compromising reliability.
The module is widely used in chemical plants, power stations, water treatment facilities, and factory automation systems, offering precise control of valves, relays, contactors, and alarms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Output Channels | 64 |
| Output Type | 24 V DC transistor, current-sink |
| Rated Applied Voltage | 24 V DC |
| External Supply Voltage | 24 V DC, 100 mA |
| Output ON Voltage (max) | ≤ 2 V DC |
| Leakage Current (OFF) | ≤ 0.1 mA |
| Maximum Load Current | 100 mA per channel |
| Withstanding Voltage – Output ↔ System | 2 kV AC, 1 min |
| Withstanding Voltage – Between Commons | 500 V AC, 1 min (group of 16 channels) |
| Output Response Time | ≤ 3 ms (status); ≤ 10 ms (pulse/time proportioning) |
| Pulse-Width Output Range | 8 ms – 7200 s |
| Pulse-Width Resolution | 8 ms |
| Maximum Current Consumption | 700 mA @ 5 V DC (logic), 120 mA @ 24 V DC (external) |
| External Connection | Dedicated cable or MIL connector |
| Weight | Approx. 0.30 kg |
| Dimensions | Module standard width and depth for 64-channel module |
| Redundancy | Dual-redundant support |
Applications
-
Large-scale Process Automation – controlling solenoid valves, relays, and alarms in chemical, petrochemical, or power plants.
-
Water & Wastewater Treatment – pump stations, gates, blowers, mixers, and timed operation control.
-
Oil & Gas Safety Systems – emergency shutdown (ESD) systems, valve sequences, interlocks, and field alarms.
-
Factory & Machine Automation – high-channel digital output control for packaging lines, CNC machines, and robotics.
-
Redundant Control Systems – high-availability, dual-redundant architecture suitable for safety-critical applications.
Product Advantages
-
High Channel Density – 64 outputs in a single module save rack space.
-
Flexible Output Control – supports status, pulse-width, and time-proportioning outputs.
-
Strong Electrical Isolation – withstands high voltage (2 kV / 500 V), providing robust interference resistance.
-
Dual-Redundant Support – ideal for high-reliability control systems.
-
Compact & Lightweight – 0.30 kg, easy integration into dense racks.
-
Standardized Connection – compatible with dedicated cables and MIL connectors.
-
Industrial Reliability – suitable for harsh conditions and continuous operation.
-
System Compatibility – works with CENTUM, ProSafe, and other distributed control systems.
Brand & Series Information
-
Brand: Yokogawa
-
Series: ADV Series Digital I/O Modules
-
Sub-Series: ADV561 – 64-channel digital output modules
Recommended Models – Same Series / Related Variants
| Model | Channels | Key Features | Notes |
|---|---|---|---|
| ADV561-P00 | 64 | Status + Pulse-width + Time-proportioning | Standard high-density output module |
| ADV561-P01 | 64 | Extended temp, pulse-width & time-proportioning | Suitable for harsh industrial environments |
| ADV561-P50 | 64 | Pulse-width / time proportioning | No individual channel LED status |
| ADV551-P00 | 32 | Basic digital output | Lower channel count for smaller systems |
| ADV551-P10 | 32 | Pulse-width / time proportioning | Smaller module with advanced timing control |
Recommended Popular Models – Same Brand
| Model | Type | Channels | Application |
|---|---|---|---|
| ADV151-P60 | Digital Input | 32 | Input module for discrete signal collection |
| ADV161-P00 | Digital Input | 64 | High-density digital input module |
| ADV559-P00 | Digital Output | 32 | 32-channel output for smaller scale systems |
| ADV551-P00 | Digital Output | 32 | Part of ADV output family, lower channel count |
| ADV551-P10 | Digital Output | 32 | Pulse-width and time-proportioning control |
FAQ – 10 Questions
Q1: How many channels does ADV561-P00 provide?
A1: 64 discrete output channels.
Q2: What is the rated output voltage?
A2: 24 V DC.
Q3: What type of outputs does it use?
A3: Current-sink transistor outputs.
Q4: Maximum load current per channel?
A4: 100 mA per channel.
Q5: Does it support pulse-width or time-proportioning output?
A5: Yes, both are supported.
Q6: What is the output response time?
A6: ≤ 3 ms for status; ≤ 10 ms for mixed pulse/time-proportioning.
Q7: How isolated are the outputs?
A7: 2 kV AC between output and system; 500 V AC between commons.
Q8: Weight of the module?
A8: Approximately 0.30 kg.
Q9: How is the module wired?
A9: Via dedicated cables or MIL connector.
Q10: Where is this module ideal?
A10: Large-scale control systems, distributed control systems, or safety-critical applications.
