- Yokogawa
- ADV551-P13
- Digital Output Module
- Japan
- 107.5 × 130 × 32.8 mm
- 0.2 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

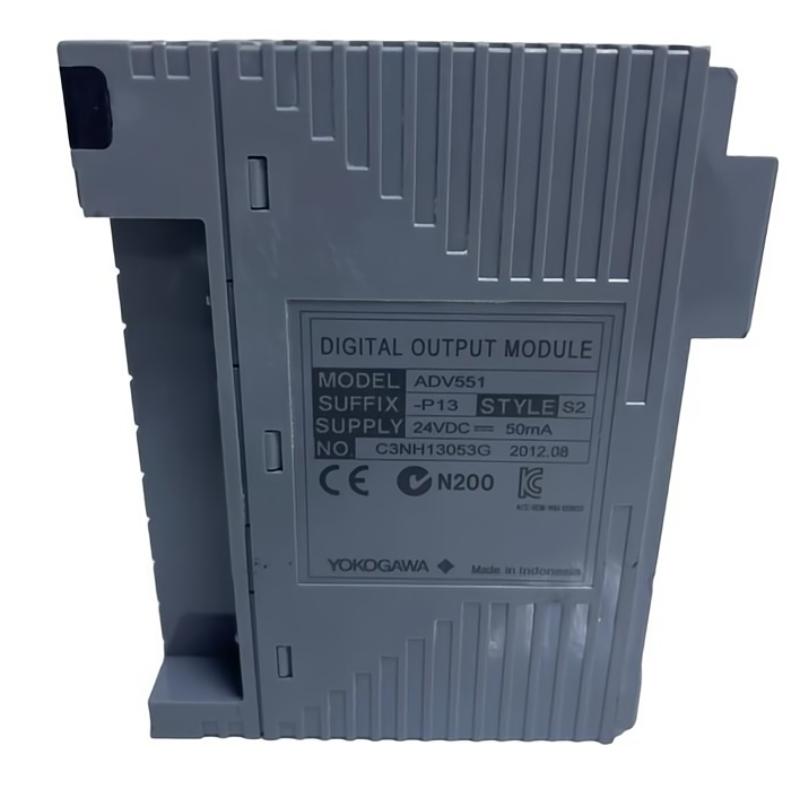

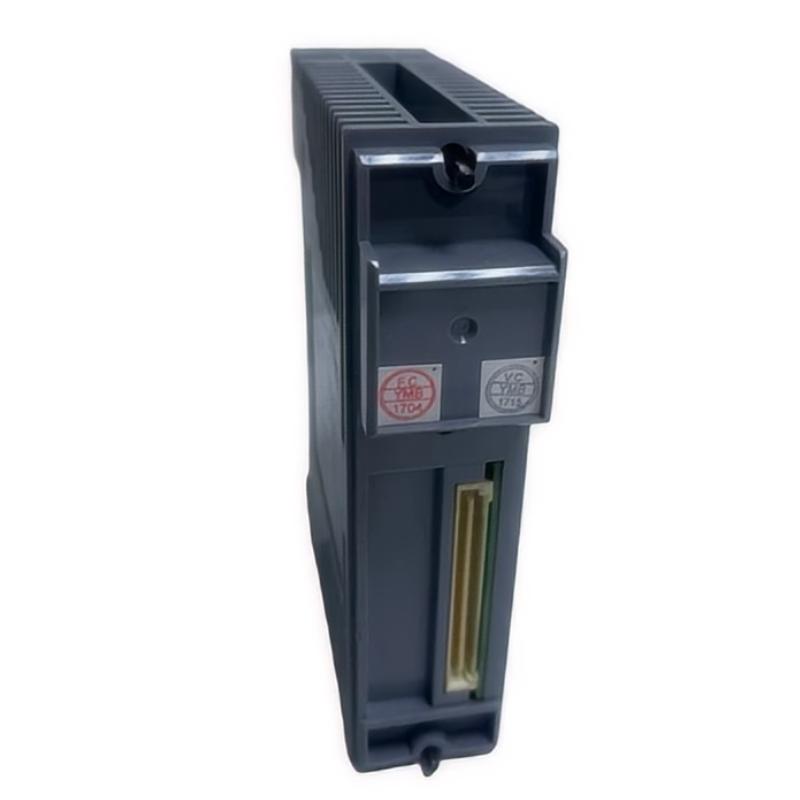

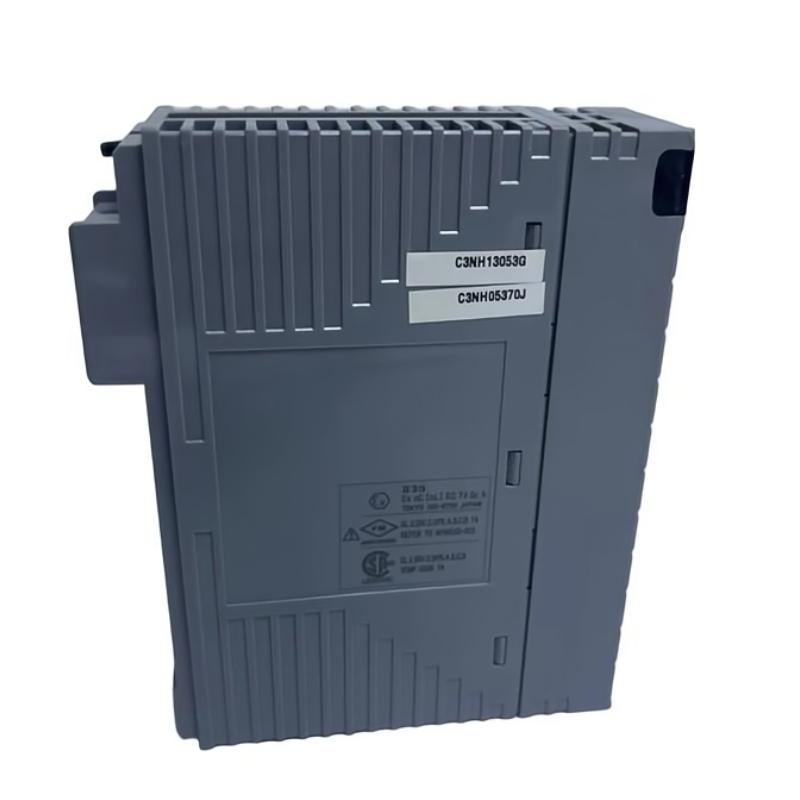

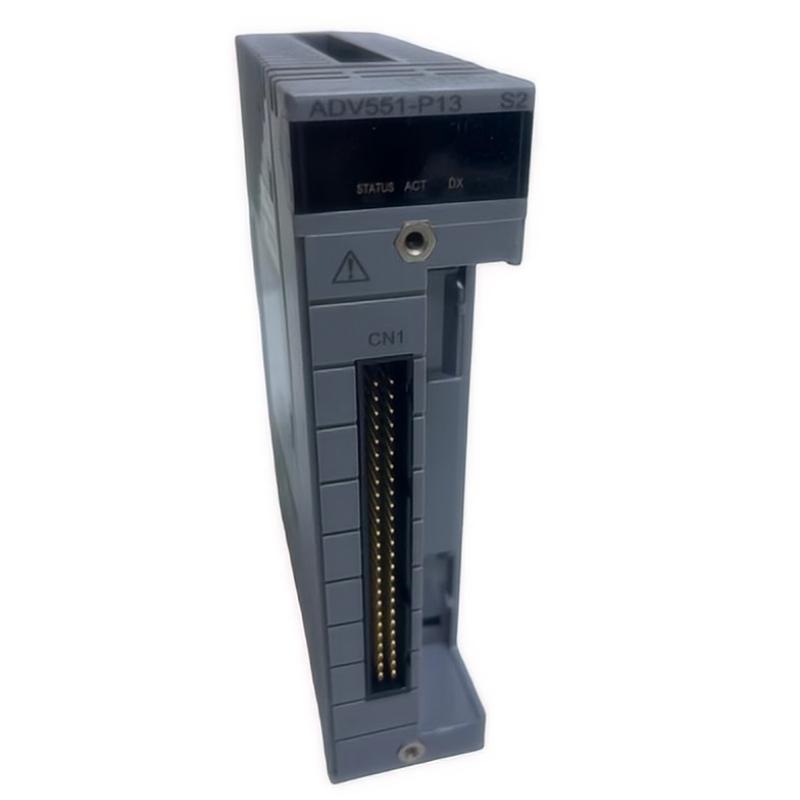

The Yokogawa ADV551-P13 Digital Output Module is a 32-channel discrete output module used in Yokogawa CENTUM Distributed Control Systems (DCS). It is designed to output ON/OFF control signals from the control system to field devices such as relays, solenoids, valves, and indicator lamps.
It provides stable switching performance, high channel density, and reliable electrical isolation, making it suitable for continuous operation in industrial automation environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV551-P13 |
| Product Type | Digital Output Module |
| Function | Discrete signal (ON/OFF) output |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Output Channels | 32 channels |
| Output Type | Transistor (current sink) |
| Signal Type | ON/OFF (binary output) |
| Rated Output Voltage | 24 V DC |
| External Power Supply | 20.4 to 26.4 V DC |
| Output Current | Approx. 100 mA per channel |
| Response Time | ≤ 3 ms |
| Isolation | Channel-to-system isolation |
| Protection | Overcurrent and short-circuit protection |
| Power Supply | 5 V DC (via backplane) |
| Mounting Type | Rack-mounted / FIO system base |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
Function and Working Principle
The ADV551-P13 operates as a digital output interface module, converting control signals into electrical ON/OFF outputs.
Its operation includes:
- Receiving control commands from the system controller
- Converting digital logic into transistor switching signals
- Driving field devices such as relays, solenoids, and indicator lamps
- Providing fast response switching for real-time control
- Ensuring electrical isolation between system and field side
This enables accurate and reliable execution of automation control commands.
Role in Industrial Control Systems
Within Yokogawa CENTUM architecture, the ADV551-P13 serves as a high-density output module.
Its main roles include:
- Executing control commands from the automation system
- Driving actuators and field devices
- Supporting alarm and interlock functions
- Enabling process automation logic
- Reducing wiring complexity through multi-channel output design
It is an important component in control execution layers.
Industrial Applications
The ADV551-P13 is widely used in:
- Oil and gas production and refining
- Petrochemical and chemical plants
- Power generation systems
- Water and wastewater treatment
- Industrial automation systems
- Process control environments
It is suitable for applications requiring reliable digital output switching and high-density control.
Installation and System Integration
For proper operation, the module should be:
- Installed in Yokogawa CENTUM / FIO system racks
- Connected using 24 V DC field wiring
- Properly grounded to reduce electrical interference
- Configured using system engineering tools
- Integrated into distributed or redundant systems when required
Correct installation ensures stable long-term performance.
Compatible System Components
The ADV551-P13 works with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Relays, solenoids, valves, and indicator devices
- Alarm and interlock systems
These components form a complete industrial automation system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV541 | Digital Output Module | 16-channel output | Standard systems |
| Yokogawa ADV551-DO32 | Digital Output Module | 32-channel output | General automation |
| Yokogawa ADV561 | Digital Output Module | High-density output | Large systems |
| Yokogawa ADV551-P50 | Digital Output Module | Standard configuration | Industrial control |
| Yokogawa ADV551-P63 | Digital Output Module | Enhanced version | Critical applications |
Key Advantages
- 32-channel high-density output capability
- Stable transistor switching performance
- Fast response time for real-time control
- Strong electrical isolation for system safety
- Compact design for efficient cabinet space usage
- Reliable operation in industrial environments
- Seamless integration with Yokogawa systems
Technical FAQs
Q1: What is the function of ADV551-P13?
It outputs ON/OFF control signals from the system to field devices.
Q2: How many channels does it support?
It supports 32 digital output channels.
Q3: What type of output does it use?
It uses transistor-based current sink output.
Q4: What is its response speed?
The response time is typically ≤ 3 ms.
Q5: Where is it commonly used?
It is widely used in industrial automation systems requiring reliable output control.
Conclusion
The Yokogawa ADV551-P13 Digital Output Module is a high-density and reliable control module for industrial automation systems. With fast switching, stable design, and strong isolation, it ensures accurate and continuous execution of control signals in distributed control environments.
