Product Overview

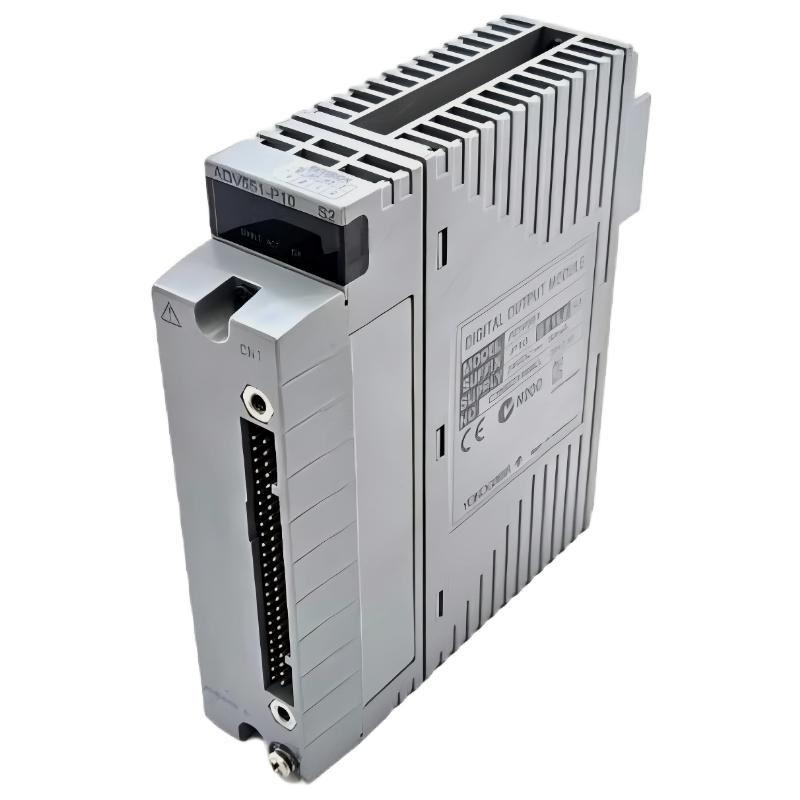

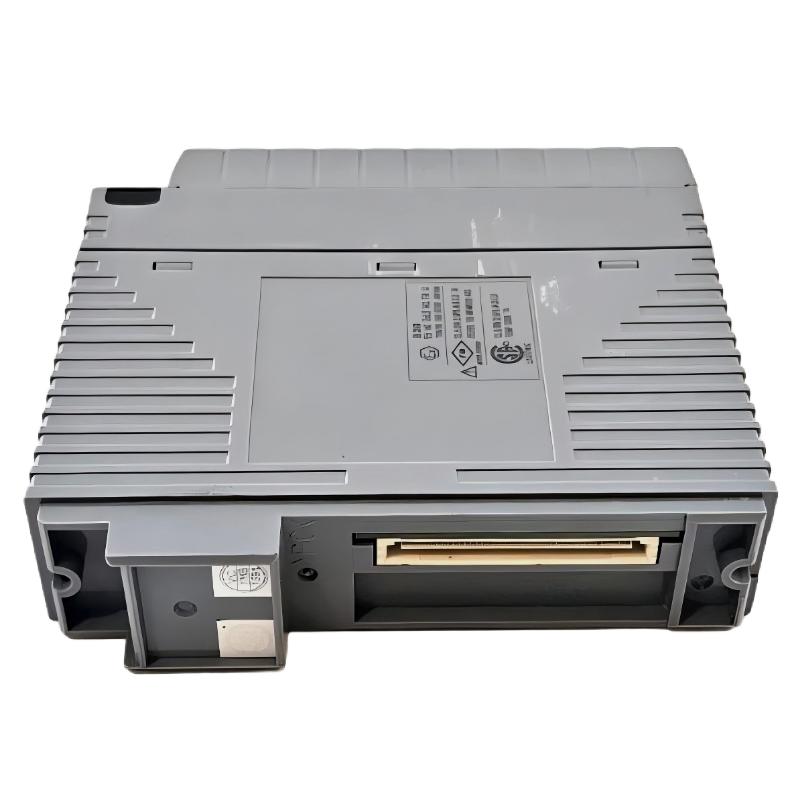

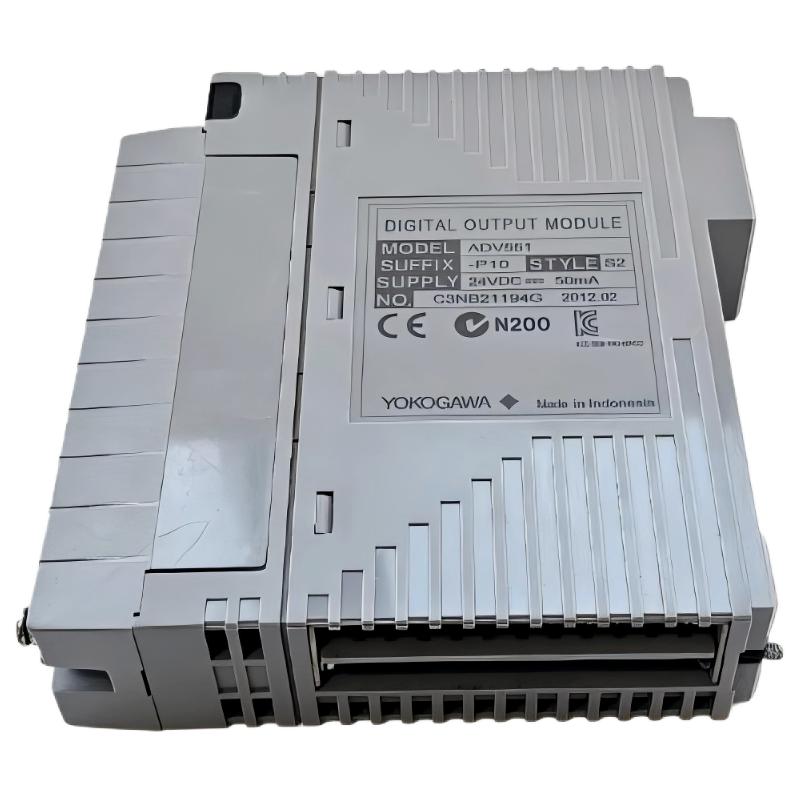

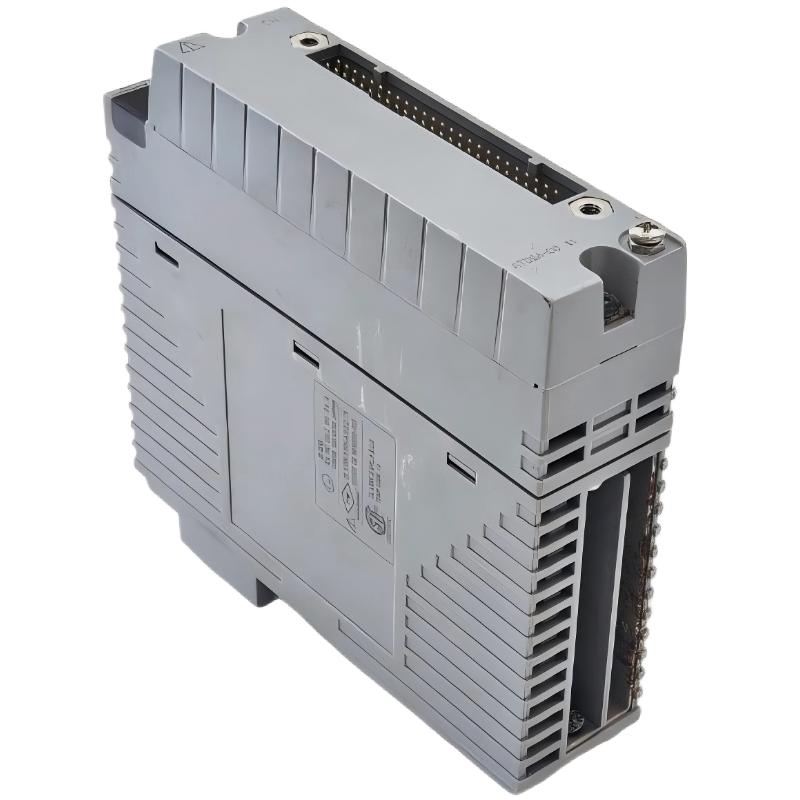

The Yokogawa ADV551-P10 S2 Digital Output Module is a high-density discrete signal output module designed for use in Yokogawa CENTUM Distributed Control Systems (DCS). It is used to transmit ON/OFF control signals from the control system to field devices such as relays, solenoids, valves, and indicator lamps.
The P10 S2 configuration provides a stable and reliable output structure suitable for standard industrial automation applications, ensuring efficient signal transmission and consistent performance in continuous operation environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV551-P10 S2 |
| Product Type | Digital Output Module |
| Function | Discrete signal (ON/OFF) output |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Output Channels | 32 channels |
| Output Type | Transistor (current sink) |
| Signal Type | ON/OFF (binary output) |
| Rated Output Voltage | 24 V DC |
| External Power Supply | 20.4 to 26.4 V DC |
| Output Current | Approx. 100 mA per channel |
| Response Time | ≤ 3 ms |
| Isolation | Channel-to-system isolation |
| Protection | Overcurrent and short-circuit protection |
| Power Supply | 5 V DC (via backplane) |
| Mounting Type | Rack-mounted / FIO system base |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
Function and Working Principle
The ADV551-P10 S2 operates as a digital output interface module, converting control commands into electrical ON/OFF signals.
Its operation includes:
- Receiving output commands from the DCS controller
- Converting digital logic into electrical switching signals
- Driving field devices such as relays, solenoids, and indicator lamps
- Using transistor switching for fast and stable response
- Providing electrical isolation to protect system electronics
- Ensuring consistent signal delivery in industrial environments
This enables accurate and reliable execution of automation control commands.
Role in Industrial Control Systems
Within Yokogawa CENTUM architecture, the ADV551-P10 S2 functions as a high-density output interface module.
Its main roles include:
- Executing control signals from the automation system
- Driving field actuators and output devices
- Supporting alarm and interlock functions
- Enabling process automation and sequencing
- Reducing wiring complexity through compact module design
It is a key component in the output execution layer of industrial control systems.
Industrial Applications
The ADV551-P10 S2 is widely used in:
- Oil and gas production and refining
- Petrochemical and chemical processing plants
- Power generation systems
- Water and wastewater treatment facilities
- Manufacturing automation systems
- General process control applications
It is suitable for environments requiring stable and reliable digital output control.
Installation and System Integration
For optimal performance, the module should be:
- Installed in Yokogawa CENTUM / FIO system racks
- Connected to field devices using 24 V DC wiring
- Properly grounded to reduce electrical noise
- Configured using CENTUM engineering tools
- Integrated into distributed or redundant control systems if required
Proper installation ensures long-term stable operation and high reliability.
Compatible System Components
The ADV551-P10 S2 typically works with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Relays, solenoids, valves, and indicator devices
- Alarm and interlock systems
These components form a complete industrial automation control system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV541 | Digital Output Module | 16-channel output | Standard systems |
| Yokogawa ADV551-DO32 | Digital Output Module | 32-channel output | General automation |
| Yokogawa ADV561 | Digital Output Module | High-density output | Large-scale systems |
| Yokogawa ADV551-P50 | Digital Output Module | Standard configuration | Industrial control |
| Yokogawa ADV551-P63 | Digital Output Module | Enhanced version | Critical applications |
Key Advantages
- 32-channel high-density output capability
- Stable transistor switching performance
- Fast response time for real-time control
- Strong electrical isolation for system safety
- Compact design for efficient cabinet use
- Reliable operation in industrial environments
- Seamless integration with Yokogawa systems
Technical FAQs
Q1: What is the function of the ADV551-P10 S2 module?
It outputs ON/OFF control signals from the system to field devices.
Q2: How many channels does it support?
It supports 32 digital output channels.
Q3: What type of output does it use?
It uses transistor-based current sink output.
Q4: What is the meaning of S2?
It indicates a specific configuration or revision of the module design.
Q5: Where is it commonly used?
It is widely used in industrial automation systems requiring reliable output control.
Conclusion
The Yokogawa ADV551-P10 S2 Digital Output Module is a reliable and efficient output solution for industrial control systems. With high channel density, fast switching performance, and stable design, it ensures accurate execution of control commands in distributed automation environments.
It is suitable for industries requiring continuous operation, system reliability, and efficient signal output management.
