Product Overview

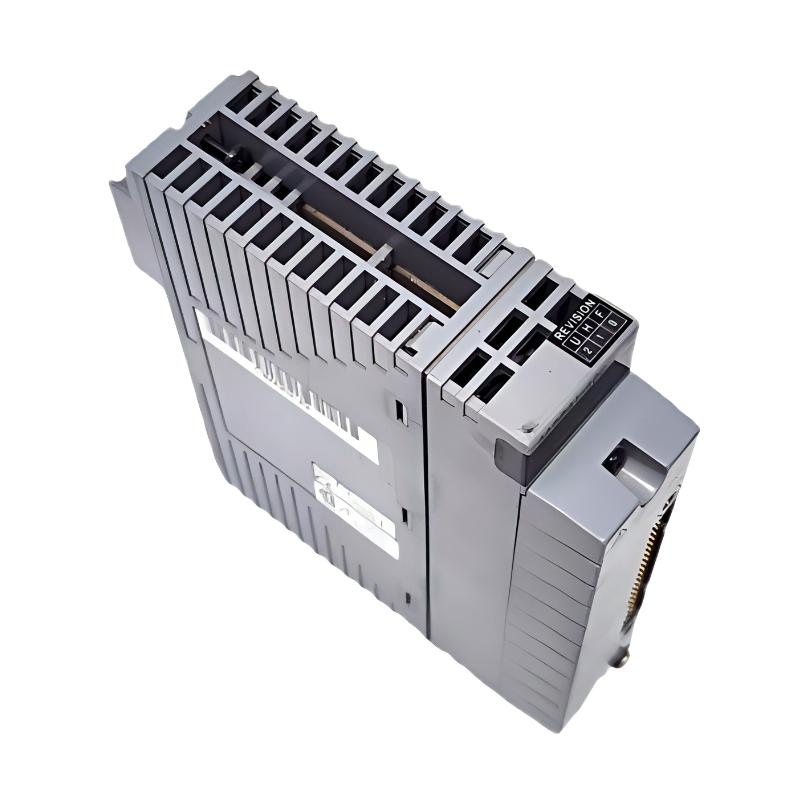

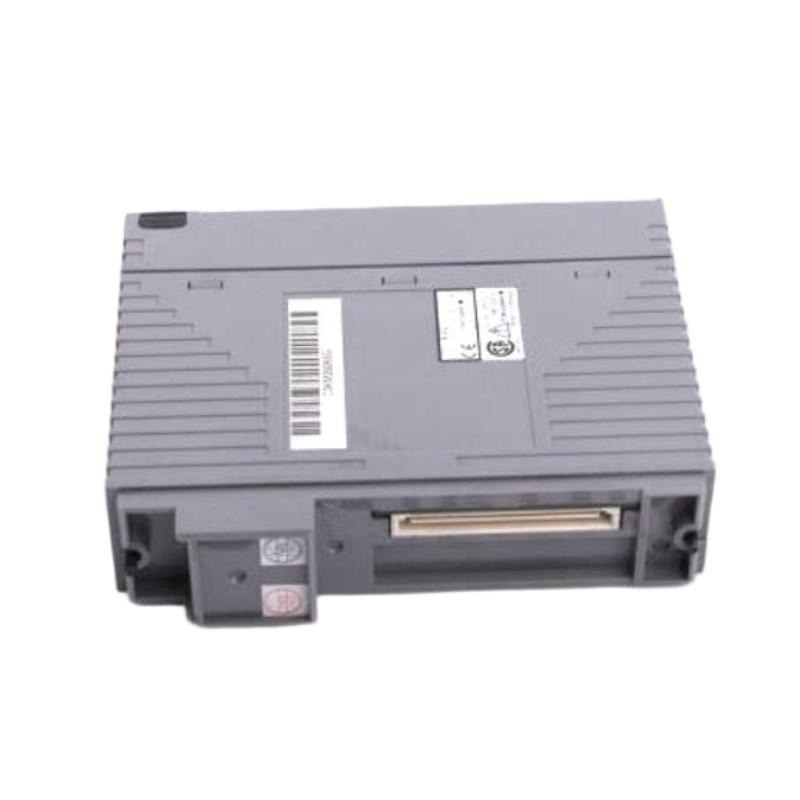

The Yokogawa ADV541 Digital Output Module is a reliable discrete signal output module designed for use in Yokogawa CENTUM Distributed Control Systems (DCS). It is responsible for transmitting ON/OFF control signals from the control system to field devices such as relays, solenoids, valves, and indicator lamps.
Engineered for industrial environments, the ADV541 provides stable signal switching, fast response, and high operational reliability, making it suitable for automation systems that require precise and continuous control execution.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV541 |
| Product Type | Digital Output Module |
| Function | Discrete signal (ON/OFF) output |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Output Channels | 16 channels |
| Output Type | Transistor output |
| Signal Type | ON/OFF (binary output) |
| Output Voltage | 24 V DC |
| Output Current | Up to 500 mA per channel |
| Response Time | ≤ 3 ms |
| Isolation | Channel-to-system isolation |
| Protection | Overcurrent and short-circuit protection |
| Power Supply | Via system backplane |
| Mounting Type | Rack-mounted / FIO system base |
| Dimensions (H × W × D) | 130 × 127.2 × 32.8 mm |
| Weight | 0.4 kg |
Function and Working Principle
The ADV541 operates as a digital output interface module, converting control logic from the DCS into physical output signals.
Its operation includes:
- Receiving control commands from the system controller
- Converting digital instructions into ON/OFF electrical signals
- Driving external devices such as relays, solenoids, and indicators
- Providing fast switching response for real-time control
- Ensuring signal integrity through electrical isolation and protection
This ensures accurate and reliable execution of control commands in industrial systems.
Role in Industrial Control Systems
Within Yokogawa CENTUM architecture, the ADV541 functions as a core output interface module.
Its main roles include:
- Executing control commands from the DCS
- Driving field actuators and output devices
- Supporting alarm and interlock operations
- Enabling automated process control
- Ensuring safe and stable output signal transmission
It is essential for process automation and control execution layers.
Industrial Applications
The ADV541 is widely used in:
- Oil and gas production and refining
- Petrochemical and chemical plants
- Power generation facilities
- Water and wastewater treatment systems
- Manufacturing and industrial automation
- Process control and safety systems
It is suitable for applications requiring reliable digital output control and fast response.
Installation and System Integration
For optimal performance, the module should be:
- Installed in Yokogawa CENTUM system racks
- Connected to field devices using appropriate output wiring
- Properly grounded to reduce electrical interference
- Configured using CENTUM engineering tools
- Integrated into distributed or redundant control systems if required
Proper installation ensures stable operation and long service life.
Compatible System Components
The ADV541 integrates with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Relays, solenoids, valves, and indicator devices
- Alarm and interlock systems
These components form a complete industrial automation control system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV551-P60/D5A00 | Digital Output Module | 32-channel output | High-density systems |
| Yokogawa ADV561 | Digital Output Module | Enhanced output capacity | Large-scale control |
| Yokogawa ADV152 | Digital Output Module | Fast response | Real-time systems |
| Yokogawa ADV859 | Digital Output Module | Safety-rated output | Safety systems |
| Yokogawa ADV351 | Digital Output Module | General-purpose output | Standard automation |
Key Advantages
- Reliable 16-channel digital output capability
- Fast response time for real-time control
- Built-in protection against overcurrent and faults
- Electrical isolation for system safety
- Seamless integration with Yokogawa CENTUM systems
- Stable operation in industrial environments
- Compact design for efficient cabinet installation
Technical FAQs
Q1: What is the function of the ADV541 module?
It outputs ON/OFF control signals from the control system to field devices.
Q2: How many output channels does it support?
It supports 16 digital output channels.
Q3: What type of devices can it control?
It can control relays, solenoids, valves, and indicator lamps.
Q4: Does it include protection features?
Yes, it includes protection against overcurrent and short circuits.
Q5: Where is it commonly used?
It is widely used in industrial automation systems such as oil & gas, power, and manufacturing.
Conclusion
The Yokogawa ADV541 Digital Output Module is a high-performance and reliable solution for industrial digital signal output. With fast switching capability, robust protection features, and seamless integration, it ensures accurate execution of control commands in distributed control systems.
It is an essential component for industries requiring stable output control, high reliability, and continuous operation.
