Product Model: Yokogawa ADV161-P00 S2
Brand: Yokogawa
Series: ADV161 Series Digital Input Module
Product Overview

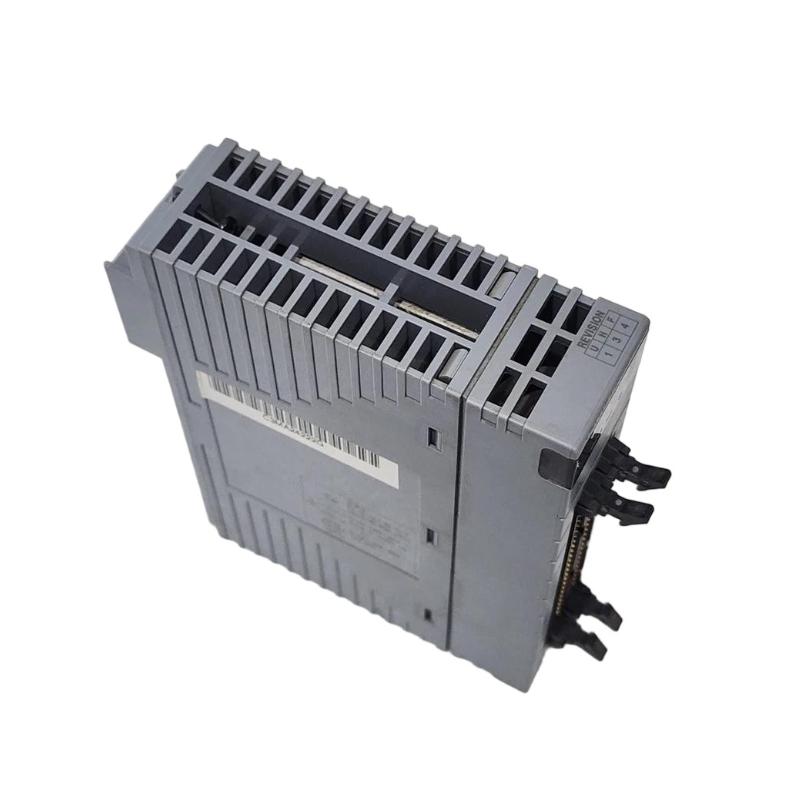

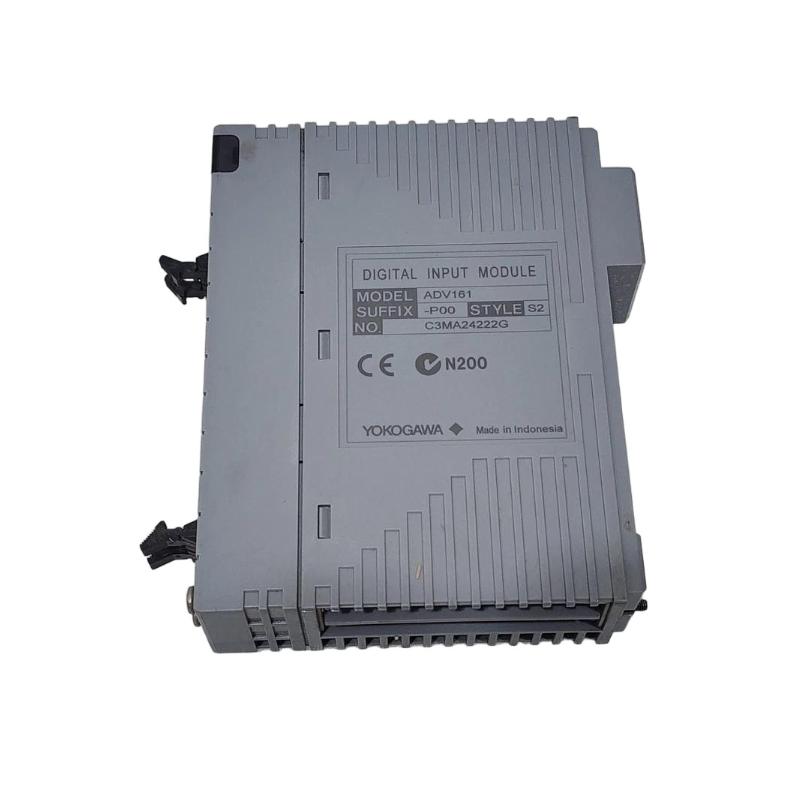

The Yokogawa ADV161-P00 S2 is a high-density 64-channel digital input module designed for distributed control systems (DCS) and advanced industrial automation platforms. It receives 24 V DC ON/OFF signals from field devices such as switches, sensors, and alarms, converting them into data that can be processed by the control system.
This module is engineered for high reliability, fast response, and superior noise immunity in harsh environments. Its compact, lightweight structure ensures efficient use of panel space and simplifies installation in dense control cabinets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Input Channels | 64 channels |
| Rated Input Voltage | 24 V DC |
| Input ON Voltage Range | 20 – 26.4 V DC |
| Input OFF Voltage Maximum | ≤ 5.0 V DC |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Input Current (at rated voltage) | Approx. 2.5 mA ± 20% per channel |
| Input Response Time | ≤ 8 ms (typical) |
| Maximum Current Consumption | Approx. 550 mA (5 V DC) |
| Withstanding Voltage | 2 kV AC for 1 min (input ↔ system); 500 V AC between commons per 16 channels |
| Operating Temperature Range | -20 °C to +70 °C |
| Dimensions (W × H × D) | Approx. 130 × 119.9 × 32.8 mm |
| Weight | Approx. 0.30 kg |
Applications
-
Process Control Systems: Collects ON/OFF signals from switches, alarms, and sensors in industrial plants.
-
Power Generation, Petrochemical, and Oil & Gas: Used for monitoring critical system inputs in redundant safety or control systems.
-
Water and Wastewater Management: Gathers input signals from pumps, valves, and alarms in water treatment processes.
-
Factory and Machine Automation: Ideal for high-density digital input collection to reduce cabinet size and wiring.
-
DCS System Expansion: Fully compatible with Yokogawa CENTUM VP and CS series systems for scalable automation architecture.
Product Advantages
-
High Channel Density: 64 inputs per module reduce system footprint and wiring complexity.
-
Industrial-Grade Reliability: Designed for high isolation and noise immunity in harsh industrial conditions.
-
Fast Response: Input detection time ≤ 8 ms ensures precise signal capture.
-
Compact & Lightweight: Only 0.30 kg with a 130 mm width – saves valuable panel space.
-
Full Compatibility: Seamlessly integrates with Yokogawa DCS systems.
-
Wide Operating Temperature Range: Performs reliably from -20 °C to +70 °C.
-
Cost Efficiency: Reduces number of required modules and lowers overall installation cost.
Related or Same-Series Models (ADV161 / ADV151 Series)
| Model | Key Specification / Description |
|---|---|
| ADV151-P10 | 32-channel digital input module, same platform, smaller scale version. |
| ADV151-P13 | 32-channel digital input, enhanced version for extended system expansion. |
| ADV551-P00 | 32-channel digital output module, complementary to ADV161 for complete I/O systems. |
| ADV551-S2 | High-performance digital output module for industrial automation systems. |
| ADV151-E63 S2 | Advanced model with additional protection and diagnostics, suitable for critical control applications. |
Popular Yokogawa Models
| Model | Description / Typical Application |
|---|---|
| ADV551 Digital Output Module | 24 V DC digital output, used to drive actuators and field devices. |
| ADV151-P00 S2 | 32-channel digital input, compatible with ADV161 system platform. |
| ADV551-P00 S2 | Digital output version with similar structure, 24 V DC signal drive. |
| ADV151-P13 | Same series, compact 32-channel input version for medium-sized systems. |
| ADV151-E63 S2 | Advanced 32-channel digital input with enhanced noise resistance and monitoring. |
FAQ (10 Common Questions)
Q1: How many input channels does the ADV161-P00 S2 have?
A1: It provides 64 digital input channels.
Q2: What is the rated input voltage?
A2: The module operates at a rated voltage of 24 V DC.
Q3: Can it handle 30 V DC signals?
A3: Yes, up to 30 V DC is acceptable, but long-term operation within the rated range (20 – 26.4 V DC) is recommended.
Q4: Is the response fast enough for real-time monitoring?
A4: Absolutely — the response time is ≤ 8 ms, suitable for real-time digital input detection.
Q5: Does the module require additional cooling?
A5: Normally no, since it’s compact and efficient. However, good cabinet ventilation is recommended for high-temperature environments.
Q6: Does it support redundancy?
A6: Yes, the module can be configured for dual redundancy to enhance system reliability.
Q7: How are field inputs connected?

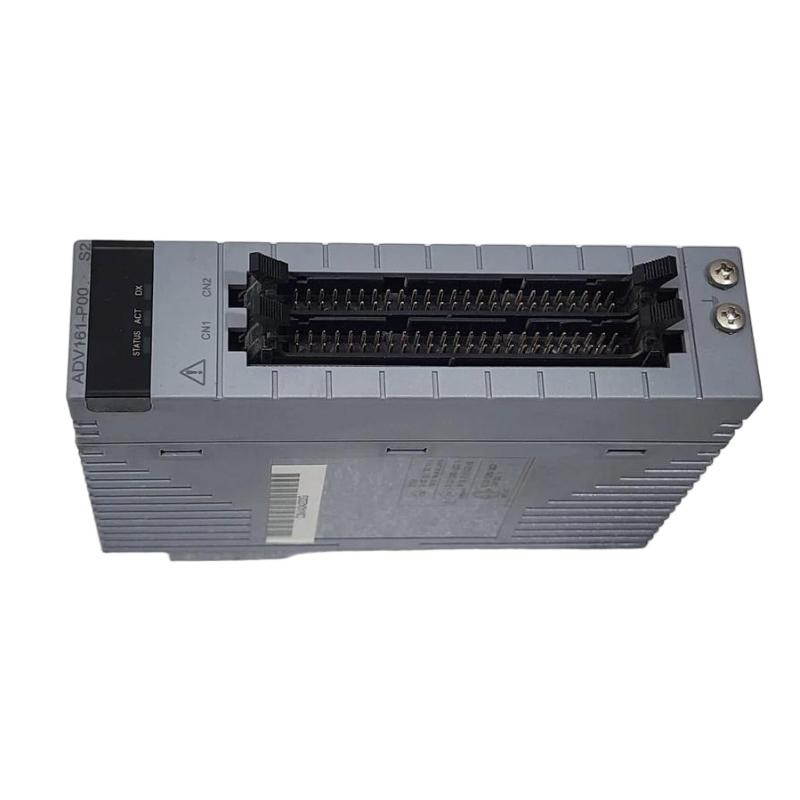

A7: Inputs are wired through a dedicated connector cable (e.g., AKB337 or similar MIL-type cable) and fixed on standard DIN rails.
Q8: Can it operate in dusty or vibrating environments?
A8: Yes, it’s designed for harsh industrial sites with strong resistance to shock, vibration, and temperature variation.
Q9: If fewer input points are needed, which model should I choose?
A9: Consider the ADV151 series (e.g., ADV151-P10 or ADV151-P13), which have fewer channels but full platform compatibility.
Q10: How should maintenance or replacement be performed?
A10: Always power off the control system before removal. Disconnect connectors, replace the module, and run system diagnostics after installation.
