Product Overview

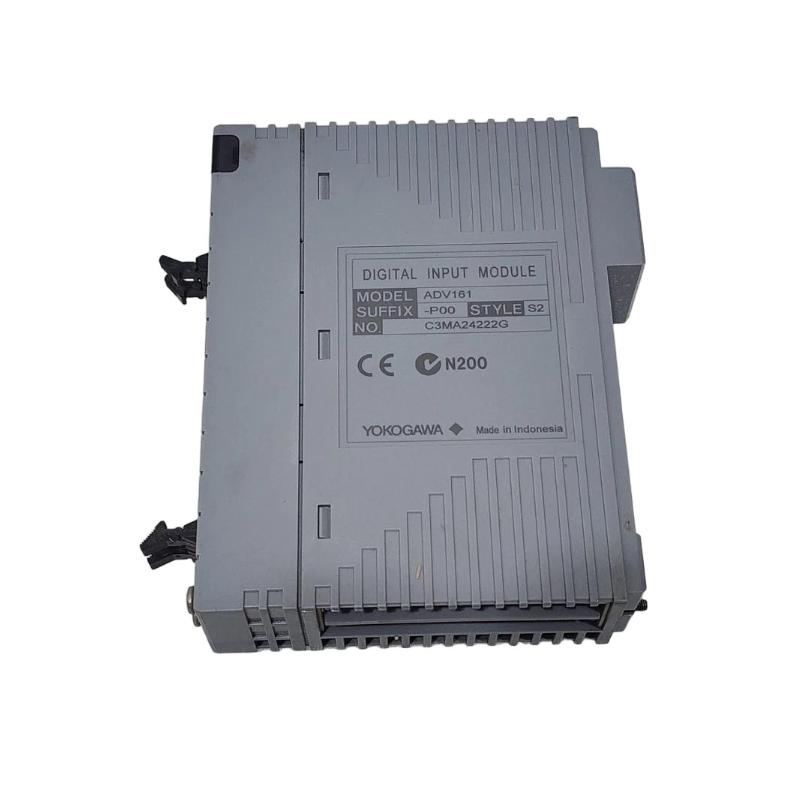

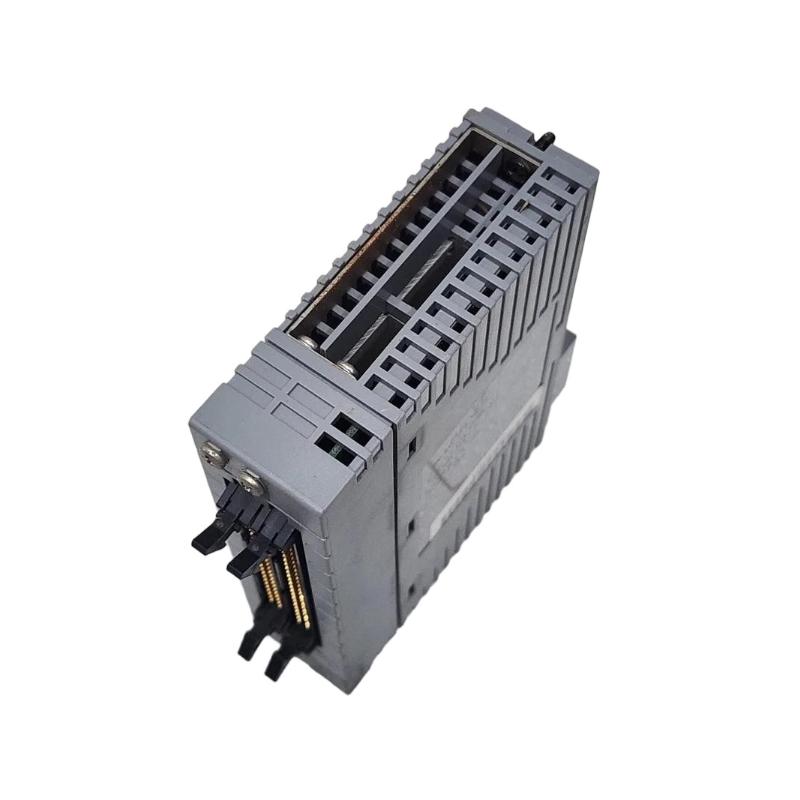

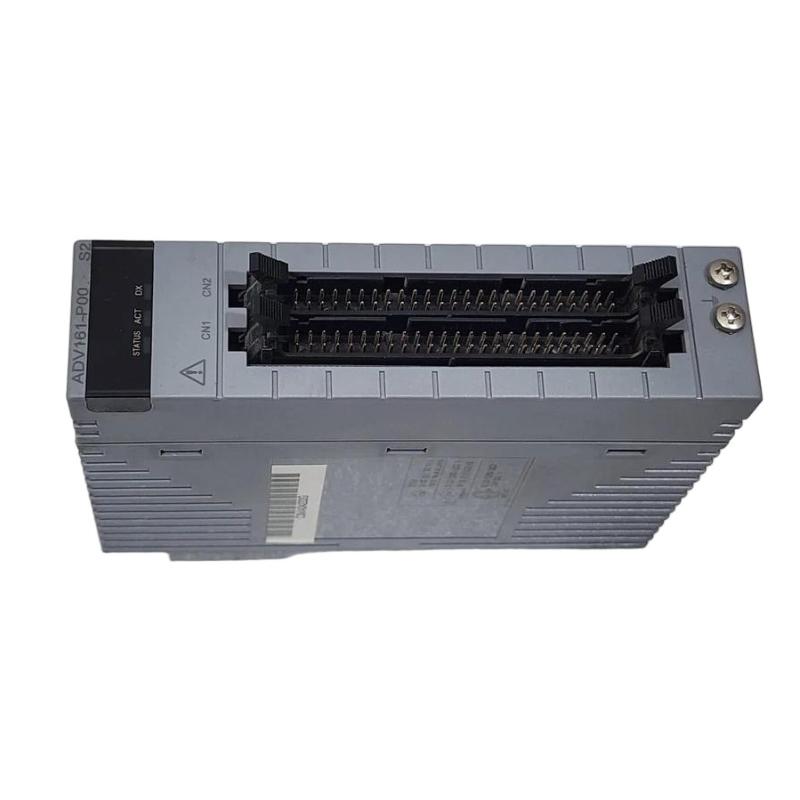

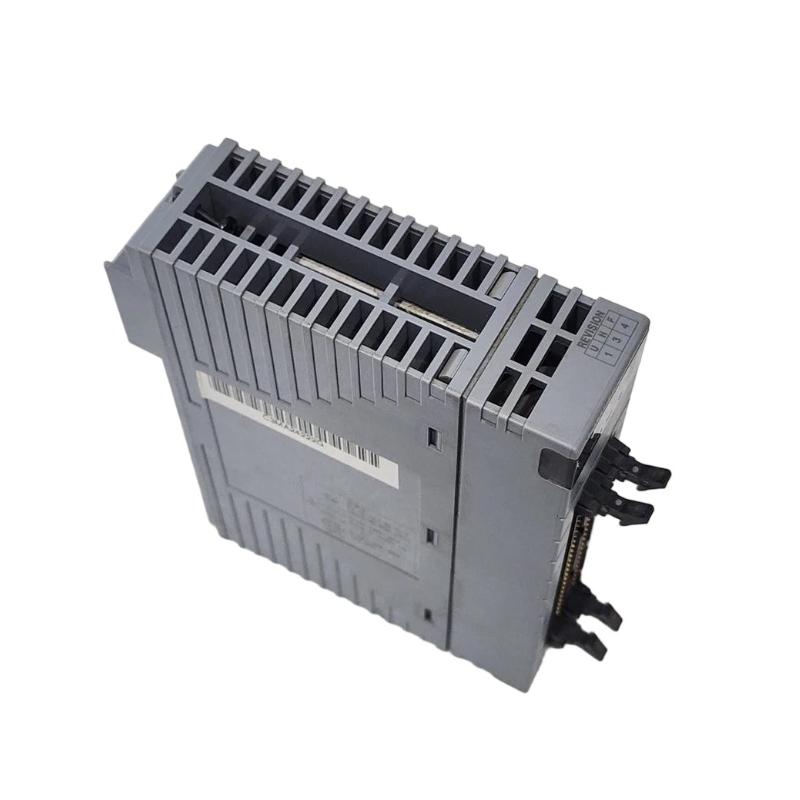

The Yokogawa ADV161-P00 S2 Digital Input Module is a high-density 64-channel discrete input module designed for use in Yokogawa CENTUM Distributed Control Systems (DCS). It is used to acquire ON/OFF signals from field devices such as switches, sensors, relays, and contact-based instruments.
Unlike the ADV151 series (32 channels), the ADV161 series is designed for higher channel density applications, making it suitable for large-scale plants that require maximum input capacity, reduced cabinet space, and efficient I/O consolidation.
The S2 suffix typically indicates a specific system or functional configuration variant used in CENTUM/ESB/FIO architectures.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV161-P00 S2 |
| Product Type | Digital Input Module |
| Function | Discrete signal (ON/OFF) input |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Input Channels | 64 channels |
| Input Type | Digital contact input (sink/source compatible) |
| Signal Type | ON/OFF (binary signals) |
| Input Voltage | 24 V DC |
| Input ON Voltage | 20 to 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | Approx. 2.5 mA per channel |
| Response Time | ≤ 8 ms |
| Isolation | Channel-to-channel and system isolation |
| Pushbutton Input | Supported |
| SOE Function | Supported (depending on system configuration) |
| Power Supply | 5 V DC (via system backplane) |
| Power Consumption | Higher than 32-channel modules (typical ~550 mA) |
| Mounting Type | Rack-mounted / FIO system base |
| Dimensions (H × W × D) | 130 × 119.9 × 32.8 mm |
| Weight | 0.3 kg |
Function and Working Principle
The ADV161-P00 S2 functions as a high-density digital signal acquisition module within a distributed control system.
Its operation includes:
- Receiving ON/OFF signals from field devices
- Converting input signals into digital data for control systems
- Transmitting data via system backplane to the controller
- Providing electrical isolation for noise protection and system safety
- Supporting real-time monitoring of a large number of field points
This enables efficient handling of large-scale I/O requirements with reduced hardware footprint.
Role in Industrial Control Systems
Within Yokogawa CENTUM systems, the ADV161-P00 S2 serves as a high-capacity digital input interface module.
Its key roles include:
- Monitoring large numbers of field device states
- Capturing interlock and safety signals
- Supporting alarm and event logic processing
- Providing input data for plant-wide control systems
- Reducing I/O rack space through high channel density
It is widely used in large-scale distributed control architectures.
Industrial Applications
The ADV161-P00 S2 is commonly used in:
- Oil and gas refineries and upstream facilities
- Petrochemical and chemical plants
- Power generation stations
- Large industrial manufacturing systems
- Water treatment and utility plants
- Complex process automation systems
It is especially suitable where high channel density and system scalability are required.
Installation and System Integration
For proper operation, the module should be:
- Installed in Yokogawa CENTUM / FIO / ESB bus racks
- Wired to field devices using 24 V DC digital signals
- Properly grounded and shielded to reduce EMI noise
- Configured using CENTUM engineering tools
- Integrated into redundant or distributed architectures if needed
Correct installation ensures stable performance in high-density I/O environments.
Compatible System Components
The ADV161-P00 S2 typically integrates with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Switches, sensors, relays, and contact devices
- Alarm and interlock systems
These components form a complete industrial automation control system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV151-P60/B5S00 | Digital Input Module | 32-channel stable input | General automation |
| Yokogawa ADV151-P63/D5A00 | Digital Input Module | KS cable + harsh environment | Industrial plants |
| Yokogawa ADV157-S00 | Digital Input Module | Enhanced reliability | Critical systems |
| Yokogawa ADV159-P01 | Digital Input Module | Stable integration | Process control |
| Yokogawa ADV144 | Digital Input Module | Compact design | Small-scale systems |
Key Advantages
- Very high density (64-channel input capability)
- Reduces rack space and wiring complexity
- Stable ON/OFF signal acquisition
- Strong electrical isolation for system protection
- Fast response for real-time monitoring
- Compatible with Yokogawa CENTUM systems
- Suitable for large-scale industrial automation
Technical FAQs
Q1: What is the main function of the ADV161-P00 S2?
It acquires ON/OFF digital signals from field devices and sends them to the control system.
Q2: How many channels does it support?
It supports 64 digital input channels.
Q3: How is it different from ADV151 series?
ADV161 has double the channel density (64 vs 32), making it suitable for large systems.
Q4: What type of signals does it process?
It processes 24 V DC discrete ON/OFF signals.
Q5: Where is it commonly used?
It is used in oil & gas, petrochemical, power generation, and large industrial plants.
Conclusion
The Yokogawa ADV161-P00 S2 Digital Input Module is a high-density, high-efficiency solution for industrial digital signal acquisition. With 64-channel capacity, stable performance, and strong system integration, it is ideal for large-scale distributed control systems requiring maximum I/O efficiency and reliability.
It is widely used in industries where space optimization, signal reliability, and system scalability are critical for continuous plant operation.
