Product Overview

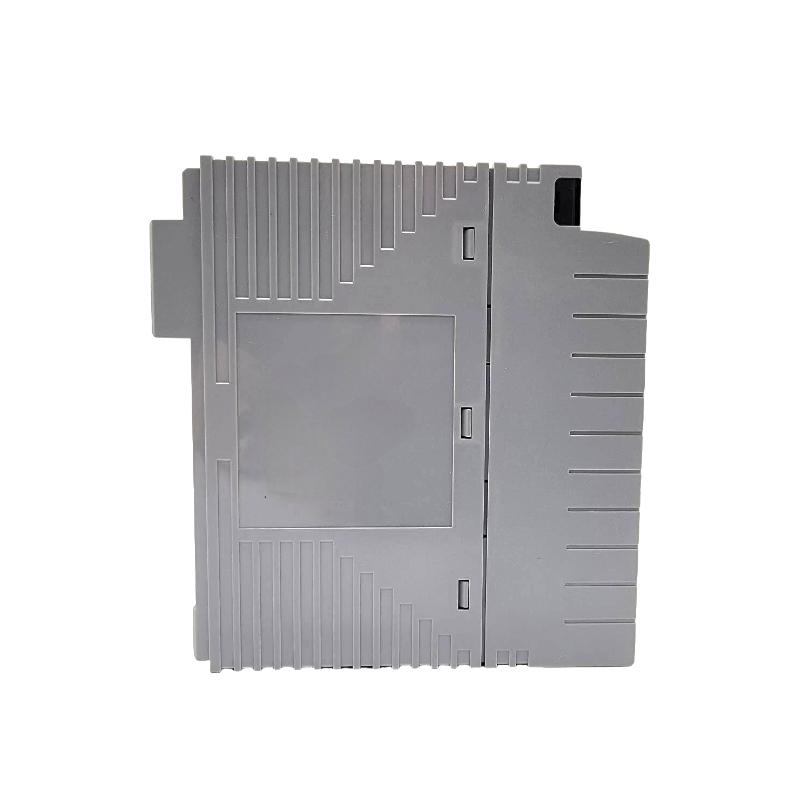

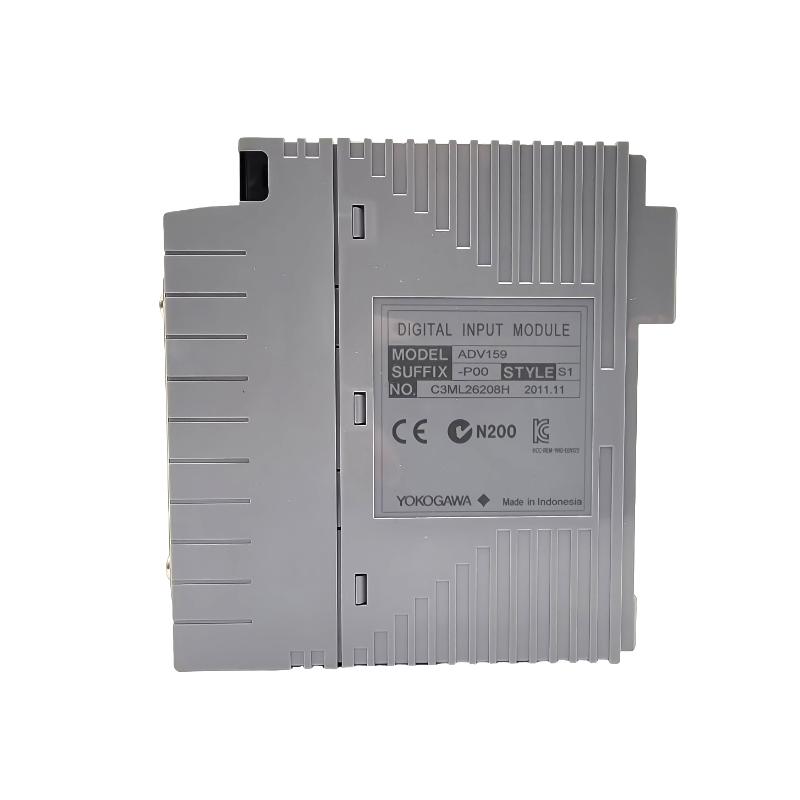

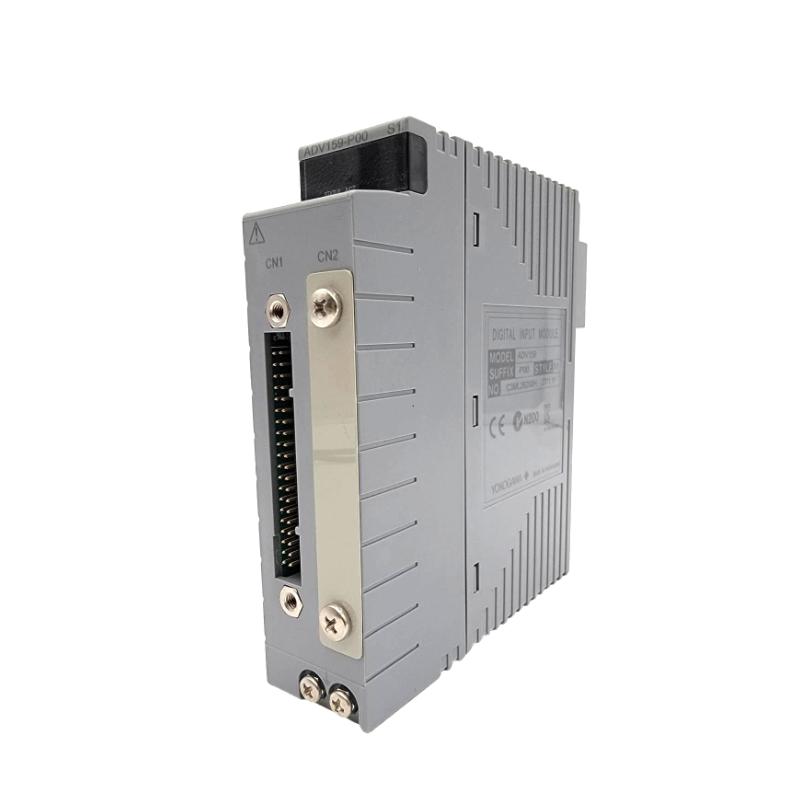

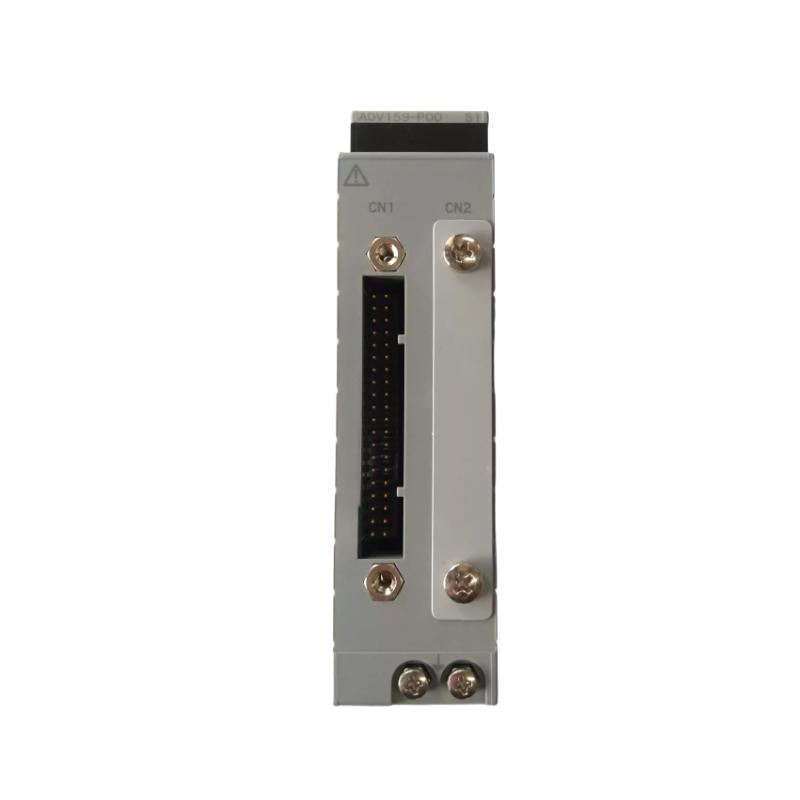

The Yokogawa ADV159-P01 Digital Input Module is a high-density discrete signal input module used in Yokogawa CENTUM Distributed Control Systems (DCS). It is designed to acquire ON/OFF signals from field devices such as switches, sensors, relays, and contact-based instrumentation.
The ADV159 series is generally positioned as an enhanced digital input module family, designed for applications requiring stable signal acquisition, reliable isolation, and long-term industrial operation. The P01 configuration is typically used for standard input handling with optimized system integration in CENTUM/FIO architectures.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV159-P01 |
| Product Type | Digital Input Module |
| Function | Discrete signal (ON/OFF) input |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Input Channels | 32 channels (typical configuration) |
| Input Type | Digital contact input (sink/source compatible) |
| Signal Type | ON/OFF (binary signals) |
| Input Voltage | 24 V DC |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | Approx. 4.1 mA per channel |
| Response Time | ≤ 8 ms |
| Isolation | Channel-to-channel and system isolation |
| Pushbutton Input | Supported |
| SOE Function | Supported (depends on system configuration) |
| Power Supply | 5 V DC (via system backplane) |
| Power Consumption | Low-power industrial design |
| Mounting Type | Rack-mounted / FIO system base |
| Dimensions (H × W × D) | 127.2 × 130 × 32.8 mm |
| Weight | 0.4 kg |
Function and Working Principle
The ADV159-P01 functions as a field signal acquisition interface in a distributed control system.
Its operation includes:
- Receiving 24 V DC ON/OFF signals from field devices
- Converting electrical signals into digital system data
- Transmitting processed input data to the controller via backplane communication
- Providing electrical isolation to protect system integrity
- Supporting real-time monitoring of field device status
This ensures stable, accurate, and noise-resistant signal acquisition in industrial environments.
Role in Industrial Control Systems
Within Yokogawa CENTUM architecture, the ADV159-P01 plays a key role as a digital input interface module.
Its main functions include:
- Monitoring field device status in real time
- Capturing interlock and safety signals
- Supporting alarm and event-based logic processing
- Providing input data for control system execution
- Enhancing system diagnostics and operational visibility
It is commonly used in critical automation and process control environments.
Industrial Applications
The ADV159-P01 is widely used in:
- Oil and gas production systems
- Petrochemical and refinery plants
- Power generation facilities
- Chemical processing industries
- Water and wastewater treatment systems
- Industrial automation and control systems
It is suitable for applications requiring continuous monitoring and reliable digital signal acquisition.
Installation and System Integration
For optimal performance, the module should be:
- Installed in Yokogawa CENTUM or FIO system racks
- Connected to field devices using 24 V DC wiring
- Properly grounded to reduce electromagnetic interference
- Configured through CENTUM engineering tools
- Integrated into redundant or distributed control architectures
Proper installation ensures long-term stability and signal integrity.
Compatible System Components
The ADV159-P01 typically works with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Switches, sensors, and relay contacts
- Alarm and interlock systems
These components form a complete distributed automation system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV157-S00 | Digital Input Module | Enhanced reliability | Critical systems |
| Yokogawa ADV151-P60/B5S00 | Digital Input Module | High-density 32-channel input | Large-scale systems |
| Yokogawa ADV151-P63/D5A00 | Digital Input Module | KS cable interface | Harsh environments |
| Yokogawa ADV151-E60 S2 | Digital Input Module | Stable operation | Industrial processes |
| Yokogawa ADV144 | Digital Input Module | Compact design | Small systems |
Key Advantages
- High-density digital input capability
- Stable ON/OFF signal acquisition
- Strong electrical isolation for system safety
- Fast response time for real-time monitoring
- Compatible with Yokogawa CENTUM systems
- Suitable for continuous industrial operation
- Reliable long-term performance in harsh environments
Technical FAQs
Q1: What is the main function of the ADV159-P01?
It acquires ON/OFF digital signals from field devices and sends them to the control system.
Q2: How many channels does it support?
It typically supports 32 digital input channels.
Q3: What type of signals does it process?
It processes 24 V DC discrete ON/OFF signals.
Q4: Where is it commonly used?
It is used in oil & gas, petrochemical, power generation, and industrial automation systems.
Q5: What makes the ADV159 series different?
It is generally positioned as an enhanced-performance module family with improved integration and stability.
Conclusion
The Yokogawa ADV159-P01 Digital Input Module is a reliable and high-performance solution for industrial digital signal acquisition. With stable operation, strong system compatibility, and robust isolation design, it ensures accurate real-time monitoring in distributed control environments.
It is widely applied in industries where signal reliability, system stability, and continuous operation are essential for safe and efficient plant performance.
