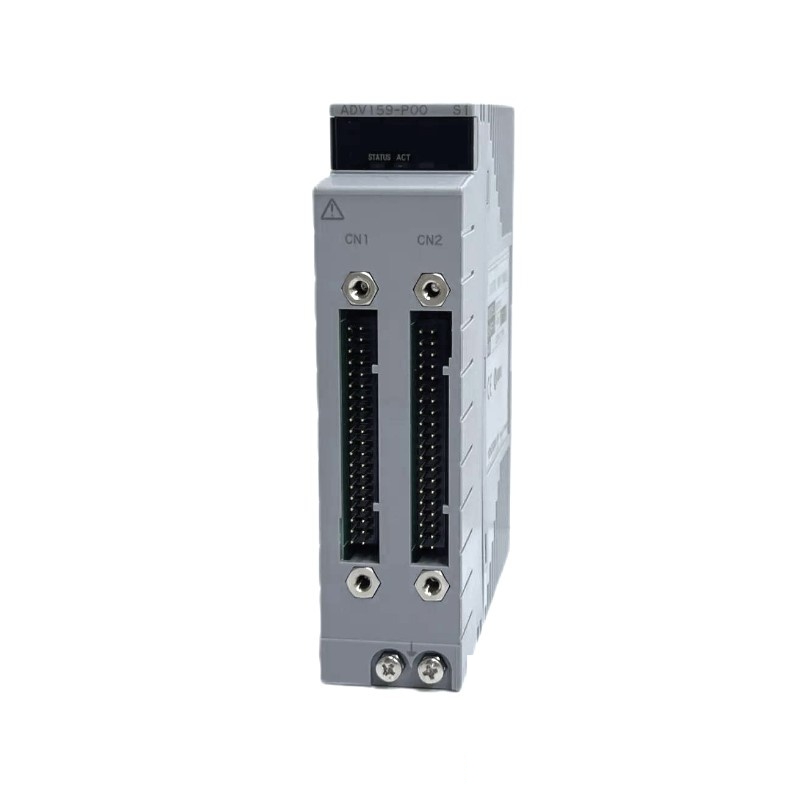

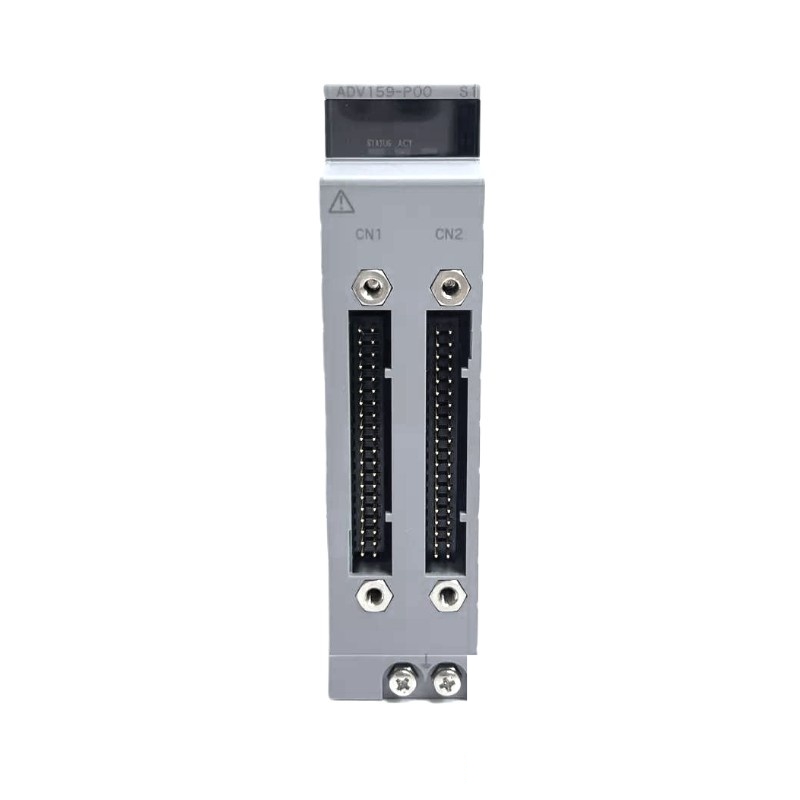

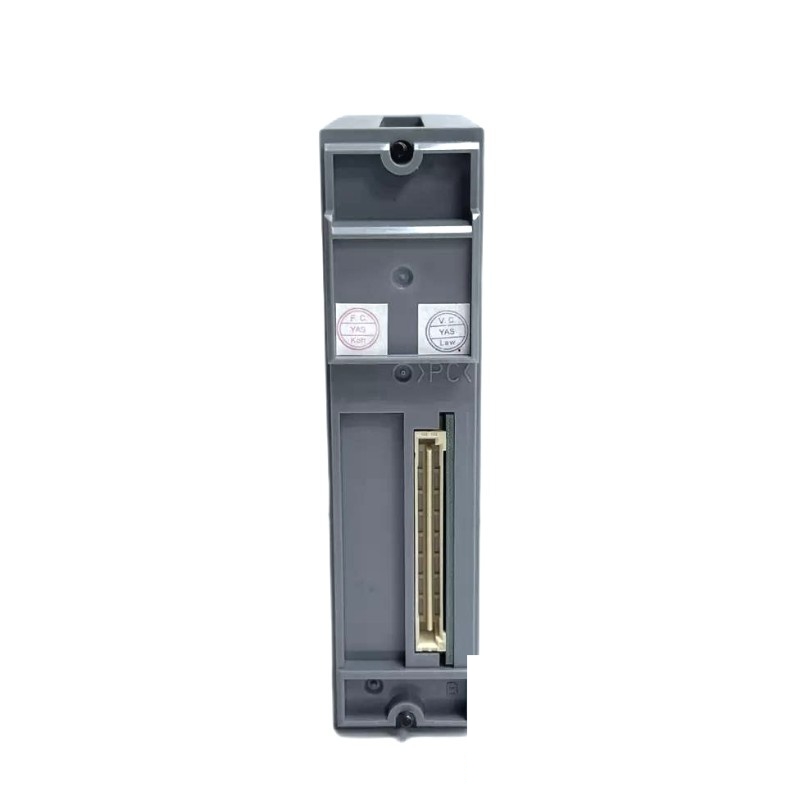

Yokogawa ADV159 Digital Input Module
Product Description
The Yokogawa ADV159 is a digital input module designed to interface with a wide variety of industrial field devices and provide seamless integration into Yokogawa’s CENTUM and Vnet/IP control systems. It belongs to the ADVANT OIT series, a line of modules known for high-speed data acquisition, reliability, and precision. The ADV159 module is designed for applications where digital on/off signals from field devices need to be collected and transmitted efficiently to the control system for further processing.
With dimensions of 127.2 × 130 × 32.8 mm and weighing 0.4 kg, the ADV159 module has a compact form factor, which is essential for saving valuable space in control panels. It supports 16 digital inputs, operating at 24 VDC, and has a fast response time of less than 10 ms, making it perfect for applications that require high-speed digital signal processing. Whether used for limit switches, emergency stop buttons, or alarms, the ADV159 ensures fast, accurate signal processing in real-time.
The module is designed for robust performance even in challenging environments, with an IP20 protection rating that safeguards against dust and moisture, ensuring long-term reliability. Additionally, the ADV159 operates within a wide temperature range of -20°C to +60°C, making it suitable for diverse industrial applications.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | ADV159 |
| Module Type | Digital Input Module |
| Dimensions | 127.2 × 130 × 32.8 mm |
| Weight | 0.4 kg |
| Input Voltage | 24 VDC (nominal) |
| Input Type | 16 digital inputs (voltage contact) |
| Response Time | < 10 ms (fast response time) |
| Signal Range | 0-24 VDC (for digital signals) |
| Mounting | DIN Rail / Panel Mount |
| Compatibility | CENTUM series, Vnet/IP systems |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Certifications | CE, UL certified |
Applications
The Yokogawa ADV159 digital input module is widely used in applications that require digital signal acquisition and real-time process monitoring. Typical applications include:
-
Industrial Automation: The ADV159 module is used to interface with digital on/off devices like limit switches, push buttons, and emergency stop buttons in manufacturing processes, enhancing safety and process control.
-
Power and Energy: Used in power plants, substations, and energy generation facilities to monitor the status of electrical devices such as circuit breakers and transformers, enabling better energy management and system reliability.
-
Water Treatment: In water treatment plants, the module helps collect data from on/off devices like pumps, valves, and alarms, contributing to efficient plant operation and monitoring.
-
Oil and Gas: The module plays a critical role in monitoring various safety devices and equipment status in oil refineries, pipelines, and production sites.
-
HVAC Systems: It is also used in heating, ventilation, and air conditioning (HVAC) systems to monitor the status of on/off devices, providing feedback to the central control system for optimal performance.
Product Advantages
-
Compact Design: With a size of 127.2 × 130 × 32.8 mm and weighing only 0.4 kg, the ADV159 module is compact, making it easy to integrate into crowded control panels without compromising functionality.
-
Fast Response Time: The module offers a response time of less than 10 ms, ensuring real-time signal processing and instantaneous feedback from field devices.
-
High Compatibility: The ADV159 module is fully compatible with Yokogawa’s CENTUM series and Vnet/IP systems, enabling seamless integration into existing control systems for simplified installation.
-
Wide Operating Range: It operates in a temperature range of -20°C to +60°C, making it versatile and reliable in a variety of industrial environments, from extreme cold to high heat.
-
Durable Protection: The module has an IP20 protection rating, offering basic protection against dust and moisture, and ensuring consistent performance even in harsh environments.
-
Versatile Input Options: It supports 16 digital inputs, providing flexibility to connect various on/off devices, ensuring broad applicability in different industrial control systems.
-
Ease of Installation: Designed for DIN rail or panel mounting, the ADV159 module offers flexible installation options, making it easy to integrate into various systems.
Brand Information
-
Brand: Yokogawa
-
Industry: Industrial Automation, Process Control, Measurement and Instrumentation
-
Reputation: Yokogawa is a globally recognized leader in industrial automation, process control, and measurement instrumentation. The company is known for its reliable, high-performance solutions used in critical industries such as oil and gas, chemical processing, power generation, and manufacturing.
Product Series
The ADV159 is part of the ADVANT OIT series, which offers high-performance digital and analog input/output modules for use in Yokogawa’s CENTUM series and Vnet/IP systems. The series is designed to handle real-time data collection and processing, supporting industries that require continuous monitoring and control of critical equipment.
Recommended Models from the Same Series or Related
| Model | Key Specifications |
|---|---|
| ADV160 | 16-channel analog input module |
| ADV161 | 16-channel digital output module |
| ADV162 | High-speed digital input/output module |
| ADV163 | Universal I/O module for diverse applications |
| ADV164 | Temperature input module for RTD and TC |
Recommended Yokogawa Popular Models
| Model | Description | Input Voltage | Size (WxHxD) |
|---|---|---|---|
| ADV151-P50 | Industrial-grade digital input module with multi-output options and fast processing. | 24V DC | 180 x 140 x 55 mm |
| ADV551-P00 S2 | High-performance pressure and temperature sensor with enhanced features. | 24V DC | 185 x 145 x 60 mm |
| ADV151-P13-S2 | Compact input module with advanced signal processing and high accuracy. | 24V DC | 190 x 150 x 60 mm |
| ADV152-P50 | Multi-functional digital input module with enhanced response time for industrial use. | 24V DC | 195 x 155 x 65 mm |
| ADV552-P00 | Advanced sensor module with high sensitivity and multi-signal output for automation. | 24V DC | 200 x 160 x 70 mm |
Frequently Asked Questions (FAQs)
Q1: What is the function of the Yokogawa ADV159 module?
A1: The ADV159 is a digital input module that interfaces with on/off devices like limit switches, push buttons, and alarms, providing real-time data acquisition and processing for industrial control systems.
Q2: How many digital inputs does the ADV159 support?
A2: The ADV159 module supports 16 digital inputs, making it ideal for applications with multiple field devices.
Q3: What is the response time of the ADV159 module?
A3: The ADV159 provides a response time of less than 10 ms, ensuring fast and efficient data processing for real-time applications.
Q4: What is the operating temperature range of the ADV159?
A4: The module operates within a temperature range of -20°C to +60°C, making it suitable for use in various industrial environments.
Q5: What is the protection rating of the ADV159?
A5: The ADV159 has an IP20 protection rating, which provides basic protection against dust and moisture, ensuring long-lasting performance.
Q6: Can the ADV159 be used in harsh environments?
A6: Yes, the ADV159 is designed for use in harsh industrial environments, providing reliable operation even in challenging conditions.
Q7: What kind of devices can be connected to the ADV159?
A7: The module can connect to various on/off devices such as limit switches, emergency stop buttons, and alarms, providing real-time monitoring and control.
Q8: How is the ADV159 mounted?
A8: The ADV159 module can be mounted on a DIN rail or directly in a panel, offering flexibility for different installation requirements.
Q9: Is the ADV159 compatible with other Yokogawa systems?
A9: Yes, the ADV159 is fully compatible with Yokogawa’s CENTUM and Vnet/IP systems, allowing seamless integration into control infrastructures.
Q10: In what industries is the ADV159 typically used?
A10: The ADV159 is used in industries such as process automation, energy, water treatment, oil and gas, and HVAC systems, where real-time data acquisition from digital devices is required.
