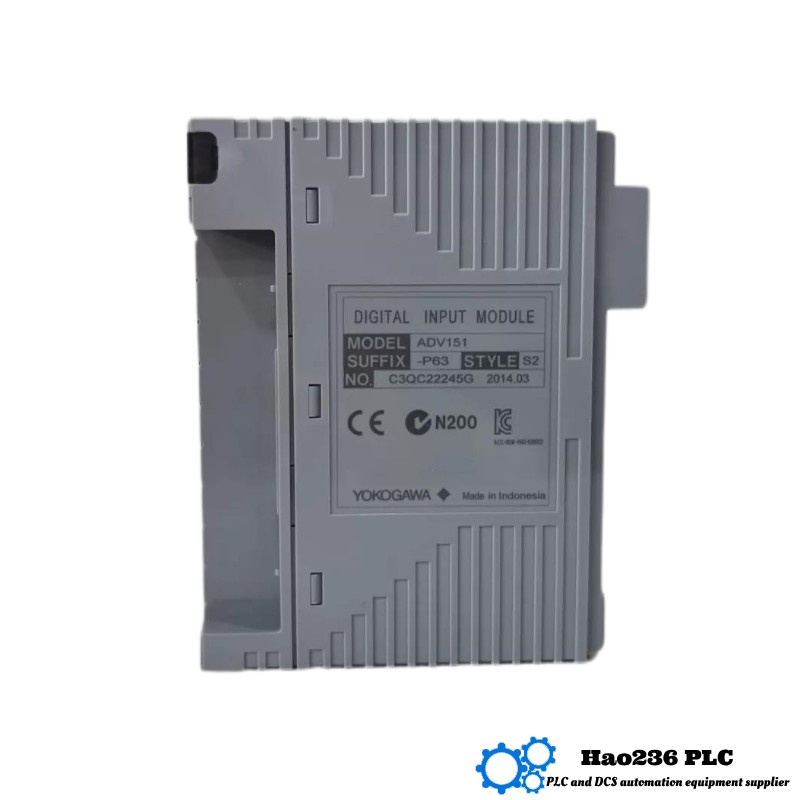

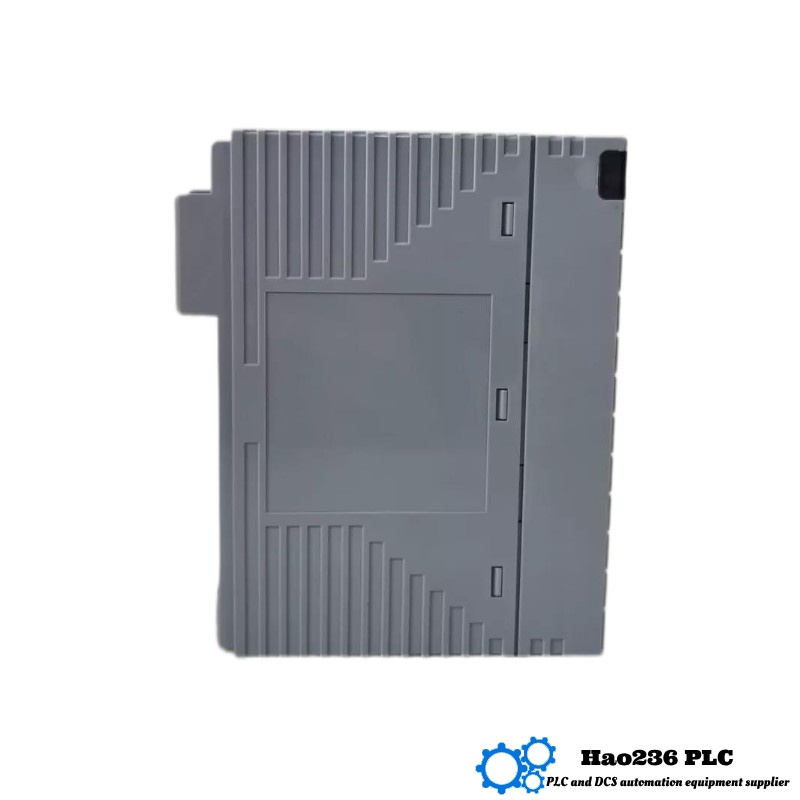

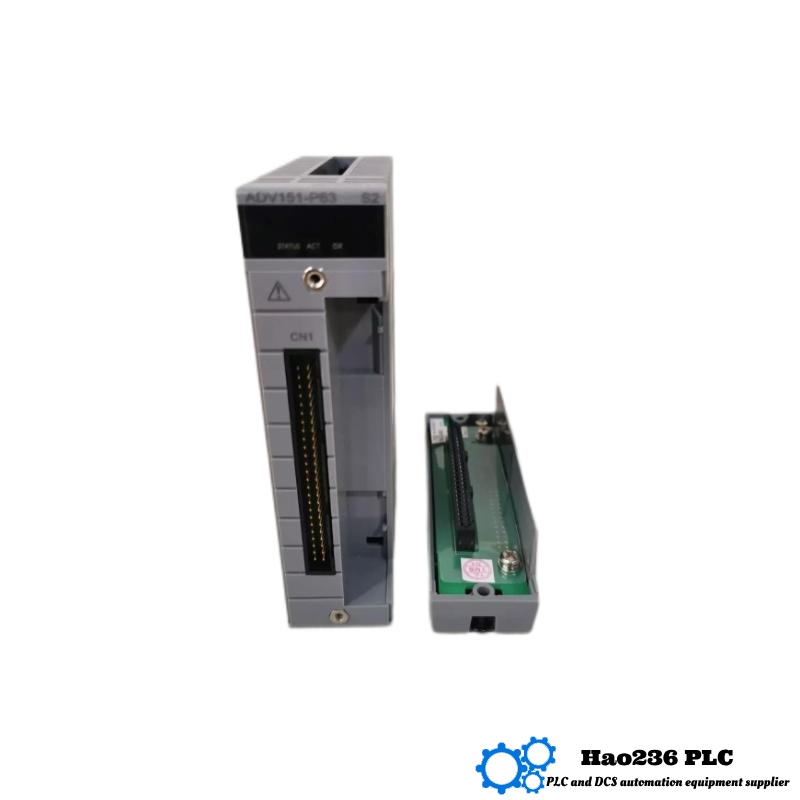

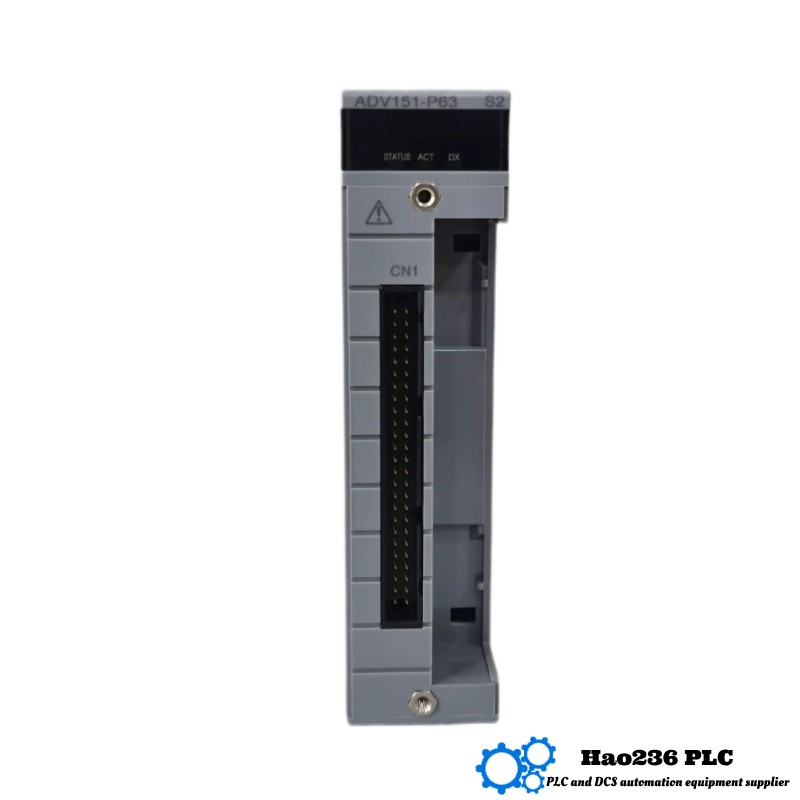

Yokogawa ADV151-P63 Digital Input Module
Product Introduction
The Yokogawa ADV151-P63 is a reliable digital input module designed specifically for use in industrial automation and distributed control systems (DCS). It provides precise, fast, and stable digital signal acquisition from field devices, such as switches and sensors. This model is part of Yokogawa’s ADV series of I/O modules, known for high performance and durability in demanding industrial environments.
This module features excellent noise immunity and electrical isolation to ensure data integrity and protect the control system from interference and potential faults. Its compact size allows for efficient space utilization within control cabinets, making it suitable for both new installations and system expansions.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | ADV151-P63 |
| Module Type | Digital Input Module |
| Number of Channels | 16 |
| Input Signal Type | 24 V DC, Dry Contact |
| Input Voltage Range | 24 V DC nominal |
| Response Time | Less than 10 milliseconds |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature | –10 to 55 °C |
| Storage Temperature | –25 to 70 °C |
| Humidity Range | 5 to 95% (non-condensing) |
| Communication Interface | Backplane Bus |
| Mounting Type | DIN Rail |
| Dimensions (W×H×D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Product Applications
-
Integration in Distributed Control Systems (DCS) for process industries such as oil & gas, chemical, and power generation
-
Digital signal acquisition in programmable logic controller (PLC) systems
-
Monitoring of field digital signals in harsh environments
-
Automation and control of factory and production line equipment
-
Remote monitoring and safety system input signal collection
-
Digital input for alarms, switches, and binary sensors in critical industrial applications
Product Advantages
-
High Reliability: Provides strong electrical isolation (1500 Vrms) to protect the system from noise and faults.
-
Fast Response: Signal detection and processing in under 10 milliseconds to support real-time control.
-
Compact and Space-saving: Small footprint (107.5 × 130 × 32.8 mm) allows efficient use of cabinet space.
-
Wide Operating Range: Suitable for temperatures from –10 to 55 °C and humid conditions up to 95%.
-
Easy Installation: Standard DIN rail mounting simplifies setup and maintenance.
-
Versatility: Compatible with Yokogawa’s CENTUM and other DCS systems for seamless integration.
-
Durability: Designed for continuous operation in industrial environments, ensuring long service life.
Brand Information
Yokogawa Electric Corporation is a leading global provider of industrial automation and control solutions. Established in 1915, Yokogawa is renowned for its innovation, reliability, and high-quality products in process control and measurement instrumentation. The ADV series is a testament to Yokogawa’s dedication to delivering robust and precise I/O modules that meet the stringent demands of industries worldwide.
Related Models in the Same Series or Similar Types
| Model Number | Type | Channels | Input Voltage | Dimensions (mm) | Weight | Notes |
|---|---|---|---|---|---|---|
| ADV151-P60 | Digital Input Module | 16 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg | Standard 16-channel input module |
| ADV151-P63 | Digital Input Module | 16 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg | Enhanced noise immunity |
| ADV151-P80 | Digital Input Module | 32 | 24 V DC | 107.5 × 160 × 32.8 | 0.35 kg | High density 32-channel input |
| ADV151-P40 | Digital Input Module | 16 | 12 V DC | 107.5 × 130 × 32.8 | 0.3 kg | Low voltage input |
| ADV151-P60H | High Voltage Input | 16 | 48 V DC | 107.5 × 130 × 32.8 | 0.3 kg | For higher voltage input signals |
Popular Yokogawa Digital I/O Modules (Different Series)
| Model Number | Type | Channels | Signal Type | Dimensions (mm) | Weight | Description |
|---|---|---|---|---|---|---|
| ADV151-P60 | Digital Input Module | 16 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg | Standard digital input module |
| AVD151 | Digital Output Module | 16 | 24 V DC Output | 107.5 × 130 × 32.8 | 0.32 kg | Digital output for controlling actuators |
| SAV144 | Relay Output Module | 32 | Relay Contact | 107.5 × 160 × 32.8 | 0.45 kg | Relay-based output for isolation |
| SVD131 | Digital Input Module | 16 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg | Compact input module with fast response |
| SVD181 | High-Speed Input | 16 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg | High-speed digital input module |
Frequently Asked Questions (FAQ)
Q1: What kind of input signals does the ADV151-P63 support?
A1: It supports 24 V DC digital input signals and dry contact inputs.
Q2: What is the module’s response time?
A2: The response time is less than 10 milliseconds, suitable for real-time control.
Q3: How is the module mounted?
A3: The module is mounted on a DIN rail for easy installation and replacement.
Q4: What are the physical dimensions and weight?
A4: The dimensions are 107.5 × 130 × 32.8 mm and the weight is approximately 0.3 kg.
Q5: Can the ADV151-P63 handle noisy industrial environments?
A5: Yes, it provides 1500 Vrms electrical isolation to protect against noise and interference.
Q6: Is the module compatible with Yokogawa’s CENTUM DCS?
A6: Yes, it is fully compatible and commonly used in CENTUM DCS systems.
Q7: What is the operating temperature range?
A7: The module operates reliably between –10 and 55 °C.
Q8: How many digital input channels does the module have?
A8: It has 16 digital input channels.
Q9: Does the module support hot-swapping?
A9: Typically, these modules support hot-swapping, but it depends on the system setup.
Q10: What maintenance is required?
A10: Routine inspection and cleaning of terminals are recommended; the module is designed for long-term reliable operation.
