Product Overview

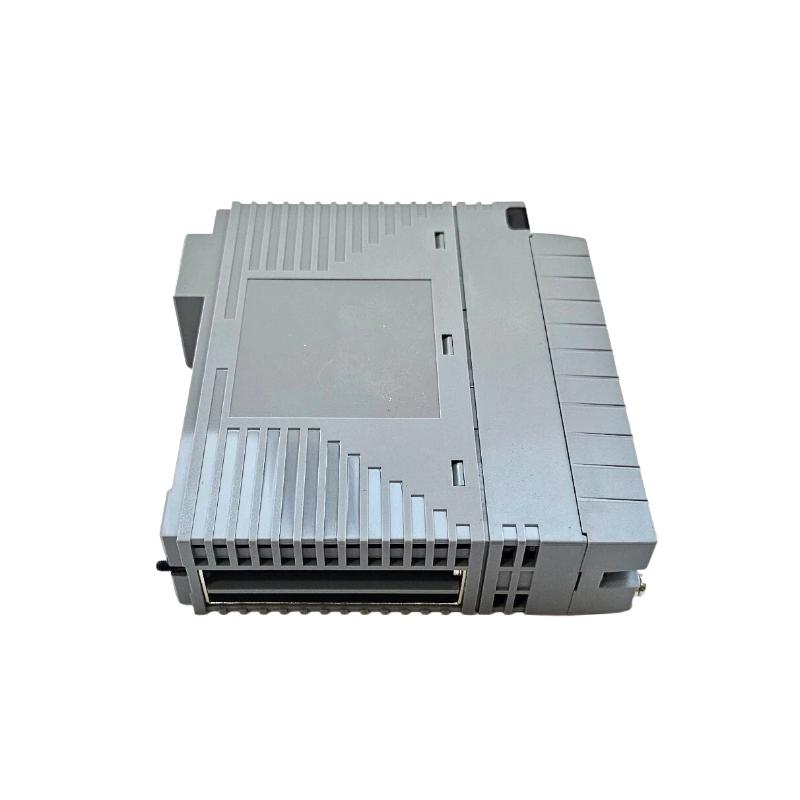

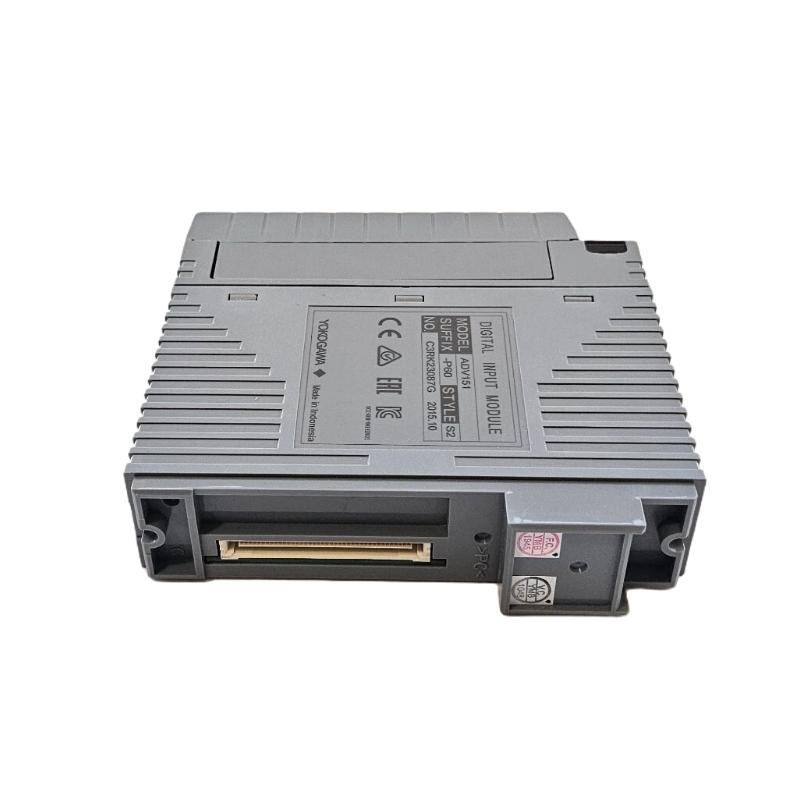

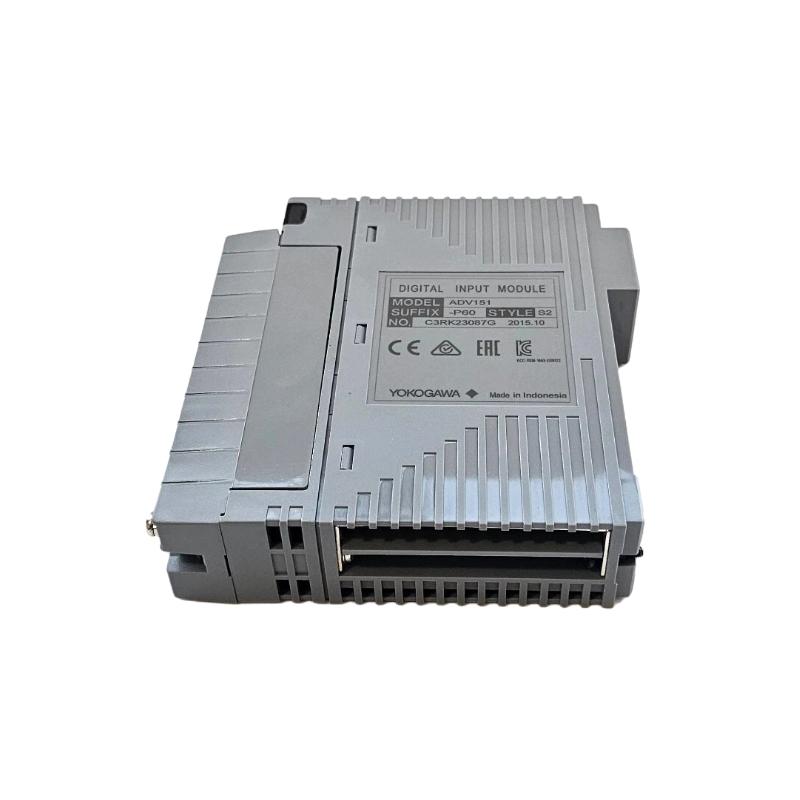

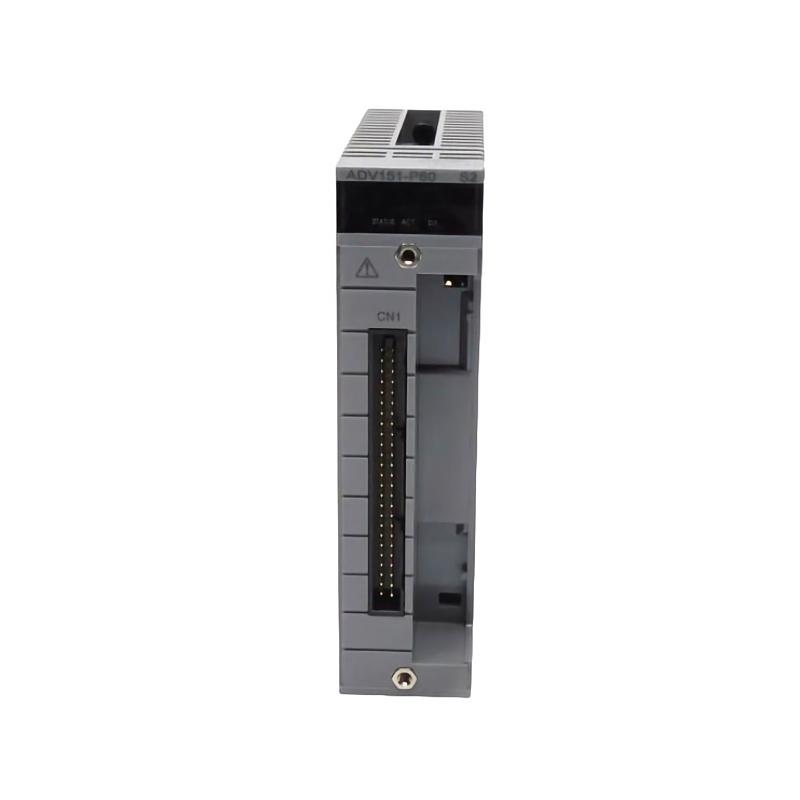

The Yokogawa ADV151-P60/D5A00 Digital Input Module is a highly efficient, 32-channel discrete signal input module used within Yokogawa CENTUM Distributed Control Systems (DCS). It plays a vital role in acquiring ON/OFF signals from field devices like sensors, switches, relays, and pushbuttons.
Designed with a D5A00 configuration, this module incorporates the KS cable interface, which ensures reliable and secure wiring, making it well-suited for industrial automation systems in high-density input applications. The ADV151-P60/D5A00 delivers enhanced signal integrity and real-time data transmission, meeting the demanding requirements of modern automation environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV151-P60/D5A00 |
| Product Type | Digital Input Module |
| Function | Discrete signal (ON/OFF) input |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Input Channels | 32 channels |
| Input Type | Digital contact input (sink/source) |
| Signal Type | ON/OFF (binary signals) |
| Input Voltage | 24 V DC |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | Approx. 4.1 mA per channel |
| Response Time | ≤ 8 ms |
| Isolation | Channel-to-channel and system isolation |
| Pushbutton Input | Supported |
| SOE Function | Sequence of events (optional) |
| Terminal Type | KS cable interface (D5A00) |
| Power Supply | 5 V DC (via system backplane) |
| Power Consumption | ~500 mA |
| Mounting Type | Rack-mounted / FIO system base |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Function and Working Principle
The ADV151-P60/D5A00 module is designed to acquire binary ON/OFF signals from field devices and relay them to the Yokogawa DCS system for processing. It operates by:
- Receiving ON/OFF signals from field devices such as switches or sensors.
- Converting these electrical signals into digital data that can be processed by the controller.
- Transmitting the data over the backplane to the controller for processing and action.
- Providing channel-to-channel isolation to protect the system and ensure signal integrity.
- Offering per-channel diagnostic indicators (LEDs) for easy troubleshooting.
This ensures a fast, stable, and reliable communication pathway for digital signals, ideal for environments requiring real-time data processing.
Role in Industrial Control Systems
In the context of Yokogawa CENTUM control systems, the ADV151-P60/D5A00 module plays a critical role in ensuring:
- Reliable data collection from field devices
- Event-driven monitoring, such as alarms or state changes
- System-level diagnostics through per-channel status indicators
- Continuous operational monitoring of vital systems
The module is integral to maintaining accurate system control and ensuring the safety and reliability of industrial automation processes.
Industrial Applications
The ADV151-P60/D5A00 is commonly used in industries such as:
- Oil and gas (production and refining)
- Chemical and petrochemical plants
- Power generation and distribution
- Water and wastewater treatment
- Manufacturing and process control
Its high-density input capabilities make it particularly useful in highly automated systems where signal accuracy and system diagnostics are critical for ensuring operational efficiency.
Installation and System Integration
For proper installation, the ADV151-P60/D5A00 module should:
- Be installed in a Yokogawa DCS or FIO I/O rack
- Be connected via the KS cable interface (D5A00) for reliable signal transmission
- Be properly grounded and shielded to reduce electromagnetic interference
- Be configured using Yokogawa’s CENTUM engineering tools for seamless integration
Following these guidelines ensures that the module functions correctly and optimally within a high-performance control system.
Compatible System Components
The ADV151-P60/D5A00 module typically integrates with the following components:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Sensors, relays, and switches for digital input
- Alarm and safety interlock systems
Together, these components create a cohesive and efficient industrial control network that ensures safe and reliable system operation.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV151-P50/B5S00 | Digital Input Module | 32-channel input | General-purpose automation |
| Yokogawa ADV151-P53/D5A00 | Digital Input Module | Harsh environment handling | Extreme environments |
| Yokogawa ADV151-E60 S2 | Digital Input Module | Continuous operation | Industrial processes |
| Yokogawa ADV151-E63 S2 | Digital Input Module | Event handling | High-demand applications |
Key Advantages
- High-density input for large-scale industrial systems
- Per-channel LED diagnostics for easy maintenance and troubleshooting
- D5A00 KS cable interface for fast and secure wiring
- Channel isolation ensures signal protection and integrity
- Efficient digital signal processing for real-time system control
- Robust and reliable for continuous operation in demanding environments
Technical FAQs
Q1: What is the main function of the ADV151-P60/D5A00?
It acquires digital ON/OFF signals from field devices and sends the data to the control system for processing.
Q2: How many input channels does it support?
It supports 32 input channels.
Q3: What is the significance of the D5A00 configuration?
The D5A00 configuration utilizes a KS cable interface, which ensures secure and reliable signal transmission in industrial automation systems.
Q4: Is sequence-of-events (SOE) functionality supported?
SOE functionality is supported based on specific system configuration, providing additional event tracking.
Q5: In which industries is the ADV151-P60/D5A00 used?
It is commonly used in industries like oil and gas, petrochemical, power generation, and water treatment systems.
Conclusion
The Yokogawa ADV151-P60/D5A00 Digital Input Module is a highly reliable, high-density input solution for industrial control systems. With its D5A00 KS cable interface, per-channel diagnostics, and robust construction, it ensures continuous and stable operation in even the most demanding environments.
Ideal for industries requiring real-time signal acquisition, it provides a critical link in automated control systems to ensure safety, efficiency, and uptime.
