Product Overview

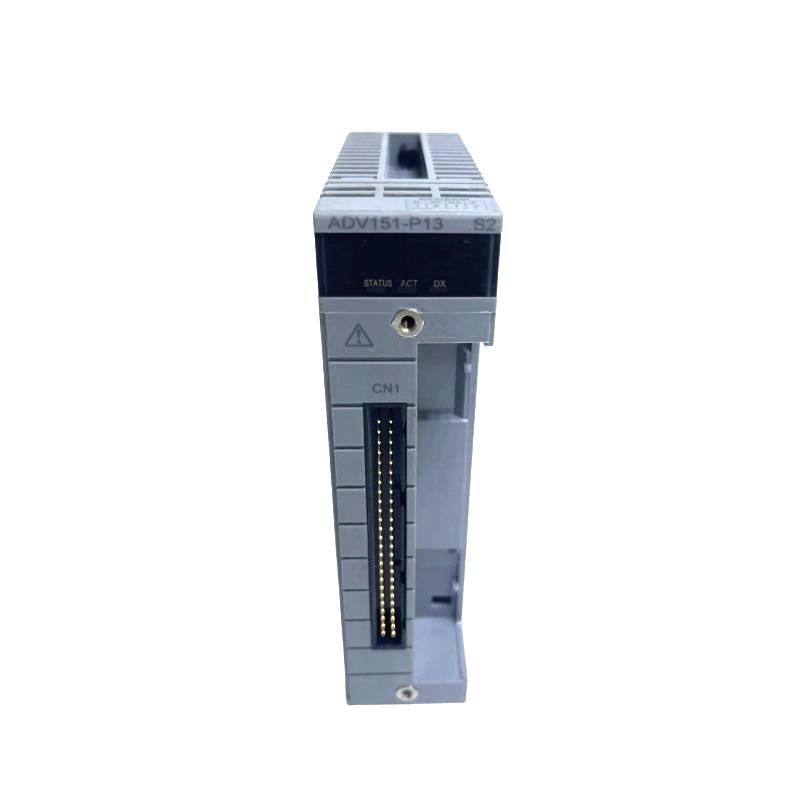

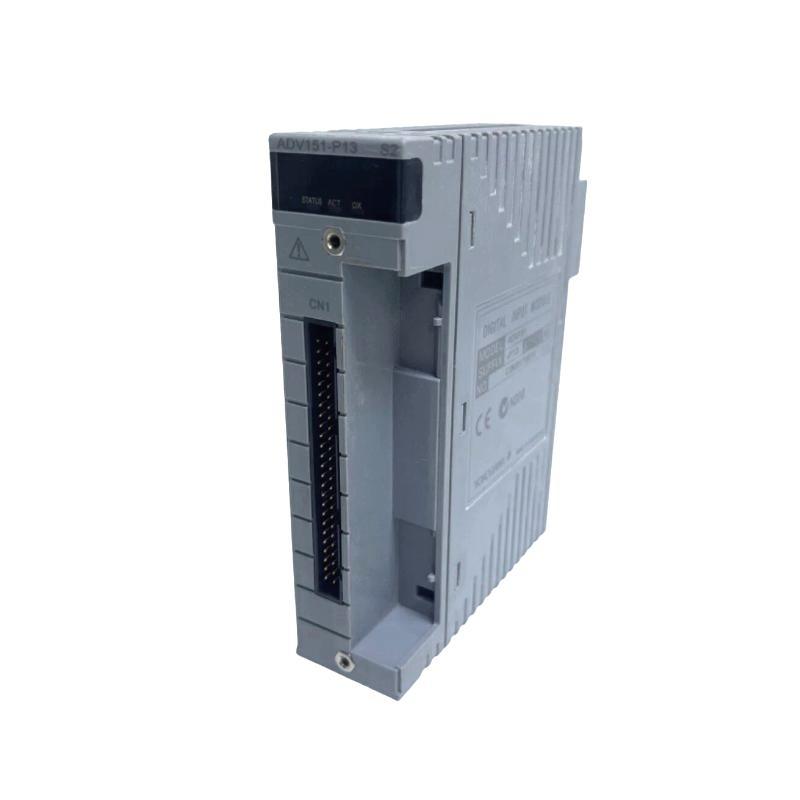

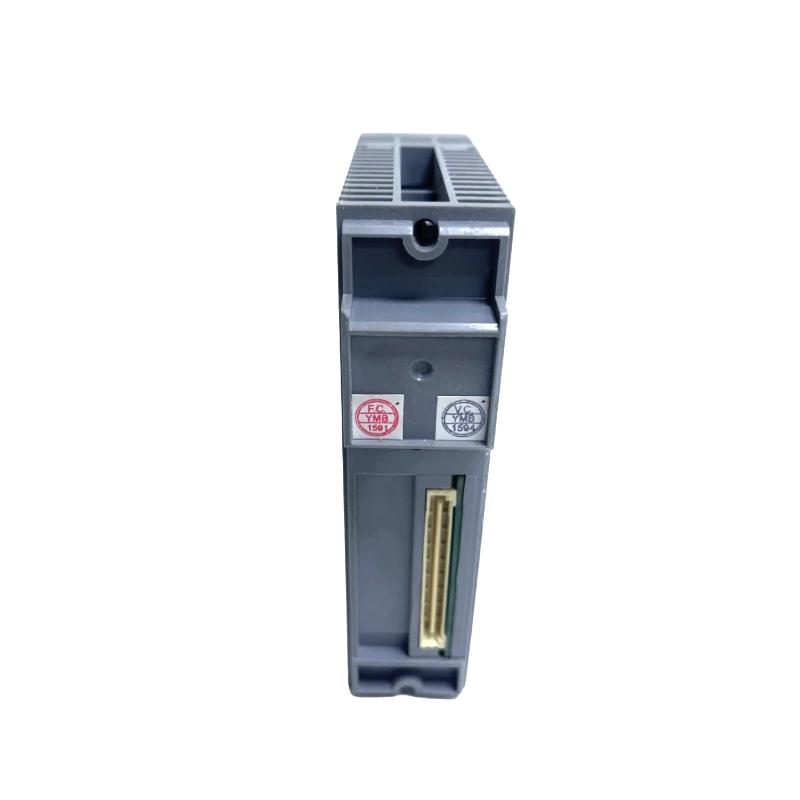

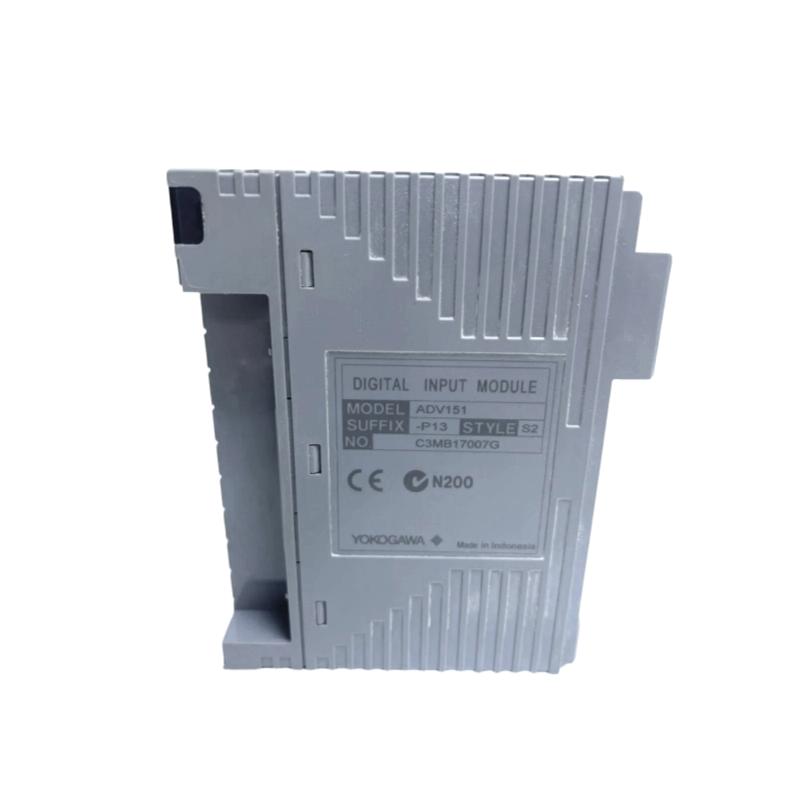

The Yokogawa ADV151-P13/D5A00 Digital Input Module is a high-density 32-channel discrete signal input module used in Yokogawa CENTUM Distributed Control Systems (DCS). It is designed to acquire ON/OFF signals from field devices, such as switches, sensors, relays, and contact-based instruments.
The D5A00 configuration refers to a KS cable interface adapter type, which improves wiring efficiency and simplifies cabinet-level installation. This makes the module suitable for large-scale industrial automation systems requiring stable wiring architecture and reliable signal acquisition.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV151-P13/D5A00 |
| Product Type | Digital Input Module |
| Function | Discrete signal (ON/OFF) input |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Input Channels | 32 channels |
| Input Type | Digital contact input (sink/source compatible) |
| Signal Type | ON/OFF (binary signals) |
| Input Voltage | 24 V DC |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | Approx. 4.1 mA per channel |
| Response Time | ≤ 8 ms |
| Isolation | Channel-to-channel and system isolation |
| Pushbutton Input | Supported |
| SOE Function | Supported (event recording capability depending on system configuration) |
| Interface Type | KS cable interface (D5A00 adapter) |
| Power Supply | 5 V DC (via system backplane) |
| Power Consumption | Low power industrial design |
| Mounting Type | Rack-mounted / FIO system base |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Function and Working Principle
The ADV151-P13/D5A00 operates as a high-density digital signal acquisition module inside a distributed control system.
Its operation includes:
- Receiving ON/OFF signals from field devices
- Detecting real-time state changes of digital inputs
- Converting electrical signals into digital logic data
- Transmitting processed signals to the DCS controller via backplane communication
- Providing electrical isolation for system protection
- Supporting event-based monitoring in advanced configurations
This ensures stable, accurate, and noise-resistant digital signal acquisition.
Role in Industrial Control Systems
Within Yokogawa CENTUM architecture, the ADV151-P13/D5A00 functions as a core field input interface module.
Its main roles include:
- Monitoring field device status in real time
- Capturing interlock and safety signals
- Supporting alarm and event detection logic
- Providing input data for control system execution
- Enhancing system diagnostics and operational visibility
- Supporting sequence-of-events functionality in configured systems
It is widely used in high-reliability industrial automation environments.
Industrial Applications
The ADV151-P13/D5A00 is commonly used in:
- Oil and gas production and refining systems
- Petrochemical and chemical processing plants
- Power generation facilities
- Industrial automation systems
- Water and wastewater treatment plants
- Safety instrumented systems (SIS)
It is especially suitable for applications requiring high-channel digital monitoring and structured cabinet wiring systems.
Installation and System Integration
Proper installation ensures stable operation:
- Installed in Yokogawa DCS or FIO I/O racks
- Connected via KS cable interface (D5A00 adapter)
- Configured using CENTUM engineering tools
- Requires proper grounding and shielding to reduce noise interference
- Supports redundant or distributed system architectures
Correct setup ensures long-term stability and accurate signal acquisition.
Compatible System Components
The ADV151-P13/D5A00 typically works with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Switches, relays, sensors, and pushbuttons
- Alarm and interlock systems
These components form a complete industrial automation and control system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV144 | Digital Input Module | 16-channel basic input | Small monitoring systems |
| Yokogawa ADV151-E10 | Digital Input Module | Stable general-purpose input | Medium-scale systems |
| Yokogawa ADV151-E50/B5S00 | Digital Input Module | High-density 32-channel input | Large-scale systems |
| Yokogawa ADV151-E60 S2 | Digital Input Module | Stable industrial operation | Continuous processes |
| Yokogawa ADV151-E63 S2 | Digital Input Module | Advanced event/SOE functions | Critical applications |
Key Advantages
- 32-channel high-density digital input capability
- KS cable interface for simplified wiring
- Fast response for real-time signal acquisition
- Strong electrical isolation for system safety
- Stable operation in harsh industrial environments
- Compatible with Yokogawa CENTUM systems
- Suitable for continuous 24/7 operation
Technical FAQs
Q1: What is the main function of the ADV151-P13/D5A00?
It acquires ON/OFF digital signals from field devices and transmits them to the control system.
Q2: How many channels does it support?
It supports 32 digital input channels.
Q3: What is the role of the D5A00 configuration?
It provides a KS cable interface adapter for simplified cabinet wiring.
Q4: What type of signals does it process?
It processes 24 V DC discrete ON/OFF signals.
Q5: Where is it commonly used?
It is used in industrial automation systems requiring reliable signal acquisition and structured wiring.
Conclusion
The Yokogawa ADV151-P13/D5A00 Digital Input Module is a reliable and high-density solution for industrial digital signal acquisition. With KS cable interface design, fast response time, and strong system integration capability, it ensures stable and accurate operation in distributed control environments.
It is widely used in industries where signal reliability, wiring efficiency, and system stability are critical for safe and efficient operations.
