Product Overview

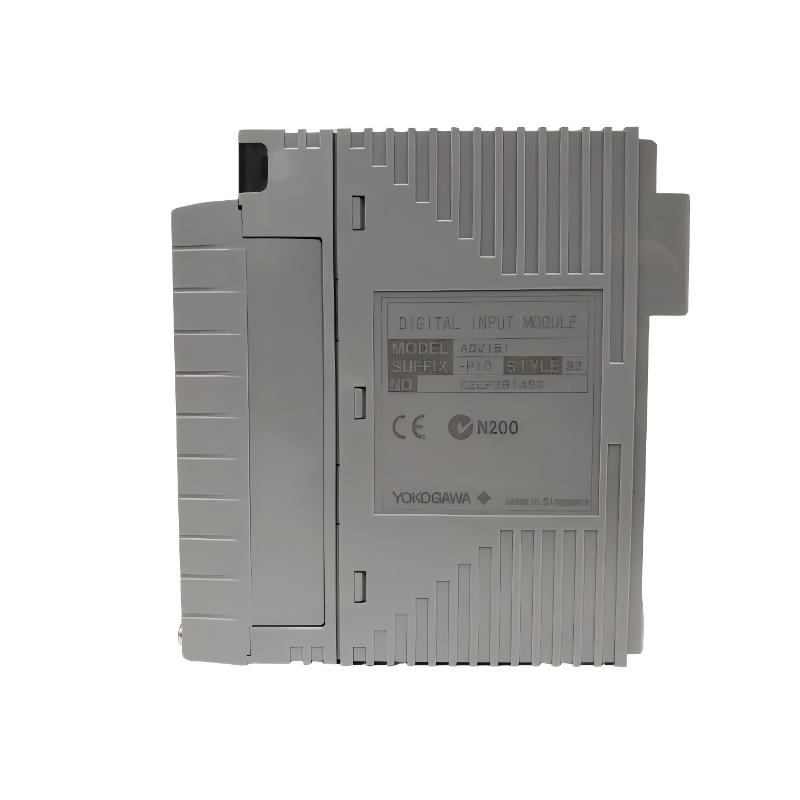

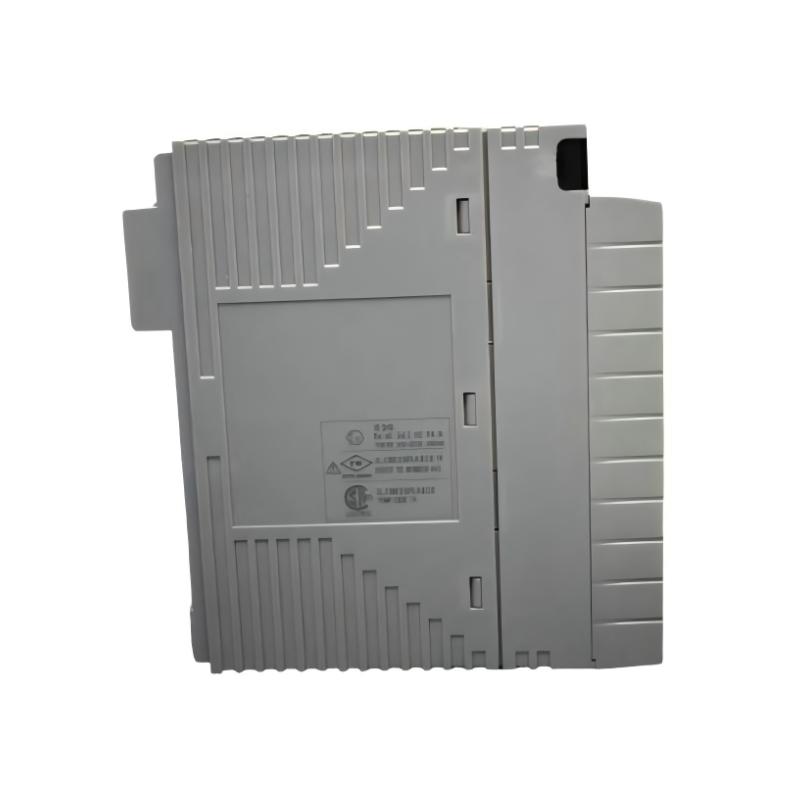

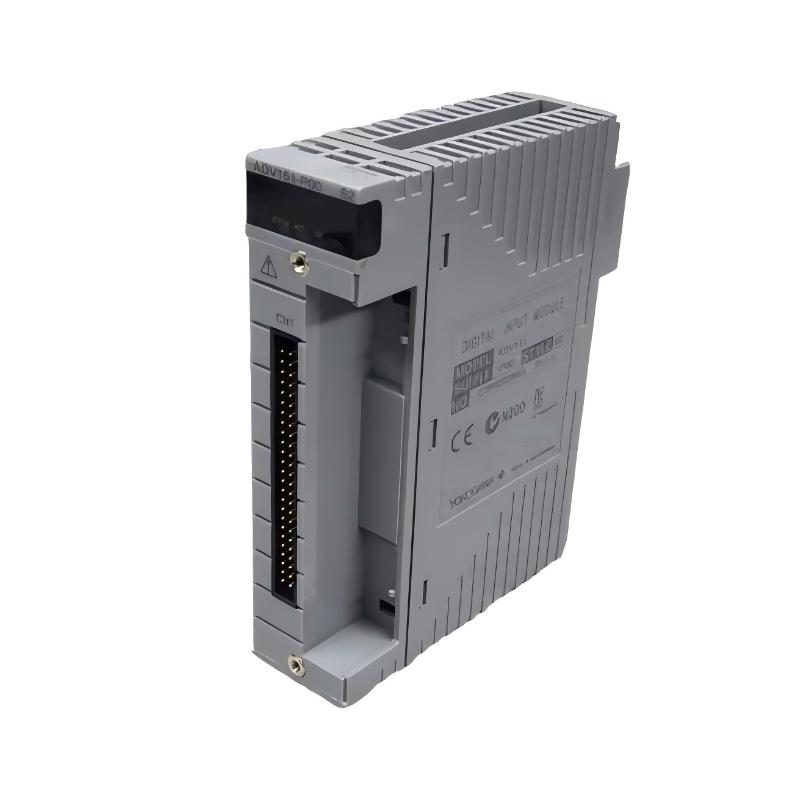

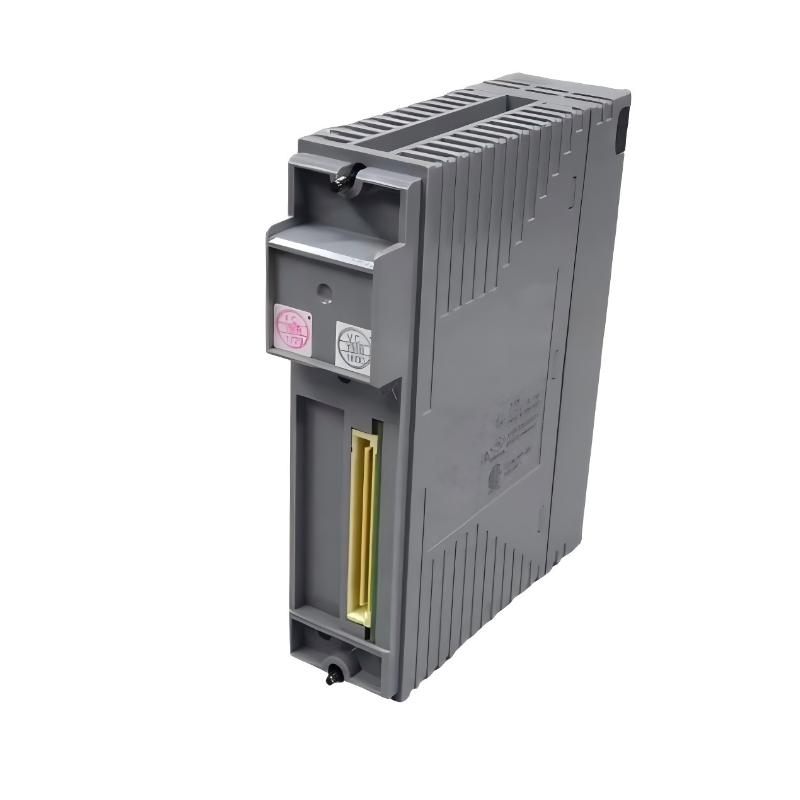

The Yokogawa ADV151-P10 S2 Digital Input Module is a high-density 32-channel digital input module designed for Yokogawa CENTUM Distributed Control Systems (DCS). It is used to receive ON/OFF signals from field devices, such as switches, relays, sensors, and pushbutton contacts.
This model belongs to the ADV151 P-series and is designed for multi-function digital signal handling, including standard status input and event-oriented signal processing. It is widely used in industrial automation systems that require high reliability, fast response, and stable long-term operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV151-P10 S2 |
| Product Type | Digital Input Module |
| Function | Discrete signal (ON/OFF) input |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Input Channels | 32 channels |
| Input Type | Digital contact input (sink/source compatible) |
| Signal Type | ON/OFF (binary signals) |
| Input Voltage | 24 V DC |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | Approx. 4.1 mA per channel |
| Response Time | ≤ 8 ms |
| Isolation | Channel-to-channel and system isolation |
| Pushbutton Input | Supported |
| SOE Function | Supported (event recording capability) |
| Power Supply | 5 V DC (via system backplane) |
| Power Consumption | Low power industrial design |
| Mounting Type | Rack-mounted / FIO module base |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Function and Working Principle
The ADV151-P10 S2 works as a high-density digital signal acquisition module inside a distributed control system.
Its operation includes:
- Receiving ON/OFF signals from field devices
- Detecting both steady and pulse-type digital signals
- Converting electrical inputs into digital data
- Sending processed data to the control system via backplane communication
- Supporting event-based signal capture and time recording
- Providing electrical isolation for safe operation
This allows the module to handle both normal status signals and event-driven signals with high accuracy.
Role in Industrial Control Systems
Within Yokogawa CENTUM systems, the ADV151-P10 S2 functions as a core digital input interface module.
Its main roles include:
- Monitoring field device status in real time
- Capturing interlock and safety signals
- Supporting alarm and event detection
- Recording sequence-of-events data
- Providing input signals for control logic execution
- Improving system diagnostics and traceability
It is widely used in high-reliability automation environments.
Industrial Applications
The ADV151-P10 S2 is used in:
- Oil and gas processing systems
- Petrochemical and refinery plants
- Power generation facilities
- Industrial automation systems
- Water and wastewater treatment plants
- Safety instrumented systems (SIS)
It is especially suitable for applications requiring accurate digital signal monitoring and event tracking.
Installation and System Integration
Proper installation ensures stable performance:
- Installed in Yokogawa DCS or FIO I/O racks
- Connected via dedicated terminal or cable interfaces
- Configured using CENTUM engineering tools
- Requires proper grounding and shielding
- Supports redundant system architectures
Correct setup ensures stable signal acquisition and long-term reliability.
Compatible System Components
The ADV151-P10 S2 typically works with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Switches, relays, sensors, and pushbuttons
- Alarm and interlock systems
These components form a complete industrial automation system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV144 | Digital Input Module | 16-channel standard input | Basic monitoring |
| Yokogawa ADV151-E10 | Digital Input Module | General-purpose input | Medium-scale systems |
| Yokogawa ADV151-E50/B5S00 | Digital Input Module | High-density 32-channel input | Large systems |
| Yokogawa ADV151-E60 S2 | Digital Input Module | Stable industrial performance | Continuous operation |
| Yokogawa ADV151-E63 S2 | Digital Input Module | Event/SOE capability | Critical applications |
Key Advantages
- High-density 32-channel digital input design
- Support for pushbutton and event signals
- Fast response time for real-time monitoring
- Strong electrical isolation for safety
- Stable operation in industrial environments
- Easy integration with Yokogawa CENTUM systems
- Suitable for continuous 24/7 operation
Technical FAQs
Q1: What is the main function of the ADV151-P10 S2?
It collects digital ON/OFF signals and supports event-based signal processing.
Q2: How many channels does it support?
It supports 32 digital input channels.
Q3: What makes this model different?
It supports pushbutton input and event recording functions.
Q4: What type of signals does it process?
It processes 24 V DC discrete ON/OFF signals.
Q5: Where is it commonly used?
It is used in industrial automation systems requiring reliable monitoring and event tracking.
Conclusion
The Yokogawa ADV151-P10 S2 Digital Input Module is a high-reliability solution for digital signal acquisition in industrial control systems. With support for multi-function input processing, event capture, and fast response performance, it ensures accurate and stable operation in distributed automation architectures.
It is widely used in industries where signal integrity, system stability, and operational reliability are critical.
