Product Overview

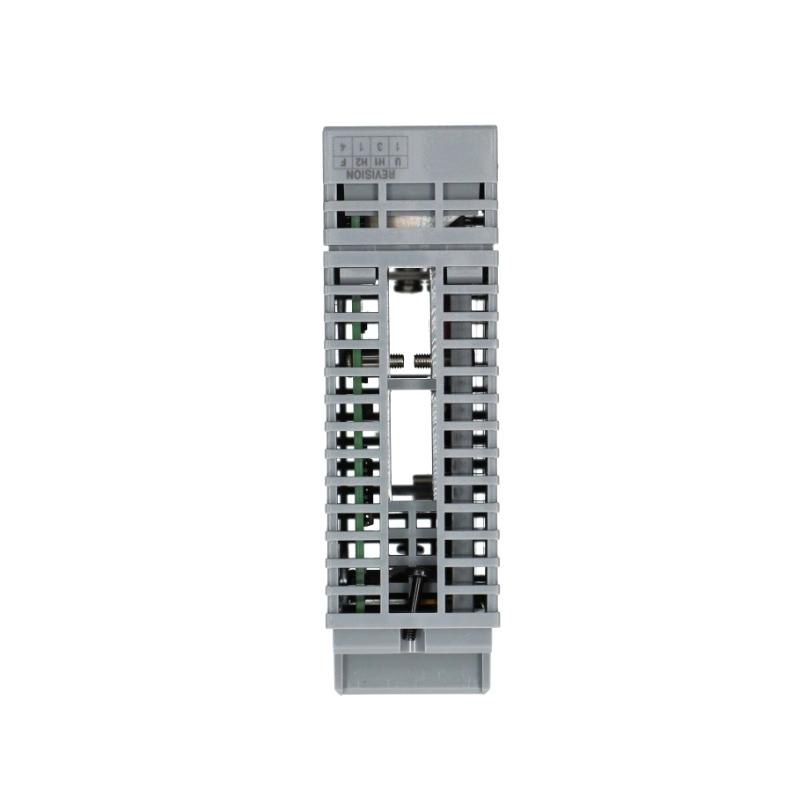

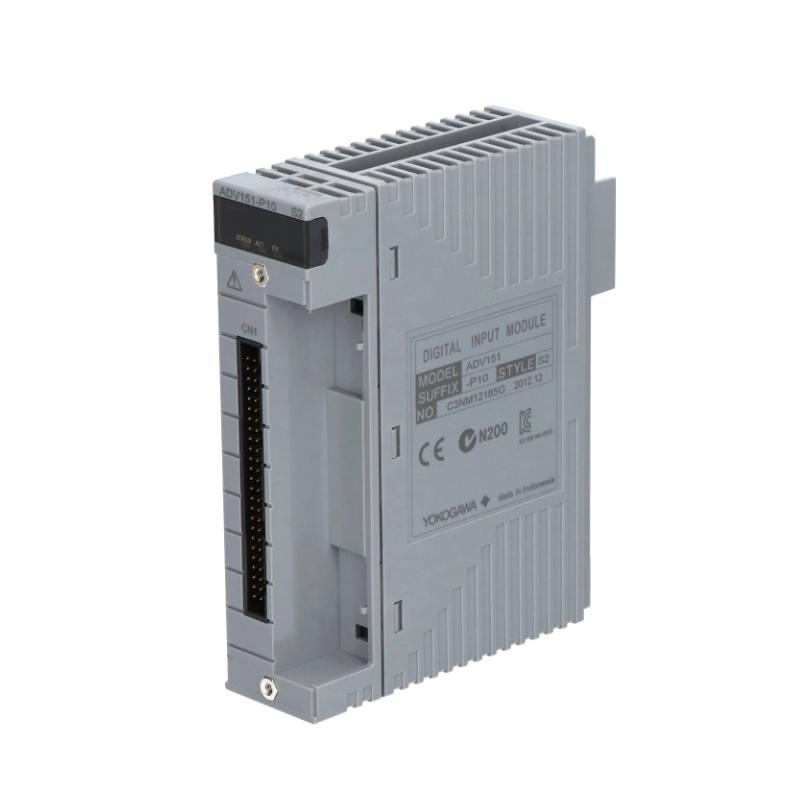

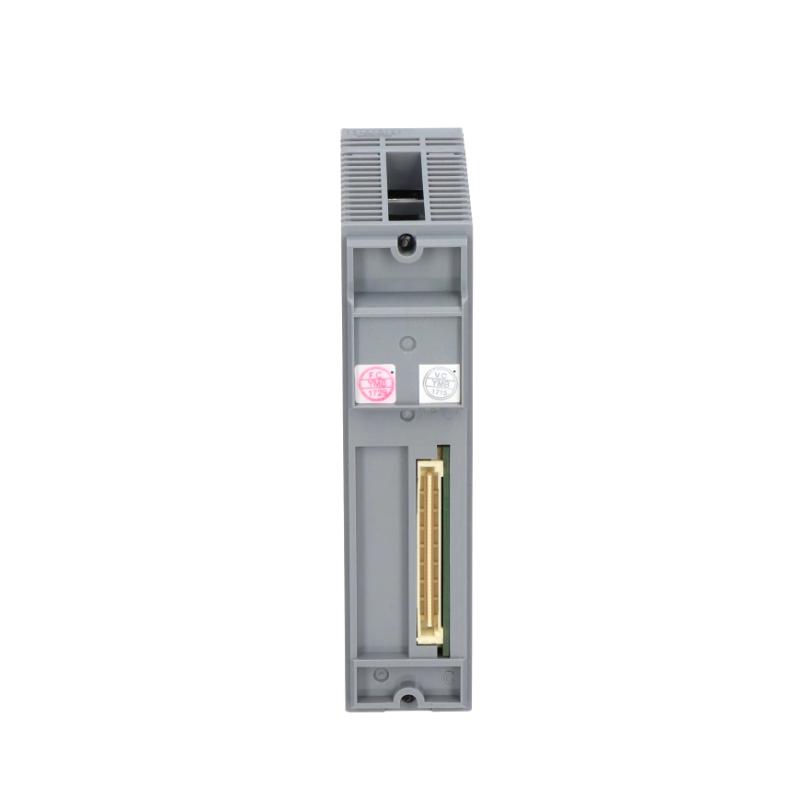

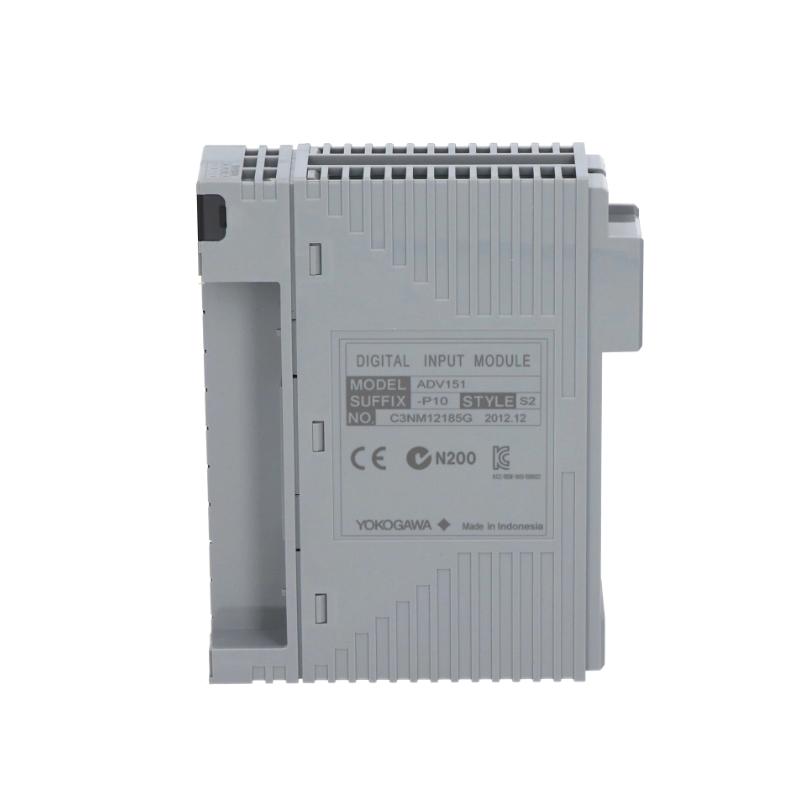

The Yokogawa ADV151-P10/D5A00 Digital Input Module is a high-density 32-channel discrete signal input module designed for Yokogawa CENTUM Distributed Control Systems (DCS). It is used to acquire ON/OFF signals from field devices, such as switches, sensors, relays, and pushbutton contacts.
The D5A00 variant refers to a KS cable interface adapter configuration, which simplifies cabinet wiring and improves installation efficiency in large-scale industrial control systems. This model is widely used in environments requiring stable signal acquisition, structured wiring, and high system reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV151-P10/D5A00 |
| Product Type | Digital Input Module |
| Function | Discrete signal (ON/OFF) input |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Input Channels | 32 channels |
| Input Type | Digital contact input (sink/source compatible) |
| Signal Type | ON/OFF (binary signals) |
| Input Voltage | 24 V DC |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | Approx. 4.1 mA per channel |
| Response Time | ≤ 8 ms |
| Isolation | Channel-to-channel and system isolation |
| Pushbutton Input | Supported |
| SOE Function | Supported (event recording capability) |
| Interface Type | KS cable interface (ATD5A-00 adapter) |
| Power Supply | 5 V DC (via system backplane) |
| Power Consumption | Low power industrial design |
| Mounting Type | Rack-mounted / FIO module base |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Function and Working Principle
The ADV151-P10/D5A00 operates as a multi-channel digital signal acquisition module inside a distributed control system.
Its working process includes:
- Receiving ON/OFF signals from field devices
- Detecting both steady-state and pulse-type inputs
- Converting electrical signals into digital logic data
- Transmitting processed signals to the DCS controller via system backplane
- Supporting event-based detection and time stamping
- Ensuring electrical isolation for system safety and stability
This allows the module to handle both standard monitoring signals and event-driven signals with high reliability.
Role in Industrial Control Systems
Within Yokogawa CENTUM architecture, the ADV151-P10/D5A00 functions as a core digital input interface module.
Its main roles include:
- Monitoring field device status in real time
- Capturing interlock and safety signals
- Supporting alarm and event detection
- Recording sequence-of-events (SOE) data
- Providing input data for control logic execution
- Improving system diagnostics and operational visibility
It is widely used in high-reliability automation environments.
Industrial Applications
The ADV151-P10/D5A00 is commonly used in:
- Oil and gas processing systems
- Petrochemical and refinery plants
- Power generation facilities
- Industrial automation systems
- Water and wastewater treatment plants
- Safety instrumented systems (SIS)
It is especially suitable for applications requiring high-channel digital input monitoring and structured wiring systems.
Installation and System Integration
Proper installation ensures stable performance:
- Installed in Yokogawa DCS or FIO I/O racks
- Connected via KS cable interface (D5A00 adapter)
- Configured using CENTUM engineering tools
- Requires proper grounding and shielding to reduce noise
- Supports redundant or distributed system architectures
Correct setup ensures stable signal acquisition and long-term operational reliability.
Compatible System Components
The ADV151-P10/D5A00 typically works with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Switches, relays, sensors, and pushbuttons
- Alarm and interlock systems
These components form a complete industrial automation system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV144 | Digital Input Module | 16-channel basic input | Simple monitoring |
| Yokogawa ADV151-E10 | Digital Input Module | Stable general-purpose input | Medium-scale systems |
| Yokogawa ADV151-E50/B5S00 | Digital Input Module | High-density 32-channel | Large systems |
| Yokogawa ADV151-E60 S2 | Digital Input Module | Enhanced stability | Continuous operation |
| Yokogawa ADV151-E63 S2 | Digital Input Module | SOE event recording | Critical applications |
Key Advantages
- High-density 32-channel digital input capability
- KS cable interface for simplified wiring (D5A00)
- Fast response time for real-time monitoring
- Strong electrical isolation for system safety
- Stable operation in harsh industrial environments
- Easy integration with Yokogawa CENTUM systems
- Suitable for continuous 24/7 operation
Technical FAQs
Q1: What is the main function of the ADV151-P10/D5A00?
It acquires digital ON/OFF signals from field devices and transmits them to the control system.
Q2: How many channels does it support?
It supports 32 digital input channels.
Q3: What is the role of the D5A00 option?
It provides a KS cable interface adapter for simplified and high-density wiring.
Q4: What type of signals does it process?
It processes 24 V DC discrete ON/OFF signals.
Q5: Where is it commonly used?
It is used in industrial automation systems requiring reliable monitoring and structured wiring.
Conclusion
The Yokogawa ADV151-P10/D5A00 Digital Input Module is a reliable and high-density solution for industrial signal acquisition. With KS cable interface design, fast response, and strong system compatibility, it ensures stable and accurate operation in distributed control environments.
It is widely used in industries where signal reliability, wiring efficiency, and system stability are critical for safe and efficient operations.
