Product Overview
Brand: Yokogawa
Series: ADV151 Series – Digital Input Modules

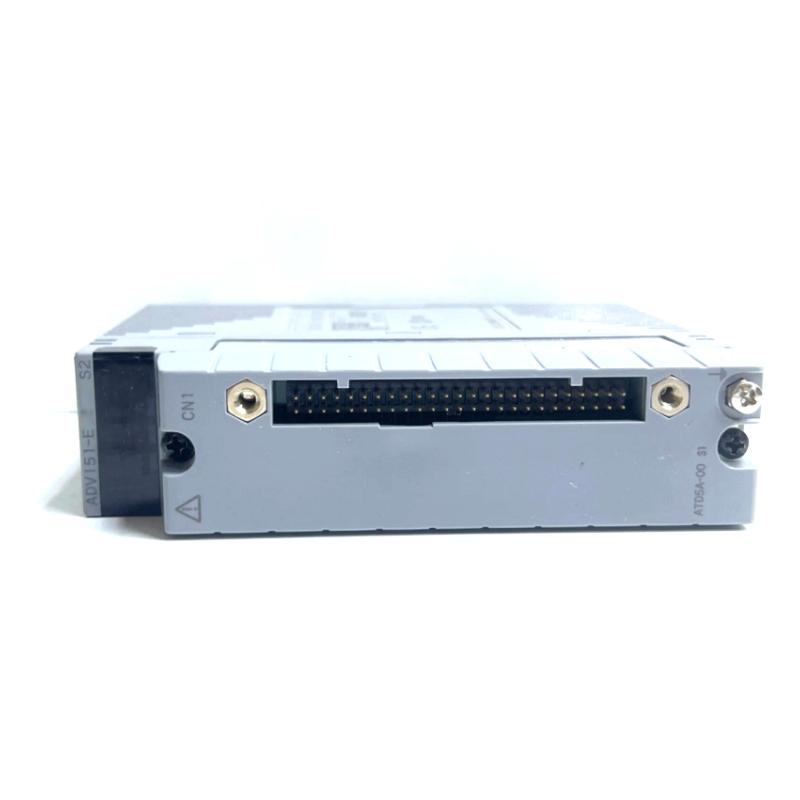

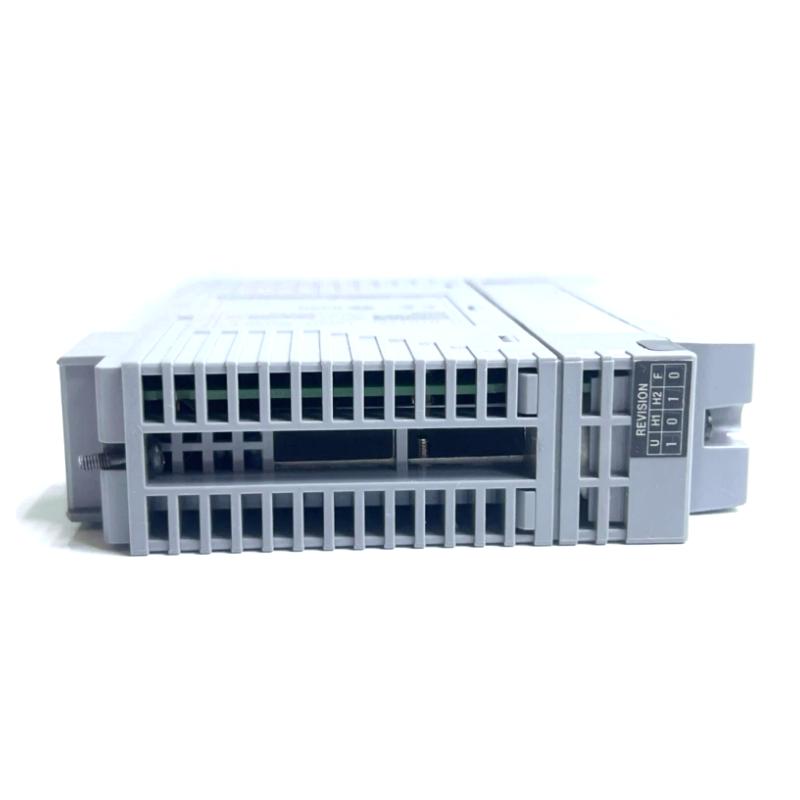

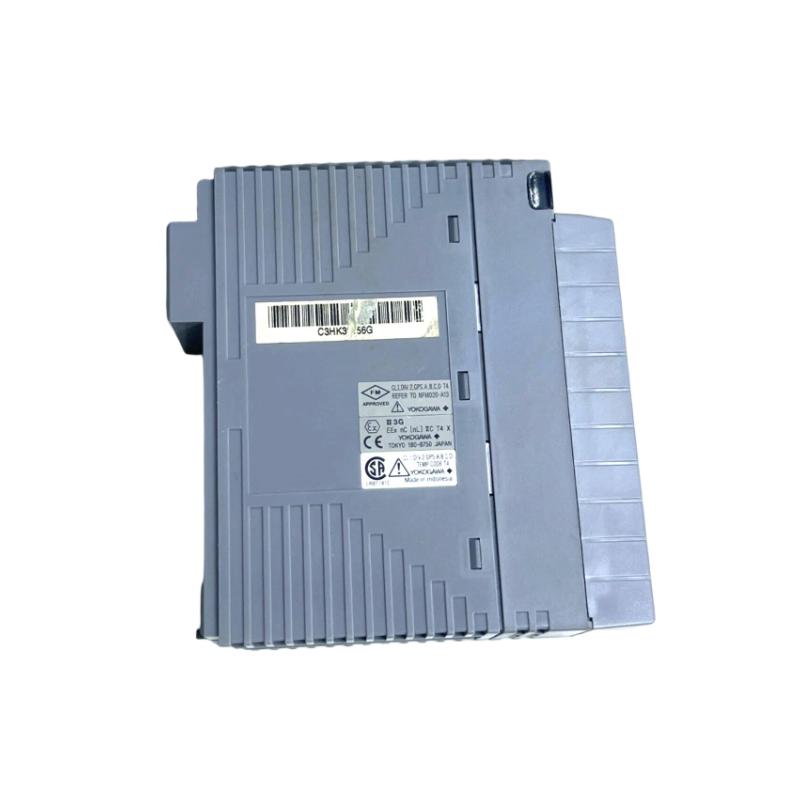

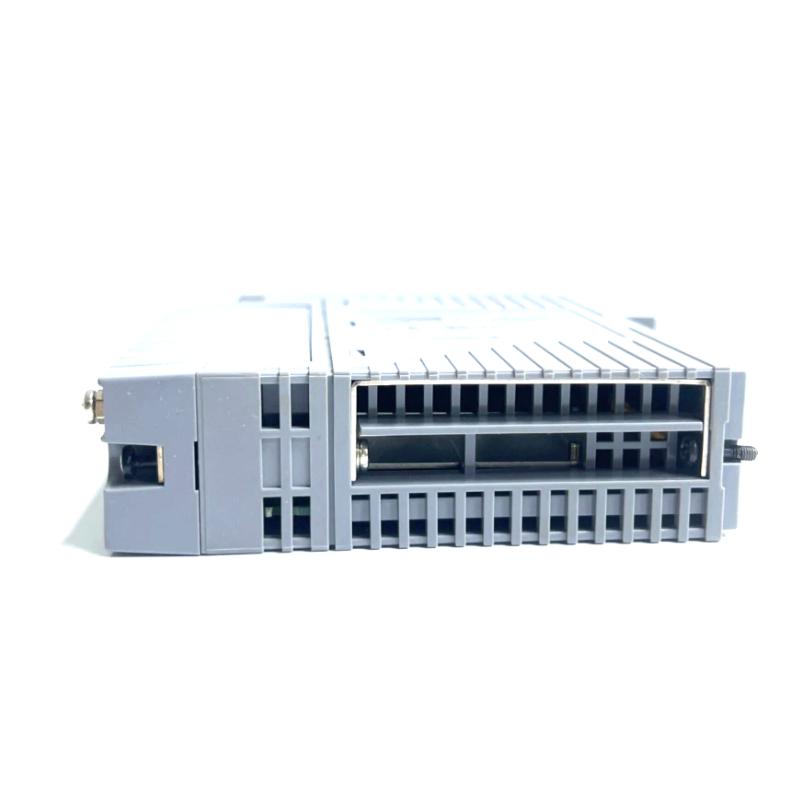

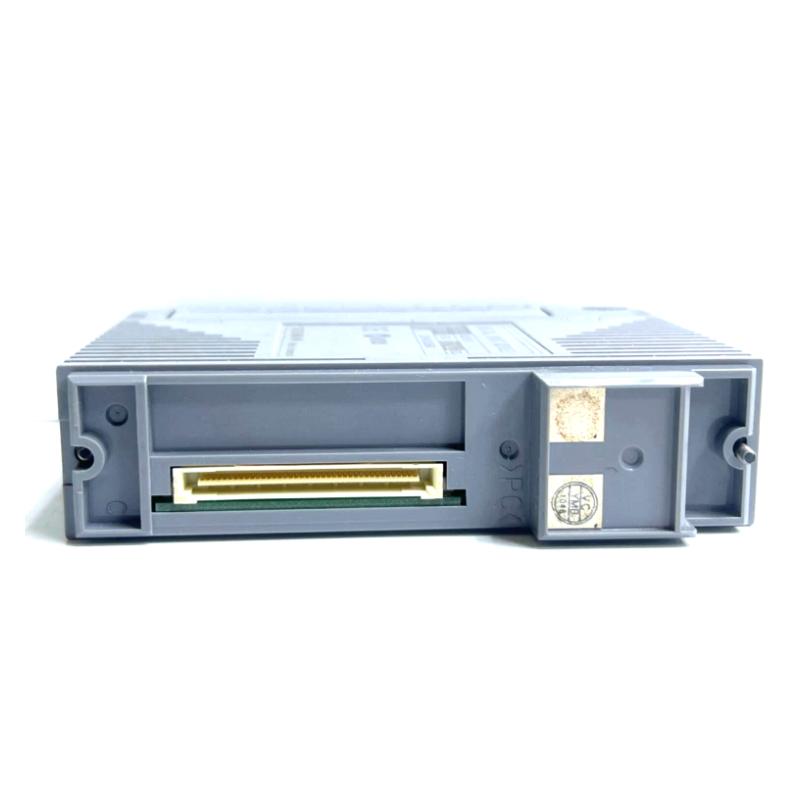

Model: ADV151-E63 S2
The ADV151-E63 S2 is a high-performance 32-channel (some variants 64-channel) 24 V DC digital input module designed for industrial automation and process control. It supports reliable ON/OFF detection, sequence-of-events (SOE) logging, and integrates seamlessly into modular I/O racks. This module is ideal for industries requiring precise signal monitoring, event timestamping, and robust environmental tolerance.
Technical Specifications
| Parameter | Description |
|---|---|
| Number of input channels | 32 (up to 64 for some variants) |
| Rated input voltage | 24 V DC |
| Input ON voltage range | 20–26.4 V DC |
| Input OFF voltage threshold | ≤ 5 V DC |
| Typical input current per channel | 2.5 mA ±20% |
| Response time (status input) | ≤ 8 ms |
| Minimum ON detection time | ~20 ms |
| Maximum ON/OFF cycle rate | ~25 Hz |
| Withstanding voltage (input ↔ system) | 2 kV AC, 1 min |
| Withstanding voltage (between commons) | 500 V AC, 1 min |
| Operating temperature range | –20 °C to +70 °C |
| Dimensions (W × H × D) | 51 mm × 254 mm × 114 mm |
| Weight | 0.63 kg |
Applications
-
Monitoring 24 V DC discrete signals from switches, relays, and push-buttons.
-
Integration into distributed control systems (DCS) in power plants, chemical plants, oil & gas facilities, and utilities.
-
Sequence-of-events (SOE) logging for critical diagnostics.
-
Machine automation, conveyor monitoring, safety interlocks.
-
Building automation for alarms, switchgear, and facility controls.
-
System upgrades or retrofits replacing older discrete input modules.
Advantages
-
High channel density reduces wiring and saves rack space.
-
SOE capture enables timestamped event logging.
-
Robust electrical isolation protects against industrial noise.
-
Fast response ensures real-time monitoring.
-
Wide temperature tolerance supports harsh environments.
-
Modular design allows easy integration into existing systems.
-
Diagnostic support improves troubleshooting efficiency.
-
Proven industrial reliability ensures long-term operation.
Recommended Related Models (Same Series)
| Model | Description & Key Parameters |
|---|---|
| ADV151-E60 | 32-channel digital input, SOE capture, slightly older revision. |
| ADV151-E50 | 32-channel digital input, basic SOE capture variant. |
| ADV151-P60 | Push-button detection variant, 32-channel digital input. |
| ADV151-P53 | 32-channel digital input with wide-temp and ISA G3 options. |
| ADV161-P50 | 64-channel digital input module for high-density applications. |
Recommended Popular Models (Same Brand)
| Model | Description & Key Parameters |
|---|---|
| ADR541-P50 | 16-channel relay output module for 24 V DC / 100–240 V AC loads. |
| ADV551-P53 | 32-channel digital output module for actuators and drivers. |
| ADV157-S50 | 32-channel digital input module, compact wiring. |
| AAI141-S50 | Analog input module (4–20 mA) for process measurement. |
| AAV142-S50 | Mixed analog I/O module for expanded process control. |
FAQ (10 Questions & Answers)
Q1: What voltage does ADV151-E63 S2 support?
A1: 24 V DC nominal, ON 20–26.4 V, OFF ≤ 5 V.
Q2: How many input channels?
A2: 32 channels (up to 64 for some variants).
Q3: Dimensions and weight?
A3: 51 mm × 254 mm × 114 mm, 0.63 kg.
Q4: Does it support sequence-of-events logging?
A4: Yes, SOE capture timestamps discrete input events.
Q5: Can it be used in modular racks?
A5: Yes, fully compatible with ADV151 series racks/back-planes.
Q6: Input response time?
A6: ≤ 8 ms for status input, ~20 ms minimum ON detection.
Q7: Isolation capability?
A7: 2 kV AC input-system, 500 V AC between common groups.
Q8: Suitable for harsh industrial environments?
A8: Yes, operates from –20 °C to +70 °C.
Q9: Field wiring support?
A9: Pressure-clamp terminals or cable interface per variant.
Q10: Can it replace older modules?
A10: Yes, if the I/O rack and system support ADV151 series modules.
