- Yokogawa
- ADV151-E63/D6A00
- Digital Input Module
- Japan
- 107.5 × 130 × 32.8 mm
- 0.3 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 13
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

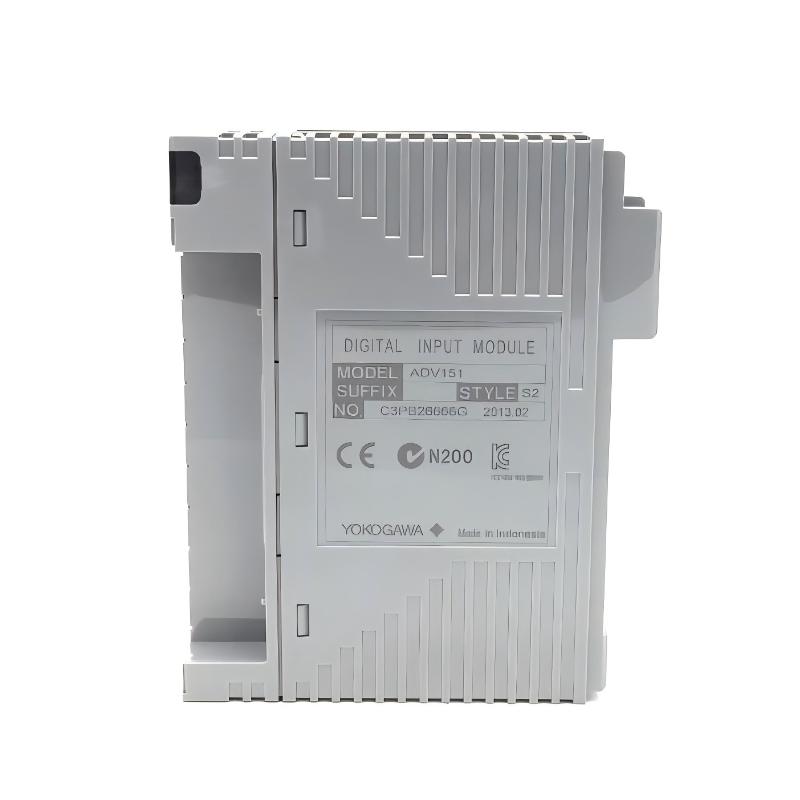

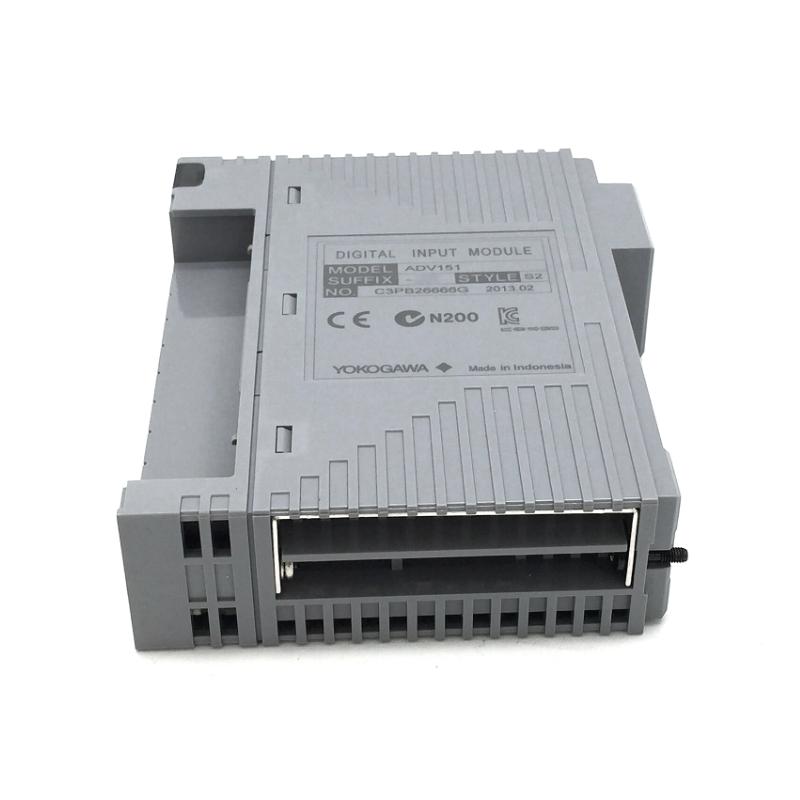

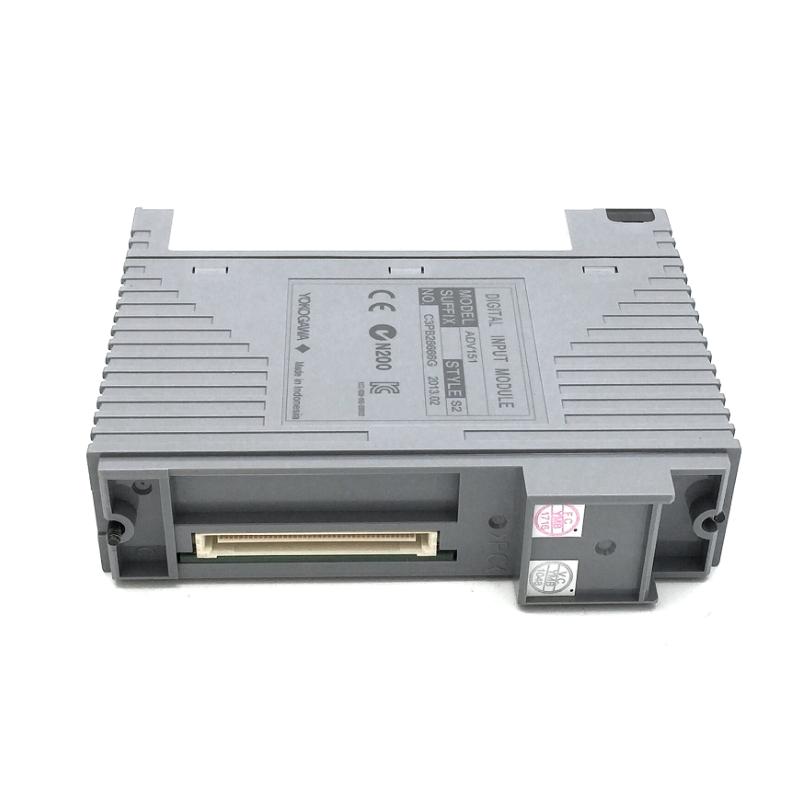

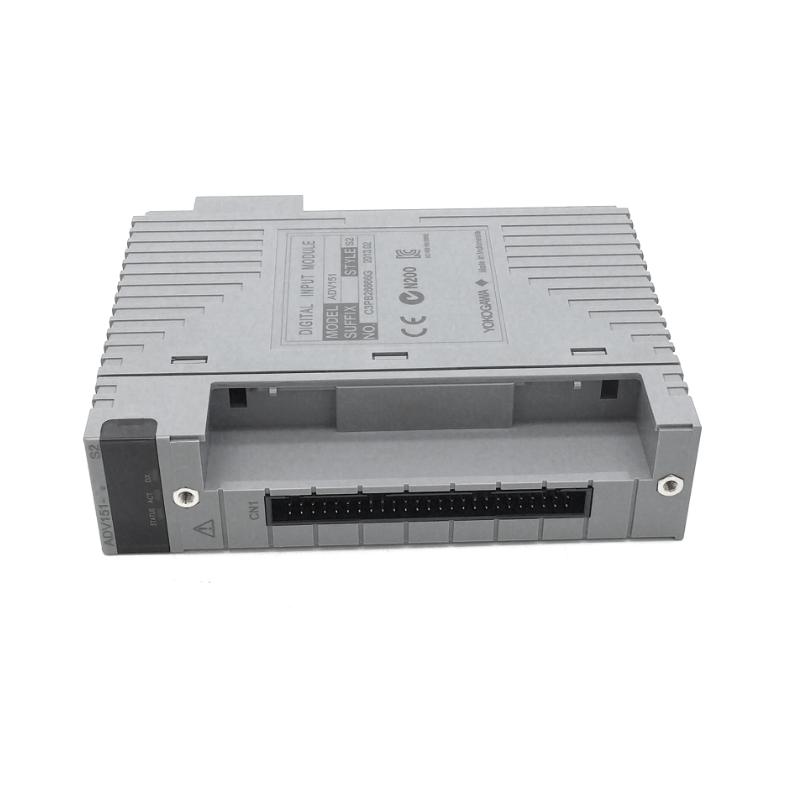

The Yokogawa ADV151-E63/D6A00 Digital Input Module is a high-density 32-channel isolated digital input module designed for Yokogawa CENTUM Distributed Control Systems (DCS). It is used to acquire ON/OFF signals from field devices, such as switches, sensors, relays, and contact-based instruments.
This module is engineered for high reliability, fast response, and stable operation in harsh industrial environments, making it suitable for critical automation and process control applications. It also supports advanced diagnostics and event handling capabilities, depending on system configuration.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV151-E63/D6A00 |
| Product Type | Digital Input Module |
| Function | Discrete signal (ON/OFF) input |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Input Channels | 32 channels |
| Input Type | Digital contact input (sink/source compatible) |
| Signal Type | ON/OFF (binary signals) |
| Input Voltage | 24 V DC |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | Approx. 4.1 mA per channel |
| Response Time | ≤ 8 ms |
| Isolation | Channel-to-channel and system isolation |
| Redundancy Support | Compatible with redundant DCS configurations |
| Power Supply | 5 V DC (via system backplane) |
| Power Consumption | Low power industrial design |
| Interface Type | D6A00 adapter interface (KS cable compatible) |
| Mounting Type | Rack-mounted / FIO system module base |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Function and Working Principle
The ADV151-E63/D6A00 works as a high-density digital signal acquisition module inside a distributed control system.
Its operating process includes:
- Receiving ON/OFF signals from field devices
- Detecting real-time signal transitions
- Converting electrical input signals into digital data
- Transmitting processed signals to the DCS controller via backplane communication
- Providing electrical isolation to protect system stability
This ensures accurate, stable, and noise-resistant digital signal acquisition across all channels.
Role in Industrial Control Systems
Within Yokogawa CENTUM architecture, the ADV151-E63/D6A00 serves as a core digital input interface module.
Its main functions include:
- Monitoring field device status in real time
- Capturing interlock and safety-related signals
- Supporting alarm and event-driven control logic
- Enabling system diagnostics and fault detection
- Ensuring reliable data acquisition for process control
It is widely used in systems requiring high availability and precise signal monitoring.
Industrial Applications
The ADV151-E63/D6A00 is commonly used in:
- Oil and gas production and refining systems
- Petrochemical and chemical processing plants
- Power generation facilities
- Industrial automation and manufacturing systems
- Water and wastewater treatment plants
- Safety Instrumented Systems (SIS)
It is particularly suitable for applications requiring multi-channel digital monitoring and high system reliability.
Installation and System Integration
Proper installation ensures optimal performance:
- Installed in Yokogawa FIO or DCS I/O racks
- Connected using KS cable interface via D6A00 adapter
- Requires configuration through CENTUM engineering tools
- Proper grounding and shielding are recommended
- Supports redundant system architecture where required
Correct setup ensures stable operation and accurate signal acquisition in industrial environments.
Compatible System Components
The ADV151-E63/D6A00 typically works with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Digital field devices such as switches and sensors
- Alarm, interlock, and safety systems
These components form a complete distributed automation system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV144 | Digital Input Module | 16-channel standard input | Basic monitoring |
| Yokogawa ADV151-E10 | Digital Input Module | Stable general-purpose input | Medium-scale systems |
| Yokogawa ADV151-E60 S2 | Digital Input Module | Enhanced stability | Industrial environments |
| Yokogawa ADV151-E50/B5S00 | Digital Input Module | High-density 32-channel input | Large-scale systems |
| Yokogawa ADV151-E63 S2 | Digital Input Module | Event/SOE capability | Critical applications |
Key Advantages
- 32-channel high-density digital input design
- Fast response time for real-time monitoring
- Strong electrical isolation for system safety
- Compatible with redundant DCS architectures
- Stable operation in harsh industrial environments
- Easy integration with Yokogawa CENTUM systems
- Suitable for continuous 24/7 operation
Technical FAQs
Q1: What is the main function of the ADV151-E63/D6A00?
It acquires digital ON/OFF signals from field devices and transmits them to the control system.
Q2: How many channels does it support?
It supports 32 isolated digital input channels.
Q3: What type of signals does it process?
It processes 24 V DC discrete ON/OFF signals.
Q4: Is it suitable for redundant systems?
Yes, it supports redundant DCS configurations.
Q5: Where is it commonly used?
It is used in oil & gas, petrochemical, power, and industrial automation systems.
Conclusion
The Yokogawa ADV151-E63/D6A00 Digital Input Module is a reliable and high-density solution for industrial digital signal acquisition. With strong isolation, fast response, and compatibility with redundant control systems, it ensures stable and accurate performance in demanding automation environments.
It is widely used in industries where signal reliability, system safety, and continuous operation are critical for process control success.
