Product Overview

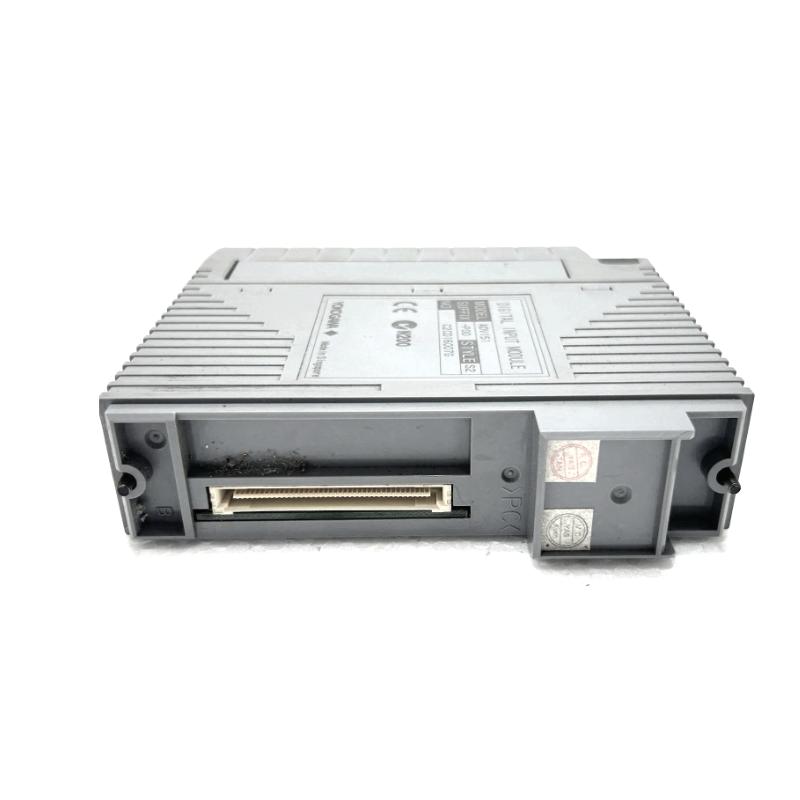

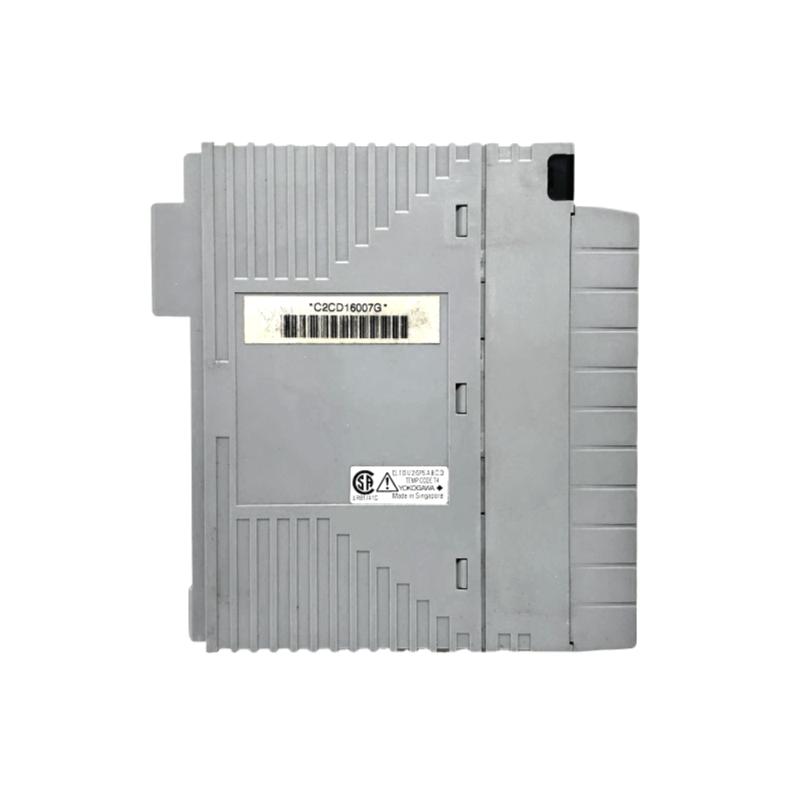

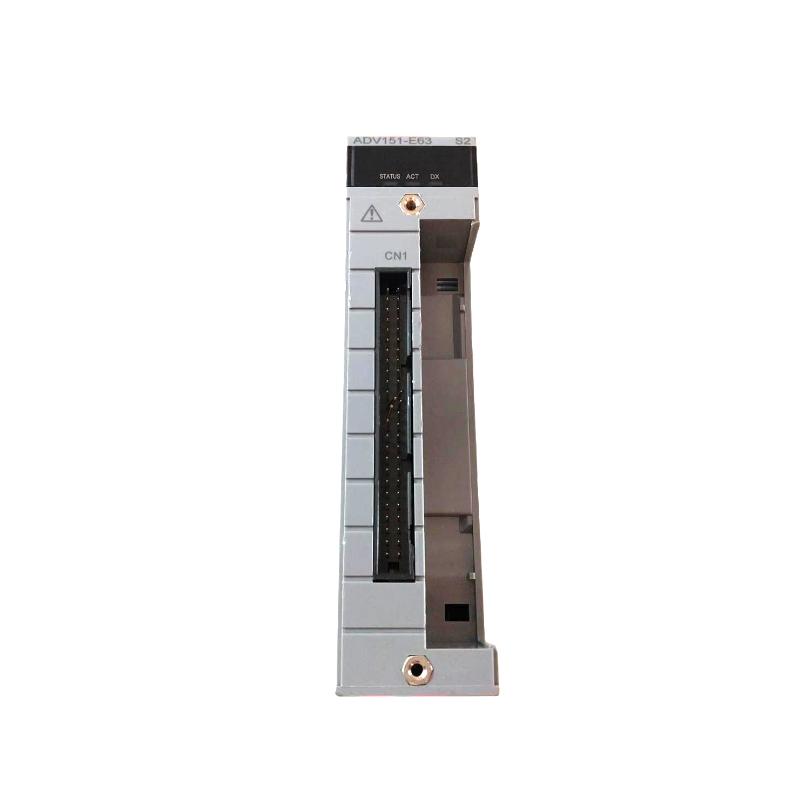

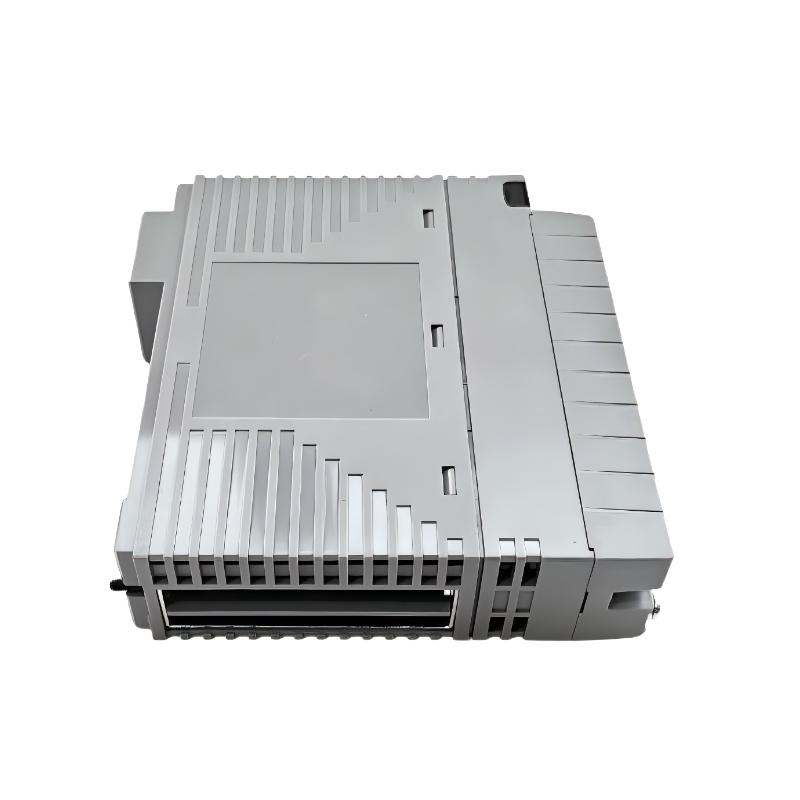

The Yokogawa ADV151-E63/D5A00 Digital Input Module is a high-density 32-channel digital signal input module designed for Yokogawa CENTUM Distributed Control Systems (DCS). It is used to collect ON/OFF signals from field devices, such as switches, sensors, relays, and contact-based instruments.
This model is engineered for high-reliability industrial environments, offering stable signal acquisition, strong isolation, and support for advanced diagnostic and event-handling functions. It is widely applied in systems that require accurate monitoring of multiple digital signals and high system availability.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ADV151-E63/D5A00 |
| Product Type | Digital Input Module |
| Function | Discrete signal (ON/OFF) input |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Input Channels | 32 channels |
| Input Type | Digital contact input (sink/source compatible) |
| Signal Type | ON/OFF (binary signals) |
| Input Voltage | 24 V DC |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | Approx. 4.1 mA per channel |
| Response Time | ≤ 8 ms |
| Isolation | Channel-to-channel and system isolation |
| SOE Function | Supported (event time stamping capability) |
| Power Supply | 5 V DC (via system backplane) |
| Power Consumption | Low power industrial design |
| Connection Type | KS cable interface / terminal connection |
| Mounting Type | Rack-mounted / FIO system module base |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Function and Working Principle
The ADV151-E63/D5A00 operates as a high-density digital input interface module within a distributed control system.
Its operation process includes:
- Receiving ON/OFF signals from field devices
- Detecting rapid state changes in digital inputs
- Converting electrical signals into digital system data
- Transmitting processed signals to the DCS controller
- Recording time-stamped events for diagnostics and analysis
- Ensuring electrical isolation for system protection
This enables accurate real-time monitoring and event tracking across multiple input channels.
Role in Industrial Control Systems
Within Yokogawa CENTUM architecture, the ADV151-E63/D5A00 serves as a core signal acquisition module.
Its main roles include:
- Monitoring field device status in real time
- Capturing interlock and safety-related signals
- Supporting sequence-of-events (SOE) recording
- Providing input data for control logic execution
- Enhancing system diagnostics and operational transparency
It is essential for high-reliability automation systems and event-driven process control.
Industrial Applications
The ADV151-E63/D5A00 is widely used in:
- Oil and gas processing systems
- Petrochemical and refinery plants
- Power generation facilities
- Industrial automation systems
- Water and wastewater treatment plants
- Safety instrumented systems (SIS)
It is especially suitable for applications requiring high-channel digital input monitoring and precise event recording.
Installation and System Integration
Proper installation ensures stable performance:
- Installed in Yokogawa FIO or DCS I/O racks
- Connected via KS cable interface or terminal wiring
- Requires configuration through CENTUM engineering tools
- Supports proper grounding and shielding for noise immunity
- Can be deployed in redundant system architectures
Correct setup ensures stable operation and accurate signal acquisition in harsh environments.
Compatible System Components
The ADV151-E63/D5A00 typically works with:
- Yokogawa CENTUM controllers
- Field Control Stations (FCS)
- Human Interface Stations (HIS)
- Digital field devices such as switches and sensors
- Alarm, interlock, and safety systems
These components form a complete industrial control and monitoring system.
Recommended Alternative Models

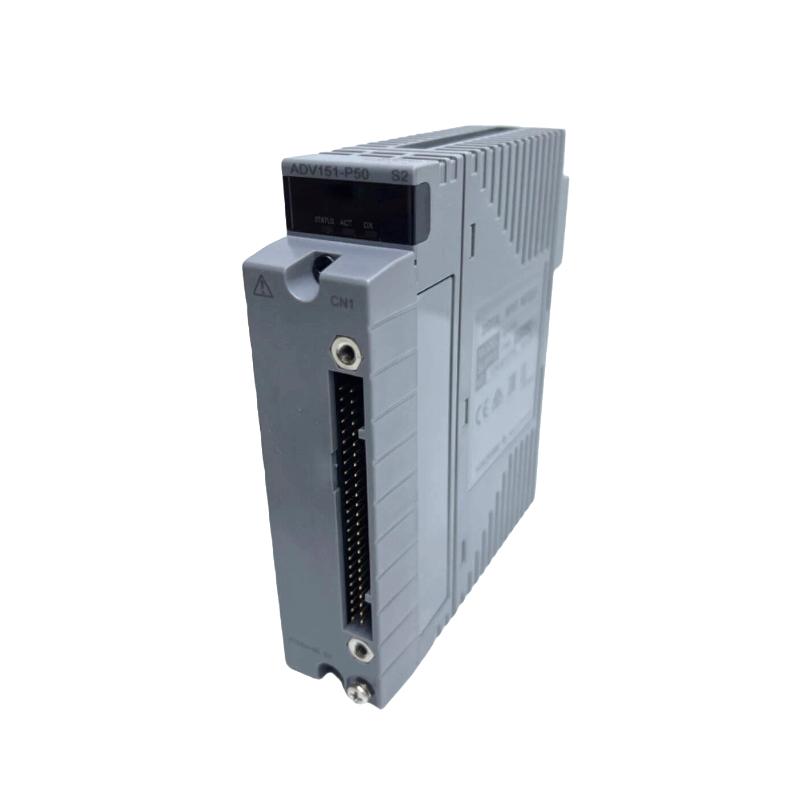

| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ADV144 | Digital Input Module | 16-channel standard input | Basic monitoring |
| Yokogawa ADV151-E10 | Digital Input Module | Stable general-purpose input | Medium-scale systems |
| Yokogawa ADV151-E60 S2 | Digital Input Module | Enhanced stability | Industrial monitoring |
| Yokogawa ADV151-E50/B5S00 | Digital Input Module | 32-channel high density | Large-scale systems |
| Yokogawa ADV151-E63 S2 | Digital Input Module | SOE-enabled version | Event-critical applications |
Key Advantages
- High-density 32-channel digital input capability
- Fast response for real-time signal detection
- Built-in SOE event recording support
- Strong electrical isolation for system safety
- Compact and space-efficient design
- Stable operation in harsh industrial environments
- Easy integration with Yokogawa CENTUM systems
Technical FAQs
Q1: What is the main function of the ADV151-E63/D5A00?
It acquires digital ON/OFF signals from field devices and transmits them to the control system with event tracking capability.
Q2: How many input channels does it support?
It supports 32 digital input channels.
Q3: What makes this model special?
It includes advanced configuration options and supports SOE event recording.
Q4: What type of signals does it handle?
It processes 24 V DC discrete ON/OFF signals.
Q5: Where is it commonly used?
It is used in industrial automation systems requiring high reliability and event monitoring.
Conclusion
The Yokogawa ADV151-E63/D5A00 Digital Input Module is a high-performance solution for high-density digital signal acquisition and event monitoring. With fast response, strong isolation, and advanced SOE functionality, it ensures accurate and stable operation in distributed control systems.
It is widely used in industries where signal reliability, system safety, and precise event tracking are critical for operational success.
