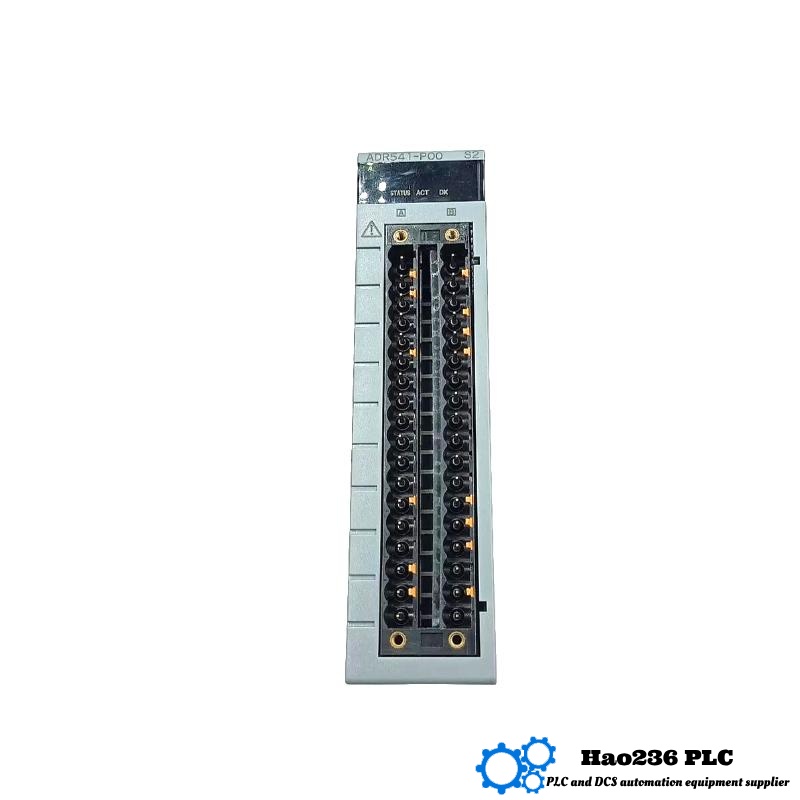

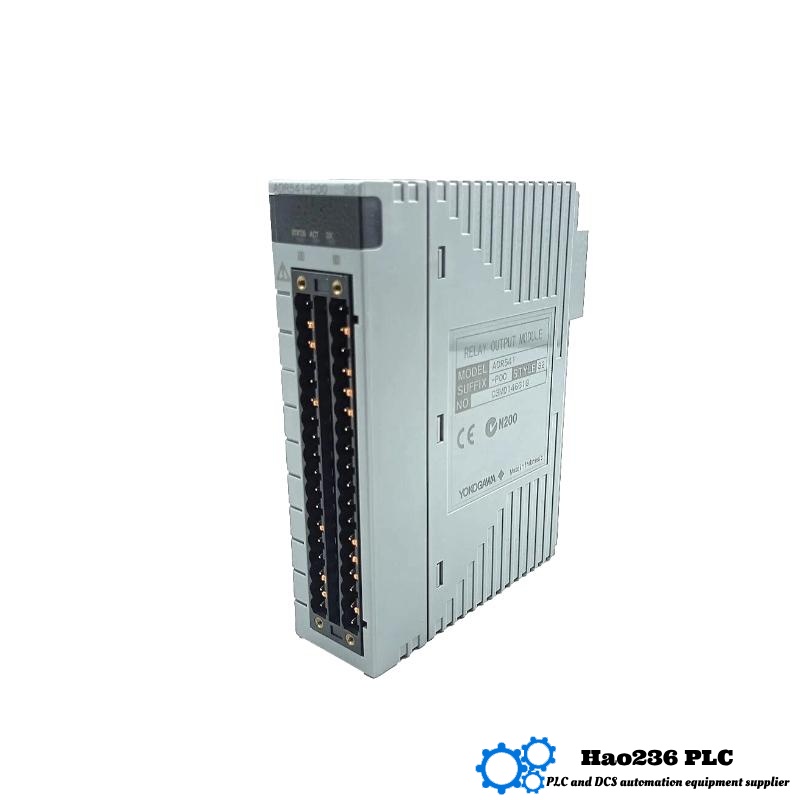

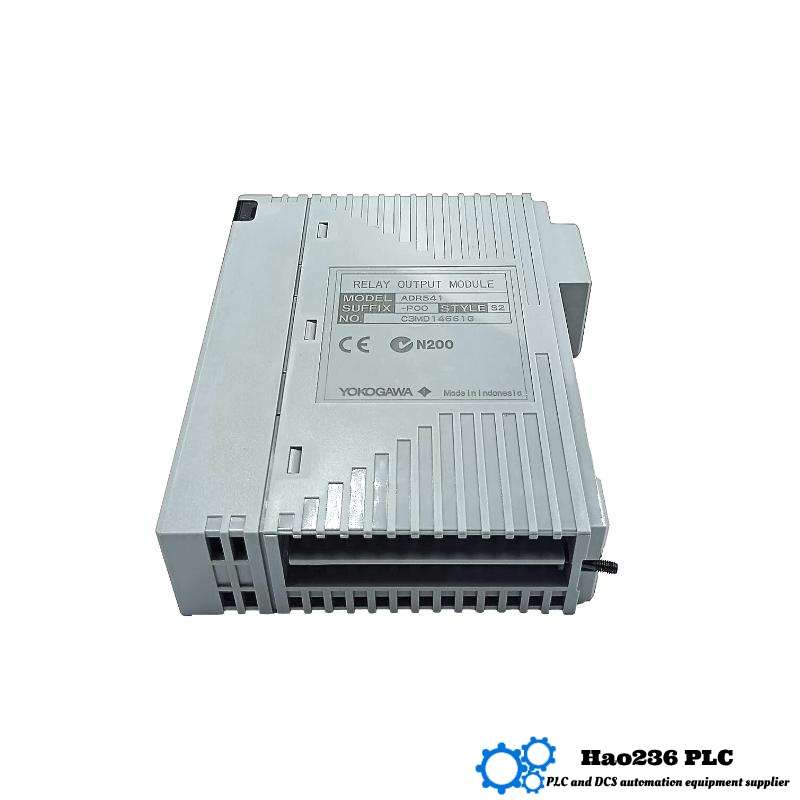

Yokogawa ADR541-S00 Relay Output Module
Product Introduction
The Yokogawa ADR541-S00 is a high-performance relay output module designed to provide reliable and precise switching control for industrial automation systems. Built with Yokogawa’s hallmark quality, this module ensures seamless communication and control within distributed control systems (DCS) or programmable logic controllers (PLC), supporting critical industrial processes.
With its compact size and robust electrical characteristics, the ADR541-S00 is ideal for a wide range of industries, including oil & gas, chemical processing, power generation, and water treatment. This relay output module supports diverse applications requiring accurate on/off control of actuators, alarms, and other equipment that depend on relay switching.
The module is engineered for easy integration with Yokogawa’s CENTUM series or other control platforms, guaranteeing compatibility and operational stability in harsh industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ADR541-S00 |
| Type | Relay Output Module |
| Dimensions | 130 x 32.8 x 107.5 mm |
| Weight | 0.3 kg |
| Input Voltage | 24 V DC |
| Output Type | Relay outputs (number varies by configuration) |
| Contact Type | SPDT (Single Pole Double Throw) |
| Output Rating | 250 VAC, 5 A (resistive load) |
| Mounting | DIN rail mounting |
| Operating Temperature | -20°C to +60°C |
| Certifications | CE, UL |
| Compatibility | Compatible with Yokogawa CENTUM DCS and others |
Product Applications
The ADR541-S00 relay output module is widely used in industrial control systems, including:
-
Process Automation
Controls valves, motors, alarms, and other devices requiring relay output. -
Power Plants
Ensures reliable switching for equipment critical to generation and distribution. -
Chemical and Petrochemical Plants
Provides fail-safe relay outputs for safety and control systems. -
Water and Wastewater Treatment
Manages pumps, valves, and treatment processes with reliable switching. -
Manufacturing and Assembly Lines
Facilitates precise control over machinery and alarms to maintain safety and efficiency.
Product Advantages
-
Reliable and Precise Switching
Ensures accurate relay control critical for process safety and equipment operation. -
Compact and Lightweight
Small footprint with dimensions 130 x 32.8 x 107.5 mm and weight 0.3 kg, easy to install even in constrained spaces. -
Versatile Contact Configuration
SPDT contacts offer flexible switching options to suit various control needs. -
High Load Capacity
Supports up to 5 A at 250 VAC, suitable for a wide range of industrial devices. -
Wide Operating Temperature
Designed to operate reliably in temperatures from -20°C to +60°C. -
Easy Integration and Mounting
DIN rail mounting enables quick installation and seamless integration with existing systems. -
International Safety Certifications
CE and UL certifications confirm compliance with global safety standards. -
Durability and Long Life
Designed to withstand harsh industrial environments with robust electrical and mechanical construction.
Brand Information
Yokogawa is a globally recognized leader in industrial automation and control solutions. The ADR541-S00 is part of Yokogawa’s extensive portfolio of relay and output modules, renowned for reliability, accuracy, and compatibility with Yokogawa’s advanced control systems such as the CENTUM series. The brand’s reputation is built on decades of innovation and commitment to quality, delivering robust solutions that empower industries worldwide.
Related Models in the Same Series
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| ADR541-P11 | Relay output module, 6 outputs | 130 x 32.8 x 107.5 | 0.3 |
| ADR541-P12 | Relay output module, higher load | 130 x 32.8 x 107.5 | 0.3 |
| ADR541-P13 | Relay output module, 12 outputs | 180 x 32.8 x 107.5 | 0.6 |
| ADR542-P11 | Digital output module | 130 x 32.8 x 107.5 | 0.3 |
| ADR543-P11 | Isolated relay output module | 130 x 32.8 x 107.5 | 0.4 |
Popular Yokogawa Models
| Model | Description | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|---|
| SDV144-S33 | Digital input module, 24 V DC | 110 × 90 × 60 | 0.50 | High-speed input, LED diagnostics |
| SDV144-S13 | Standard digital input module | 110 × 90 × 60 | 0.48 | Compact design, noise immunity |
| SDV144-S13 S1 | Enhanced digital input with surge protection | 110 × 90 × 60 | 0.52 | Surge protection, fault detection |
| SDV144-S14 | Digital input with extended temperature | 115 × 95 × 65 | 0.55 | Wide temperature range, diagnostic LEDs |
| SDV144-S15 | Digital input with redundant channels | 115 × 95 × 65 | 0.57 | Redundancy support, improved signal filtering |
FAQs
Q1: What is the input voltage for the ADR541-S00?
A1: It requires a 24 V DC input.
Q2: How many relay outputs does this module support?
A2: It typically supports 6 relay outputs, depending on the specific configuration.
Q3: What is the maximum load rating per relay?
A3: Each relay can handle up to 5 A at 250 VAC for resistive loads.
Q4: What type of relay contacts does the module have?
A4: It uses SPDT (Single Pole Double Throw) contacts.
Q5: What is the operating temperature range?
A5: The module operates from -20°C to +60°C.
Q6: How is the module mounted?
A6: It is designed for DIN rail mounting.
Q7: Is this product certified?
A7: Yes, it is CE and UL certified.
Q8: What industries commonly use this module?
A8: Industries include oil & gas, chemical processing, water treatment, and manufacturing.
Q9: What are the physical dimensions and weight of the module?
A9: Dimensions are 130 x 32.8 x 107.5 mm, and it weighs 0.3 kg.
Q10: Is it compatible with other Yokogawa control systems?
A10: Yes, it integrates with Yokogawa CENTUM DCS and other compatible control platforms.
