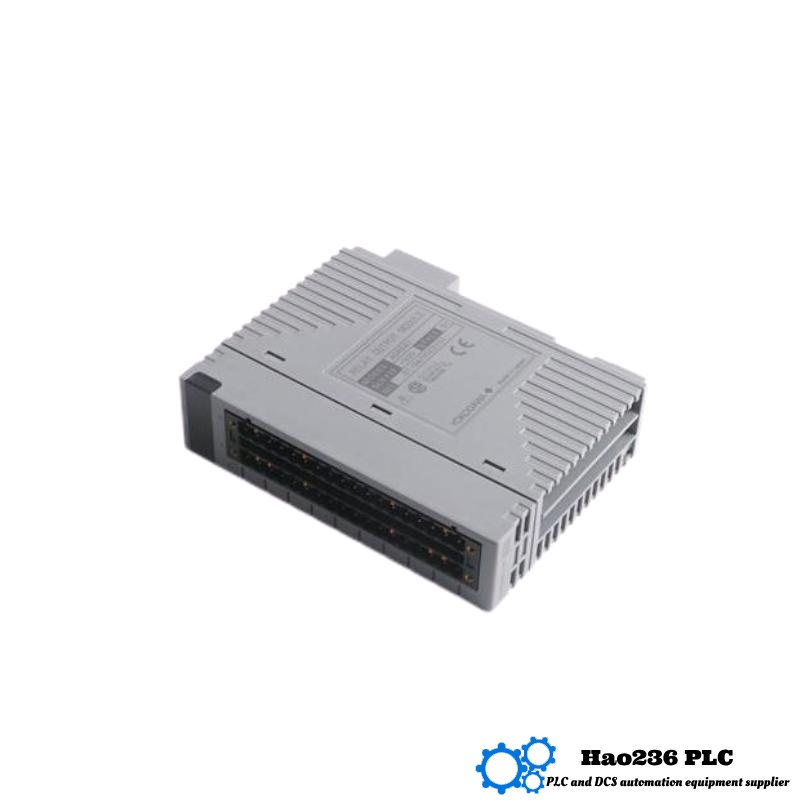

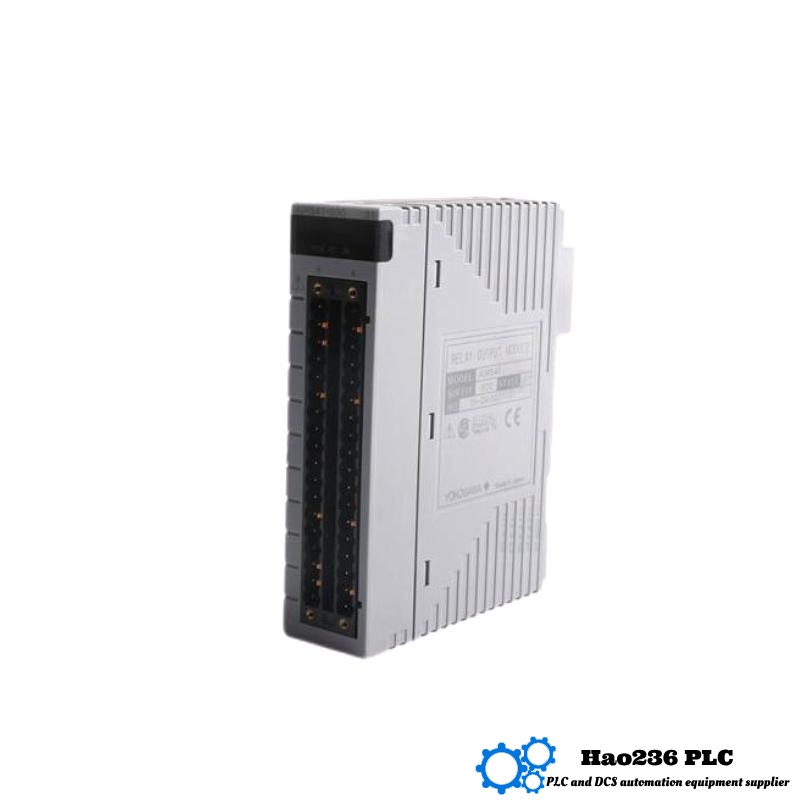

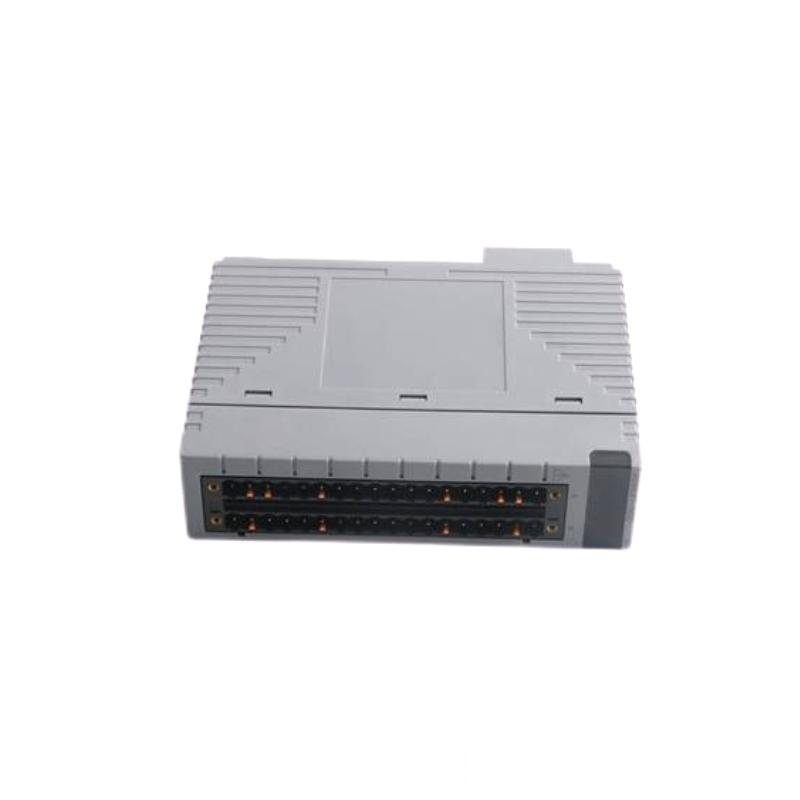

Yokogawa ADR541-P11 Relay Output Module
Product Introduction
The Yokogawa ADR541-P11 is a Relay Output Module designed to provide reliable switching capabilities for industrial automation systems. With its robust construction, it ensures stable output control for applications requiring precise actuation. This module is widely used in applications where a high level of control and reliability is crucial, such as in process control systems, plant automation, and safety-critical environments.
The ADR541-P11 offers versatile integration options and is ideal for applications requiring 24 V DC relay outputs. It is designed to be compatible with Yokogawa’s CENTUM CS 3000 or similar control systems, providing seamless functionality for a wide range of industrial processes. It is particularly suited for industries such as oil & gas, chemical plants, water treatment, and manufacturing, where precise and reliable output control is essential.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ADR541-P11 |
| Type | Relay Output Module |
| Dimensions | 130 x 32.8 x 107.5 mm |
| Weight | 0.3 kg |
| Input Voltage | 24 V DC |
| Output Type | 6 relay outputs |
| Output Rating | 250 VAC, 5 A (resistive load) |
| Contact Type | SPDT (Single Pole Double Throw) |
| Relay Operation | Normally open (NO) and normally closed (NC) |
| Mounting Type | DIN rail mounted |
| Operating Temperature | -20°C to +60°C |
| Certification | CE, UL |
| Compatibility | Compatible with Yokogawa CENTUM CS 3000 and others |
Product Applications
The ADR541-P11 is used across various industries and processes where relay output control is essential. Some typical applications include:
-
Process Control Systems
Provides relay outputs for controlling valves, actuators, and other field devices. -
Manufacturing Automation
Integrates into automation systems for controlling machines, equipment, and monitoring functions. -
Safety and Alarm Systems
Ensures accurate and reliable operation of alarms and safety mechanisms in hazardous environments. -
Oil & Gas Industry
Controls equipment and actuators in exploration, drilling, and refining processes. -
Water Treatment Plants
Used to control valves, pumps, and other equipment for water treatment processes.
Product Advantages
-
Reliable Performance
Offers stable and precise relay output control for critical industrial processes. -
Compact Design
With a compact size of 130 x 32.8 x 107.5 mm and weighing only 0.3 kg, it is easy to install and integrate into systems with limited space. -
Wide Temperature Range
Operates in extreme conditions, with an operating temperature range from -20°C to +60°C, ensuring versatility in different environments. -
High Load Rating
Each relay output can handle up to 5 A at 250 VAC for resistive loads, making it suitable for controlling various field devices. -
Versatile Contact Configuration
Supports SPDT contacts (normally open and normally closed), providing flexibility for different relay operations. -
Global Certifications
CE and UL certified for safety, ensuring the module meets international standards. -
Easy Mounting
Designed for DIN rail mounting, making it easy to integrate into existing control systems.
Brand Information
Yokogawa is a global leader in industrial automation, process control, and measurement technologies. Known for its cutting-edge solutions, Yokogawa offers a broad range of high-performance products like the ADR541-P11, which ensures reliable operation and control in demanding industrial environments. With decades of experience, Yokogawa continues to innovate, providing reliable, safe, and efficient solutions to industries worldwide.
Related Models in the Same Series
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| ADR541-P12 | 6 relay outputs, higher load rating | 130 x 32.8 x 107.5 | 0.3 |
| ADR541-P13 | 12 relay outputs | 180 x 32.8 x 107.5 | 0.6 |
| ADR542-P11 | Digital output module | 130 x 32.8 x 107.5 | 0.3 |
| ADR540-P11 | Analog output module | 130 x 32.8 x 107.5 | 0.3 |
| ADR543-P11 | Isolated relay output module | 130 x 32.8 x 107.5 | 0.4 |
Popular Yokogawa Models
| Model | Description | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|---|
| SB401-53 | Safety barrier module, 24 V DC | 110 × 80 × 45 | 0.40 | Intrinsically safe, LED status indication |
| SB401-51 | Safety barrier module, 12 V DC | 110 × 80 × 45 | 0.38 | Low power consumption, compact design |
| SB401-50 | Safety barrier, basic model | 110 × 75 × 40 | 0.35 | Standard safety barrier, easy wiring |
| SB401-54 | Enhanced safety barrier | 115 × 85 × 50 | 0.45 | Overvoltage protection, diagnostics LEDs |
| SB401-52 | Safety barrier with test function | 110 × 80 × 45 | 0.42 | Built-in test capability, fault monitoring |
FAQs
Q1: What is the input voltage for this relay output module?
A1: The ADR541-P11 requires a 24 V DC input.
Q2: How many relay outputs does this module support?
A2: It supports 6 relay outputs.
Q3: What is the load rating for the relay outputs?
A3: The outputs can handle up to 5 A at 250 VAC (for resistive loads).
Q4: What type of contacts does this module have?
A4: It has SPDT (Single Pole Double Throw) contacts, offering normally open and normally closed options.
Q5: What is the operating temperature range of the module?
A5: It operates within a temperature range of -20°C to +60°C.
Q6: What are the mounting options for this module?
A6: It can be mounted on DIN rail for easy installation.
Q7: Is this product certified?
A7: Yes, it is certified for safety and performance with CE and UL certifications.
Q8: What industries use this product?
A8: This module is used in industries such as process control, oil and gas, water treatment, and manufacturing.
Q9: What is the weight of this module?
A9: The ADR541-P11 weighs 0.3 kg.
Q10: Is this module compatible with other Yokogawa systems?
A10: Yes, it is compatible with Yokogawa’s CENTUM CS 3000 and similar control systems.
