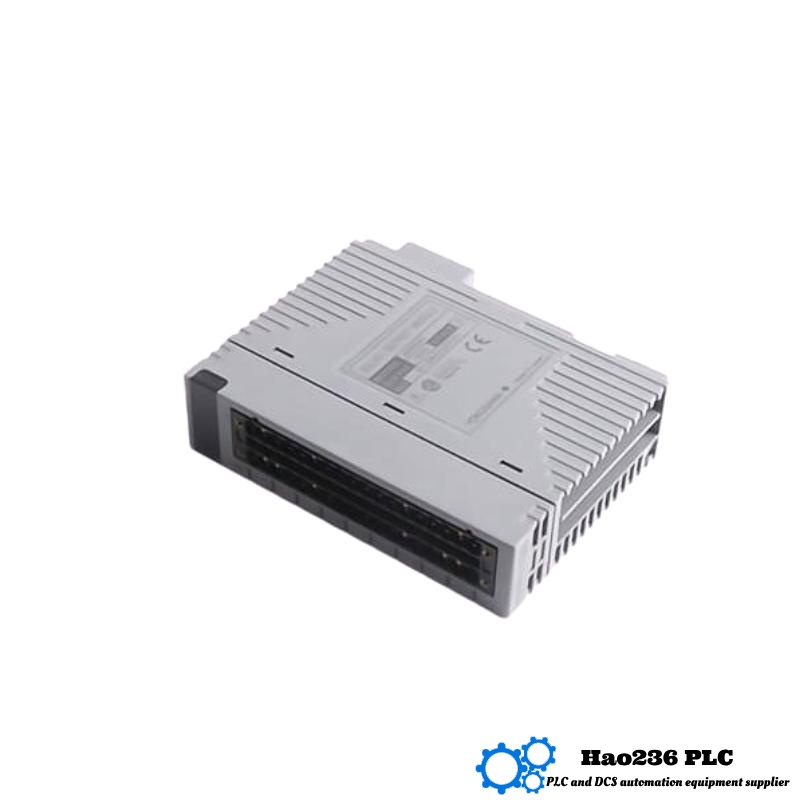

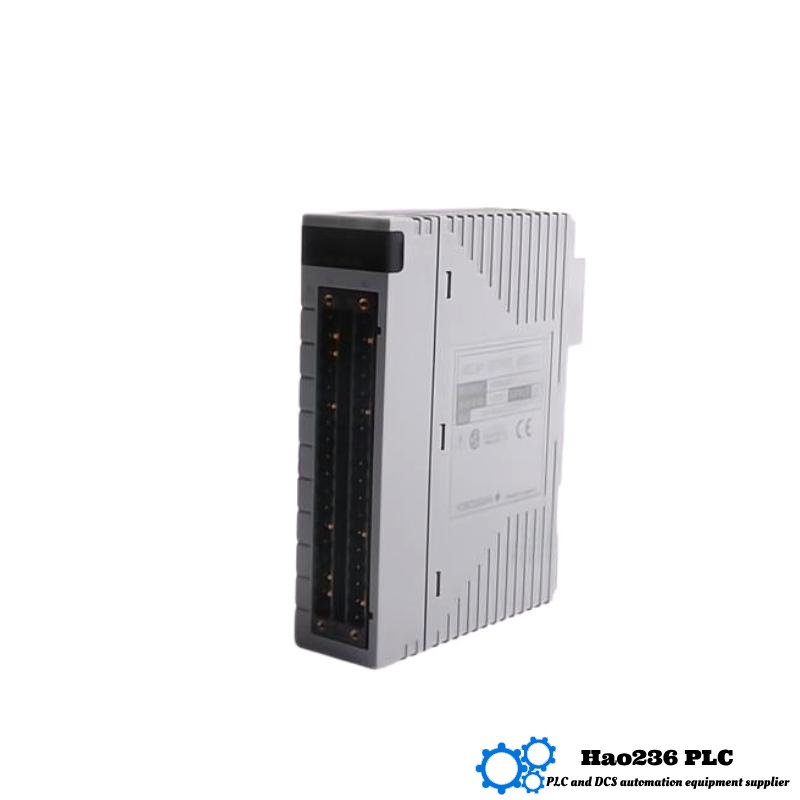

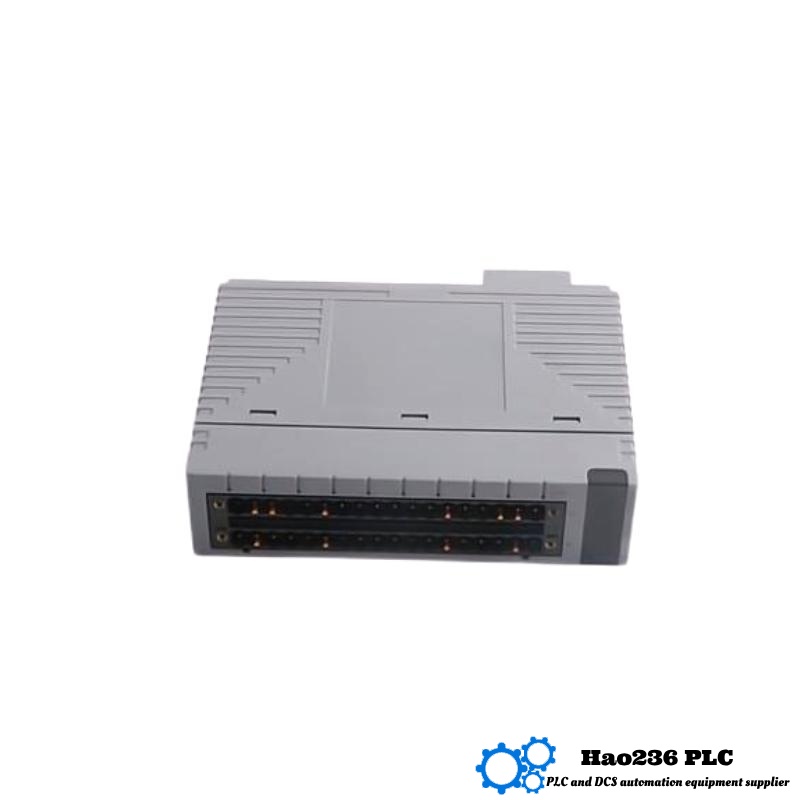

Yokogawa ADR541-P10 Relay Output Module
Product Introduction
The Yokogawa ADR541-P10 is a high-performance relay output module designed to provide reliable switching functions in industrial automation systems. It is part of Yokogawa’s ADR series, which is widely recognized for its robustness, accuracy, and stability in process control applications.
This module enables switching of external devices such as alarms, indicators, and relays by delivering clean relay contact outputs. The ADR541-P10 features enhanced response time and load handling capacity, making it suitable for demanding industrial environments that require precise and fast control signals.
With its compact size and lightweight design, it fits seamlessly into control panels where space is at a premium, without compromising on functionality or durability.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | ADR541-P10 |
| Dimensions | 130 x 32.8 x 107.5 mm |
| Weight | 0.3 kg |
| Output Type | Relay output (SPDT) |
| Number of Outputs | 4 contacts |
| Output Rating | 5 A at 250 VAC / 30 VDC |
| Response Time | Approx. 20 ms |
| Power Supply | 24 VDC or 100-240 VAC (variant dependent) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –20 °C to 70 °C |
| Mounting Type | DIN rail or panel mounting |
| Electrical Isolation | Fully isolated relay outputs |
| Certifications | CE, UL certified |
Product Applications
The ADR541-P10 relay output module is extensively used in:
-
Process Control Systems — for switching alarms, indicators, and control relays to ensure safe and efficient process management.
-
Safety and Alarm Systems — to drive emergency shutdown circuits, fault alarms, and fault signaling devices.
-
Building Automation — controlling lighting, HVAC, and security systems in commercial and industrial buildings.
-
Power Plants — managing relay contacts for generator protection and monitoring systems.
-
Manufacturing and Industrial Facilities — controlling machinery, pumps, and other equipment while providing fault status signaling.
Product Advantages
-
Reliable and Stable Switching: The module delivers precise relay contact operation, ensuring dependable performance even in harsh industrial environments.
-
Compact and Lightweight Design: Its small dimensions and light weight (0.3 kg) allow it to fit in tight spaces, facilitating easy installation and integration.
-
Enhanced Response Time: Approximately 20 ms response time supports real-time control and fast switching actions.
-
High Load Capacity: Supports relay outputs rated up to 5 A, capable of handling various industrial devices.
-
Electrical Noise Immunity: Fully isolated relay outputs protect the system from electrical interference, increasing overall system reliability.
-
Versatile Mounting: Compatible with both DIN rail and panel mounting options for flexible installation.
-
Certified Quality and Safety: Complies with CE and UL standards, ensuring safe and reliable operation.
Brand Information
Yokogawa Electric Corporation is a leading global provider of industrial automation and control solutions. Known for its commitment to quality and innovation, Yokogawa’s products, including the ADR541-P10, are trusted worldwide to improve operational efficiency and reliability across numerous industries.
Recommended Related Models in the Same Series
| Model | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| ADR540-P00 | Relay output module, 2 contacts | 130 x 32.8 x 90 | 0.25 | Smaller output count |
| ADR542-P00 | Relay output module, 6 contacts | 130 x 32.8 x 150 | 0.35 | Increased output channels |
| ADR543-P00 | Relay output module, 8 contacts | 160 x 32.8 x 150 | 0.4 | High channel count |
| ADR541-P00 | Relay output module, 4 contacts | 130 x 32.8 x 107.5 | 0.3 | Standard relay output module |
| ADR540-P01 | Relay output module, 2 contacts | 130 x 32.8 x 90 | 0.25 | Compact version with same rating |
Popular Yokogawa Models
| Model | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| ADM52C-S2 | Contact output module | 130 x 100 x 30 | 1.5 | High-quality contact outputs |
| ADM52C-I1 | Analog input module | 130 x 100 x 30 | 1.5 | High-precision analog inputs |
| ADM52C-A1 | Analog output module | 130 x 100 x 30 | 1.5 | High-accuracy analog outputs |
| ADM62F-D1 | Digital input module | 130 x 100 x 30 | 1.5 | Fast digital signal processing |
| ADM71F | Power supply module | 180 x 100 x 60 | 3.0 | Stable power supply for modules |
Frequently Asked Questions (FAQ)
Q1: What are the dimensions of the ADR541-P10 module?
A1: The module measures 130 x 32.8 x 107.5 mm.
Q2: What is the weight of this module?
A2: It weighs approximately 0.3 kg.
Q3: How many relay outputs does the ADR541-P10 have?
A3: It has 4 relay contact outputs.
Q4: What is the maximum load rating for the relay outputs?
A4: The relay outputs can handle up to 5 A at 250 VAC or 30 VDC.
Q5: Can this module be mounted on DIN rails?
A5: Yes, it supports both DIN rail and panel mounting.
Q6: Are the relay outputs electrically isolated?
A6: Yes, the relay outputs are fully electrically isolated to protect against interference.
Q7: What is the operating temperature range?
A7: It operates reliably from 0 °C to 55 °C.
Q8: Is the ADR541-P10 certified for safety standards?
A8: Yes, it has CE and UL certifications.
Q9: Can this module be used in alarm systems?
A9: Yes, it is commonly used for alarm and safety signaling applications.
Q10: What is the typical response time of the relay outputs?
A10: The response time is approximately 20 milliseconds.
