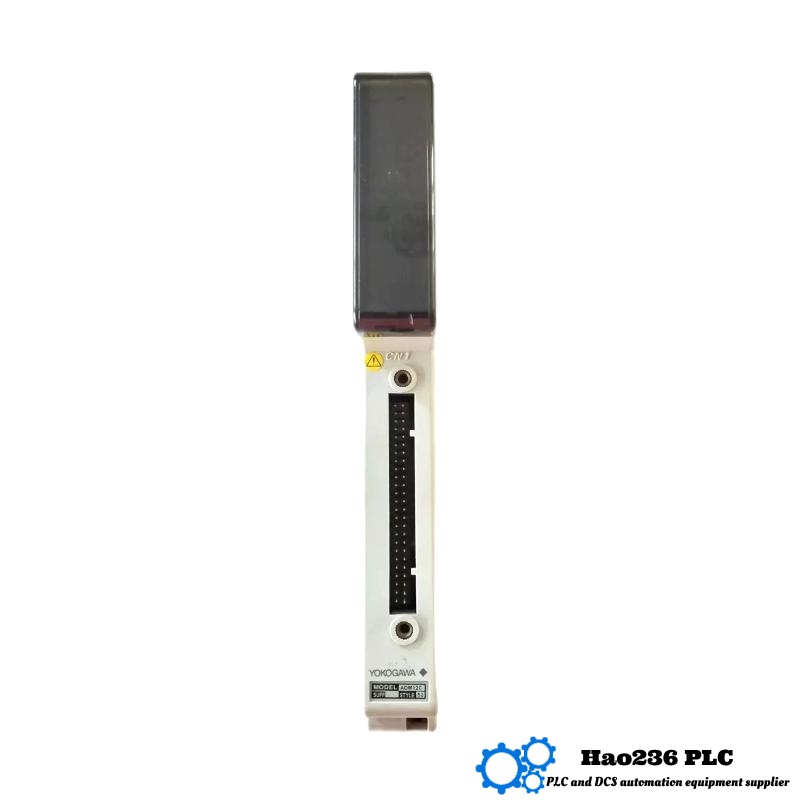

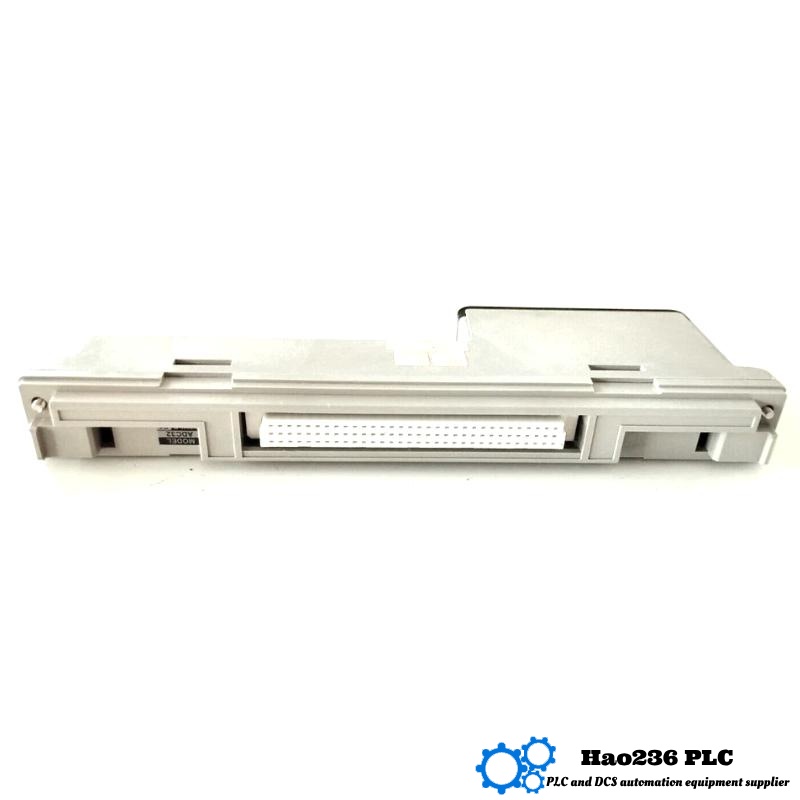

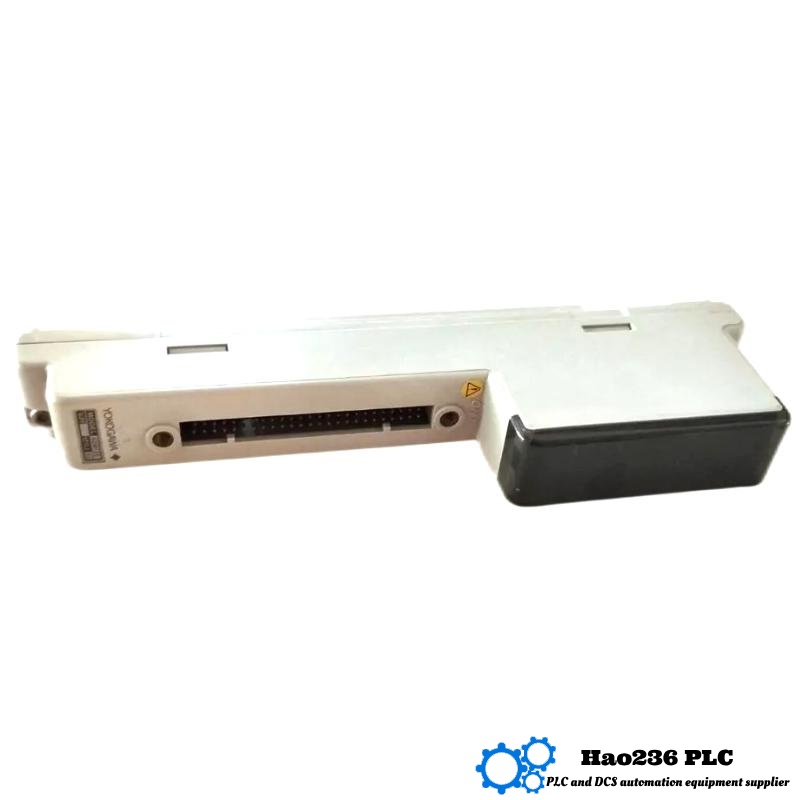

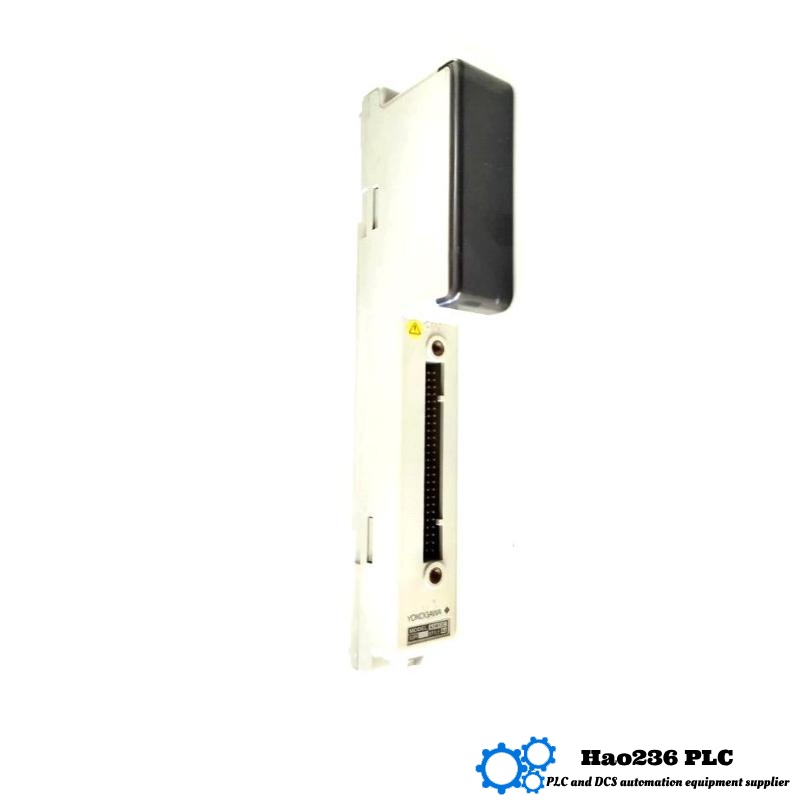

Yokogawa ADM12C S2 Contact Input Module
Product Introduction
The Yokogawa ADM12C S2 is a highly reliable Contact Input Module designed to process discrete contact inputs for industrial automation and control systems. With 12 input channels, this module is designed to capture signals from contact-based devices like relays, switches, and sensors, providing a seamless connection to the control system. The ADM12C S2 offers exceptional performance and high-speed processing for real-time applications that require accurate and timely data collection.
Built with advanced features and a compact design, the ADM12C S2 is suitable for a range of industries, including manufacturing, safety control, and building management systems. Its robust performance, low power consumption, and compatibility with Yokogawa’s broader control systems make it an essential component for achieving reliable and efficient system monitoring and control.
Applications
The ADM12C S2 is commonly used in several industrial applications, including:
-
Industrial Automation: For monitoring discrete contact inputs from switches, relays, and other devices in industrial automation systems.
-
Control and Safety Systems: Used to interface with safety-critical devices, such as emergency stop buttons, limit switches, and interlock devices, ensuring the safe operation of machinery and systems.
-
Building Management Systems (BMS): Used to monitor contact signals from building automation components like HVAC systems, security alarms, and fire safety devices.
-
Manufacturing Systems: Ideal for monitoring machine status, alarms, and production line equipment, providing critical information for process optimization and system efficiency.
-
Power Distribution and Energy Management: Monitoring circuit breakers, electrical panels, and other contact devices used for system protection and management in power generation and distribution.
Advantages
-
High Channel Density: The ADM12C S2 can handle up to 12 discrete contact inputs, making it an ideal solution for high-density applications that require efficient signal processing.
-
Compact Design: With dimensions of 200 x 130 x 30 mm, the module is space-efficient, allowing for easy integration into control panels and other systems with limited space.
-
Fast Response Time: The ADM12C S2 offers a rapid response time of 10 ms per input, enabling the processing of contact signals in real-time for fast decision-making in critical systems.
-
Durability and Reliability: Built to perform reliably in industrial environments, the module ensures consistent performance and long-term durability with minimal maintenance.
-
Easy Integration with Yokogawa Systems: The ADM12C S2 is designed to seamlessly integrate with other Yokogawa control systems, providing a unified solution for process monitoring and automation.
-
Low Power Consumption: The module consumes minimal power (0.9 W), helping reduce operational costs while maintaining high performance.
Brand
-
Brand: Yokogawa
-
Series: ADM (Contact Input Modules)
Product Parameters
Here are the detailed specifications for the Yokogawa ADM12C S2 Contact Input Module:
| Parameter | Details |
|---|---|
| Model | ADM12C S2 |
| Input Type | Contact Input (Dry Contact) |
| Number of Inputs | 12 Inputs |
| Input Voltage Range | 24 V DC (typical) |
| Input Resistance | 10 kΩ |
| Dimensions | 200 x 130 x 30 mm |
| Weight | 1 kg |
| Power Consumption | 0.9 W (typical) |
| Mounting | DIN Rail or Panel Mount |
| Temperature Range | -10 °C to +60 °C |
| Response Time | 10 ms (typical per input) |
Related Models
Here are five related models that belong to the same Yokogawa series or offer similar functionalities:
| Model Number | Description | Channels | Input Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ADM11C | Contact Input Module, 8 Inputs | 8 | Dry Contact | 200 x 130 x 30 | 1 |
| ADM13C | High-Density Contact Input Module | 16 | Dry Contact | 200 x 130 x 30 | 1.2 |
| ADM14C | Isolated Contact Input Module | 8 | Dry Contact | 200 x 130 x 30 | 1.1 |
| ADM15C | Compact Contact Input Module | 4 | Dry Contact | 200 x 130 x 30 | 1 |
| ADM16C | Contact Input Module with Extended Features | 12 | Dry Contact | 200 x 130 x 30 | 1.1 |
Popular Yokogawa Models
Here are five other popular Yokogawa models commonly used in industrial automation:
| Model Number | Description | Channels | Input Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| AAI141-S00 | 4–20 mA Input Module | 8 | 4–20 mA DC | 107.5 x 32.8 x 130 | 0.2 |
| AAI132-S00 | RTD Input Module | 8 | Pt100/Pt1000 RTD | 107.5 x 32.8 x 130 | 0.2 |
| AAB142-S00 | Voltage Output Module | 8 | 0–10 V DC | 107.5 x 32.8 x 130 | 0.2 |
| AAF141-S00 | Current Output Module | 8 | 4–20 mA DC | 107.5 x 32.8 x 130 | 0.2 |
| AAD321-S00 | Universal Input/Output Hybrid Module | 4 IN / 4 OUT | TC, RTD, mA, V | 107.5 x 65.6 x 130 | 0.35 |
FAQ
-
Q: How many contact inputs does the ADM12C S2 module support?
A: The ADM12C S2 supports 12 discrete contact inputs. -
Q: What is the typical input voltage for the ADM12C S2?
A: The module typically operates with 24 V DC input voltage. -
Q: How is the ADM12C S2 mounted?
A: The module can be mounted on a DIN rail or directly to a panel. -
Q: What is the weight of the ADM12C S2?
A: The ADM12C S2 weighs 1 kg. -
Q: What is the power consumption of the ADM12C S2?
A: The typical power consumption is 0.9 W. -
Q: What is the temperature range for the ADM12C S2?
A: The operating temperature range is -10 °C to +60 °C. -
Q: What is the response time of the ADM12C S2?
A: The response time is 10 ms per input. -
Q: How many inputs can the ADM12C S2 handle?
A: The ADM12C S2 can handle up to 12 contact inputs. -
Q: Can the ADM12C S2 be used in high-density applications?
A: Yes, the ADM12C S2 is designed to accommodate up to 12 input signals, making it suitable for moderate-density applications. -
Q: Is the ADM12C S2 compatible with other Yokogawa systems?
A: Yes, the ADM12C S2 integrates seamlessly with other Yokogawa control systems.
