Product Overview

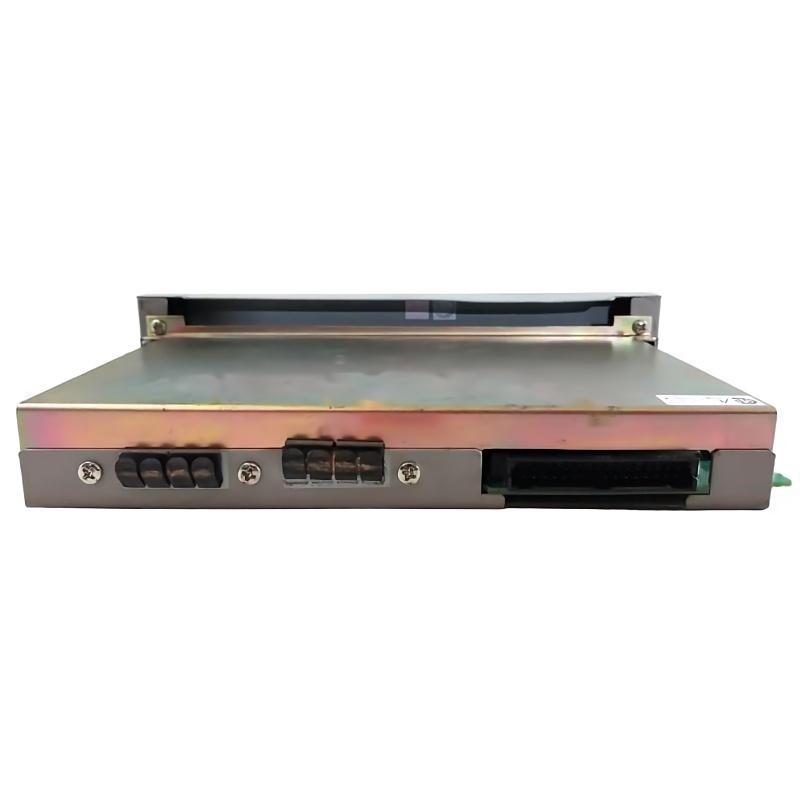

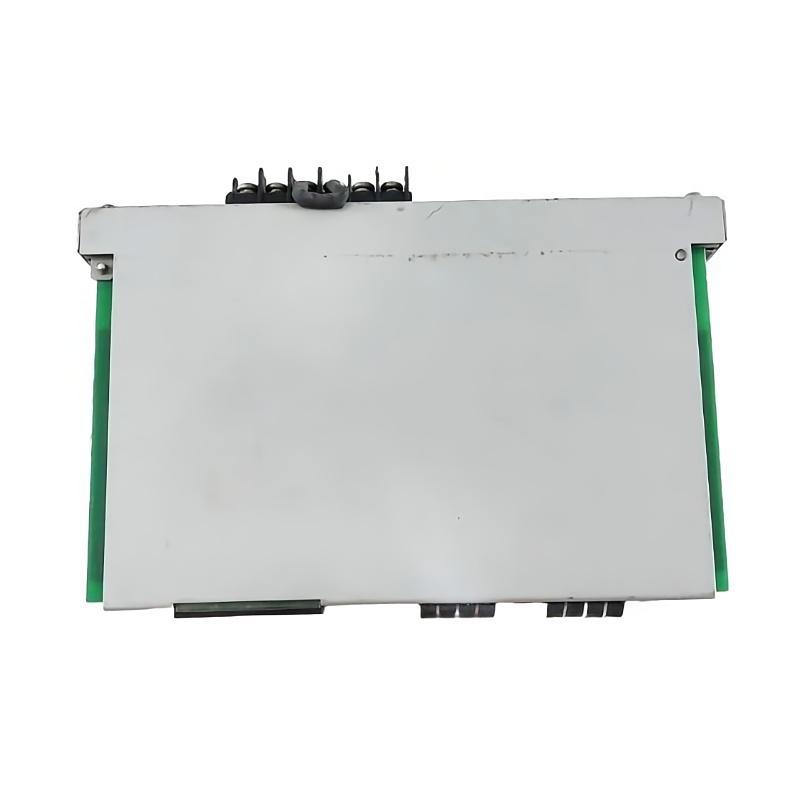

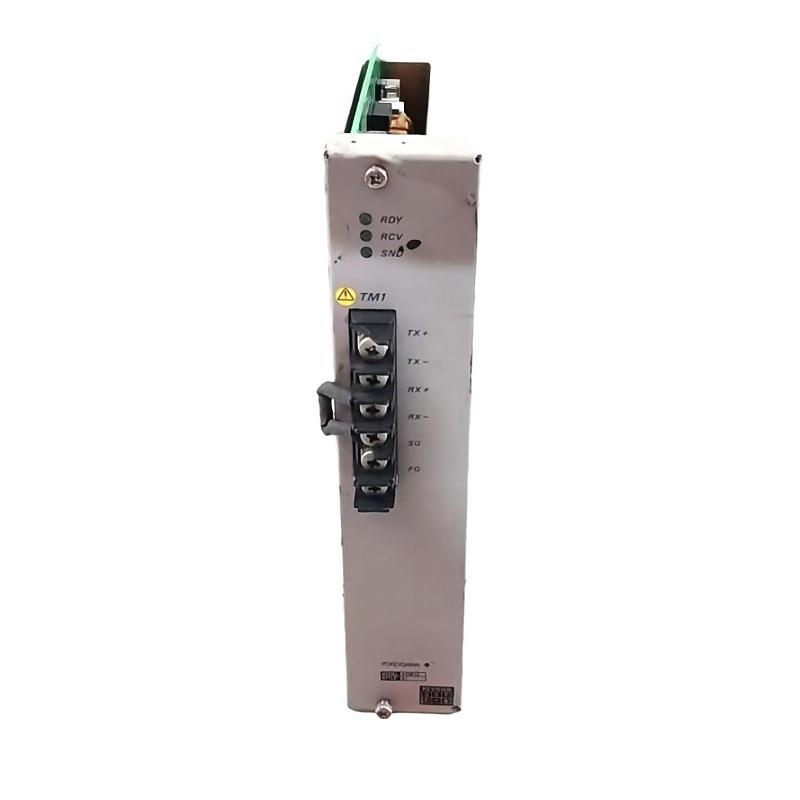

The Yokogawa ACM12 S1 Communication Module is a robust serial communication interface module designed for Yokogawa CENTUM Distributed Control Systems (DCS). It provides reliable data exchange between control systems and external devices using RS-422 and RS-485 communication standards.
The S1 variant is optimized for stable long-distance communication and flexible system integration, making it suitable for industrial environments where multiple devices must communicate efficiently over extended distances.
With its industrial-grade design and strong resistance to electrical noise, the ACM12 S1 is ideal for applications requiring consistent, high-integrity communication in distributed systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ACM12 S1 |
| Product Type | Communication Module |
| Function | Serial communication interface |
| System Compatibility | CENTUM VP / CENTUM CS 3000 / ProSafe-RS |
| Communication Interface | RS-422 / RS-485 |
| Communication Mode | Full-duplex (RS-422) / Half-duplex (RS-485) |
| Connection Type | Point-to-point / Multi-point |
| Baud Rates | 1200 / 2400 / 4800 / 9600 / 19200 / 38400 bps |
| Transmission Format | ASCII / Binary |
| Data Bits | 7 or 8 bits |
| Stop Bits | 1 or 2 bits |
| Parity | None / Odd / Even |
| Transmission Distance | Up to 1200 m |
| Power Supply | 5 V DC (via backplane) |
| Current Consumption | Approx. 1 A |
| Mounting Type | Rack-mounted / cabinet installation |
| Dimensions (H × W × D) | 125 × 248 × 130 mm |
| Weight | 2 kg |
Function and Working Principle
The ACM12 S1 operates as a serial communication gateway module within industrial automation systems.
Its working process includes:
- Receiving data from the DCS controller
- Converting internal signals into RS-422/RS-485 communication formats
- Transmitting data to external devices or subsystems
- Receiving feedback signals from connected equipment
- Processing and sending data back to the control system
It supports multi-device communication via RS-485 and ensures stable performance over long transmission distances.
Role in Industrial Control Systems
Within Yokogawa CENTUM systems, the ACM12 S1 functions as a key communication interface module.
Its main roles include:
- Integrating external devices into the control system
- Enabling long-distance communication between system components
- Supporting multi-device network structures
- Providing reliable and synchronized data exchange
- Enhancing system scalability and flexibility
It plays a critical role in maintaining communication stability and system interoperability.
Industrial Applications
The ACM12 S1 is widely used in:
- Oil and gas processing systems
- Petrochemical and chemical plants
- Power generation facilities
- Industrial automation and manufacturing systems
- SCADA and monitoring platforms
- Large-scale distributed control systems
It is particularly suitable for applications requiring long-distance and multi-point communication.
Installation and System Integration
Proper installation ensures optimal performance:
- Installed in Yokogawa communication racks or cabinets
- Connected via RS-422 or RS-485 interfaces
- Supports multi-drop wiring for RS-485 networks
- Shielded twisted-pair cables recommended
- Requires proper communication parameter configuration
Correct setup ensures stable communication and minimal signal interference.
Compatible System Components
The ACM12 S1 typically works with:
- Yokogawa CENTUM controllers
- Human Interface Stations (HIS)
- PLC systems and external controllers
- Field instruments and sensors
- Distributed subsystem interfaces
These components form a complete industrial communication network.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ACM12 | Communication Module | Standard version | General communication |
| Yokogawa ACM11 | Communication Module | RS-232C interface | Short-distance communication |
| Yokogawa ACM11-S2 | Communication Module | Enhanced configuration | Flexible integration |
| Yokogawa ACM22 | Communication Module | Advanced communication capability | Complex systems |
| Yokogawa ABC11D | Bus Converter | Dual-redundant communication | High-availability systems |
Key Advantages
- Supports long-distance communication up to 1200 meters
- Multi-point communication capability via RS-485
- Flexible RS-422/RS-485 interface support
- Stable and reliable data transmission
- Strong resistance to electrical noise
- Easy integration with Yokogawa systems
- Suitable for large-scale distributed applications
Technical FAQs
Q1: What is the main function of the ACM12 S1?
It enables long-distance serial communication between the DCS and external devices.
Q2: What interfaces does it support?
It supports RS-422 and RS-485 communication.
Q3: What is the maximum communication distance?
Up to 1200 meters depending on configuration.
Q4: What is the difference between ACM12 and ACM12 S1?
The S1 version is an optimized variant with stable performance for specific system configurations.
Q5: Is it suitable for multi-device communication?
Yes, it supports multi-point communication using RS-485.
Conclusion
The Yokogawa ACM12 S1 Communication Module is a reliable and flexible solution for industrial communication systems. With its support for long-distance transmission, multi-device connectivity, and stable performance, it plays a key role in distributed control environments.
It is widely used in applications where communication reliability, scalability, and system stability are essential.
