Product Overview

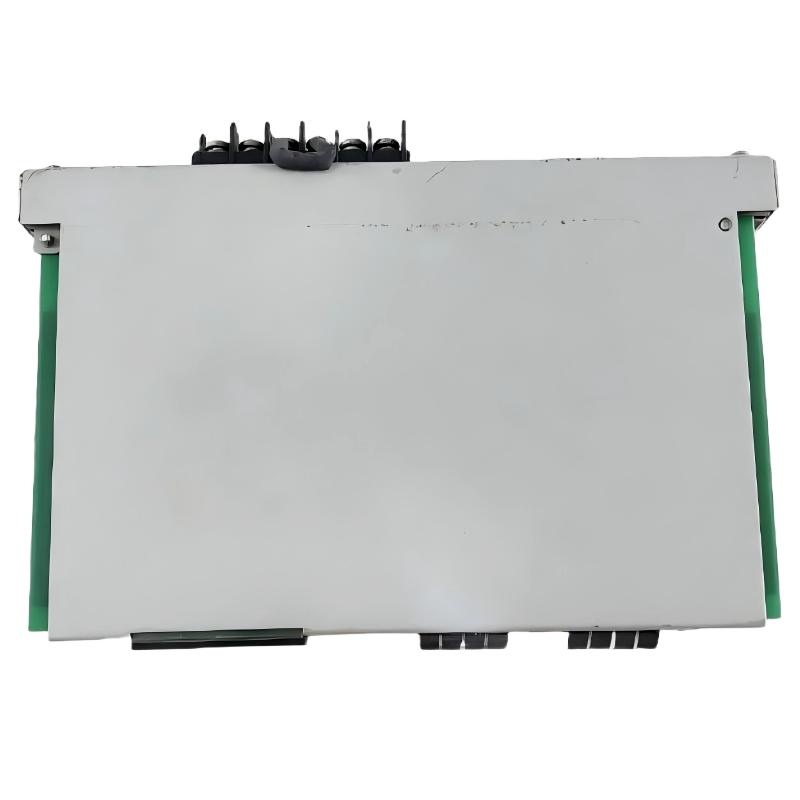

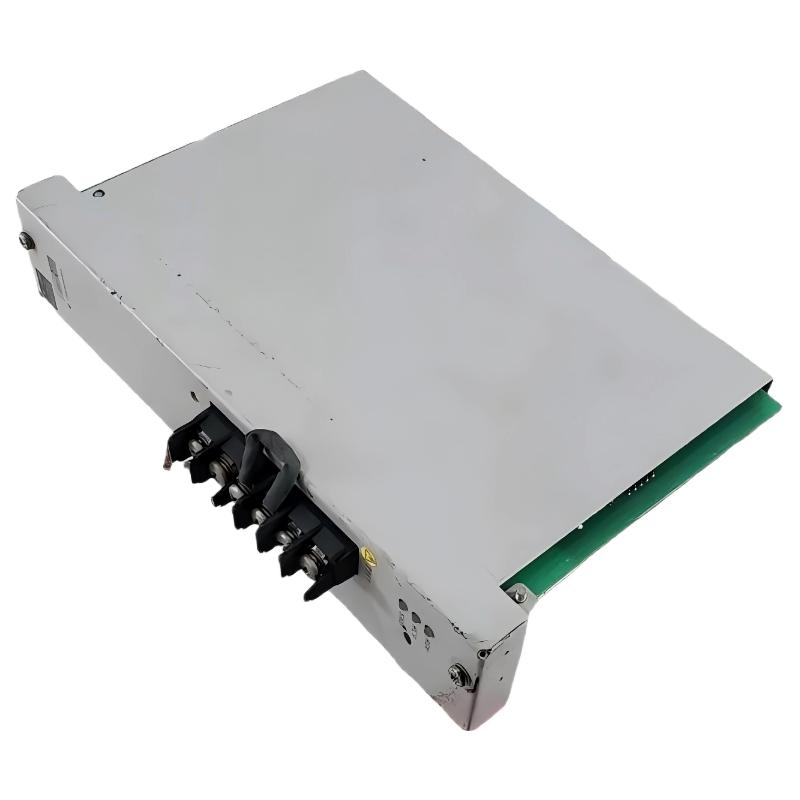

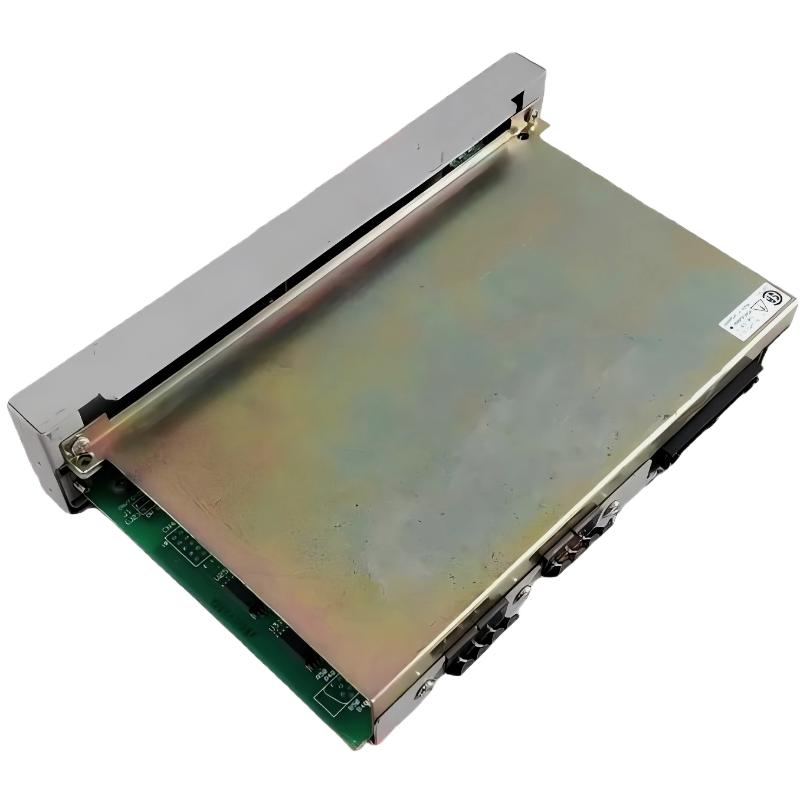

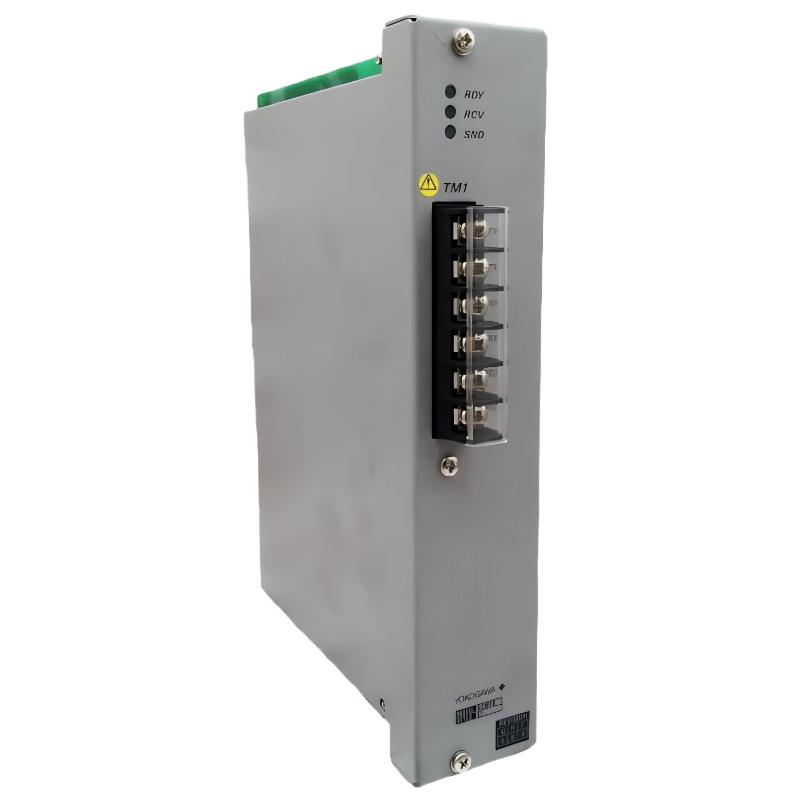

The Yokogawa ACM12 Communication Module is a high-performance serial communication interface module designed for Yokogawa CENTUM Distributed Control Systems (DCS). It enables reliable data exchange between control systems and external devices using RS-422 and RS-485 communication standards.
This module is specifically designed for long-distance communication and multi-device connectivity, making it ideal for large-scale industrial automation systems. It supports both point-to-point and multi-point communication, ensuring flexible system integration.
With its robust design and strong anti-interference capability, the ACM12 is suitable for environments requiring stable, high-speed, and long-distance data transmission.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | ACM12 |
| Product Type | Communication Module |
| Function | Serial communication interface |
| System Compatibility | CENTUM VP / CENTUM CS 3000 / ProSafe-RS |
| Communication Interface | RS-422 / RS-485 |
| Communication Mode | Full-duplex (RS-422) / Half-duplex (RS-485) |
| Connection Type | Point-to-point / Multi-point |
| Baud Rates | 1200 / 2400 / 4800 / 9600 / 19200 / 38400 bps |
| Transmission Format | ASCII / Binary |
| Data Bits | 7 or 8 bits |
| Stop Bits | 1 or 2 bits |
| Parity | None / Odd / Even |
| Transmission Distance | Up to 1200 m |
| Power Supply | 5 V DC (via backplane) |
| Current Consumption | Approx. 1 A |
| Mounting Type | Rack-mounted / cabinet installation |
| Dimensions (H × W × D) | 125 × 248 × 130 mm |
| Weight | 2 kg |
Function and Working Principle
The ACM12 operates as a serial communication gateway module within industrial control systems.
Its working process includes:
- Receiving data from the DCS controller
- Converting system signals into RS-422/RS-485 communication format
- Transmitting data to external devices or subsystems
- Receiving feedback from connected equipment
- Processing and returning data to the control system
It supports multi-node communication via RS-485 and long-distance transmission, making it ideal for distributed industrial networks.
Role in Industrial Control Systems
Within Yokogawa CENTUM systems, the ACM12 functions as a key communication interface module.
Its main roles include:
- Integrating external devices into the DCS system
- Enabling long-distance communication between system components
- Supporting multi-device communication networks
- Providing stable and synchronized data exchange
- Enhancing system scalability and flexibility
It is essential for maintaining communication reliability and system integration.
Industrial Applications
The ACM12 is widely used in:
- Oil and gas processing systems
- Petrochemical and chemical plants
- Power generation facilities
- Industrial automation systems
- SCADA and monitoring platforms
- Large-scale distributed control systems
It is particularly suitable for applications requiring long-distance and multi-device communication.
Installation and System Integration
Proper installation ensures optimal performance:
- Installed in Yokogawa communication racks or cabinets
- Connected via RS-422 or RS-485 interfaces
- Supports multi-drop wiring for RS-485 networks
- Shielded twisted-pair cables recommended
- Requires correct communication parameter configuration
Proper setup ensures stable communication and minimal signal interference.
Compatible System Components
The ACM12 typically works with:
- Yokogawa CENTUM controllers
- Human Interface Stations (HIS)
- PLC systems and external controllers
- Field instruments and sensors
- Distributed subsystem interfaces
These components form a complete industrial communication network.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa ACM11 | Communication Module | RS-232C interface | Short-distance communication |
| Yokogawa ACM11-S2 | Communication Module | Enhanced configuration | Flexible integration |
| Yokogawa ACM22 | Communication Module | Advanced communication capability | Complex systems |
| Yokogawa ABC11D | Bus Converter | Dual-redundant communication | High-availability systems |
| Yokogawa ACM71 | Communication Module | Ethernet interface | Network integration |
Key Advantages
- Supports long-distance communication up to 1200 meters
- Multi-point communication capability (RS-485)
- Flexible RS-422/RS-485 interface support
- Stable and reliable data transmission
- Strong resistance to electrical noise
- Easy integration with Yokogawa systems
- Suitable for large-scale distributed networks
Technical FAQs
Q1: What is the main function of the ACM12?
It enables long-distance serial communication between the DCS and external devices.
Q2: What interfaces does it support?
It supports RS-422 and RS-485 communication.
Q3: What is the maximum transmission distance?
Up to 1200 meters depending on configuration.
Q4: What is the difference between ACM11 and ACM12?
ACM11 is used for short-distance RS-232 communication, while ACM12 supports long-distance RS-422/485 communication.
Q5: Is it suitable for multi-device communication?
Yes, it supports multi-point communication using RS-485.
Conclusion
The Yokogawa ACM12 Communication Module is a robust and flexible solution for industrial communication systems. With its support for long-distance transmission, multi-device connectivity, and stable performance, it plays a critical role in modern distributed control systems.
It is widely used in environments where communication reliability, scalability, and long-distance data transmission are essential.
