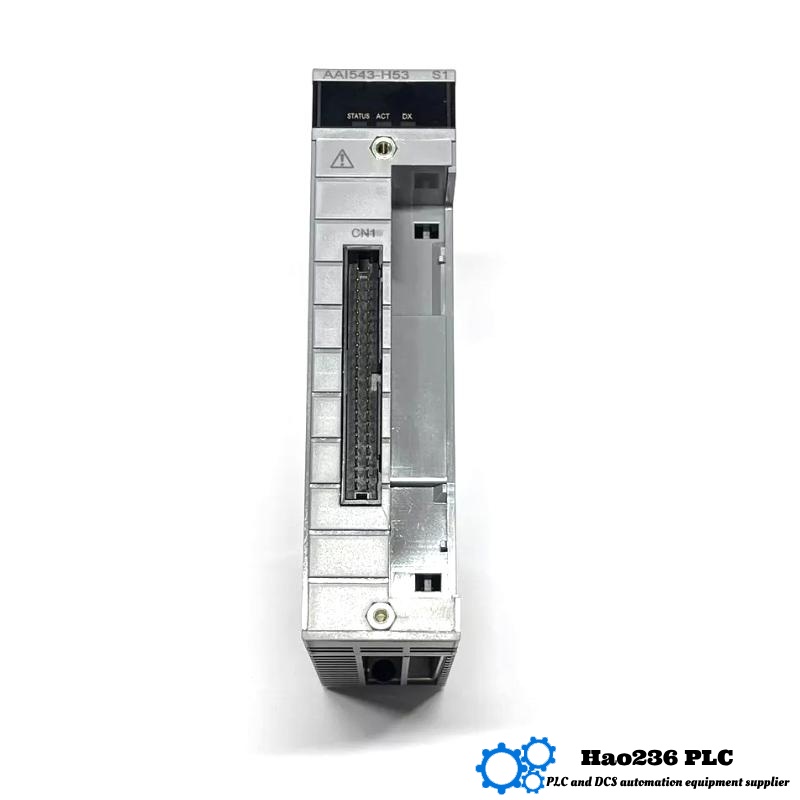

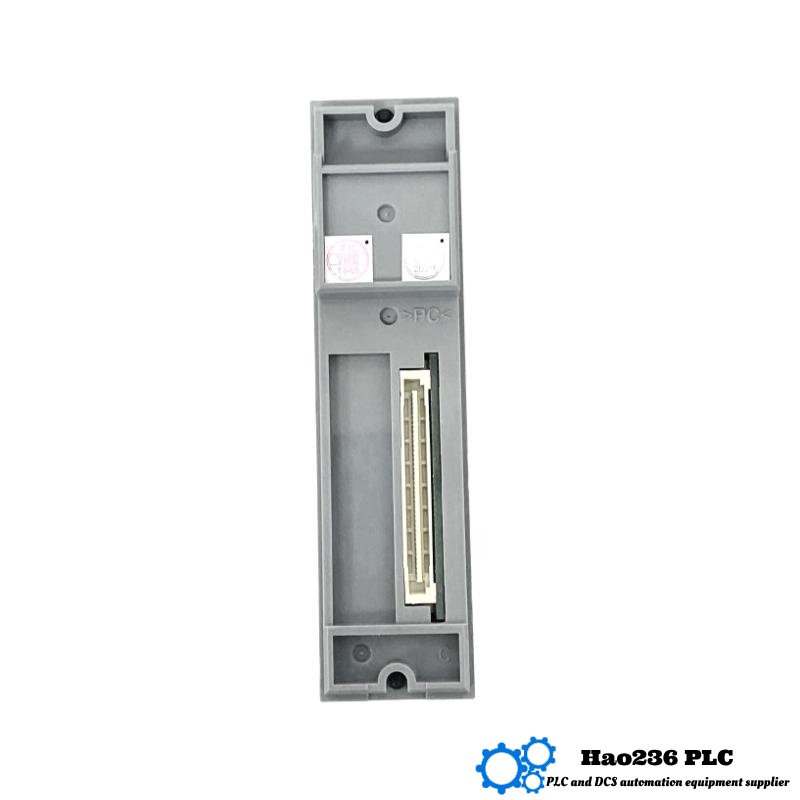

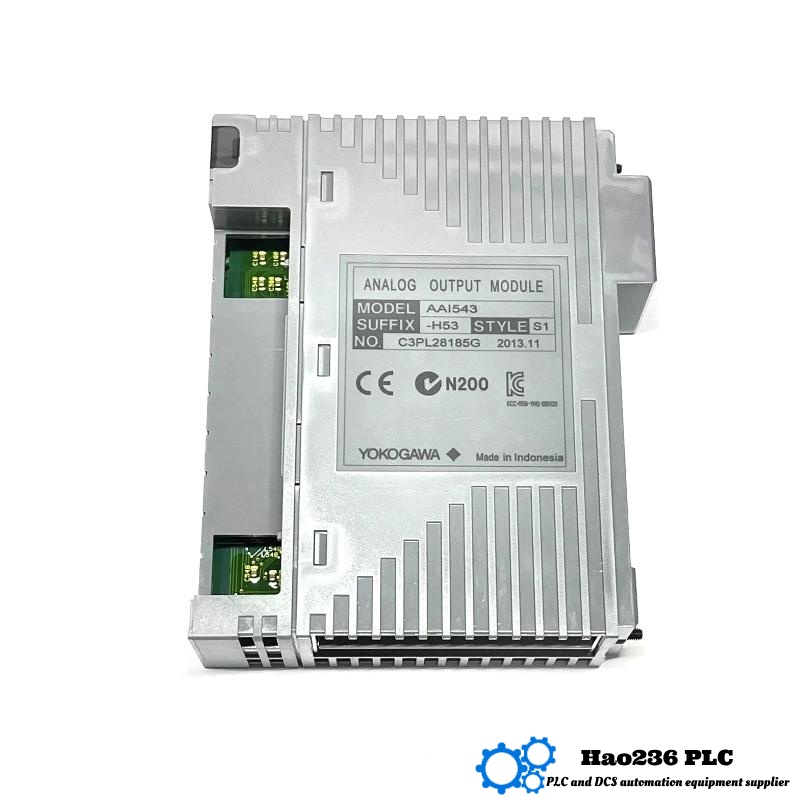

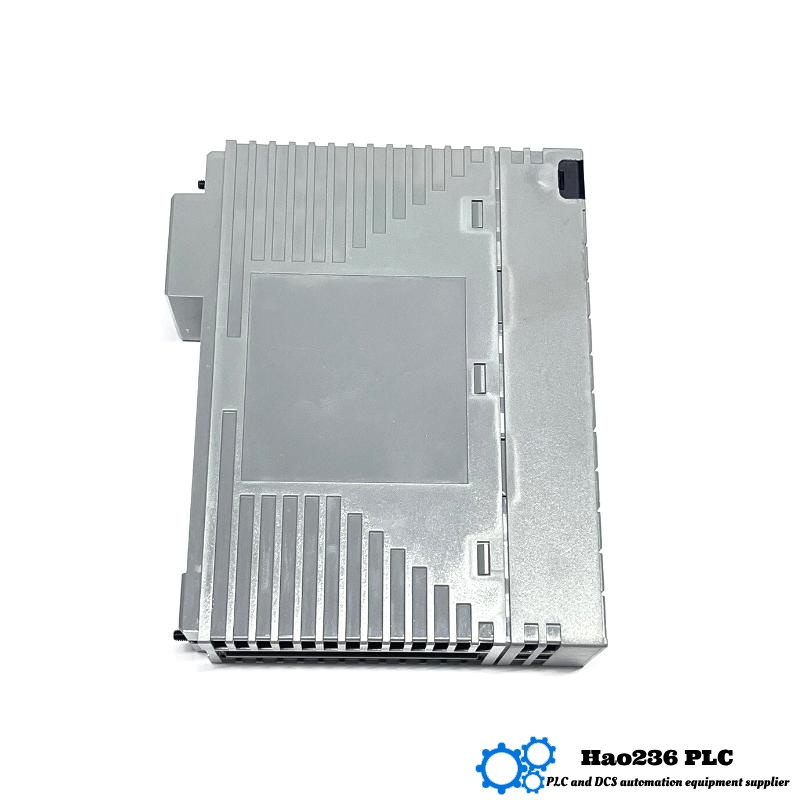

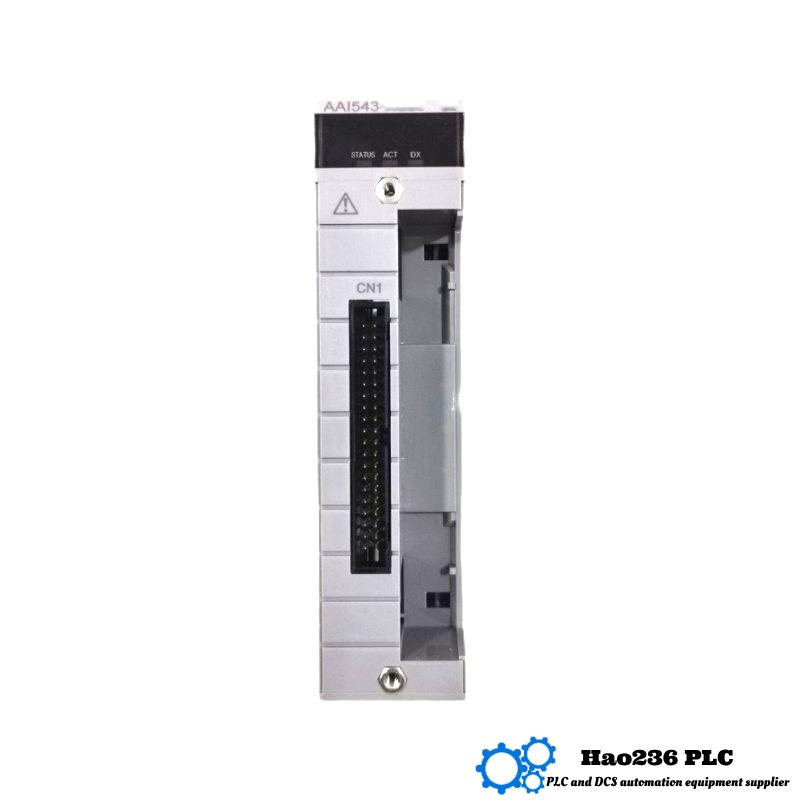

Product Overview – AAI543‑S50/A4S10
The AAI543‑S50/A4S10 is a high-performance 16-channel analog output module from the AAI543 series. It offers isolated 4–20 mA outputs, precision control, and HART communication for intelligent field diagnostics and configuration. The A4S10 feature denotes a pressure clamp terminal with surge absorbing structure, ensuring reliable wiring in harsh environments. Ideal for systems demanding accuracy, resilience, and ease of maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543‑S50/A4S10 |
| Output Channels | 16 (fully isolated) |
| Signal Type | 4–20 mA analog output |
| HART Communication | Yes, for remote diagnostics and configuration |
| Update Interval | 10 ms |
| Accuracy | ±48 µA |
| Temperature Drift | ±16 µA per 10 °C |
| Withstand Voltage | 1500 V AC (1 min between output and system) |
| Load Resistance Range | 0–750 Ω |
| Power Consumption | 230 mA @ 5 V DC; 540 mA @ 24 V DC |
| Terminal Block | Pressure clamp with surge absorber (A4S10) |
| External Connection Options | Clamp, MIL connector, KS cable |
| Switch-over Response | Standard (redundant-ready) |
| Temperature Range | –20 °C to +60 °C |
| Dimensions (W × H × D) | 27 mm × 130 mm × 110 mm |
| Weight | 0.40 kg |
Applications
-
Power Generation: Precision control of turbine and boiler systems, with real-time diagnostics.
-
Chemical Processing: Accurate flow and temperature control in complex reaction environments.
-
Water & Wastewater Treatment: Reliable management of valves and dosing systems for water quality.
-
Pharmaceutical Manufacturing: Clean analog output for strict process automation.
-
Industrial Automation: Trusted output module for coordinated action in factories and plants.
Key Advantages
-
Smart Field Diagnostics: HART-enabled capabilities for remote monitoring and configuration.
-
Robust Surge Protection: A4S10 clamp with surge absorber ensures wiring durability.
-
High Precision and Speed: ±48 µA accuracy and 10 ms updates meet rigorous control needs.
-
Green Maintenance: Snap-in clamp terminals simplify wiring, reduce installation time.
-
Redundancy Ready: Standard switch-over minimizes downtime in redundant control systems.
-
Compact and Durable: Space-saving design, strong build, and broad utility in regulated environments.
Brand & Series
-
Series: AAI543 – 16-Channel Analog Output Modules
5 Related Models (Same Series / Variants)
| Model | Notable Feature | Communication | Temp Range |
|---|---|---|---|
| AAI543‑S50 | Base S50 without surge terminal | HART | –20 °C to +60 °C |
| AAI543‑S50/K4A00 | S50 with KS cable interface | HART | –20 °C to +60 °C |
| AAI543‑H50/A4S10 | HART with surge clamp | HART | –20 °C to +60 °C |
| AAI543‑S53/A4S10 | Extended temperature support (–20 °C to +70 °C) | HART | –20 °C to +70 °C |
| AAI543‑H53/A4D00 | HART, dual clamp, extended temp, faster response | HART | –20 °C to +70 °C |
5 Popular Models from the Same Lineage
| Model | Functionality | Key Attribute |
|---|---|---|
| AAI143‑S50 | 16-channel analog input module | Signal input counterpart |
| ADV151‑P00 | 32-channel digital output module | High-speed electric switching |
| ATD5A‑00 | Thermocouple input (8 channels) | Temperature sensor compatibility |
| AAR181‑S00 | Distributed remote I/O module | Field signal integration |
| AFV10D‑S00 | Field control logic and output combination | Local automation at the field level |
Top 10 FAQs (Q&A Format)
Q1: What sets the AAI543‑S50/A4S10 apart?
A1: It blends HART communication, surge protection, precision, speed, and redundancy support into a compact module.
Q2: What is the core function?
A2: Provides 16 isolated analog outputs with high accuracy and remote diagnostics via HART.
Q3: How accurate are the outputs?
A3: ±48 µA with low drift, maintaining control precision under variable conditions.
Q4: What’s the update rate?
A4: Fast 10 ms data updates ensure responsive process control.
Q5: Which temperature range does it handle?
A5: Yes—operates reliably from –20 °C to +60 °C.
Q6: How is wiring made efficient?
A6: A4S10 clamp terminals allow easy, secure connections with minimal labor.
Q7: Is HART supported?
A7: Yes—remote configuration and diagnostics via HART streamline maintenance.
Q8: How compact is it?
A8: Measures 27 × 130 × 110 mm and weighs 0.40 kg—ideal for space-limited panels.
Q9: Can it stand electrical stress?
A9: Yes—it withstands 1500 V AC transients between output and system.
Q10: Which industries benefit most?
A10: Power, chemical, water treatment, pharmaceutical, and advanced automation setups.
