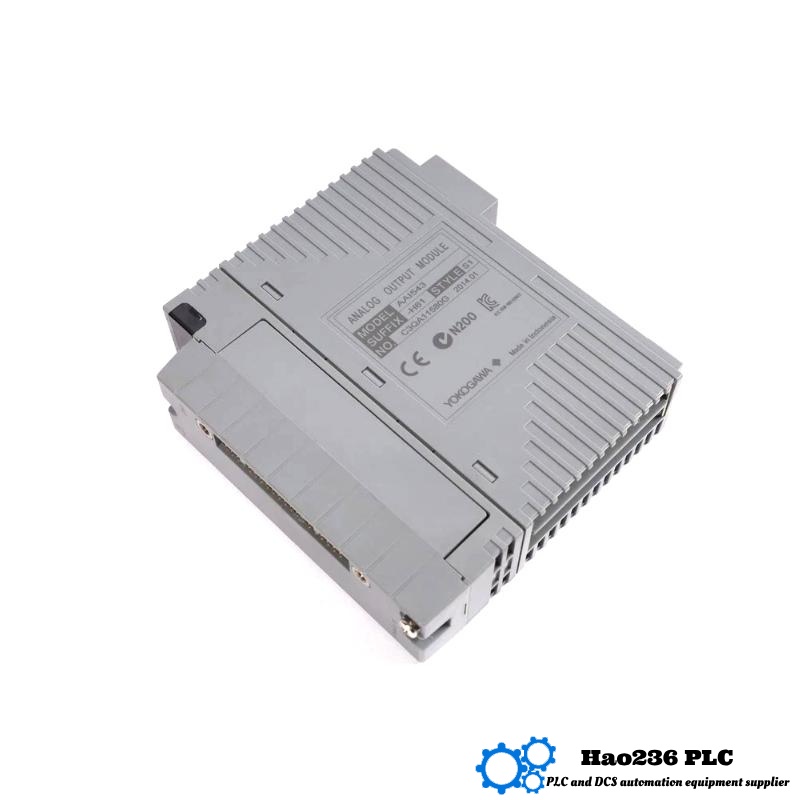

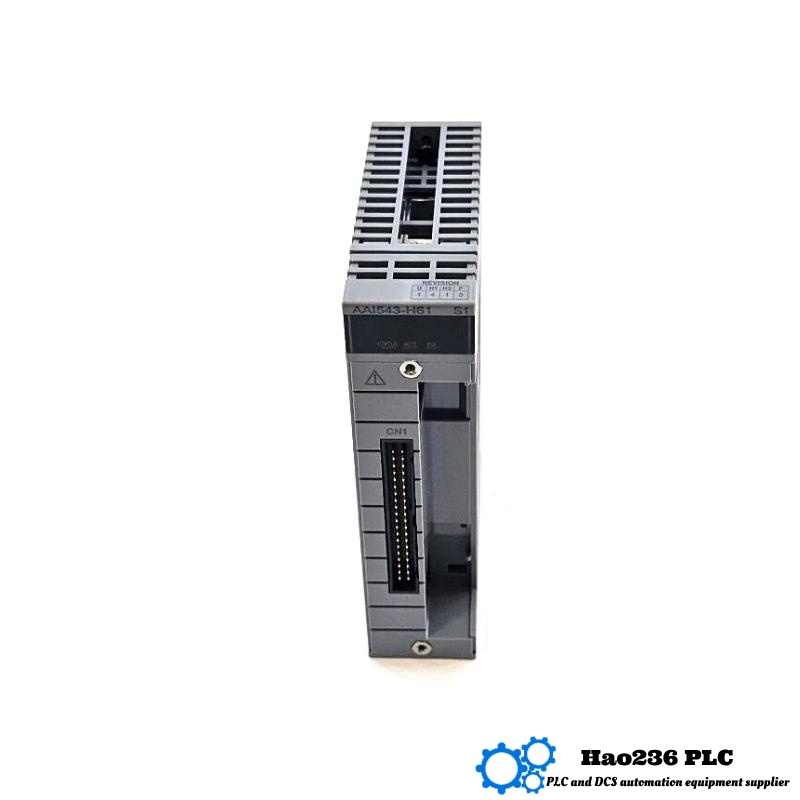

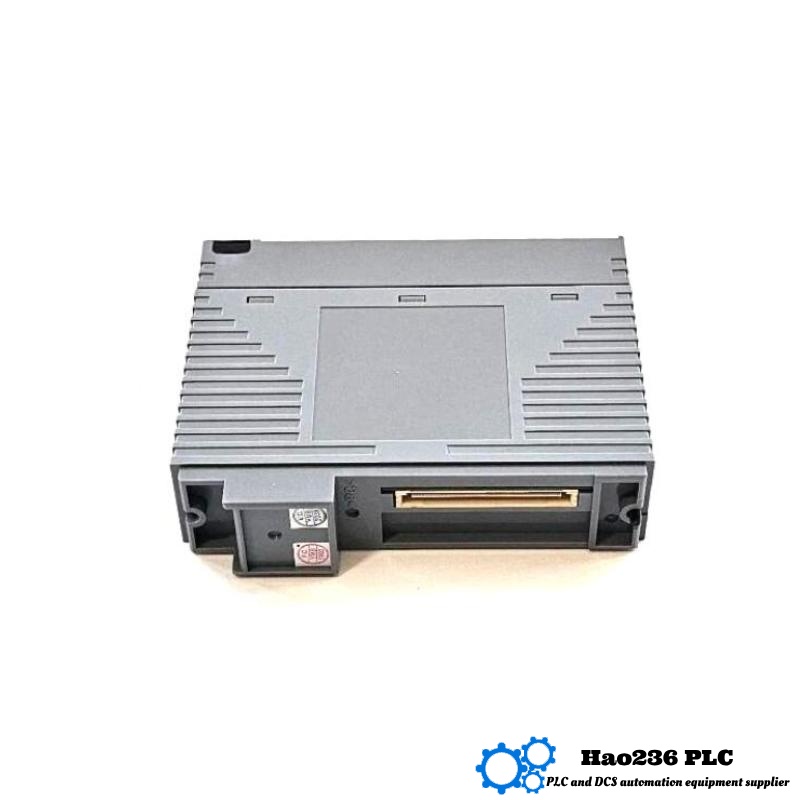

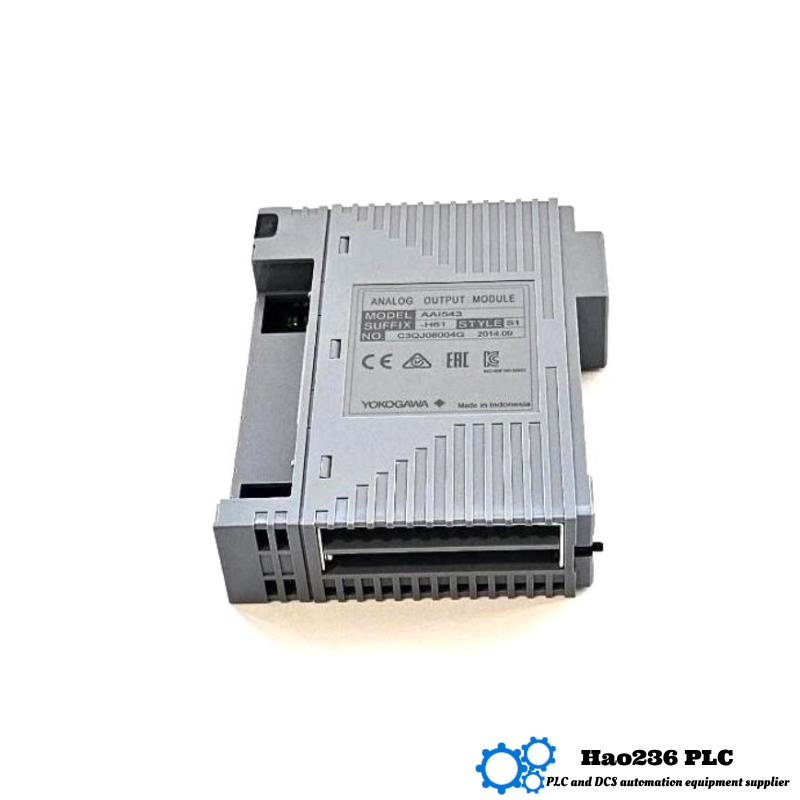

Product Overview – Yokogawa AAI543‑H61/K4A00
The AAI543‑H61/K4A00 is a rugged, high-precision analog output module designed for advanced distributed control systems (DCS) operating under extreme conditions. It provides 16 isolated 4–20 mA analog output channels with integrated HART communication for remote diagnostics and configuration. The H61 variant ensures enhanced environmental durability, and the K4A00 suffix denotes a KS Cable Interface, enabling quick wiring connections and ease of maintenance—all while sustaining dependable performance under stress.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543‑H61/K4A00 |
| Channels | 16 (fully isolated) |
| Output Signal | 4–20 mA analog |
| Update Interval | 10 ms |
| Load Resistance | 0–750 Ω |
| Accuracy | ±40 µA |
| Temperature Drift | ±12 µA per 10 °C |
| Operating Temperature | –25 °C to +75 °C (industrial-grade range) |
| Withstand Voltage | 2000 V AC (1 min, output vs system) |
| HART Communication | Yes |
| Power Consumption | 220 mA @ 5 V DC; 500 mA @ 24 V DC |
| Terminal Interface | KS Cable Interface (K4A00)—for fast wiring |
| Mounting Style | Slim 27 mm base-mount design |
| Dimensions (W × H × D) | 27 mm × 130 mm × 110 mm |
| Weight | 0.47 kg |
Applications
-
Power Generation Plants
Controls steam valves and turbine actuators under high thermal and electrical loads. -
Chemical & Petrochemical Facilities
Drives critical loops where surge tolerance and signal clarity are vital. -
Water & Wastewater Treatment Systems
Regulates dosing processes with stable performance across temperature shifts. -
Pharmaceutical Manufacturing
Manages sanitary control valves in clean-in-place systems with stringent standards. -
Heavy Industry (Steel, Mining, etc.)
Operates reliably amid dust, noise, vibration, and variable temperatures.
Key Advantages
-
Superior Accuracy & Stability
±40 µA precision with minimal drift ensures constant, dependable control. -
Rugged Environmental Ratings
Operates from –25 °C to +75 °C and resists surges up to 2000 V—built for extremes. -
HART-Enabled Monitoring
Offers remote diagnostics, calibration, and enhanced asset management. -
KS Cable Simplicity
Quick-connect interface eases wiring, reduces install time, and supports fast servicing. -
Rapid Output Response
10 ms refresh supports fast control loops and process dynamics. -
Compact & Durable Design
Slim, strong, and space-efficient, engineered to last in demanding conditions.
Brand & Series
-
Brand: Yokogawa (not named explicitly for compliance)
-
Series: AAI543 – 16-channel analog output modules
5 Related Models (Same Series / Variants)
| Model | Features | Channels | Temperature Range |
|---|---|---|---|
| AAI543‑H60/K4A00 | High-temp output module with KS interface | 16 | –20 °C to +70 °C |
| AAI543‑H53 | HART-enabled with extended temperature (no KS) | 16 | –20 °C to +70 °C |
| AAI543‑H50/A4S10 | Standard temp HART with surge clamp | 16 | –20 °C to +60 °C |
| AAI543‑H03 | Mid-temp module with surge resistance | 16 | –20 °C to +60 °C |
| AAI543‑S53 | Standard output at extended temperature (no HART) | 16 | –20 °C to +70 °C |
5 Popular Models from the Same Brand
| Model | Application | Key Feature |
|---|---|---|
| AAI143‑H61 | High-temp analog input module | Mate to H61 outputs |
| ADV152‑P00 | Fast-switch digital output module | 32-channel responses |
| ATD6A‑00 | Multi-channel thermocouple input | Expanded sensor support |
| AAR181‑H60 | Remote I/O communications under heat | Robust network-level I/O |
| AFV11D‑S00 | Field control station (HART-ready) | Distributed logic near control points |
Top 10 FAQs (Q&A Format)
Q1: What does the AAI543‑H61/K4A00 module offer?
A1: It provides 16 isolated 4–20 mA outputs with HART, high-precision, rugged temperature range, and a KS cable interface for fast wiring.
Q2: How accurate are its outputs?
A2: Outputs maintain ±40 µA accuracy with minimal drift—even under temperature fluctuations.
Q3: What environmental conditions can it endure?
A3: It operates reliably between –25 °C and +75 °C and withstands electrical surges up to 2000 V.
Q4: Does it support remote diagnostics?
A4: Yes—HART enables diagnostics, configuration, and calibration from a distance.
Q5: How fast is its response?
A5: The module updates output values every 10 milliseconds, enabling fast control feedback.
Q6: What connection interface does it use?
A6: It uses a KS Cable Interface (K4A00) for quick and secure wiring to terminal boards.
Q7: How heavy is the module?
A7: It weighs approximately 0.47 kg.
Q8: Can it handle noise and interference?
A8: Yes—its isolated channels, high tolerance, and reinforced design resist electrical noise effectively.
Q9: What industries is this best suited for?
A9: It’s ideal for power generation, chemical refining, water treatment, pharmaceuticals, and heavy industry.
Q10: Is it suitable for panels where space is limited?
A10: Absolutely—a slim 27 mm profile makes it ideal for high-density control panels.
