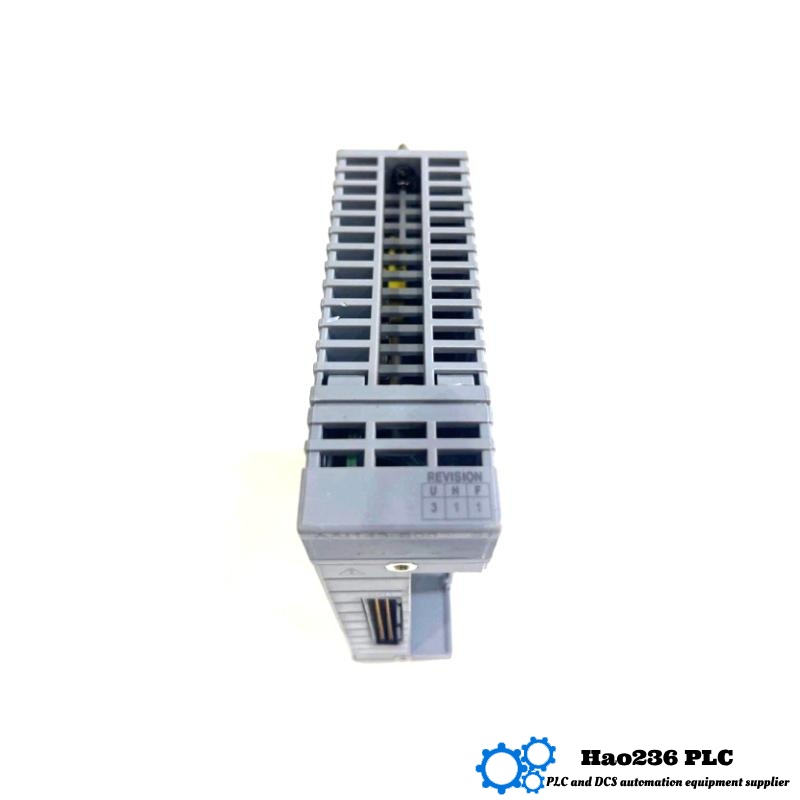

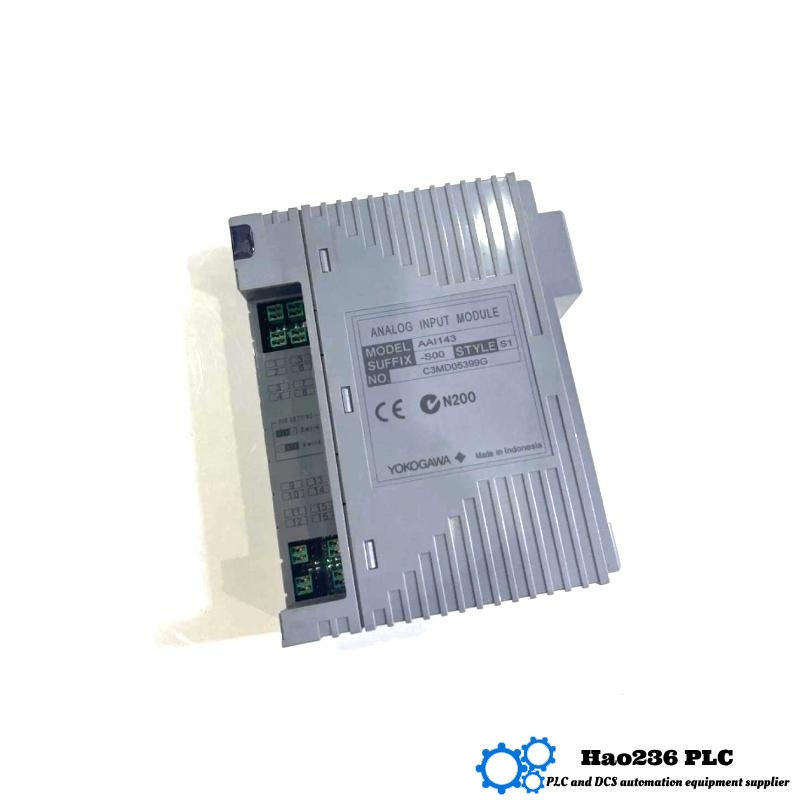

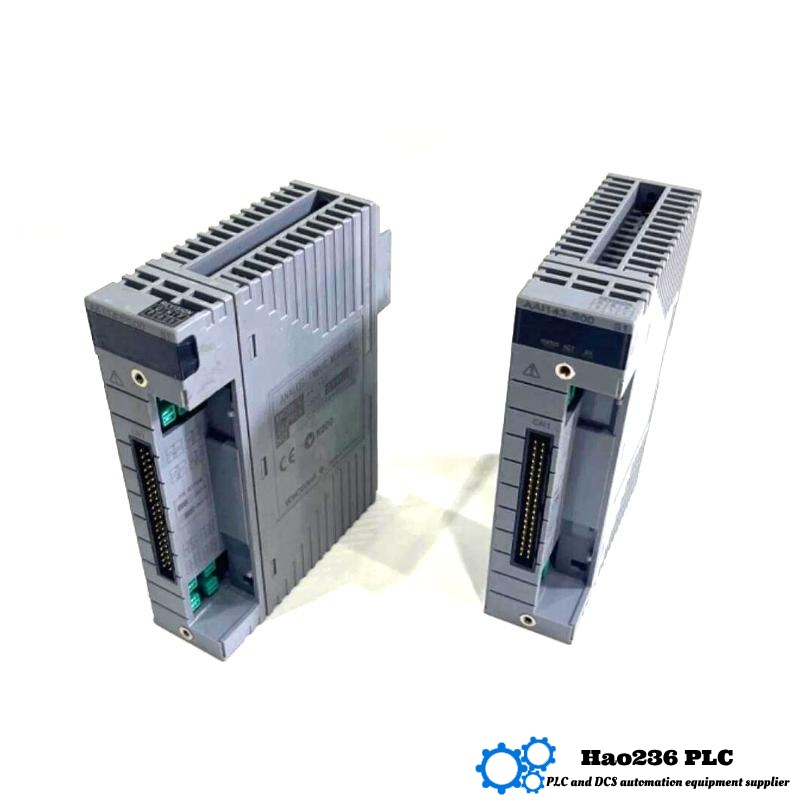

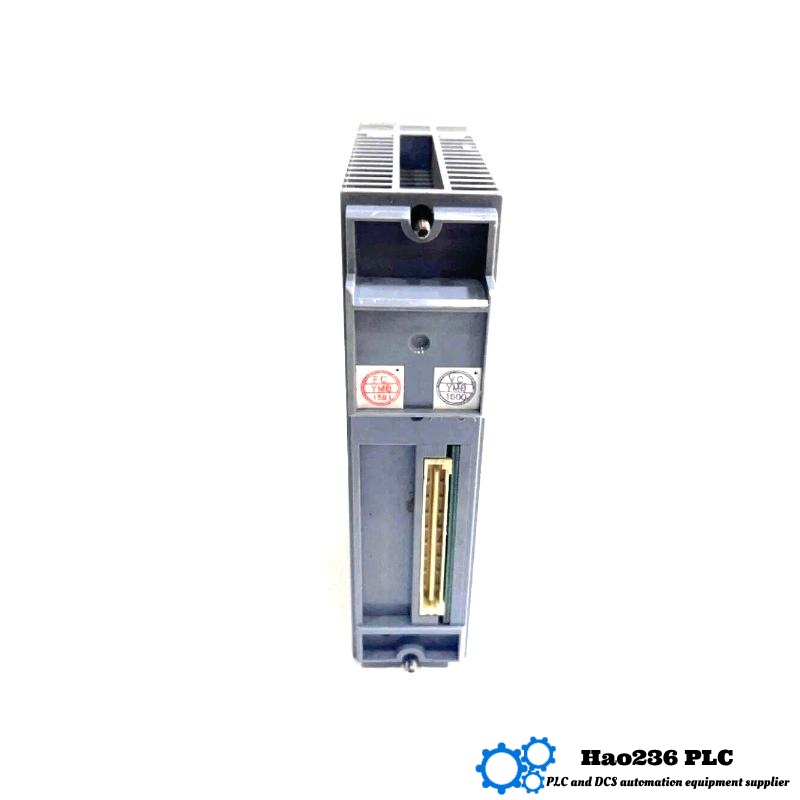

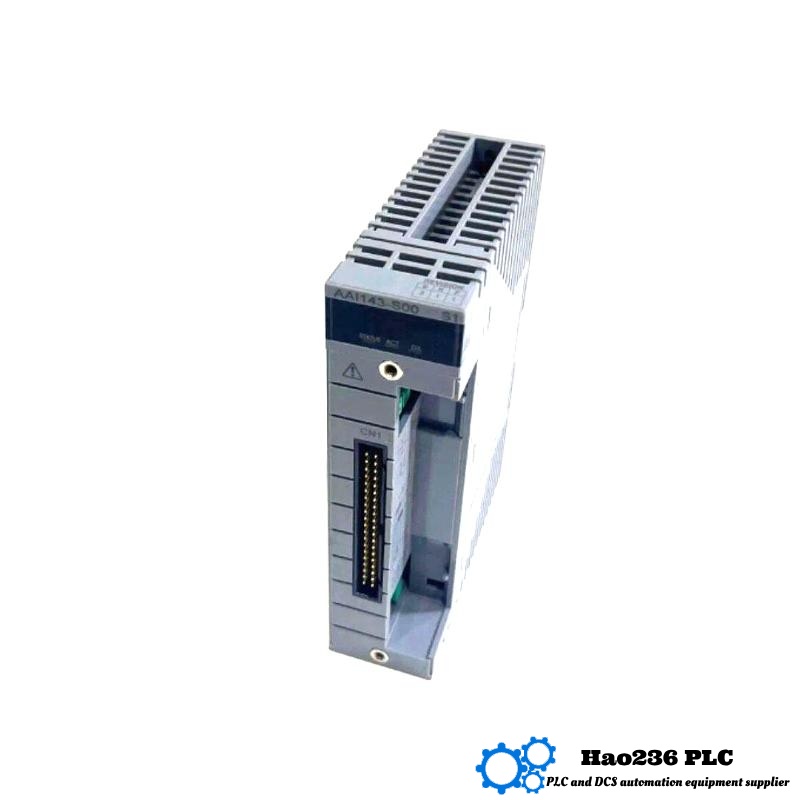

📦 Product Overview: Yokogawa AAI143-S00 S1
The Yokogawa AAI143-S00 S1 is a high-performance analog input module designed for precision industrial control systems. It is part of a modular I/O system, ensuring seamless data acquisition and stable control signal transmission in Distributed Control Systems (DCS). Known for its accuracy, reliability, and integration capability, this model is widely used in industries such as oil & gas, chemical, power generation, and manufacturing automation.
This module is part of the AAI100 series, tailored for high-density analog input applications, and supports multiple signal types with high resolution and isolation performance.
📋 Product Specifications
| Parameter | Value |
|---|---|
| Model Number | AAI143-S00 S1 |
| Product Type | Analog Input Module |
| Number of Channels | 16 channels (4–20 mA) |
| Input Signal Type | DC current |
| Signal Range | 4–20 mA (current loop) |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-ground |
| Power Supply | 24V DC (supplied via base unit) |
| Accuracy | ±0.1% of full scale |
| Diagnostics | Built-in diagnostics and loop checking |
| Mounting | DIN Rail or Baseplate |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W x H x D) | 27 x 130 x 130 mm |
| Weight | 0.28 kg |
| Series | AAI100 Series |
| Compatible System | CENTUM VP / ProSafe-RS Systems |
| Certification | CE, RoHS, CSA, UL |
🌐 Product Applications
-
Petrochemical Plants: Continuous process control and monitoring.
-
Power Generation: Real-time analog signal acquisition from field devices.
-
Pharmaceuticals: Accurate control of input signals for regulated processes.
-
Water Treatment Plants: Analog signal interface for monitoring sensors.
-
Manufacturing: Integrates with automation systems for productivity control.
🌟 Product Advantages
-
High Density Input: 16-channel capability reduces module count and cabinet space.
-
Excellent Accuracy: 16-bit resolution ensures precise measurements.
-
Built-in Isolation: Protects devices and reduces interference between channels.
-
System Integration: Compatible with advanced DCS systems like CENTUM VP.
-
Diagnostic Capabilities: Increases maintenance efficiency and system reliability.
🏢 Brand Information
-
Brand Name: Yokogawa
-
Product Line/Series: AAI100 Series
-
Category: Analog I/O Modules
-
Application Field: Industrial Automation, Process Control
🔄 5 Related Models (Same or Related Series)
| Model | Channels | Input Type | Resolution | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| AAI141-S00 | 8 | 4–20 mA | 16-bit | 27 x 130 x 130 | 0.28 |
| AAI143-H00 | 16 | 1–5 V | 16-bit | 27 x 130 x 130 | 0.28 |
| AAI135-S00 | 8 | Thermocouple | 16-bit | 27 x 130 x 130 | 0.30 |
| AAI145-S00 | 16 | RTD | 16-bit | 27 x 130 x 130 | 0.32 |
| AAI531-S00 | 8 | 4–20 mA (HART) | 16-bit | 27 x 130 x 130 | 0.34 |
🔥 5 Popular Yokogawa Models
| Model | Function | Channels | Signal Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ADV551-P00 | Analog Output | 8 | 4–20 mA | 27 x 130 x 130 | 0.29 |
| SCP451-50 | Power Supply Module | — | — | 45 x 130 x 130 | 0.48 |
| CP451-10 | CPU Module | — | — | 45 x 130 x 130 | 0.50 |
| ADM52C | Digital Input | 32 | Dry Contact | 27 x 130 x 130 | 0.27 |
| AAR181-S00 | RTD Input | 8 | RTD | 27 x 130 x 130 | 0.30 |
❓ Frequently Asked Questions (FAQ)
Q1: What kind of input signal does the AAI143-S00 S1 module support?
A1: The module supports standard 4–20 mA DC current input signals, commonly used in industrial analog signal transmission.
Q2: How many channels are available in this module?
A2: The AAI143-S00 S1 module provides 16 independent analog input channels.
Q3: Is the module isolated between channels?
A3: Yes, the module features both channel-to-channel and channel-to-ground isolation to prevent signal interference.
Q4: What is the accuracy of the input signal measurement?
A4: The module provides high-precision measurement with ±0.1% full-scale accuracy.
Q5: Can this module be used with HART devices?
A5: No, the AAI143-S00 S1 does not support HART communication. For HART capability, consider the AAI531-S00 model.
Q6: What DCS systems is it compatible with?
A6: The module is designed for seamless integration with CENTUM VP and ProSafe-RS control systems.
Q7: What is the installation method?
A7: It can be mounted using a DIN rail or directly on a baseplate compatible with the Yokogawa I/O system.
Q8: Is this module suitable for harsh industrial environments?
A8: Yes, it operates reliably in temperatures from 0°C to 55°C and is compliant with industrial environmental standards.
Q9: What kind of diagnostic functions are available?
A9: It includes loop checking and internal diagnostics to ensure signal integrity and facilitate maintenance.
Q10: Is external power required for each channel?
A10: No, the module draws power via the base unit and does not require individual channel power supplies.
