Product Overview

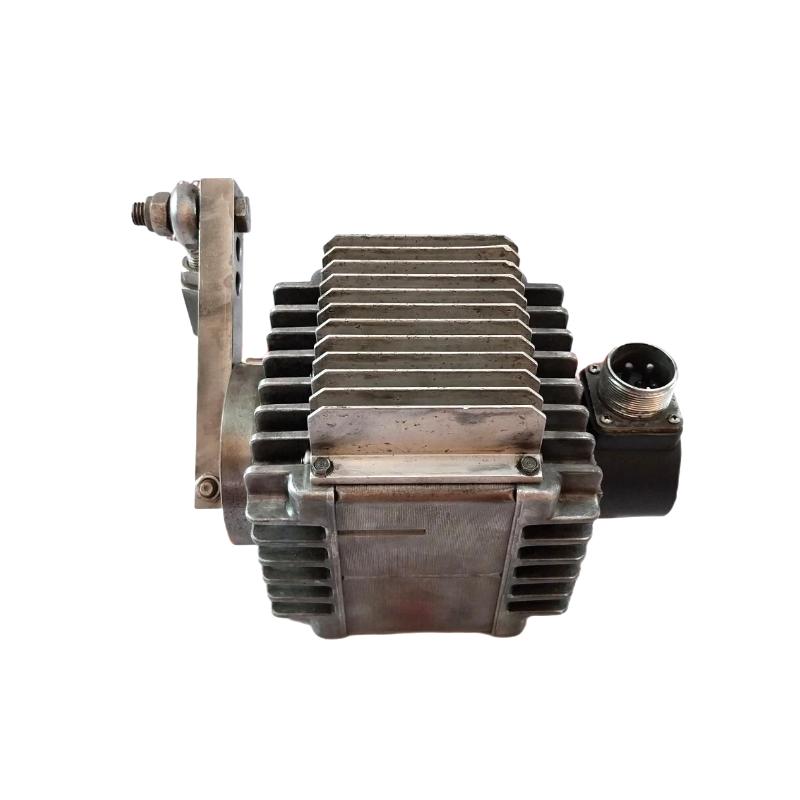

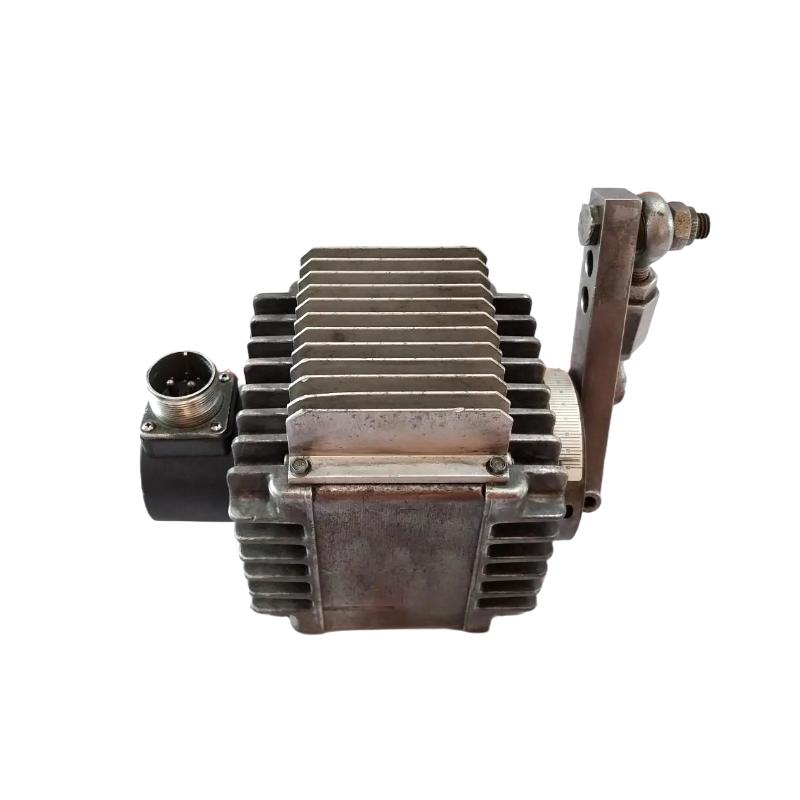

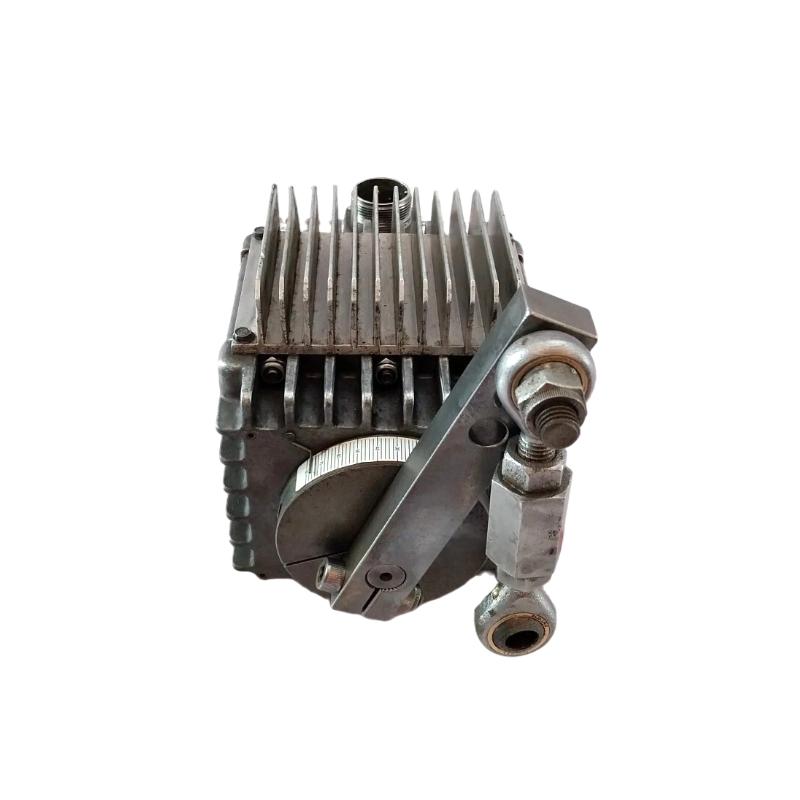

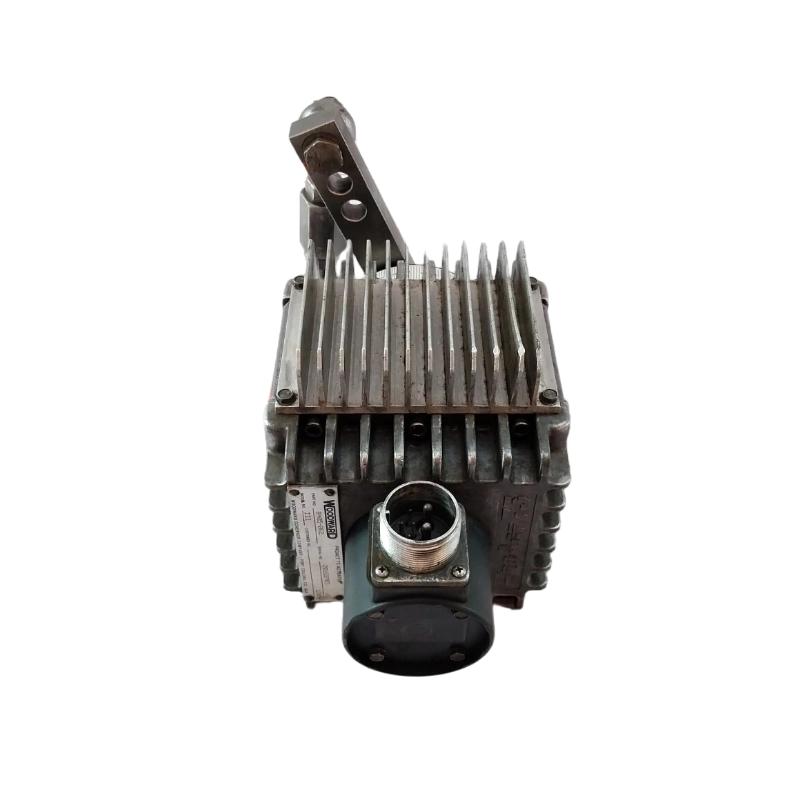

The Woodward 8405-223 Electric Actuator and Drive is an industrial motion-control component intended for applications where an electrical command must be converted into controlled mechanical movement.

Electric actuators are commonly used in engine, turbine, generator, valve, and industrial machinery systems to position a mechanical element according to commands from a control system. In a typical application, the actuator receives an electrical control signal, produces mechanical movement, and positions the connected mechanism at the required operating point.

The supplied physical specifications for the Woodward 8405-223 are 200 × 25 × 120 mm, with a stated weight of 1.5 kg.

Because an actuator can directly move a fuel-control mechanism, valve, linkage, or other machine component, correct mechanical installation and controlled commissioning are essential.

---

Technical Specifications

---

Function and Working Principle

The basic function of an electric actuator is to convert an electrical command into mechanical movement.

A simplified system is:

Controller → Electrical Command → 8405-223 → Mechanical Movement → Controlled Equipment

Depending on the application, the actuator may be connected to a mechanical linkage, valve, governor, fuel-control mechanism, or another positioning mechanism.

The general operating sequence is:

1. The control system determines a required position.
2. An electrical command is sent to the actuator.
3. The actuator drive energizes the internal electromechanical mechanism.
4. Mechanical movement occurs.
5. The connected equipment changes position.
6. The resulting machine condition is monitored by the control system.
7. The controller adjusts the actuator command as required.

This creates a controlled electromechanical interface between automation electronics and physical machinery.

---

Role in Industrial Control Systems

The actuator is often the final active element in a control loop.

For example:

Sensor → Controller → Actuator → Machine → Sensor

The controller can calculate the required correction, but the actuator performs the physical action.

This makes actuator reliability critical to:

• Speed regulation
• Valve positioning
• Fuel control
• Turbine control
• Engine response
• Process regulation
• Load response

---

Electric Actuator Applications

Depending on the surrounding equipment, an electric actuator can be used for applications involving:

• Fuel-control mechanisms
• Governor systems
• Valve positioning
• Engine control
• Turbine control
• Generator control
• Mechanical linkages
• Industrial process equipment
• Automated positioning

The exact application and mechanical interface should always be verified against the equipment configuration.

---

Installation Guide

Step 1 – Verify the Actuator

Before installation, confirm:

• 8405-223
• Complete model identification
• Mechanical compatibility
• Electrical interface
• Mounting arrangement
• Travel requirements
• Connected linkage
• Control-system compatibility

An actuator with similar dimensions should not automatically be considered a suitable replacement.

---

Step 2 – Safely Isolate the Equipment

Before installation:

1. Stop the engine, turbine, or machine.
2. Disconnect applicable electrical power.
3. Prevent automatic startup.
4. Isolate relevant fuel or energy sources.
5. Relieve mechanical or process energy where applicable.
6. Apply lockout/tagout procedures.
7. Verify the mechanism is safe to work on.

The actuator should never be installed while the connected mechanism can move unexpectedly.

---

Step 3 – Record Existing Installation

Before removing an existing actuator:

• Photograph the installation.
• Record mounting orientation.
• Measure linkage position.
• Record linkage attachment points.
• Label electrical conductors.
• Record terminal assignments.
• Document travel limits.
• Record existing operating position.

This information is particularly important because incorrect linkage geometry can cause mechanical overtravel.

---

Step 4 – Inspect the Mechanical Linkage

Before installing the 8405-223, inspect the connected mechanism.

Check for:

• Bent linkage
• Excessive mechanical play
• Binding
• Corrosion
• Damaged joints
• Incorrect alignment
• Mechanical obstruction
• Excessive friction

A defective linkage can make a healthy actuator appear to be faulty.

---

Step 5 – Mount the Actuator

The supplied dimensions are:

200 × 25 × 120 mm

The supplied weight is:

1.5 kg

The mounting structure should provide sufficient mechanical support.

Verify:

• Correct mounting orientation
• Secure fasteners
• Correct linkage alignment
• Adequate movement clearance
• No interference throughout the complete travel range

---

Step 6 – Connect the Linkage

The actuator linkage must be connected according to the equipment design.

Pay particular attention to:

• Neutral position
• Mechanical travel
• Direction of movement
• End stops
• Linkage length
• Attachment point

An incorrect connection can cause the actuator to move in the wrong direction or reach a mechanical stop before the required position is achieved.

---

Step 7 – Connect Electrical Wiring

Verify:

• Power connections
• Control connections
• Signal polarity where applicable
• Grounding
• Shielding
• Connector seating
• Terminal tightness

Do not apply power until the wiring has been checked against the actual system design.

---

Commissioning Procedure

Initial Mechanical Test

Before normal machine operation:

1. Confirm the actuator is securely mounted.
2. Verify the linkage is correctly attached.
3. Confirm the mechanism can move freely.
4. Check the neutral position.
5. Verify mechanical stops.
6. Confirm there is no binding.

---

Electrical Check

Before applying the operating command:

• Verify control power.
• Check wiring continuity where appropriate.
• Verify command connections.
• Check grounding.
• Inspect for short circuits.
• Confirm the actuator is connected to the correct control circuit.

---

Controlled Actuator Test

Under safe test conditions:

1. Apply the appropriate control signal.
2. Observe actuator movement.
3. Confirm the direction of travel.
4. Check for smooth movement.
5. Verify the expected travel range.
6. Return the actuator to the required position.

Stop testing immediately if the actuator moves unexpectedly or reaches a mechanical limit prematurely.

---

System Commissioning

After basic actuator operation has been verified:

1. Start the associated machine under an approved procedure.
2. Monitor the actuator position.
3. Monitor machine speed or process conditions.
4. Observe control-system response.
5. Verify stable operation.
6. Perform controlled load or process changes.
7. Confirm the actuator follows the control command correctly.

---

Common Failure Symptoms

---

Troubleshooting Guide

Actuator Does Not Move

Check:

1. Control-power supply.
2. Electrical wiring.
3. Command signal.
4. Connector condition.
5. Mechanical linkage.
6. Mechanical obstruction.
7. Drive condition.

Verify whether the actuator receives a valid electrical command before determining that the actuator itself has failed.

---

Actuator Moves in the Wrong Direction

A reversed direction can result from:

• Incorrect wiring
• Incorrect control configuration
• Reversed mechanical linkage
• Incorrect mounting
• Incorrect system command

Do not continue normal operation until the direction has been verified.

Incorrect actuator direction can produce serious control problems.

---

Actuator Moves Slowly

Possible causes include:

• Excessive mechanical friction
• Binding linkage
• Excessive mechanical load
• Drive problems
• Inadequate electrical supply
• Mechanical wear

Inspect the linkage first because mechanical resistance can significantly reduce actuator performance.

---

Actuator Moves Erratically

Erratic movement may be caused by:

• Unstable control signal
• Electrical interference
• Loose connections
• Mechanical binding
• Worn linkage
• Drive instability

Determine whether the command itself is stable. If the electrical command is stable but movement is not, focus on the actuator and mechanical system.

---

Actuator Cannot Reach Full Travel

Check:

• Mechanical stops
• Linkage length
• Mounting position
• Mechanical obstruction
• Actuator travel
• Control configuration

Do not force the actuator beyond its designed mechanical range.

---

Actuator Overheats

Possible causes include:

• Excessive mechanical load
• Continuous operation near a mechanical limit
• Binding linkage
• Incorrect control command
• Electrical problems
• Environmental overheating

Check the mechanical load before replacing the actuator.

---

Intermittent Operation

Inspect:

• Power connections
• Control wiring
• Connectors
• Terminals
• Grounding
• Shielding
• Mechanical linkage
• Vibration

Industrial machinery vibration can gradually loosen connections and mechanical fasteners.

---

Mechanical Linkage Inspection

The actuator and linkage should be treated as one mechanical system.

Check for:

• Free movement
• Correct alignment
• Proper attachment
• Excessive backlash
• Worn joints
• Corrosion
• Mechanical interference
• Correct end positions

If the linkage requires excessive force by hand when the machine is safely isolated, investigate the mechanical system before operating the actuator.

---

Control Signal Verification

When troubleshooting an actuator, determine whether the problem originates from the command or the actuator.

A useful diagnostic sequence is:

Controller Output → Wiring → Actuator Input → Actuator Movement → Linkage Movement

If the controller output is incorrect, investigate the control system.

If the controller output is correct but the actuator does not respond correctly, investigate the actuator, wiring, or mechanical load.

---

Preventive Maintenance

Recommended maintenance activities include:

• Visual inspection
• Mounting inspection
• Fastener inspection
• Linkage inspection
• Electrical connection inspection
• Connector inspection
• Grounding checks
• Mechanical travel checks
• Control-signal verification
• Operating-temperature monitoring
• Vibration inspection

Regular mechanical inspection is particularly important because actuator problems can originate outside the electrical actuator itself.

---

Environmental Considerations

The actuator should be installed in a suitable industrial environment.

Consider:

Temperature

Excessive heat can affect electrical and mechanical performance.

Vibration

Engine and turbine installations may generate continuous vibration. Secure mounting is essential.

Contamination

Oil, dust, moisture, and chemicals can affect connectors and mechanical components.

Mechanical Shock

Avoid unnecessary impact during installation and maintenance.

---

System Integration

The 8405-223 operates within a larger control architecture.

A fault anywhere in this chain can produce actuator-related symptoms.

---

Replacement Considerations

Before replacing the Woodward 8405-223, document:

• Model number
• Mounting position
• Linkage geometry
• Neutral position
• Travel range
• Electrical wiring
• Connector arrangement
• Control-system configuration
• Existing fault symptoms

After installation, verify:

1. Mechanical movement
2. Direction of travel
3. Electrical command
4. Full travel
5. Mechanical limits
6. Machine response
7. Stable operation
8. Load response

---

Key Advantages

• Designed for electrically controlled mechanical positioning
• Suitable for industrial actuator applications
• Can interface control electronics with mechanical equipment
• Applicable to engine and turbine control systems
• Suitable for generator and rotating-machinery applications
• Compact 200 × 25 × 120 mm form factor
• Supplied weight of 1.5 kg
• Suitable for applications requiring controlled actuator movement

---

Technical FAQs

What is the Woodward 8405-223?

The Woodward 8405-223 is an Electric Actuator and Drive used to convert electrical control commands into mechanical movement within compatible industrial systems.

What is the main purpose of an electric actuator?

An electric actuator physically moves a connected mechanism according to a command from a control system.

Where can an actuator be used?

Depending on the system design, an actuator can be connected to valves, governor mechanisms, fuel-control systems, linkages, and other industrial positioning equipment.

What are the dimensions?

The supplied dimensions are 200 × 25 × 120 mm.

What is the weight?

The supplied weight is 1.5 kg.

Why is linkage alignment important?

Incorrect linkage geometry can cause restricted travel, incorrect direction, excessive mechanical load, or premature contact with mechanical stops.

What should be checked if the actuator does not move?

Check power, control signal, wiring, connectors, mechanical linkage, mechanical obstruction, and the actuator drive.

Why can an actuator appear to be electrically faulty when the real problem is mechanical?

A binding or overloaded linkage can prevent the actuator from moving even when the electrical command and actuator electronics are functioning correctly.

What should be verified after replacing the actuator?

Verify mounting, linkage alignment, neutral position, direction, travel range, electrical command, mechanical limits, and controlled machine response.

---

Conclusion

The Woodward 8405-223 Electric Actuator and Drive serves as the electromechanical link between an industrial control system and the physical equipment being controlled. By converting electrical commands into controlled mechanical movement, it can support applications involving engines, turbines, generators, valves, governors, and other rotating or process machinery.

Successful installation requires more than simply connecting electrical wiring. Mounting position, linkage geometry, mechanical travel, direction of movement, electrical connections, and control-system configuration must all be verified.

With supplied dimensions of 200 × 25 × 120 mm and a weight of 1.5 kg, the 8405-223 provides a compact actuator format for compatible industrial control applications.
