Product Overview

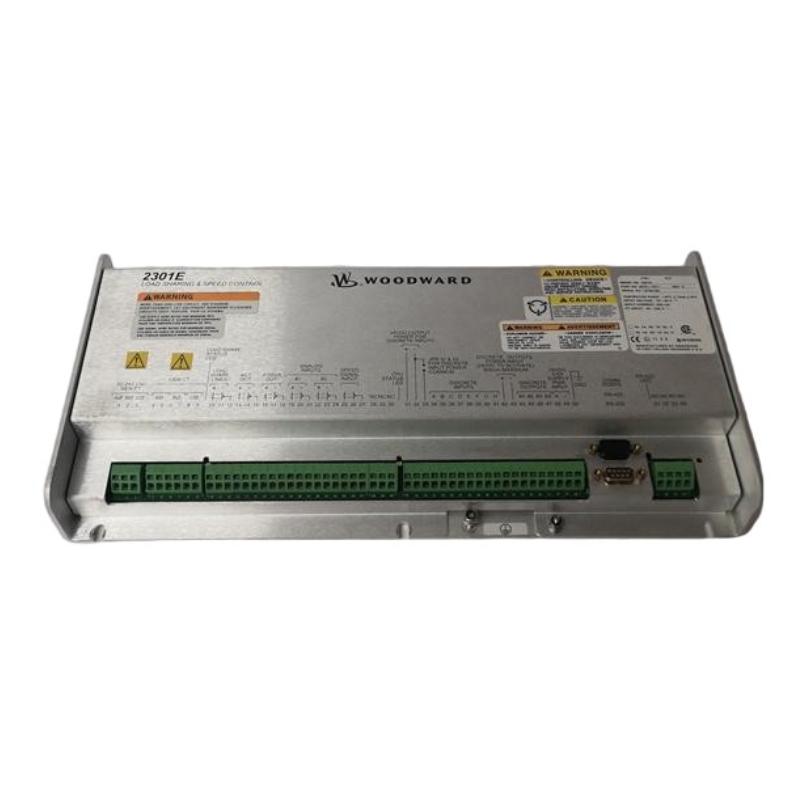

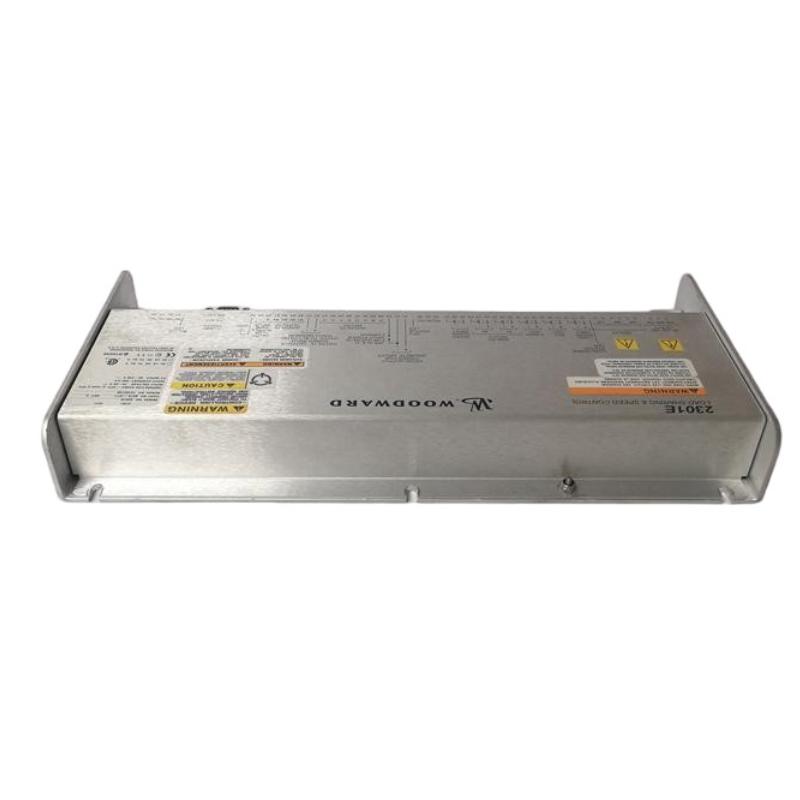

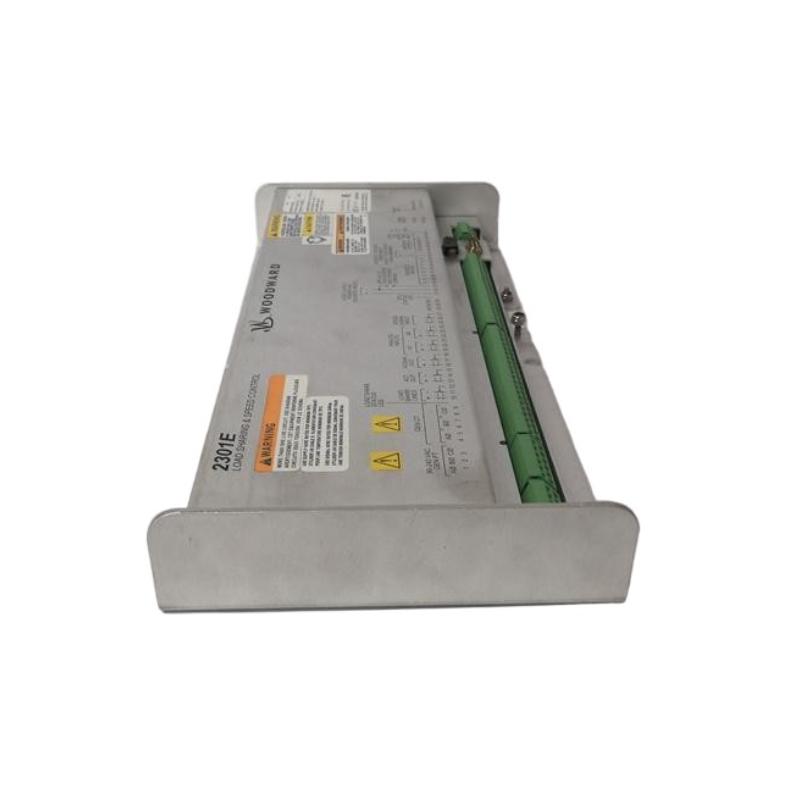

The Woodward 8273-1011 Digital Speed Control Panel is a control-system component intended for applications where engine or turbine speed must be monitored, regulated, and maintained around a defined operating target.
Digital speed control systems are commonly used in engines, turbines, generators, and other rotating machinery where accurate speed regulation is essential for stable operation. A speed-control panel provides the interface between the control system, speed feedback signals, operating commands, and the associated actuator or fuel-control system.
The supplied physical specifications for the Woodward 8273-1011 are 160 × 120 × 35 mm, with a stated weight of 1.51 kg.
Because speed-control equipment can directly influence rotating machinery, installation and commissioning should always be performed according to the actual equipment configuration and approved operating procedures.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Woodward |
| Model | 8273-1011 |
| Product Type | Digital Speed Control Panel |
| Main Function | Digital Speed Regulation and Control |
| Application | Engine / Turbine Control |
| Control Type | Digital |
| Primary Measurement | Rotational Speed |
| Installation | Industrial Control Panel / Cabinet |
| System Function | Speed Monitoring and Regulation |
| Dimensions | 160 × 120 × 35 mm |
| Weight | 1.51 kg |
Function and Working Principle
A digital speed-control system continuously compares the actual rotational speed of the prime mover with the desired speed reference.
A simplified control loop is:
Speed Reference → Digital Speed Controller → Actuator → Engine / Turbine → Speed Feedback → Controller
The basic operating sequence is:
- A speed reference is established.
- A speed-sensing device measures actual shaft speed.
- The controller receives the speed feedback.
- Actual speed is compared with the desired speed.
- The controller calculates the required correction.
- An output command is sent toward the applicable actuator.
- Fuel, steam, or another energy input is adjusted.
- Engine or turbine speed changes.
- The speed feedback is measured again.
This creates a closed-loop control process.
Role in Engine and Turbine Control
Speed regulation is fundamental to many rotating-machine applications.
For generator-driven equipment, maintaining the correct speed can be particularly important because rotational speed is directly associated with generator operating frequency.
For mechanical-drive applications, speed control can also determine:
- Machine output
- Process stability
- Load response
- Overspeed protection coordination
- Operating efficiency
- Equipment synchronization
The Woodward 8273-1011 should therefore be integrated into a complete speed-control architecture rather than treated as an independent display or monitoring device.
Digital Speed Control Architecture
A typical system can be represented as:
Speed Sensor
↓
Speed Signal Conditioning
↓
8273-1011 Digital Speed Control Panel
↓
Control Output
↓
Actuator / Governor
↓
Engine or Turbine
↓
Rotating Shaft
↓
Speed Sensor
The controller continuously processes the feedback signal and adjusts the output according to the programmed control strategy.
Speed Feedback
Accurate speed feedback is essential for stable digital speed control.
Depending on the actual system design, speed information may be obtained from an appropriate rotating-speed sensing device.
Possible speed-feedback problems include:
- Missing pulses
- Weak signal
- Excessive electrical noise
- Incorrect sensor gap
- Damaged sensor wiring
- Loose connections
- Incorrect signal configuration
A faulty speed signal can cause symptoms that appear to originate from the controller even when the controller itself is functioning correctly.
Control Output
The controller’s output is used to influence the prime mover through the appropriate actuator or governor interface.
Depending on the system:
Controller Output → Actuator → Fuel / Steam / Energy Input → Speed Change
The output should be verified carefully during commissioning because incorrect output behavior can produce undesirable engine or turbine responses.
Industrial Applications
The Woodward 8273-1011 can be applied in industrial environments requiring digital speed control, such as:
- Diesel engines
- Gas engines
- Gas turbines
- Steam turbines
- Generator sets
- Mechanical-drive systems
- Industrial rotating machinery
- Power-generation equipment
- Engine-driven compressors
- Pumping systems
The exact application depends on the surrounding Woodward control architecture and machine configuration.
Installation Guide
Step 1 – Verify the Model
Before installation, confirm:
- 8273-1011
- Complete identification marking
- Existing controller configuration
- Control-system compatibility
- Wiring arrangement
- Speed-sensor interface
- Output interface
- Supply requirements
Do not select a replacement solely because it has a similar enclosure or mounting footprint.
Step 2 – Isolate the Equipment
Before installation:
- Stop the engine or turbine.
- Isolate the applicable electrical supply.
- Prevent unintended machine startup.
- Follow site lockout/tagout procedures.
- Isolate associated fuel, steam, or actuator energy where required.
- Verify that the equipment is in a safe maintenance condition.
Because speed-control equipment can command an actuator, preventing unintended startup is particularly important.
Step 3 – Record Existing Connections
Before removing the existing unit:
- Photograph the installation.
- Label conductors.
- Record terminal numbers.
- Document speed-sensor wiring.
- Record power connections.
- Record control-output wiring.
- Note configuration settings.
This documentation should be retained as part of the maintenance record.
Step 4 – Remove the Existing Panel
Disconnect the associated wiring carefully.
Avoid:
- Pulling wires directly
- Damaging terminal blocks
- Mixing signal conductors
- Leaving unmarked wires
- Applying excessive mechanical force
Remove the unit and place it in a protected location.
Step 5 – Inspect the Replacement
Inspect the Woodward 8273-1011 for:
- Damaged terminals
- Cracked housing
- Bent contacts
- Corrosion
- Contamination
- Signs of overheating
- Mechanical damage
Confirm that identification markings correspond to the intended replacement.
Step 6 – Mount the Controller
The supplied dimensions are:
160 × 120 × 35 mm
Ensure that the mounting location provides sufficient clearance for:
- Wiring
- Ventilation
- Connector access
- Maintenance
- Inspection
The supplied weight is 1.51 kg, so the mounting arrangement should provide adequate mechanical support.
Wiring Considerations
A digital speed controller generally requires several categories of connections.
Power
The controller requires an appropriate control-system power supply.
Speed Feedback
The speed sensor must be connected according to the applicable signal configuration.
Control Output
The output interface must be connected to the correct actuator or governor circuit.
Auxiliary Signals
Additional signals may include:
- Start/stop commands
- Enable signals
- Alarm contacts
- Permissives
- Load information
- Remote speed references
The exact wiring should be determined from the equipment’s electrical design.
Commissioning Procedure
Initial Inspection
Before applying power, verify:
- Correct model
- Correct mounting
- Correct wiring
- Correct terminal assignments
- Secure connections
- No short circuits
- Correct sensor wiring
Power-Up Check
After the system has been safely prepared:
- Apply control power.
- Observe controller status.
- Check diagnostic indications.
- Verify speed-feedback availability.
- Confirm that no unexpected output command is active.
Speed-Signal Verification
Verify that the controller receives a stable speed signal.
Check:
- Signal presence
- Signal stability
- Correct speed indication
- Correct response to shaft rotation
If the displayed speed is incorrect, investigate the sensing system before adjusting the controller.
Functional Test
Under controlled operating conditions:
- Start the prime mover.
- Monitor actual speed.
- Compare actual speed with the reference.
- Observe actuator response.
- Check speed stability.
- Verify load response.
- Confirm alarm and shutdown functions.
Any abnormal speed increase should be treated as a potentially serious control-system condition.
Common Failure Symptoms
| Symptom | Possible Cause |
|---|---|
| No speed indication | Sensor, wiring, or power problem |
| Incorrect speed reading | Sensor configuration or signal problem |
| Engine speed oscillates | Control-loop or actuator problem |
| Speed fails to reach setpoint | Output, actuator, or load problem |
| Slow speed response | Control tuning or actuator response |
| Controller does not power up | Supply or internal fault |
| Unexpected output | Configuration or input problem |
| Overspeed tendency | Speed-feedback or control-output problem |
Troubleshooting Guide
Controller Does Not Power Up
Check:
- Control-power supply.
- Input wiring.
- Protective fuses or circuit protection.
- Terminal connections.
- Grounding.
- Controller condition.
Verify the external supply before concluding that the controller has failed.
No Speed Signal
If the controller does not receive speed information:
- Check the speed sensor.
- Inspect sensor wiring.
- Verify sensor installation.
- Check connector condition.
- Inspect signal shielding.
- Verify controller input configuration.
A missing speed signal should be resolved before normal operation is attempted.
Incorrect Speed Reading
If the displayed speed differs significantly from the actual shaft speed:
- Verify the sensor.
- Check the sensor installation.
- Inspect wiring.
- Check signal quality.
- Verify configuration.
- Compare with an independent speed measurement.
Do not adjust control parameters to compensate for an incorrect feedback signal.
Speed Oscillation
Speed hunting or oscillation may be associated with:
- Control-loop tuning
- Unstable speed feedback
- Actuator response
- Fuel-system dynamics
- Load changes
- Mechanical problems
- Incorrect configuration
The feedback signal should be verified first because noisy speed measurement can cause the controller to continuously correct a signal that is not actually changing.
Engine or Turbine Does Not Reach the Setpoint
Possible causes include:
- Insufficient actuator output
- Actuator limitation
- Fuel-system problem
- Excessive mechanical load
- Incorrect speed reference
- Faulty feedback
- Control configuration issue
Check the complete control chain rather than replacing the controller immediately.
Unexpected Speed Increase
An unexpected increase in speed requires immediate attention.
Possible areas for investigation include:
- Speed-feedback failure
- Incorrect controller configuration
- Output wiring
- Actuator malfunction
- Fuel-control problem
- Governor malfunction
The equipment should be returned to a safe condition according to the approved operating and emergency procedures before troubleshooting continues.
Preventive Maintenance
Recommended maintenance activities include:
- Visual inspection
- Terminal inspection
- Power-supply verification
- Speed-sensor inspection
- Wiring inspection
- Connector inspection
- Grounding verification
- Cooling and ventilation inspection
- Review of alarm history
- Speed-trend monitoring
Periodic comparison of actual machine speed with an independent reference can help identify developing measurement problems.
Speed-Sensor Maintenance
Because speed feedback is fundamental to the controller, sensor maintenance should be included in the overall preventive-maintenance program.
Inspect for:
- Loose mounting
- Incorrect sensor position
- Damaged cable
- Poor shielding
- Contaminated sensing area
- Intermittent connections
- Signal degradation
A controller cannot regulate speed reliably if its feedback signal is inaccurate or intermittent.
System Integration
The Woodward 8273-1011 should be evaluated as part of the complete speed-control loop.
| Component | Typical Function |
|---|---|
| Speed Sensor | Measures shaft speed |
| Signal Wiring | Transmits speed information |
| 8273-1011 | Processes speed-control information |
| Actuator / Governor | Converts controller output into mechanical control |
| Fuel / Steam System | Provides prime-mover energy |
| Engine / Turbine | Produces rotational motion |
| Load | Determines operating demand |
| Protection System | Responds to abnormal conditions |
A fault anywhere in this chain can affect observed speed-control performance.
Replacement Considerations
Before replacing the 8273-1011, document:
- Model number
- Wiring configuration
- Speed-sensor type
- Power-supply arrangement
- Control-output wiring
- Operating setpoints
- Alarm conditions
- Existing fault symptoms
- Associated actuator or governor
After installation, verify the entire control loop rather than simply confirming that the panel powers on.
Key Advantages
- Designed for digital speed-control applications
- Provides a dedicated interface for rotational-speed regulation
- Suitable for engine and turbine systems
- Supports closed-loop speed-control architecture
- Can integrate speed feedback with control outputs
- Compact 160 × 120 × 35 mm form factor
- Supplied weight of 1.51 kg
- Suitable for industrial control and power-generation environments
Technical FAQs
What is the Woodward 8273-1011?
The Woodward 8273-1011 is a Digital Speed Control Panel intended for industrial rotating-machine control applications.
What is its primary function?
Its primary function is to process speed information and generate appropriate control actions to help maintain the desired operating speed.
Why is speed feedback important?
The controller needs accurate actual-speed information to compare machine speed against the desired reference and determine whether corrective action is required.
What can cause an incorrect speed reading?
Potential causes include speed-sensor problems, wiring faults, poor signal quality, incorrect configuration, or problems within the sensing interface.
What are the dimensions?
The supplied dimensions are 160 × 120 × 35 mm.
What is the weight?
The supplied weight is 1.51 kg.
Why can a speed controller cause oscillation?
An unstable feedback signal, inappropriate control settings, actuator response, load changes, or mechanical dynamics can cause the control loop to repeatedly increase and decrease its output.
Should the controller be replaced when the engine speed is unstable?
Not immediately. The speed sensor, feedback wiring, actuator, fuel system, load, and controller configuration should be checked systematically.
What should be checked after replacement?
Verify power, speed feedback, output wiring, setpoint behavior, actuator response, speed stability, alarms, and the complete operating sequence.
Conclusion
The Woodward 8273-1011 Digital Speed Control Panel is a compact control component for applications requiring reliable regulation of engine or turbine rotational speed. Its position within the closed-loop control system makes accurate speed feedback, appropriate output control, and correct configuration essential to stable operation.
Installation should focus on safe equipment isolation, accurate wiring documentation, correct speed-sensor connections, secure mounting, and controlled commissioning. Troubleshooting should follow the complete path from the speed sensor through the controller and actuator to the engine or turbine rather than assuming that every speed-control problem originates inside the panel.
With supplied dimensions of 160 × 120 × 35 mm and a weight of 1.51 kg, the 8273-1011 is well suited to compact industrial control installations where precise digital speed regulation is required.
