- Woodward
- 8235-650
- Actuator
- USA
- 290 × 60 × 190 mm
- 2.8 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 29
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

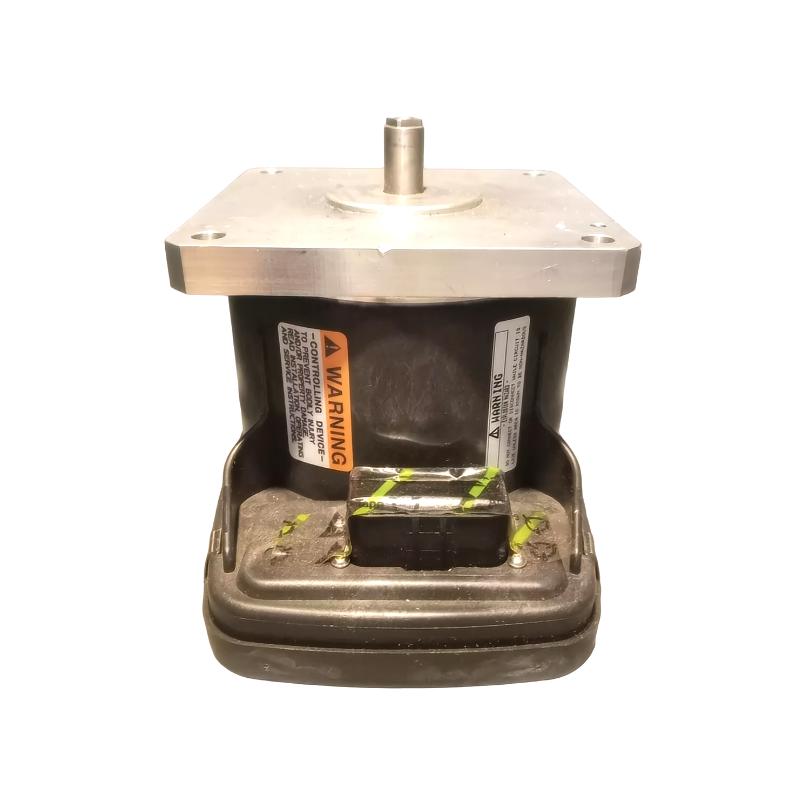

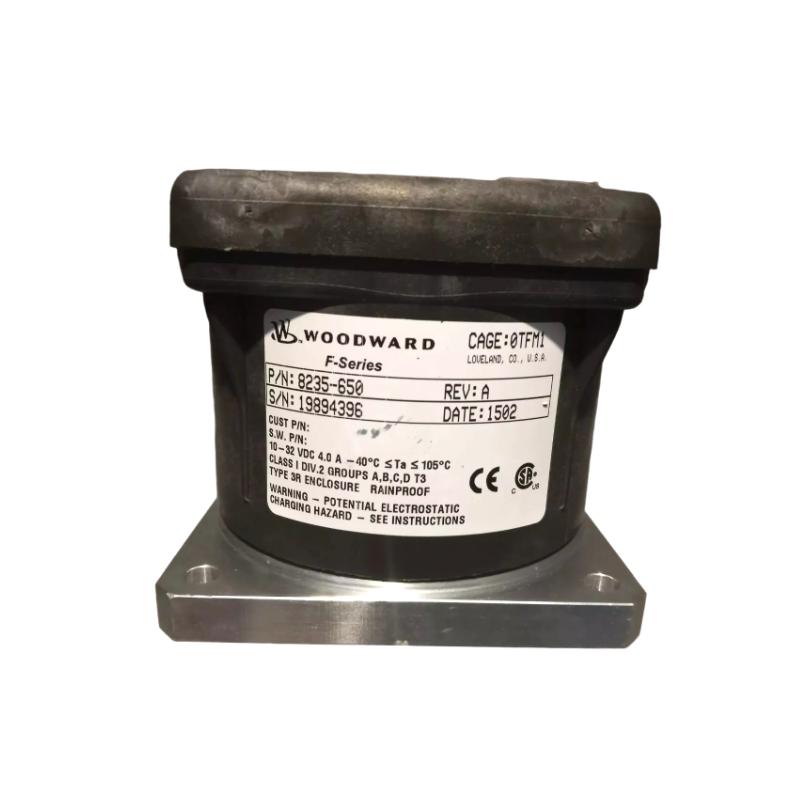

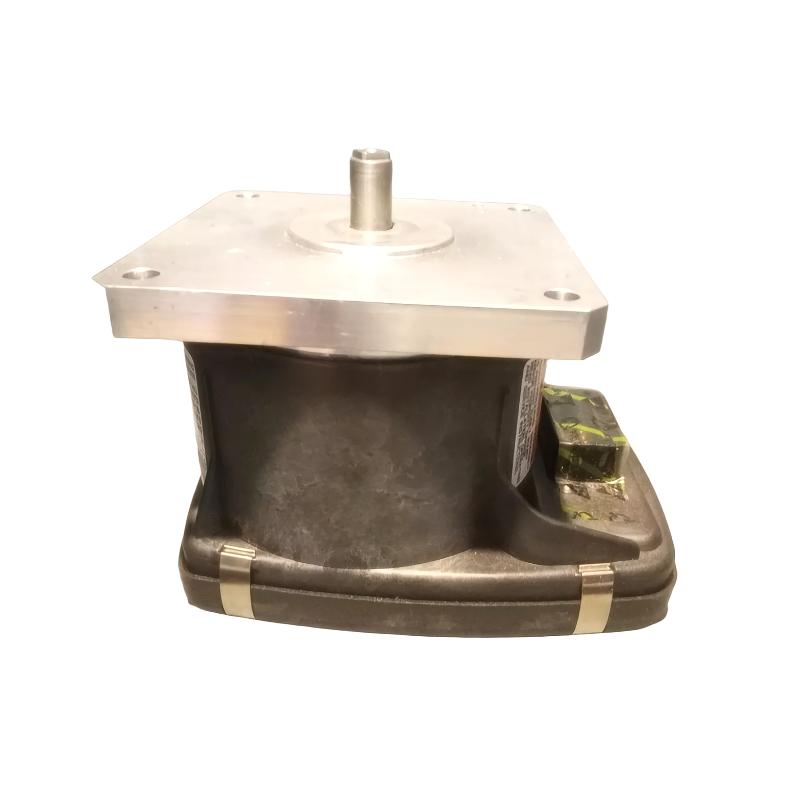

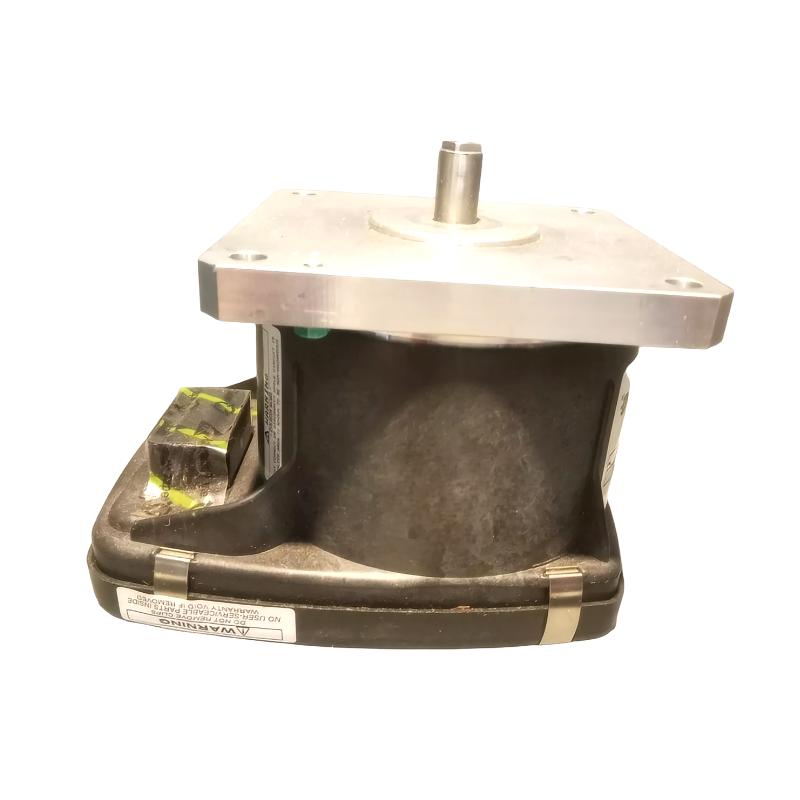

The Woodward 8235-650 Actuator is an industrial actuator used to convert a control signal into mechanical movement. In turbine, engine, and other rotating-equipment control systems, the actuator is typically connected to a control valve, fuel mechanism, linkage, or other regulating mechanism.
The actuator works together with a controller and position-feedback system to move the controlled mechanism to the required position. Its application depends on the specific Woodward control architecture and the mechanical interface of the equipment.
Technical Specifications
Product Features
- Woodward industrial actuator
- Converts control commands into mechanical movement
- Suitable for turbine and engine control applications
- Can be integrated with servo or position-control systems
- Suitable for controlling mechanical regulating mechanisms
- Compact actuator construction
- Dimensions: 290 × 60 × 190 mm
- Weight: 2.8 kg
Working Principle
The 8235-650 functions as the final actuation element in a control loop.
A typical arrangement is:
Controller → Actuator → Mechanical Linkage / Valve
with position feedback returning to the control system:
Actuator Position → Feedback Device → Controller
When the controller determines that the controlled mechanism needs to move, it sends the appropriate command to the actuator. The actuator converts this command into mechanical movement, adjusting the connected valve, linkage, or regulating mechanism.
In a closed-loop system, position feedback allows the controller to compare the commanded position with the actual position and make corrections when necessary.
Industrial Applications
| Application | Typical Use |
|---|---|
| Steam Turbines | Valve or governing mechanism actuation |
| Gas Turbines | Fuel or control mechanism positioning |
| Engine Control | Mechanical actuator operation |
| Power Generation | Turbine governing systems |
| Industrial Turbomachinery | Control-element positioning |
| Compressor Systems | Actuation of regulating mechanisms |
| Process Equipment | Mechanical control-element movement |
| Engine Test Systems | Actuator-driven control functions |
Compatible System Components
| Component | Function |
|---|---|
| Woodward 8235-650 | Converts control commands into mechanical movement |
| Servo Position Controller | Generates actuator-position commands |
| Position Feedback Device | Measures actuator position |
| Turbine / Engine Controller | Determines required control position |
| Control Valve / Linkage | Receives actuator movement |
| Power Supply | Provides actuator operating power |
| Field Wiring | Carries control and feedback signals |
The exact controller, feedback device, and mechanical linkage should be matched to the specific application.
Installation and Maintenance
The 8235-650 should be mechanically mounted according to the equipment arrangement and connected to the appropriate control and feedback system.
Mechanical alignment is particularly important for an actuator because excessive linkage resistance or incorrect travel can affect positioning accuracy.
Recommended checks include:
- Confirm the complete 8235-650 model number.
- Verify compatibility with the associated Woodward control system.
- Check the mechanical mounting arrangement.
- Inspect the actuator linkage for binding or excessive play.
- Verify control and power connections.
- Check position-feedback connections where applicable.
- Confirm the actuator’s direction of movement.
- Verify the available mechanical travel.
- Test movement through the required operating range.
- Inspect mounting hardware and mechanical connections during maintenance.
If the actuator fails to reach the commanded position, check the control signal, power supply, feedback circuit, mechanical linkage, and actuator mounting before replacing the unit.
Recommended Related Models
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Woodward 8235-650 | Actuator | Mechanical actuation | Turbine / engine control |
| Woodward 8200-226 | Servo Position Controller | Servo position regulation | Turbine / engine control |
| Woodward 8200-188 | Digital Valve Positioner | Valve positioning | Industrial control |
| Woodward 8200-182 | Turbine Driver Module | Turbine control | Turbomachinery |
| Woodward 8200-1311 | Digital Governor Module | Governor control | Engine / turbine systems |
| Woodward 8200-1508 | Digital Control Module | Digital control | Industrial control |
For replacement applications, verify the actuator model, mechanical interface, control-signal requirements, travel requirements, feedback arrangement, and complete Woodward system configuration.
Key Advantages
- Converts control signals into mechanical movement
- Suitable for turbine and engine control
- Can operate as part of a closed-loop positioning system
- Suitable for valve and mechanical-linkage actuation
- Integrates with Woodward control architectures
- Compact industrial actuator format
- Dimensions of 290 × 60 × 190 mm
- Stated weight of 2.8 kg
Technical FAQs
What is the Woodward 8235-650 used for?
The 8235-650 is an actuator used to convert a control-system command into mechanical movement for turbine, engine, and other industrial control applications.
What equipment can the 8235-650 operate?
Depending on the specific installation, an actuator of this type can be mechanically connected to a control valve, governing mechanism, fuel-control mechanism, or other regulating linkage.
Does the actuator work with a servo position controller?
It can form part of a servo-control loop in which a controller generates the position command and the actuator produces the corresponding mechanical movement. Exact compatibility must be confirmed for the particular system configuration.
What should be checked before replacing an 8235-650?
Check the complete model number, mechanical mounting, linkage arrangement, required travel, control interface, power requirements, feedback configuration, and compatibility with the associated Woodward controller.
