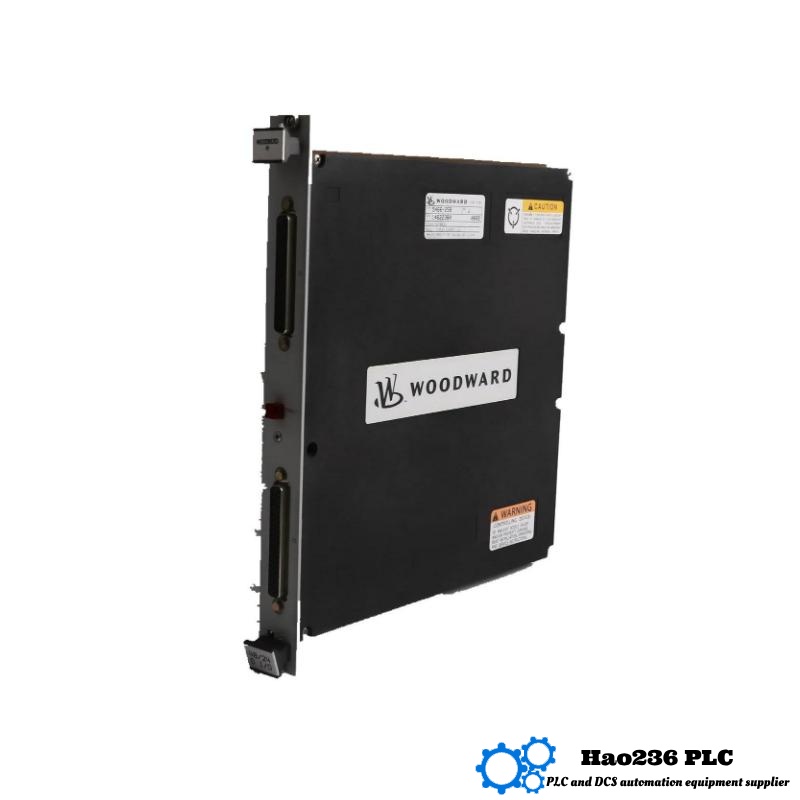

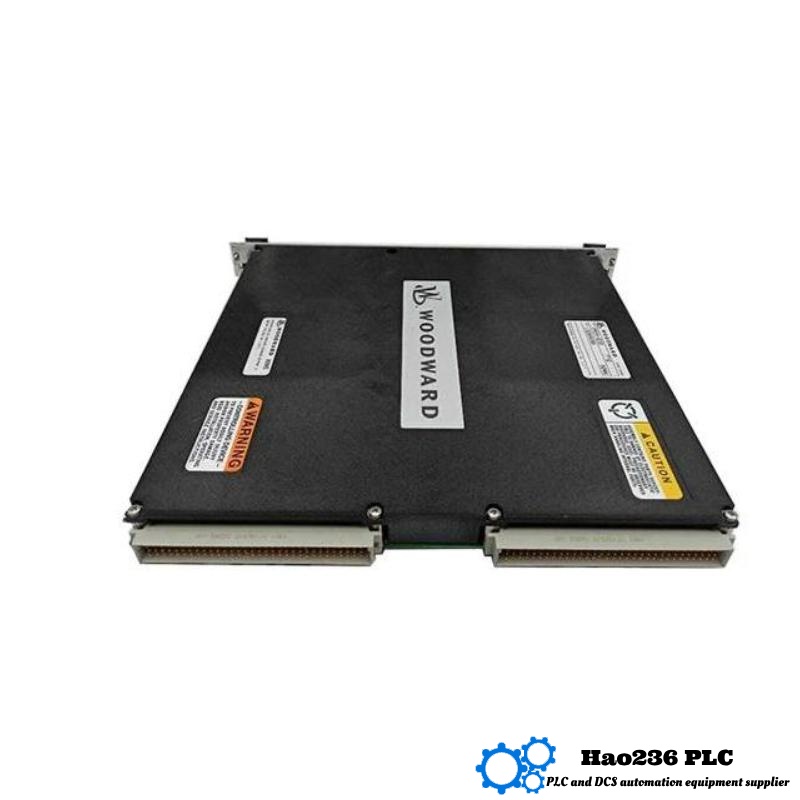

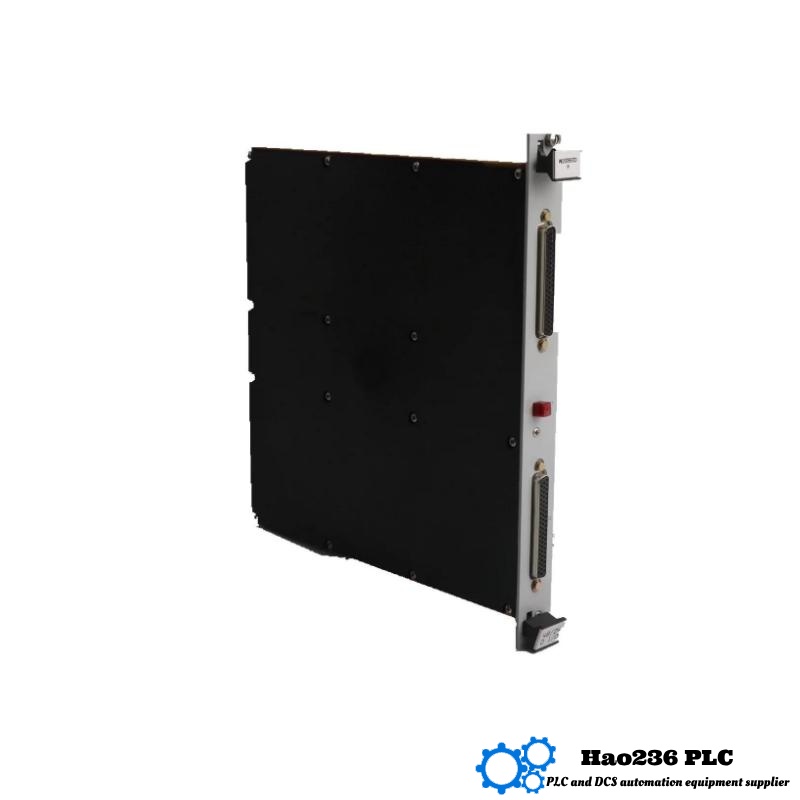

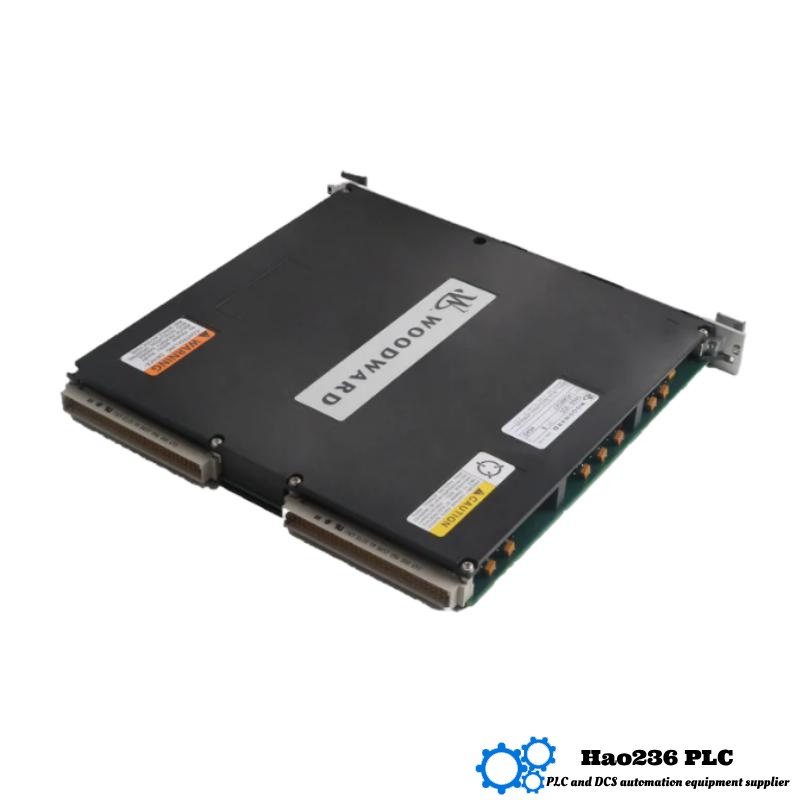

Woodward 5503-198 Actuator Controller
Product Introduction
The Woodward 5503-198 actuator controller is a precision control unit designed to manage engine actuators with high reliability and accuracy. This controller belongs to the Woodward family of engine management solutions, which have been trusted for decades in power generation, marine propulsion, and industrial engine applications.
The 5503-198 provides precise position control for fuel and throttle actuators, ensuring optimal engine performance, efficiency, and emissions control. It supports multiple input and output signals, offers robust diagnostics, and integrates smoothly with Woodward’s broader control system architecture.
Built with rugged industrial-grade components, the 5503-198 excels in harsh environments, including high vibration, extreme temperatures, and challenging industrial atmospheres. This durability ensures consistent performance for critical engine control tasks, making it a favored choice for OEMs and end users alike.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | 5503-198 |
| Product Type | Actuator Controller |
| Control Type | Position Control |
| Input Signal | 4-20 mA, 0-5 V, or potentiometer feedback |
| Output Signal | PWM / Analog voltage output |
| Supply Voltage | 24 VDC |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 160 × 120 × 70 mm |
| Weight | 1.3 kg |
| Mounting | Panel Mount / DIN Rail |
| Communication | Modbus RTU (optional) |
| Environmental Rating | IP65 |
Product Applications
The Woodward 5503-198 actuator controller is widely used in applications requiring precise control of engine actuators:
-
Power Generation: Controls fuel and air actuators on diesel and gas engines to optimize power output and fuel efficiency.
-
Marine Propulsion: Used in marine engines for throttle and fuel control, ensuring smooth operation and compliance with emission regulations.
-
Industrial Engines: Controls actuator position in compressors, pumps, and other industrial engines requiring stable and responsive control.
-
Oil & Gas: Provides reliable actuator control in remote and harsh environments, such as drilling rigs and pipeline compressor stations.
-
Generator Sets: Enables seamless integration with generator controllers to maintain stable speed and load conditions.
Product Advantages
-
High Precision Control: The 5503-198 delivers accurate positioning of actuators, enhancing engine performance and reducing fuel consumption.
-
Robust Construction: Designed for tough industrial conditions with vibration resistance and wide temperature tolerance.
-
Flexible Inputs/Outputs: Supports various signal types for easy integration with existing engine sensors and control systems.
-
Built-in Diagnostics: Enables real-time monitoring and fault detection, facilitating proactive maintenance and minimizing downtime.
-
Easy Integration: Compatible with Woodward’s broader engine control ecosystem, including controllers, displays, and communication protocols.
-
User-Friendly Interface: Simple configuration and calibration tools reduce commissioning time and complexity.
Brand Overview: Woodward
Woodward is a globally respected brand known for its innovative and reliable control solutions in the energy, aerospace, and industrial sectors. With over a century of expertise, Woodward products like the 5503-198 actuator controller are synonymous with precision, durability, and technological leadership. The company focuses on delivering solutions that improve efficiency, safety, and sustainability in engine and turbine control.
Recommended Related Models (Same Series or Related)
| Model Number | Control Type | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|
| 5503-180 | Position Control | 150 × 110 × 65 | 1.2 | Compact design, basic features |
| 5503-195 | Position Control | 160 × 120 × 70 | 1.25 | Enhanced diagnostics |
| 5503-199 | Position Control | 160 × 120 × 70 | 1.3 | Modbus communication |
| 5503-170 | Speed Control | 140 × 100 × 60 | 1.1 | For speed-based actuation |
| 5503-185 | Position Control | 150 × 110 × 65 | 1.2 | Basic actuator control |
Popular Woodward Models
| Model Number | Type | Dimensions (mm) | Weight (kg) | Description |
|---|---|---|---|---|
| 2301-810 | Engine Governor | 210 × 150 × 80 | 2.5 | Classic mechanical governor |
| 545-130 | Digital Fuel Controller | 180 × 130 × 70 | 1.8 | Integrated fuel control module |
| 505-169 | Actuator Positioner | 150 × 110 × 60 | 1.2 | Analog actuator position control |
| 2300-999 | Load Sharing Controller | 220 × 160 × 90 | 3.0 | Parallel generator load sharing |
| 3100-940 | Turbine Control | 240 × 180 × 100 | 4.0 | Advanced turbine management |
Frequently Asked Questions (FAQ)
Q1: What type of actuators can the 5503-198 control?
A1: It is designed to control position actuators for fuel, throttle, or air systems on diesel, gas, or industrial engines.
Q2: What input signals does it accept?
A2: The controller supports 4-20 mA, 0-5 V analog signals, and potentiometer feedback for actuator position sensing.
Q3: Can the controller communicate with other systems?
A3: Yes, an optional Modbus RTU communication interface is available for integration with supervisory systems.
Q4: What is the environmental rating of the 5503-198?
A4: It has an IP65 rating, making it suitable for dusty and wet industrial environments.
Q5: How does the controller handle faults?
A5: It includes built-in diagnostics to detect faults in the actuator or control loop and can trigger alarms or safe shutdown.
Q6: Is the controller suitable for marine applications?
A6: Yes, it is designed to withstand marine environments and is widely used in propulsion engine control.
Q7: What power supply does it require?
A7: It operates on a 24 VDC power supply, common in industrial control systems.
Q8: How precise is the actuator positioning?
A8: The controller provides high accuracy with precise PWM or analog voltage outputs for fine actuator control.
Q9: Is the unit easy to install?
A9: Yes, it features panel mount or DIN rail options, and configuration tools simplify setup.
Q10: Can it be used for speed control?
A10: The 5503-198 is primarily for position control; Woodward offers other models specialized for speed control.
