Product Overview

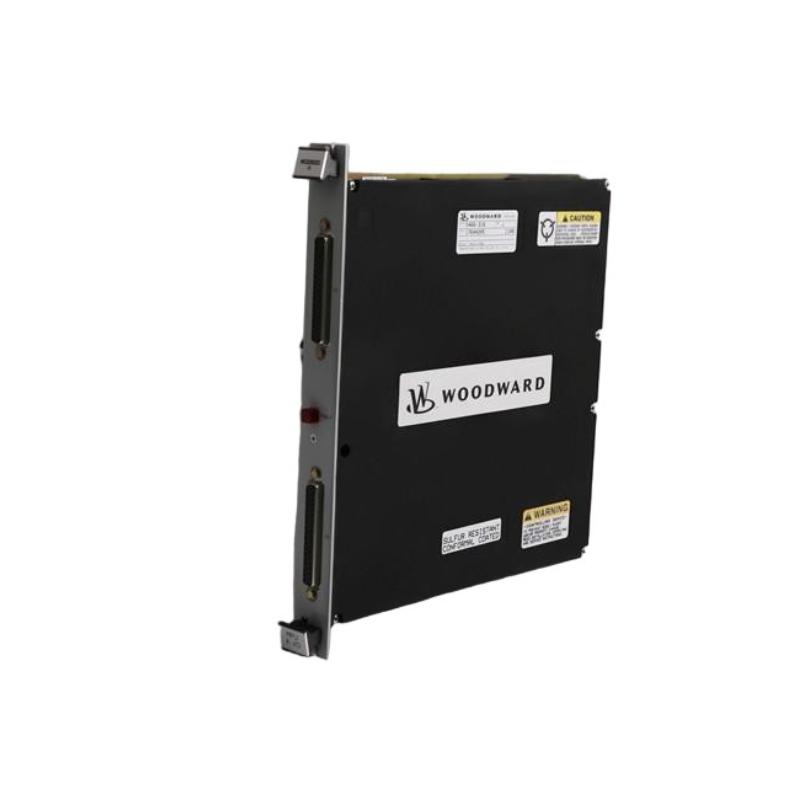

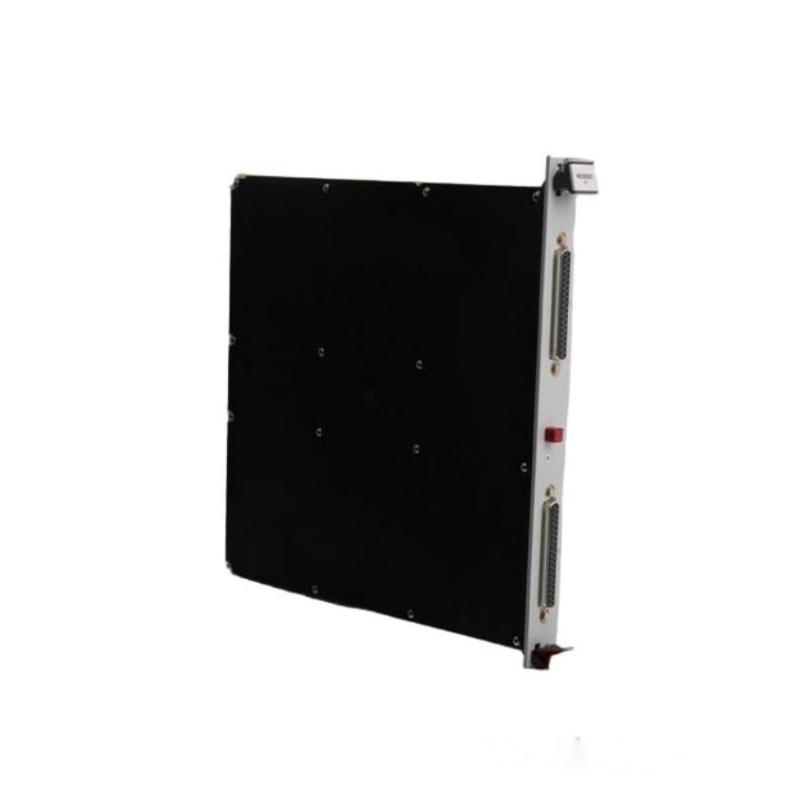

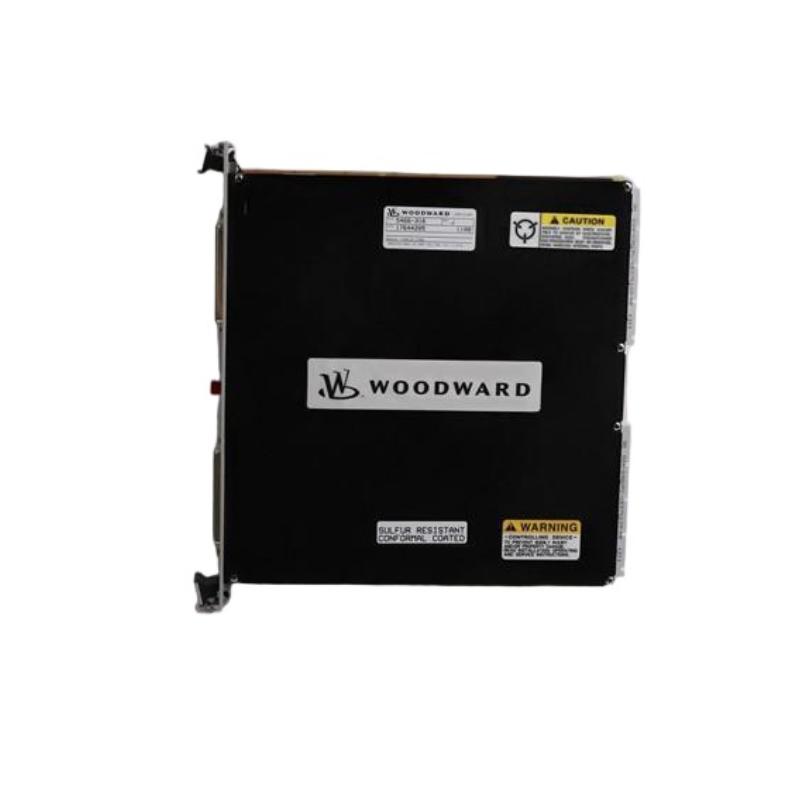

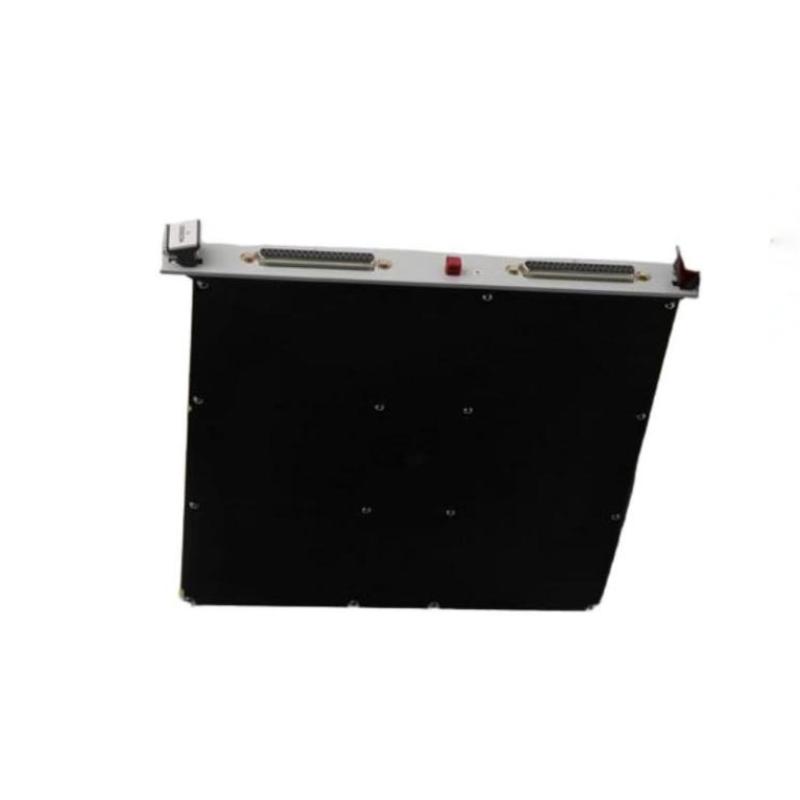

The Woodward 5466-316 Simulation Combination Module is a high-density analog combination I/O module designed for the Woodward MicroNet Digital Control System. It integrates multiple field interface functions into a single module, including analog inputs, analog outputs, speed sensor inputs, and proportional actuator outputs, making it ideal for turbine, compressor, and process control applications.
The 5466-316 is primarily intended for simplex MicroNet systems and retrofit installations, providing a compact and efficient solution for complex control applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Woodward |
| Model | 5466-316 |
| Product Type | Simulation Combination Module |
| System Compatibility | Woodward MicroNet Digital Control System |
| Function | High-density analog combination I/O module |
| Analog Inputs | 8 channels |
| Analog Outputs | 4 channels |
| Speed Inputs | 4 channels |
| Proportional Actuator Outputs | 2 channels |
| Analog Input Type | 4–20 mA or 0–5 V (depending on module configuration) |
| Speed Input Type | Magnetic pickup (MPU) or proximity probe |
| Installation Type | Plug-in chassis module |
| Dimensions | 245 × 25 × 261 mm |
| Weight | 0.85 kg |
Function and Working Principle
The 5466-316 combines several control functions into one integrated module, allowing efficient communication between field devices and the MicroNet controller.
Its primary functions include:
- Acquiring analog process signals from transmitters and sensors
- Receiving speed signals from magnetic pickup or proximity sensors
- Providing analog output signals for process control
- Driving proportional actuators for valve positioning
- Processing field data in real time for closed-loop control
- Transferring I/O information to the controller through the system backplane
By integrating multiple I/O functions into a single module, the 5466-316 simplifies system design and reduces hardware requirements.
Role in Industrial Control Systems
Within the MicroNet control platform, the 5466-316 is responsible for:
- Monitoring analog process variables
- Collecting turbine and compressor speed feedback
- Controlling proportional actuators
- Supporting precise closed-loop process regulation
- Reducing cabinet space through integrated I/O functionality
- Improving overall system efficiency and maintainability
Industrial Applications
The 5466-316 is widely used in:
- Steam turbine control systems
- Gas turbine automation
- Compressor control systems
- Power generation facilities
- Oil and gas processing plants
- Petrochemical production
- Pipeline compressor stations
- Industrial process automation
- Energy management systems
Installation and System Integration
For proper installation:
- Install the module in a compatible MicroNet chassis
- Connect analog transmitters to the analog input channels
- Wire speed sensors to the designated speed input terminals
- Connect proportional actuators to the output channels
- Configure channel parameters using the engineering software
- Perform functional verification during system commissioning
Compatible System Components
The 5466-316 typically operates with:
- Woodward MicroNet controller chassis
- Digital Control Modules
- Power supply modules
- Analog and digital I/O modules
- Communication interface modules
- Field Terminal Modules (FTMs)
- Human-Machine Interface (HMI) systems
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| 5466-316 | Simulation Combination Module | Integrated analog, speed, and actuator I/O | Simplex MicroNet systems |
| 5466-253 | Simulation Combination Module | TMR version with integrated I/O | MicroNet TMR systems |
| 5466-1115 | Speed/Analog Combination Module | Enhanced speed and analog processing | Modern MicroNet platforms |
| 5466-257 | High-Density Analog I/O Module | High-capacity analog signal interface | Industrial process control |
Key Advantages
- Integrates multiple I/O functions into a single module
- Supports analog inputs, analog outputs, speed inputs, and actuator outputs
- Reduces cabinet space and system wiring
- Provides fast and accurate signal processing
- Supports reliable closed-loop control
- Designed for continuous industrial operation
- Simplifies maintenance and system expansion
- Rugged construction for demanding industrial environments
Technical FAQs
What is the primary function of the 5466-316?
It combines analog inputs, analog outputs, speed inputs, and proportional actuator outputs into a single module for industrial control applications.
Which control platform uses this module?
It is designed for the Woodward MicroNet Digital Control System, particularly simplex configurations.
Can the module process both analog and speed signals?
Yes. It supports analog signal acquisition, speed sensing, analog output control, and proportional actuator control within one integrated module.
What industries commonly use this module?
It is widely used in steam and gas turbine control, compressor automation, power generation, oil and gas, and petrochemical process control.
Conclusion
The Woodward 5466-316 Simulation Combination Module is a versatile high-density I/O solution for the Woodward MicroNet platform. By integrating analog inputs, analog outputs, speed inputs, and proportional actuator outputs into a single module, it delivers efficient system integration, reliable real-time control, and excellent performance for demanding industrial automation, turbine control, and process control applications.
