Product Overview

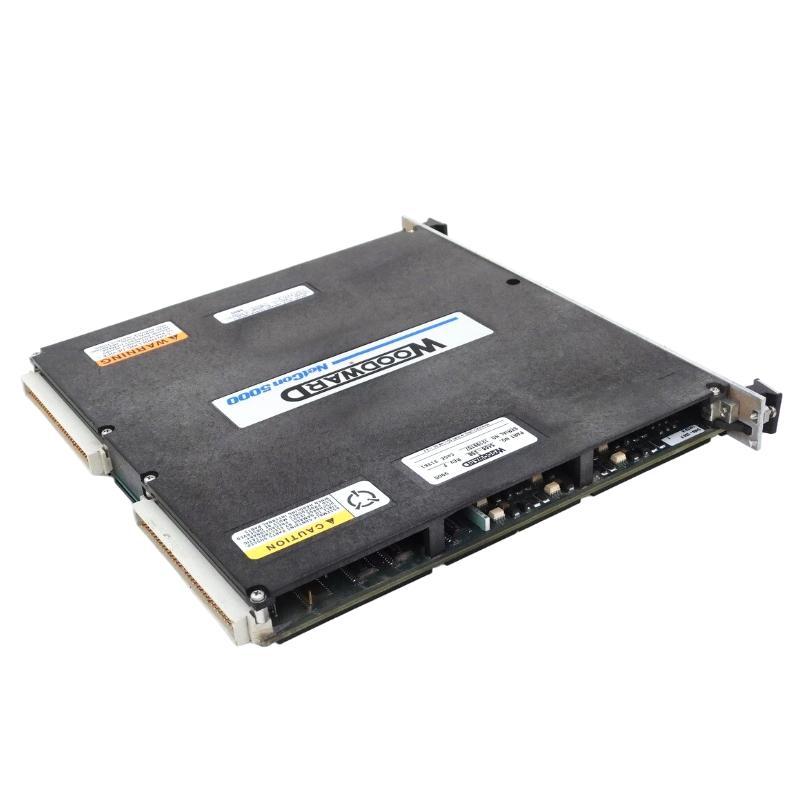

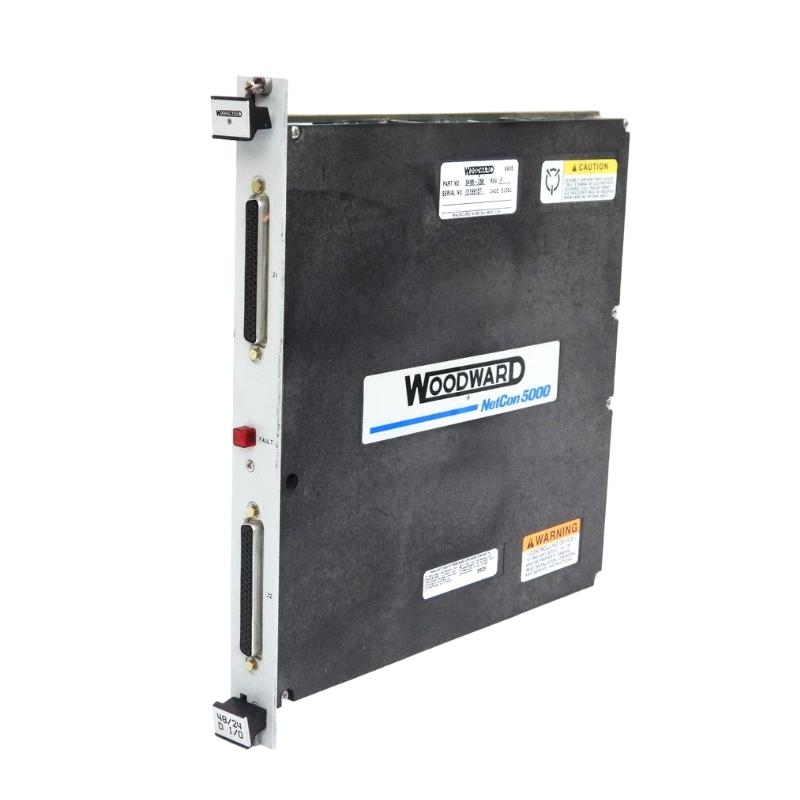

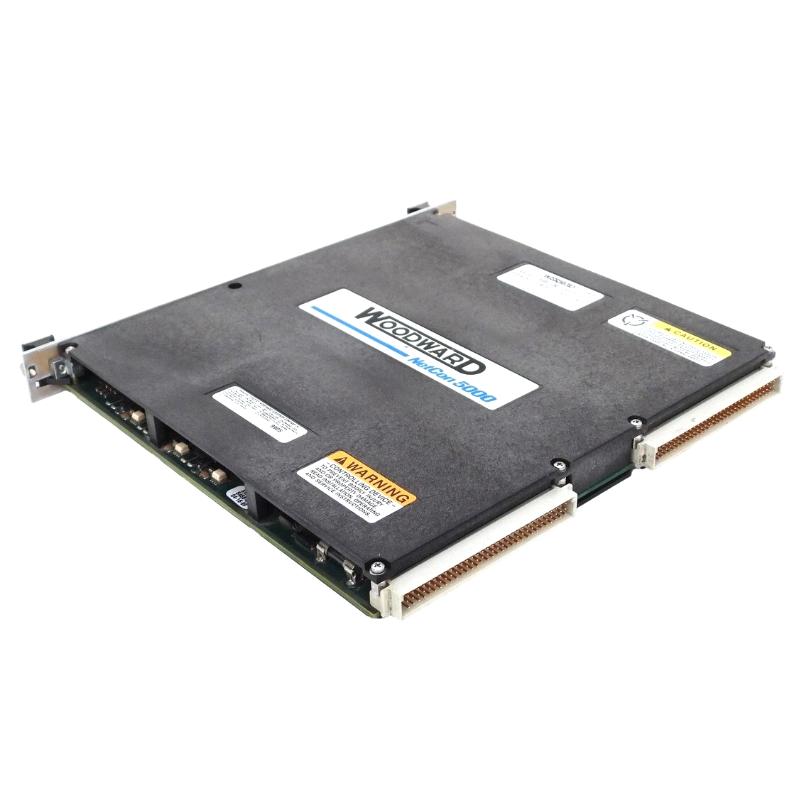

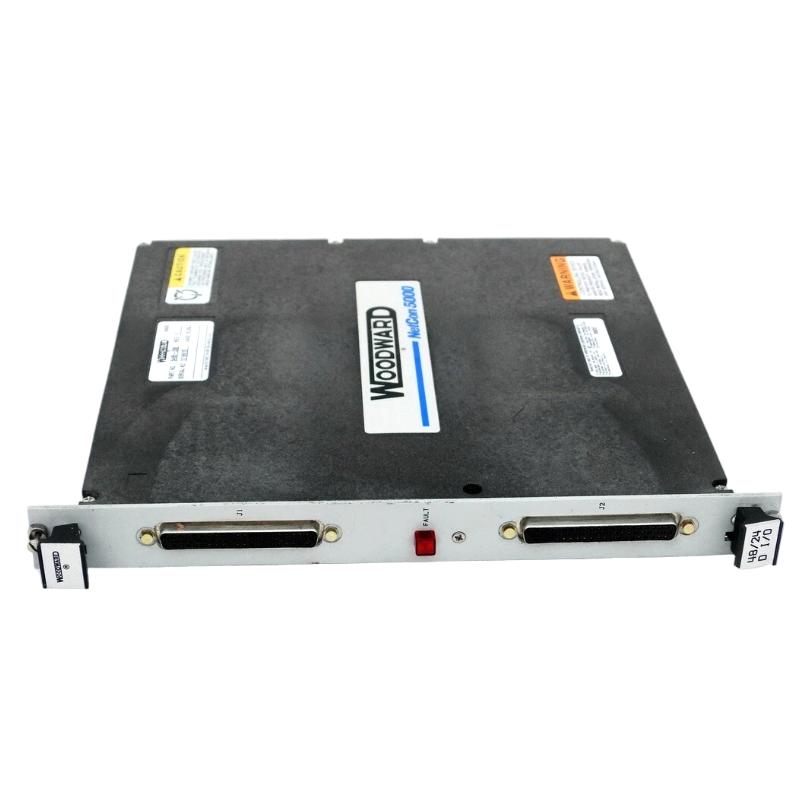

The Woodward 5466-258M High-Density Discrete I/O Module is a digital input/output interface module designed for the Woodward MicroNet Digital Control System, including MicroNet Plus and Vertex-Pro platforms. It provides high-density discrete signal processing, enabling reliable communication between field devices and the controller in critical industrial automation applications.
The 5466-258M is a simplex discrete I/O module that supports fast digital signal acquisition and output control, making it suitable for turbine, compressor, engine, and process control systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Woodward |
| Model | 5466-258M |
| Product Type | High-Density Discrete I/O Module |
| System Compatibility | Woodward MicroNet / MicroNet Plus / Vertex-Pro |
| Function | Digital input and output interface |
| Configuration | Simplex I/O Module |
| Discrete Inputs | 48 channels |
| Discrete Outputs | 24 channels |
| Input Voltage | 18–32 VDC |
| Power Supply | 24 VDC |
| Installation Type | Plug-in chassis module |
| Dimensions | 265 × 120 × 45 mm |
| Weight | 0.86 kg |
Function and Working Principle
The 5466-258M functions as the interface between field-mounted digital devices and the MicroNet controller.
Its primary functions include:
- Monitoring digital input signals from switches, relays, and sensors
- Controlling digital output devices such as relays, solenoids, and contactors
- Processing discrete signals in real time
- Providing electrical isolation to improve signal reliability
- Transmitting I/O status to the controller through the system backplane
- Supporting high-speed machine sequencing and control logic
The module enables rapid and reliable digital communication for industrial control applications.
Role in Industrial Control Systems
Within the MicroNet platform, the 5466-258M is responsible for:
- Monitoring equipment operating status
- Executing digital control commands
- Supporting equipment interlocks and protection logic
- Improving system response speed
- Reducing wiring requirements through high-density I/O integration
- Enhancing system reliability in continuous industrial operation
Industrial Applications
The 5466-258M is commonly used in:
- Gas turbine control systems
- Steam turbine automation
- Compressor control systems
- Power generation facilities
- Oil and gas production
- Petrochemical processing plants
- Pipeline compressor stations
- Industrial process automation
- Manufacturing control systems
Installation and System Integration
For proper installation:
- Install the module in a compatible MicroNet or Vertex-Pro chassis
- Secure the module using the retaining screws
- Connect field wiring through the appropriate Field Terminal Module (FTM)
- Verify the 24 VDC power supply before startup
- Configure I/O assignments using the engineering software
- Perform functional testing during system commissioning
Compatible System Components
The 5466-258M typically operates with:
- Woodward MicroNet controller chassis
- Woodward MicroNet Plus systems
- Vertex-Pro control platforms
- Digital Control Modules
- Analog I/O modules
- Power supply modules
- Communication interface modules
- Field Terminal Modules (FTMs)
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| 5466-258M | High-Density Discrete I/O Module | 48 digital inputs and 24 digital outputs | MicroNet and Vertex-Pro systems |
| 5466-258 | High-Density Discrete I/O Module | Standard simplex digital I/O | Industrial automation |
| 5466-257 | High-Density Analog I/O Module | Analog signal acquisition and control | Process control |
| 5466-1145 | Digital Control Module | Real-time control processor | Turbine and compressor control |
Key Advantages
- High-density digital I/O configuration
- Supports 48 discrete inputs and 24 discrete outputs
- Fast real-time signal processing
- Compact design reduces cabinet space
- High reliability for continuous industrial operation
- Easy integration with MicroNet control systems
- Simplifies wiring and system expansion
- Rugged industrial construction for harsh environments
Technical FAQs
What is the primary function of the 5466-258M?
It provides high-density discrete input and output processing for Woodward MicroNet and Vertex-Pro control systems.
How many I/O channels are available?
The module supports 48 discrete input channels and 24 discrete output channels.
Is the 5466-258M a simplex or redundant module?
The 5466-258M is a simplex discrete I/O module designed for compatible MicroNet control architectures.
What industries commonly use this module?
It is widely used in power generation, turbine control, compressor automation, oil and gas, petrochemical processing, and other industrial control applications.
Conclusion
The Woodward 5466-258M High-Density Discrete I/O Module is a reliable digital interface solution for the Woodward MicroNet platform. With its high channel density, fast discrete signal processing, and robust industrial design, it provides efficient monitoring and control of field devices, making it an excellent choice for demanding automation, turbine, and process control applications.
