Product Overview

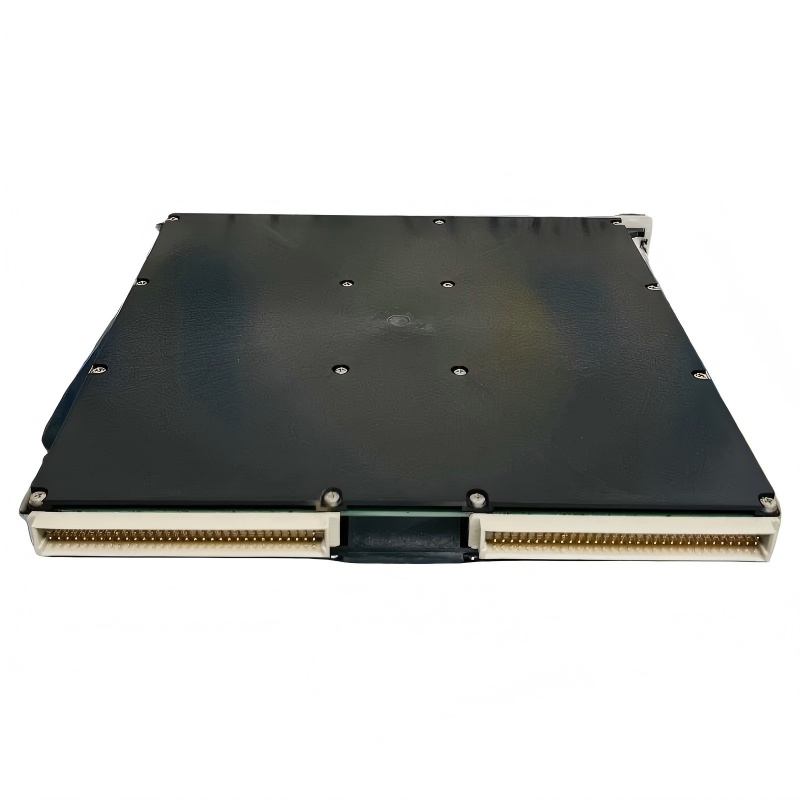

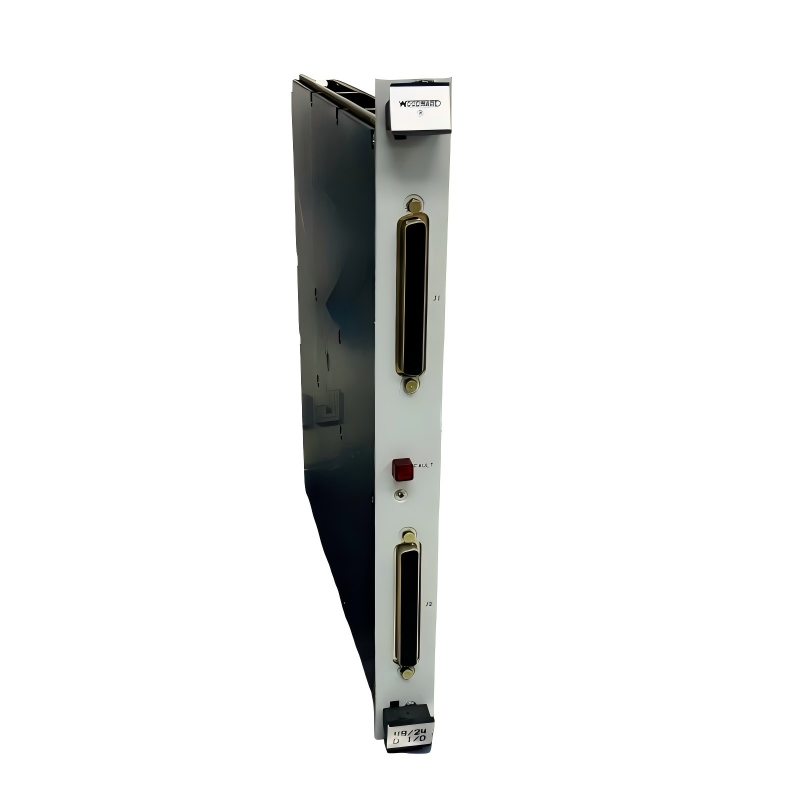

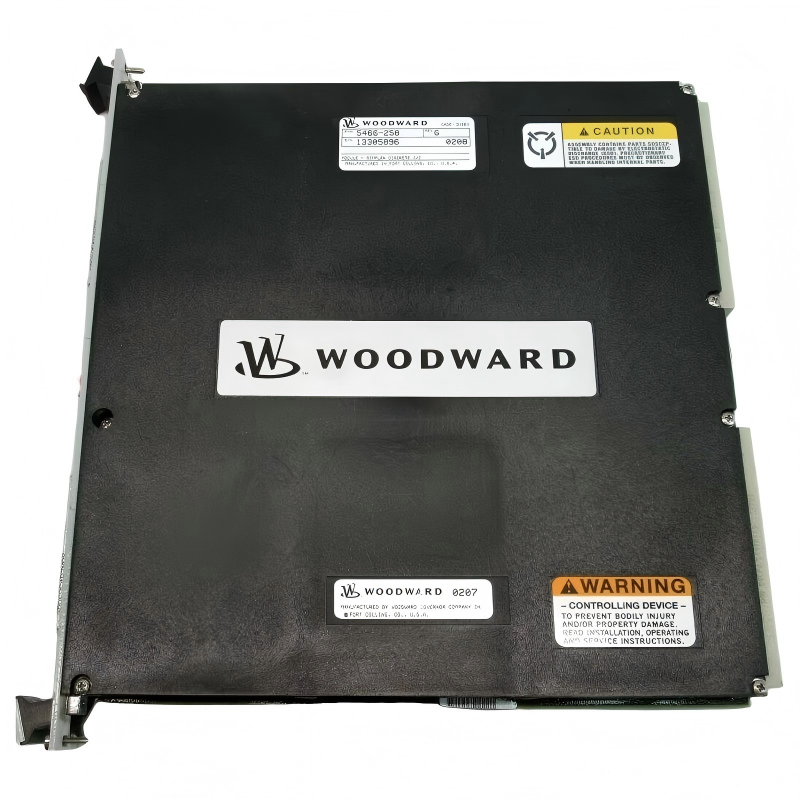

The Woodward 5466-258 High-Density Discrete I/O Module is a digital input/output interface module designed for the Woodward MicroNet Digital Control System, including MicroNet Plus and compatible Vertex-Pro platforms. It provides high-density discrete signal acquisition and output control for industrial automation systems, enabling reliable communication between field devices and the central controller.
The module is engineered for applications requiring fast digital signal processing, high channel density, and dependable operation in demanding industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Woodward |

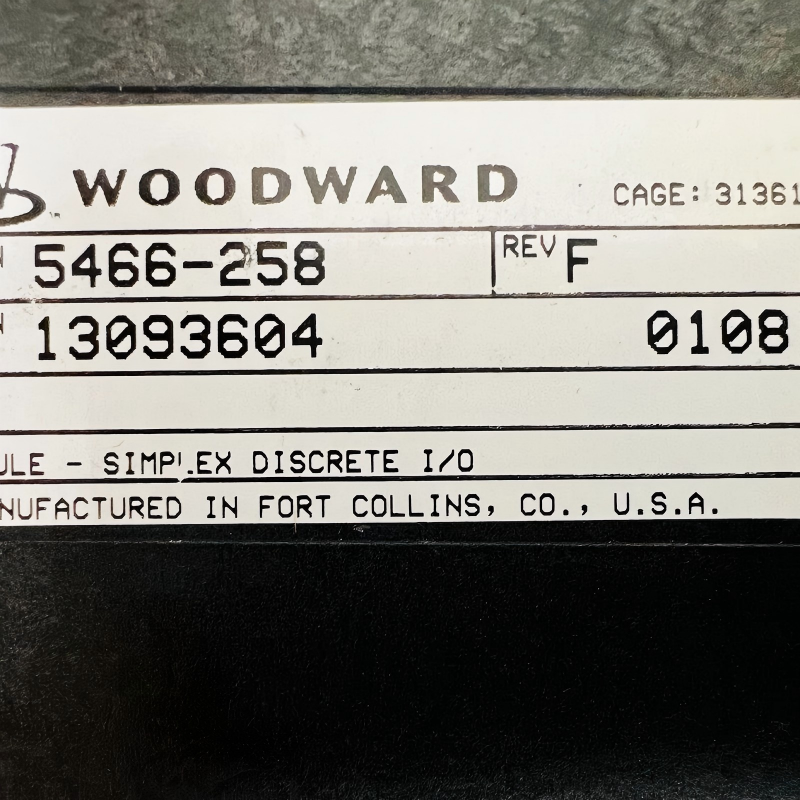

| Model | 5466-258 |
| Product Type | High-Density Discrete I/O Module |
| System Compatibility | Woodward MicroNet / MicroNet Plus / Vertex-Pro |
| Function | Digital input and output interface |
| Discrete Inputs | 48 channels |
| Discrete Outputs | 24 channels |
| Input Voltage | 18–32 VDC |
| Power Supply | 24 VDC |
| Installation Type | Plug-in chassis module |
| Mounting | VME chassis installation |
| Dimensions | 265 × 120 × 45 mm |
| Weight | 0.86 kg |
Function and Working Principle
The 5466-258 serves as the interface between the controller and field-mounted digital devices.
Its primary functions include:
- Receiving digital signals from switches, sensors, and relay contacts
- Processing discrete input status in real time
- Controlling digital outputs for relays, solenoids, and actuators
- Providing optical isolation for reliable signal transmission
- Communicating processed I/O data with the MicroNet controller
- Supporting high-speed deterministic control for critical applications
The module enables rapid monitoring of field equipment while delivering dependable output control for industrial processes.
Role in Industrial Control Systems
Within the MicroNet platform, the 5466-258 performs several essential tasks:
- Monitoring equipment status through discrete inputs
- Controlling field devices via discrete outputs
- Supporting machine sequencing and interlock logic
- Providing fast response for protection and shutdown functions
- Reducing wiring complexity with high-density I/O integration
- Improving overall system reliability and maintainability
Industrial Applications
The 5466-258 is widely used in:
- Gas turbine control systems
- Steam turbine automation
- Compressor control systems
- Power generation facilities
- Oil and gas production
- Petrochemical processing plants
- Pipeline compressor stations
- Manufacturing automation
- Water and wastewater treatment systems
Installation and System Integration
For proper installation:
- Install the module in a compatible MicroNet or Vertex-Pro chassis
- Secure the module using the front-panel retaining screws
- Connect field wiring through the appropriate Field Terminal Module (FTM)
- Verify input voltage and output wiring before energizing the system
- Configure I/O assignments using the engineering software
- Perform functional testing during commissioning
Compatible System Components
The 5466-258 typically operates with:
- Woodward MicroNet controller chassis
- Woodward MicroNet Plus systems
- Vertex-Pro chassis
- Digital Control Modules
- Analog I/O modules
- Power supply modules
- Communication interface modules
- Field Terminal Modules (FTMs)
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| 5466-258 | High-Density Discrete I/O Module | 48 digital inputs and 24 digital outputs | MicroNet automation systems |
| 5466-257 | High-Density Analog I/O Module | High-density analog signal processing | Process control |
| 5466-253 | Simulation Combination Module | Integrated analog, speed, and actuator I/O | Turbine and compressor control |
| 5466-1145 | Digital Control Module | Real-time controller processor | Industrial automation |
Key Advantages
- High-density digital I/O configuration
- Fast and reliable discrete signal processing
- Optical isolation for improved electrical noise immunity
- Supports complex industrial control applications
- Compact design reduces cabinet space requirements
- Easy integration with MicroNet control systems
- Rugged construction for harsh industrial environments
- Simplifies system expansion and maintenance
Technical FAQs
What is the primary function of the 5466-258?
It provides high-density discrete input and output processing for Woodward MicroNet control systems.
How many I/O channels does the module support?
The module supports 48 discrete input channels and 24 discrete output channels.
Which systems is it compatible with?
It is compatible with Woodward MicroNet, MicroNet Plus, and compatible Vertex-Pro control platforms.
What applications commonly use this module?
It is widely used in turbine control, compressor automation, power generation, oil and gas processing, and other industrial automation systems.
Conclusion
The Woodward 5466-258 High-Density Discrete I/O Module is a robust digital interface solution designed for the Woodward MicroNet control platform. With its high channel density, reliable discrete signal processing, and seamless integration into industrial automation systems, it provides an efficient and dependable solution for monitoring and controlling field devices in critical process applications.
