Product Overview

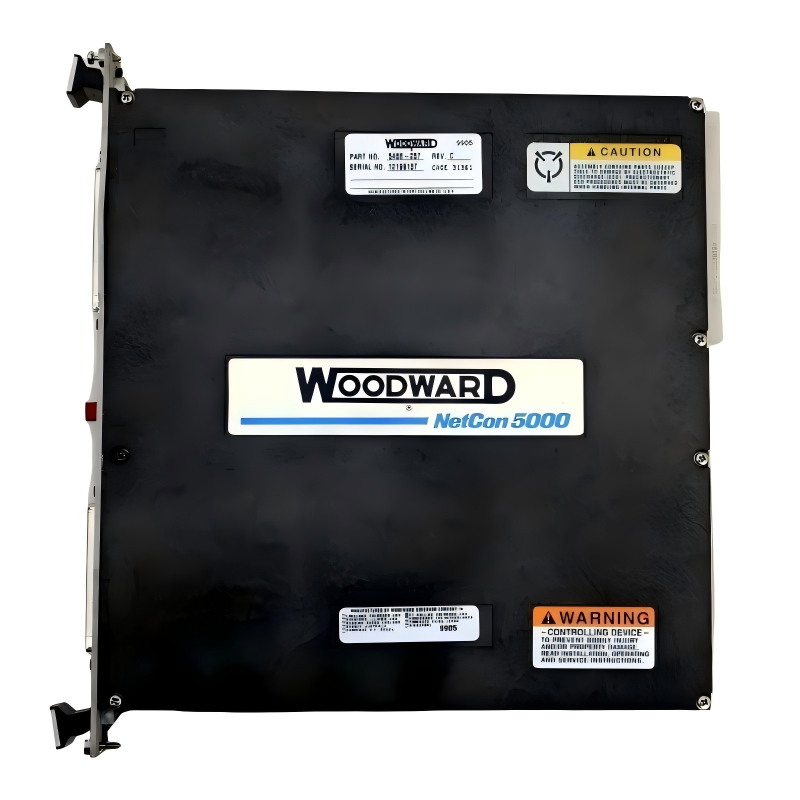

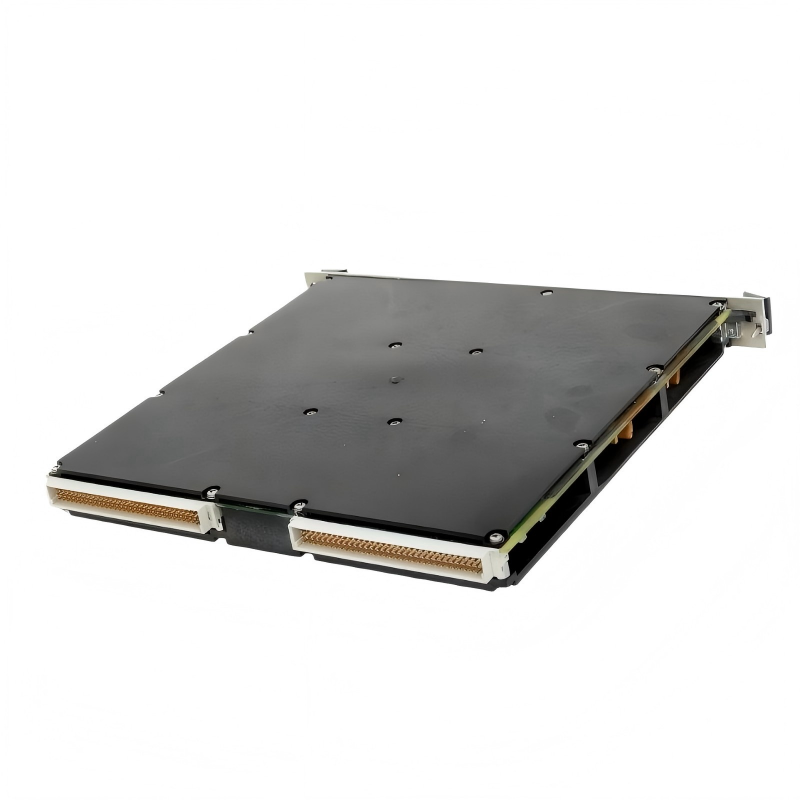

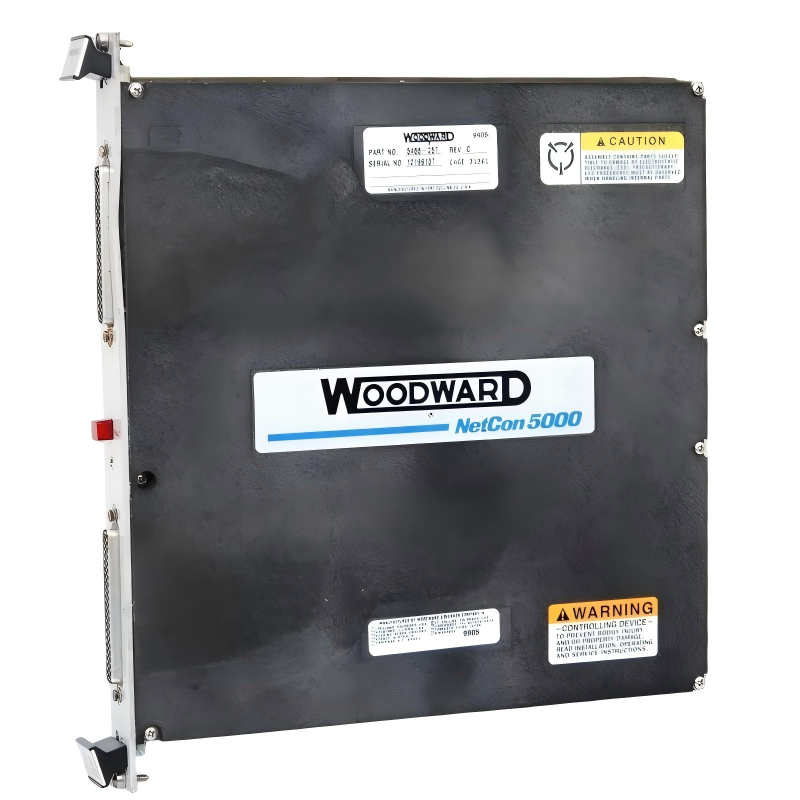

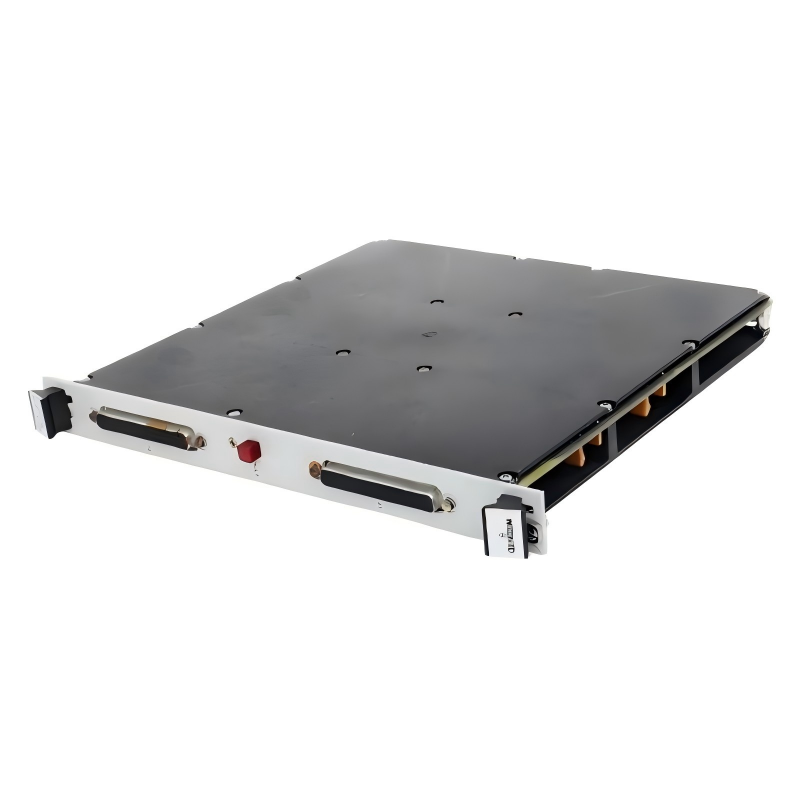

The Woodward 5466-257 High-Density Analog I/O Module is a high-performance analog input/output interface module designed for the Woodward MicroNet TMR (Triple Modular Redundant) Digital Control System. It provides high-density analog signal acquisition and output capabilities for mission-critical industrial control applications, enabling precise monitoring and control of field devices.
Designed for demanding automation environments, the module combines multiple analog channels into a compact form factor, reducing cabinet space while maintaining high-speed and reliable signal processing.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Woodward |
| Model | 5466-257 |
| Product Type | High-Density Analog I/O Module |
| System Compatibility | Woodward MicroNet TMR / MicroNet Plus |
| Function | Analog signal acquisition and output control |
| Analog Inputs | Up to 16 single-ended or 8 differential channels |
| Analog Outputs | Up to 8 single-ended or 4 differential channels |
| Digital Inputs | 8 channels |
| Operating Voltage | 24 VDC |
| Installation Type | Plug-in chassis module |
| Application | Turbine, engine, compressor, and process control |
| Dimensions | 215.9 × 157.48 × 78.74 mm |
| Weight | 1.36 kg |
Function and Working Principle
The 5466-257 serves as the interface between field instrumentation and the MicroNet controller.
Its primary functions include:
- Acquiring analog signals from transmitters and sensors
- Delivering analog output signals to actuators and control devices
- Processing high-resolution analog measurements
- Supporting both single-ended and differential input configurations
- Providing fast and reliable signal conversion for real-time control
- Exchanging processed data with the controller through the system backplane
Its high channel density allows multiple field devices to be connected using a single module, improving system efficiency and reducing installation complexity.
Role in Industrial Control Systems
Within the MicroNet platform, the 5466-257 is responsible for:
- Collecting process variables from field instruments
- Supplying control signals to valves, actuators, and other field equipment
- Supporting closed-loop process control
- Improving signal accuracy and system responsiveness
- Reducing cabinet space through high-density I/O integration
- Enhancing overall system reliability in redundant control architectures
Industrial Applications
The 5466-257 is commonly used in:
- Gas turbine control systems
- Steam turbine automation
- Compressor control systems
- Power generation facilities
- Oil and gas production
- Petrochemical processing plants
- Pipeline compressor stations
- Industrial process automation
- Energy management systems
Installation and System Integration
For proper installation:
- Install the module into a compatible MicroNet chassis
- Connect field transmitters and analog devices to the designated terminals
- Configure channel parameters through the engineering software
- Verify input and output calibration during commissioning
- Ensure proper grounding and shielding of analog wiring
- Perform periodic diagnostics to maintain optimal performance
Compatible System Components
The 5466-257 typically operates with:
- Woodward MicroNet TMR controller chassis
- Woodward MicroNet Plus systems
- Digital Control Modules
- TMR Core Power Modules
- Analog and digital I/O modules
- Communication interface modules
- Human-Machine Interface (HMI) systems
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| 5466-257 | High-Density Analog I/O Module | High-density analog signal processing | MicroNet TMR systems |
| 5466-315 | High-Density Analog I/O Module | Standard analog I/O interface | MicroNet Plus systems |
| 5466-253 | Simulation Combination Module | Integrated analog, speed, and actuator I/O | Turbine and compressor control |
| 5466-1145 | Digital Control Module | Real-time control processor | Industrial automation |
Key Advantages
- High-density analog I/O design
- Supports both analog input and output functions
- High-speed signal acquisition and processing
- Compact module reduces cabinet space
- Suitable for redundant control architectures
- Reliable operation in harsh industrial environments
- Simplifies wiring and system expansion
- Long service life with industrial-grade construction
Technical FAQs
What is the primary function of the 5466-257?
It provides high-density analog input and output processing for the Woodward MicroNet control platform.
Which systems is it compatible with?
It is designed for Woodward MicroNet TMR and compatible MicroNet Plus control systems.
Does it support both analog inputs and outputs?
Yes. The module supports multiple analog input and analog output channels, allowing it to interface with a wide range of field devices.
What industries commonly use this module?
It is widely used in power generation, turbine control, oil and gas, petrochemical processing, compressor automation, and other industrial process control applications.
Conclusion
The Woodward 5466-257 High-Density Analog I/O Module is a versatile interface module that delivers reliable analog signal acquisition and output control for the Woodward MicroNet platform. Its high channel density, compact design, and dependable performance make it an excellent choice for demanding industrial automation, turbine control, and power generation applications.
